Multi-Generational Beach House Plan with Attached Casita

Plan 42581DB

  • 2,597

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This magnificent, multi-generational house plan boasts an attached casita with a private entrance, which is perfect for extended family members.
  • The two-story front porch and exterior craftsman detailing contribute to the curb appeal.
  • The family room greets guests upon entering, providing views through the dining room and into the kitchen. Barn doors give way to unveil a pocket office with a built-in desk.
  • A prep island in the kitchen offers ample workspace and a spacious walk-in pantry sits nearby.
  • The laundry closet is located next to the kitchen to help multi-task, and a door off the kitchen leads to an optional back deck.
  • The second level of the main home features an owner's suite, complete with a step ceiling, 4-fixture bath, and a large walk-in closet. Two additional bedrooms share a full bath just down the hall.
  • Behind the 2-stall garage, a second entrance leads to a foyer with a built-in drop zone and a closet laundry room. Upstairs, discover an open family room and kitchen, storage closet, and bedroom with a full bath and walk-in closet.
  • Related Plans: Get alternate exteriors with house plans 42582DB and 42584DB.

This house plan set has the following details:

  • General Notes

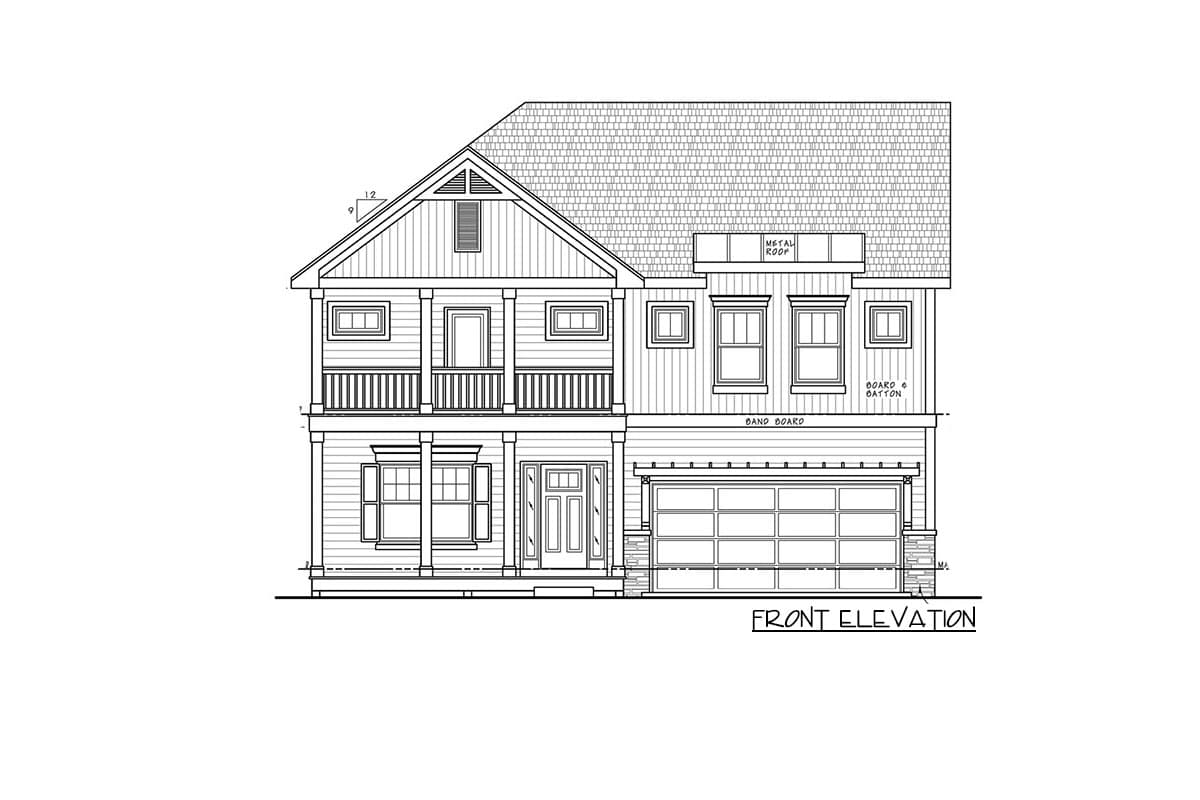

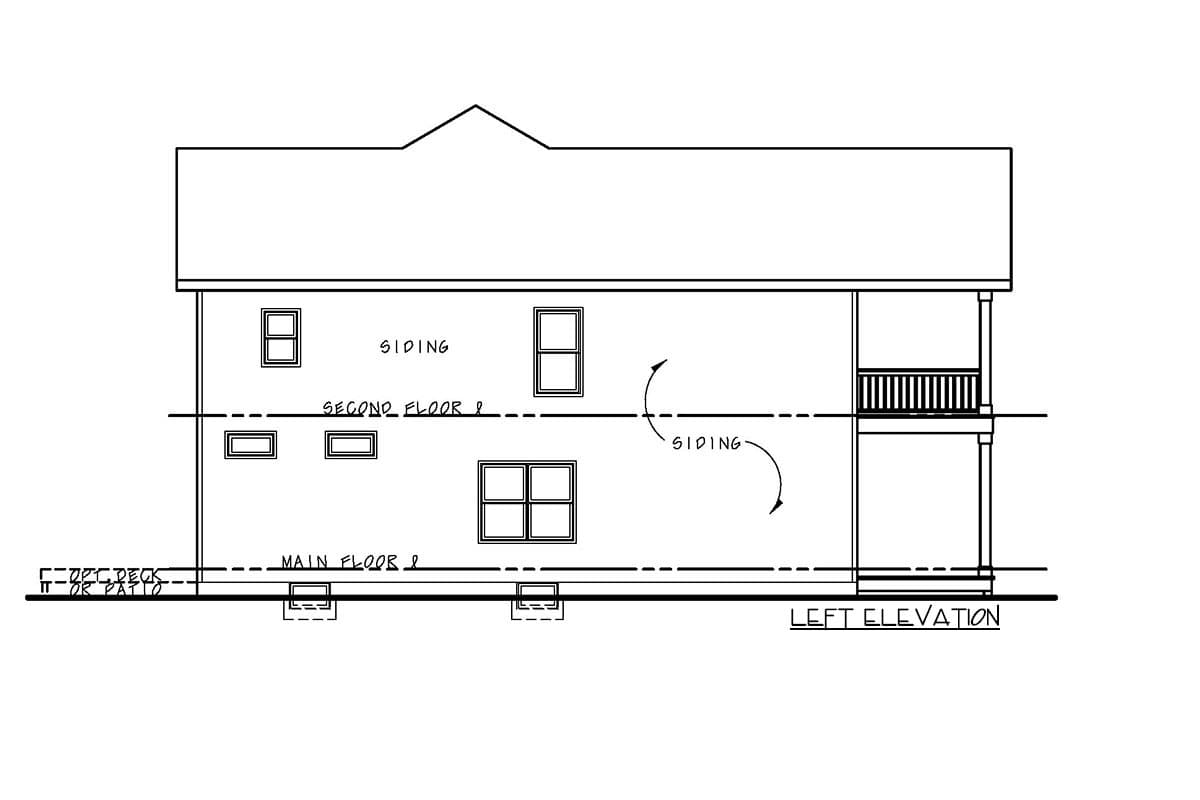

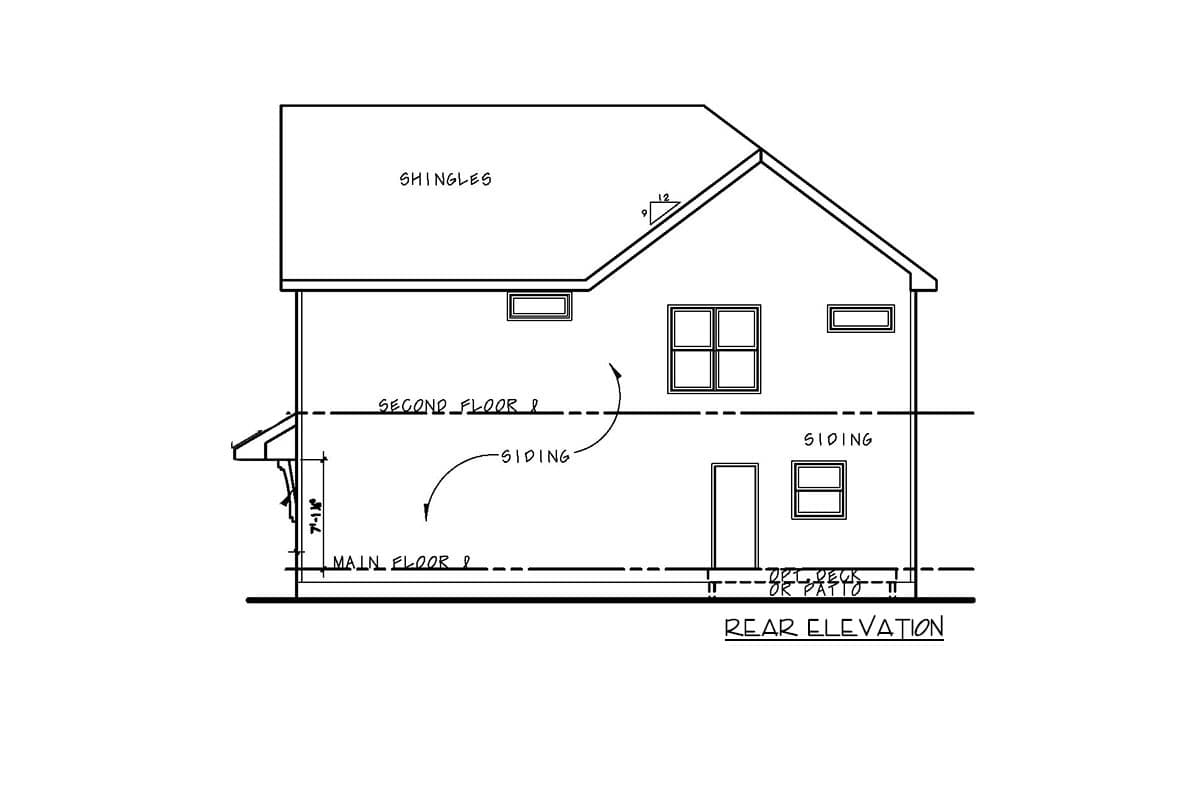

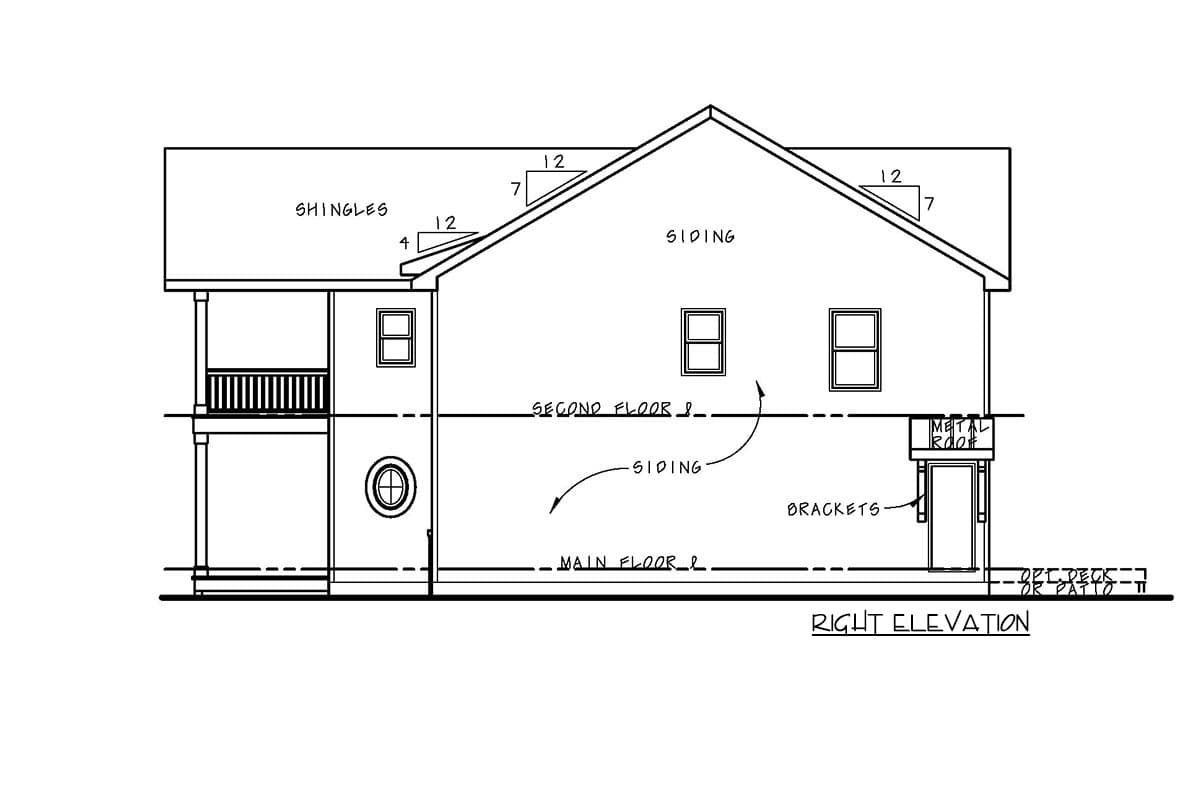

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
*Some plans include cabinet elevations. Please contact us for more information.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

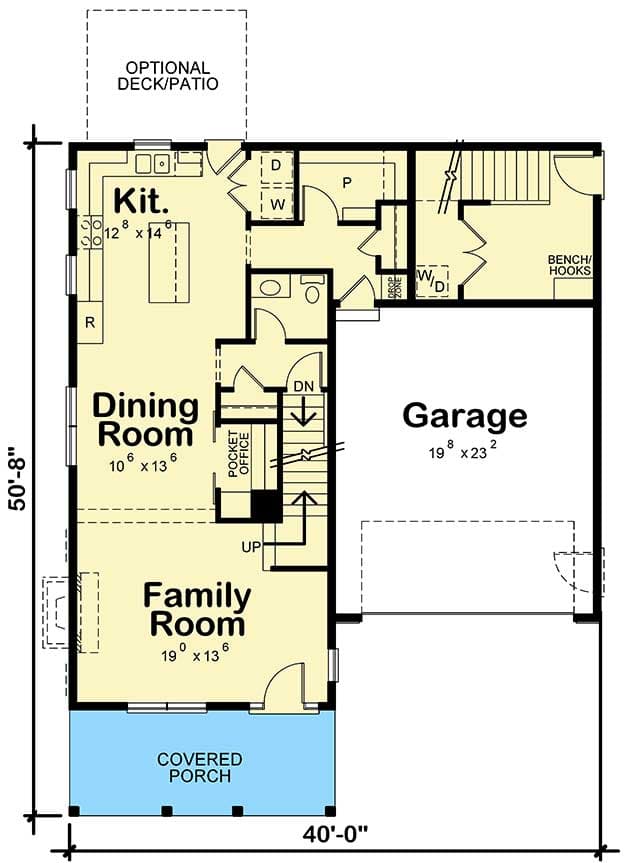

Multi-Generational Beach House Plan with Attached Casita - 42581DB floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

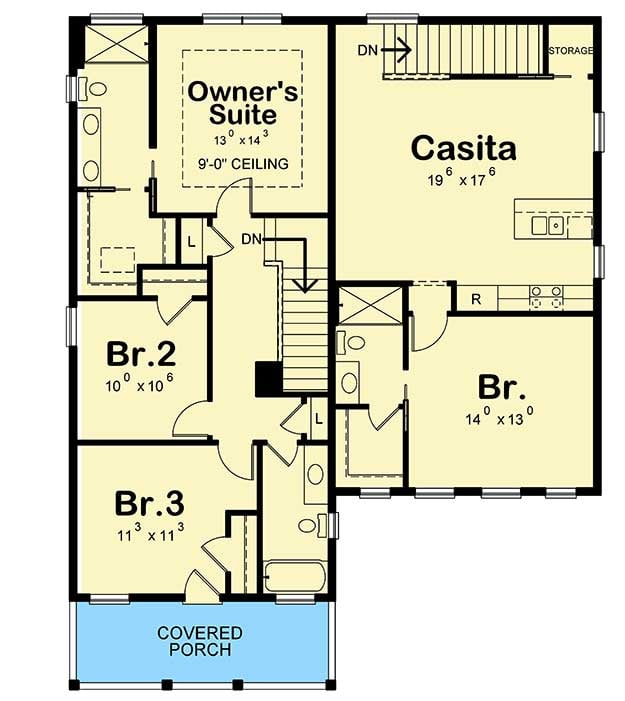

Multi-Generational Beach House Plan with Attached Casita - 42581DB floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,597 sq. ft.
  • 1st Floor: 1,100 sq. ft.
  • 2nd Floor: 1,497 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 50' 8"
  • Max ridge height: 31' 10"

Garage

  • Type: Attached
  • Area: 473 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 6 on 12

Architectural Style

Special features

Plan Collections

Multi-Generational Beach House Plan with Attached Casita

  • 2,597

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set - Digital $715
  • PDF - Single-Build $1,155
  • PDF - Unlimited Build $1,655
  • CAD + PDF - Single-Build $1,920
  • CAD - Unlimited Build $2,420
  • View all purchase option online

About This Plan

  • This magnificent, multi-generational house plan boasts an attached casita with a private entrance, which is perfect for extended family members.
  • The two-story front porch and exterior craftsman detailing contribute to the curb appeal.
  • The family room greets guests upon entering, providing views through the dining room and into the kitchen. Barn doors give way to unveil a pocket office with a built-in desk.
  • A prep island in the kitchen offers ample workspace and a spacious walk-in pantry sits nearby.
  • The laundry closet is located next to the kitchen to help multi-task, and a door off the kitchen leads to an optional back deck.
  • The second level of the main home features an owner's suite, complete with a step ceiling, 4-fixture bath, and a large walk-in closet. Two additional bedrooms share a full bath just down the hall.
  • Behind the 2-stall garage, a second entrance leads to a foyer with a built-in drop zone and a closet laundry room. Upstairs, discover an open family room and kitchen, storage closet, and bedroom with a full bath and walk-in closet.
  • Related Plans: Get alternate exteriors with house plans 42582DB and 42584DB.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,597 sq. ft.
  • 1st Floor: 1,100 sq. ft.
  • 2nd Floor: 1,497 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 50' 8"
  • Max ridge height: 31' 10"

Garage

  • Type: Attached
  • Area: 473 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 6 on 12
