Plan 58617SV

Multi-Generational House Plan with 3842 Sq Ft Main House and 2252 Sq Ft Second One

Name: Plan 58617SV: Multi-Generational House Plan with 3842 Sq Ft Main House and 2252 Sq Ft Second One
Brand: Architectural Designs
SKU: 58617SV
Price: 1896.56 USD
Availability: InStock

Heated S.F.

4,688

Beds

4 - 5

Baths

3.5 - 4.5

Stories

Cars

Floor Plan

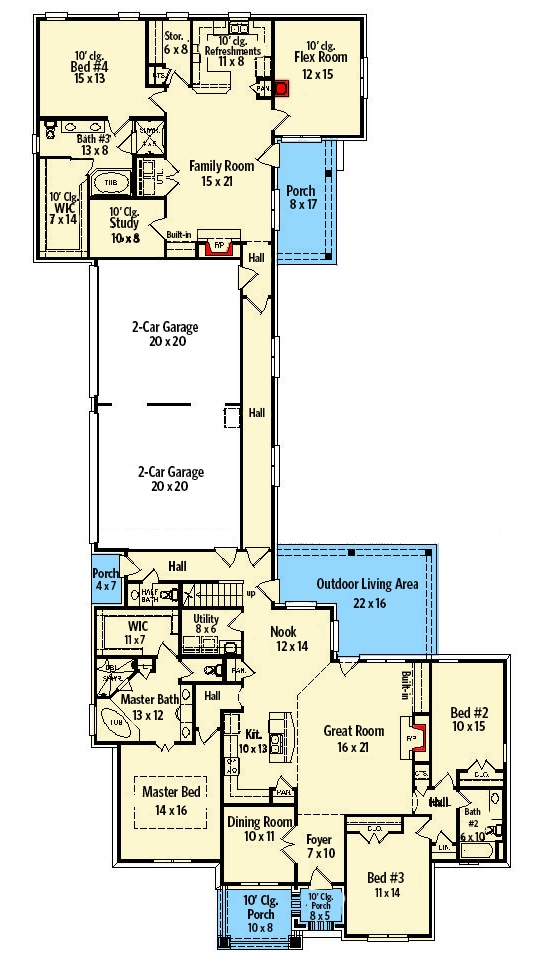

Main Level

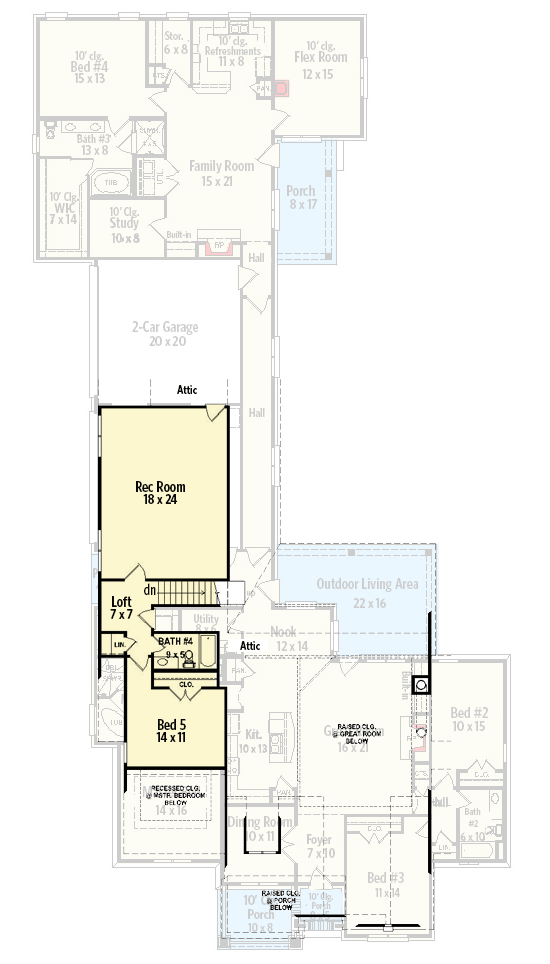

2nd Floor

Plan Details

This multi-generational house plan looks small from the outside, but it hides a spacious main house and a whole other in-law home in back.
Connected by a long interior hallway, the in-law house is 1,590 square feet.
With a study, hobby room, large bedroom and lots of storage it can also be used for rental income.
The main house is a whopping 3,842 square feet, with 2,252 square feet on the main level and 826 square feet on the upper floor.
There's a grand open floor plan and three bedrooms on the first floor.
Take the stairs to the second floor where you'll see the fourth bedroom, loft space and a massive rec room.
This is truly a home for multi-generations.

What's Included

Foundation Sheet
1st Level Floor Plan
2nd & 3rd Level Floor Plans
Framing Section
Roof Plan
Cabinet Details
Stair Detail

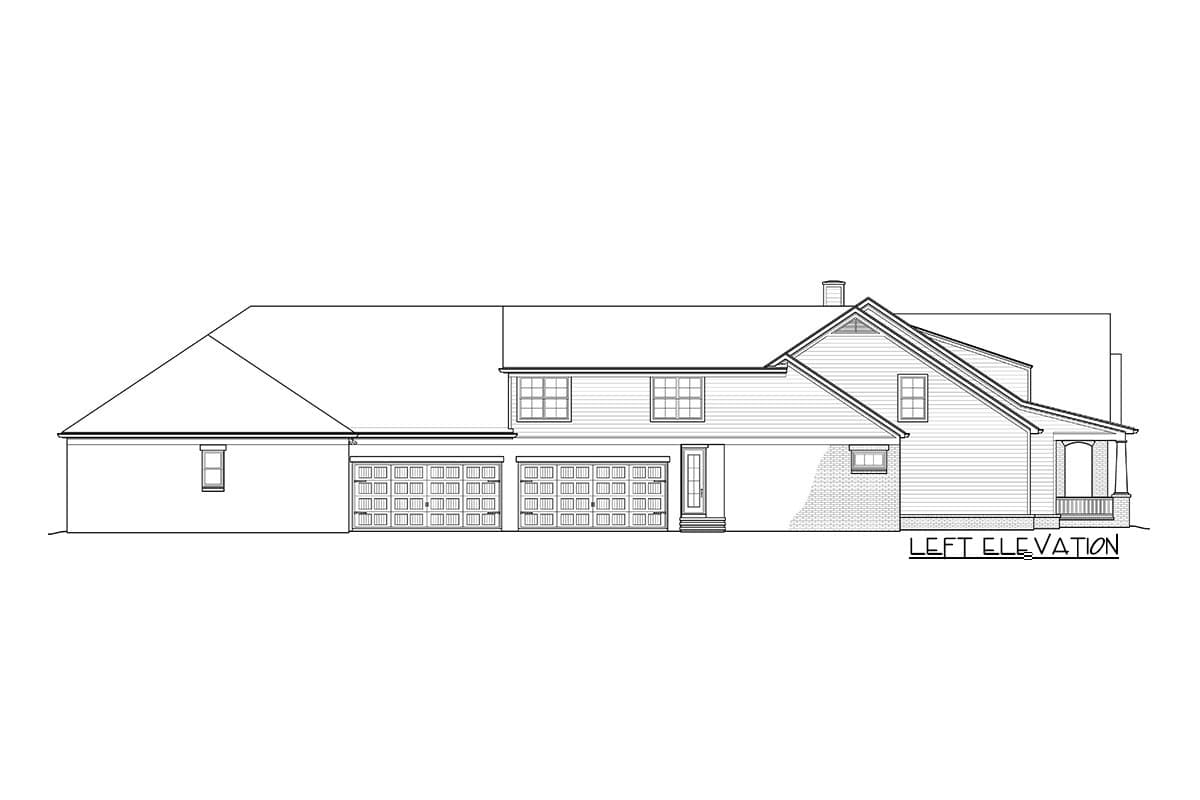

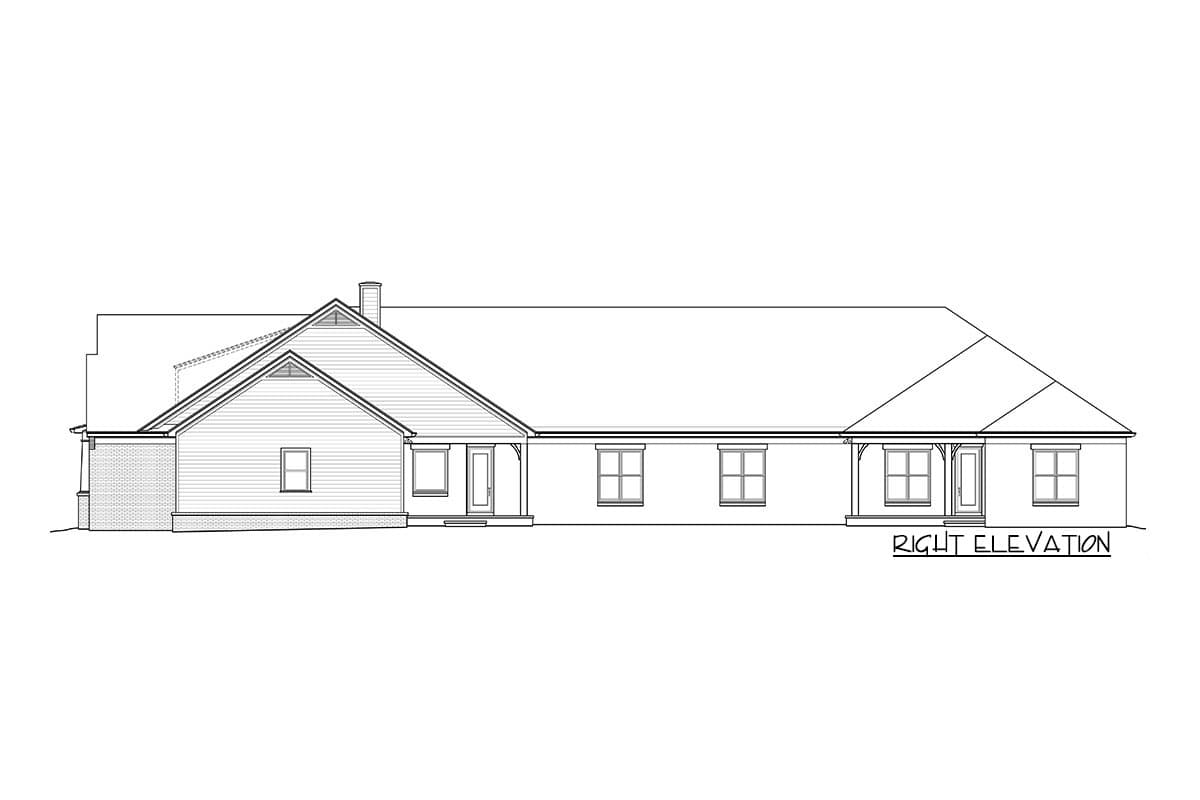

Front and Side Elevation

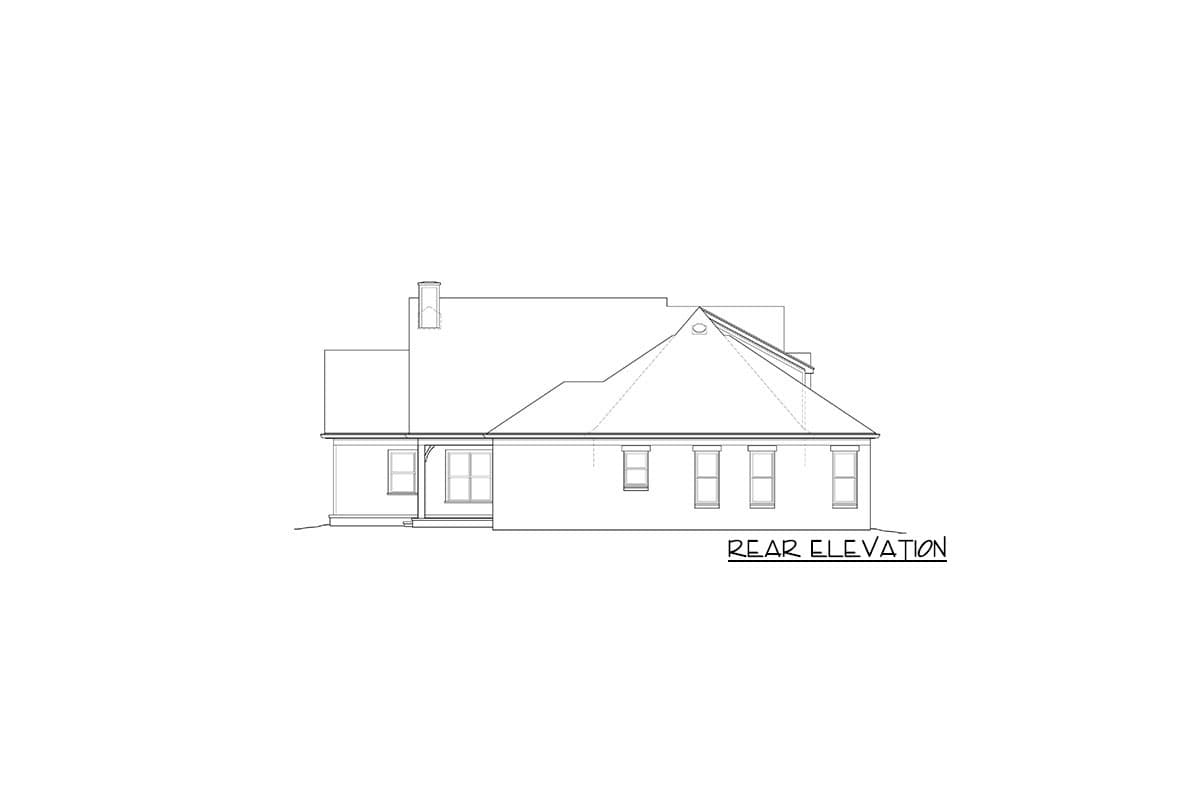

Rear and Side Elevations

May not apply to carports, garages, pool houses, storage bldgs, barns, ETC

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
