Multi-generational House Plan with Stone Exterior

Plan 21767DR

  • 2,885

    Heated s.f.

  • 6

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • A large master suite and second bedroom complete the design.
  • A split entryway defines this multi-generational house plan. The right side of the lower floor is a complete in-law suite with with its own kitchen.
  • To the right, enter the family portion with an open living/dining room and kitchen in the rear.
  • Upstairs, you get a second family room plus bedrooms.

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Truss Diagrams & Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

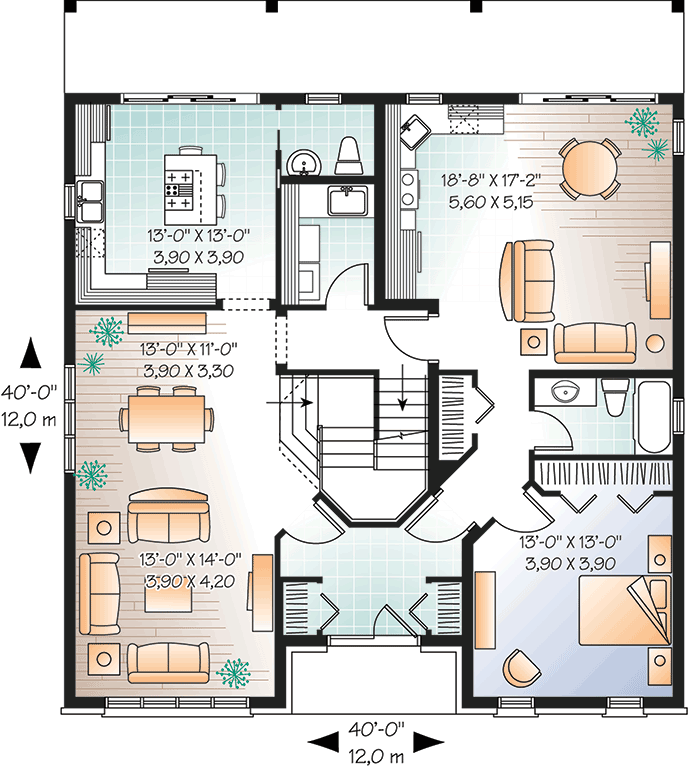

Multi-generational House Plan with Stone Exterior - 21767DR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

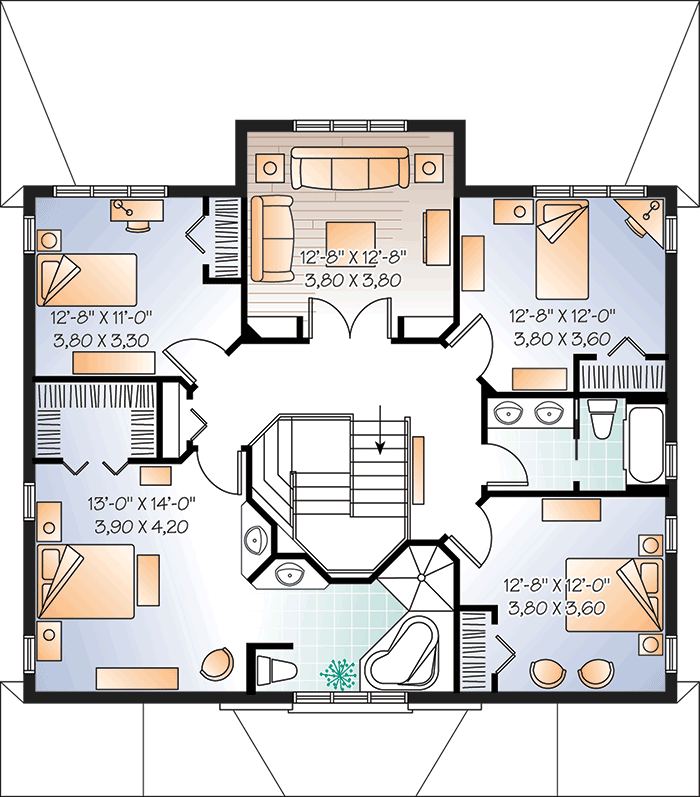

Multi-generational House Plan with Stone Exterior - 21767DR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,885 sq. ft.
  • 1st Floor: 1,557 sq. ft.
  • 2nd Floor: 1,328 sq. ft.

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Slab, Crawl, Walkout, Daylight

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 40' 0"
  • Max ridge height: 28' 7"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Architectural Style
