Plan 59824ND

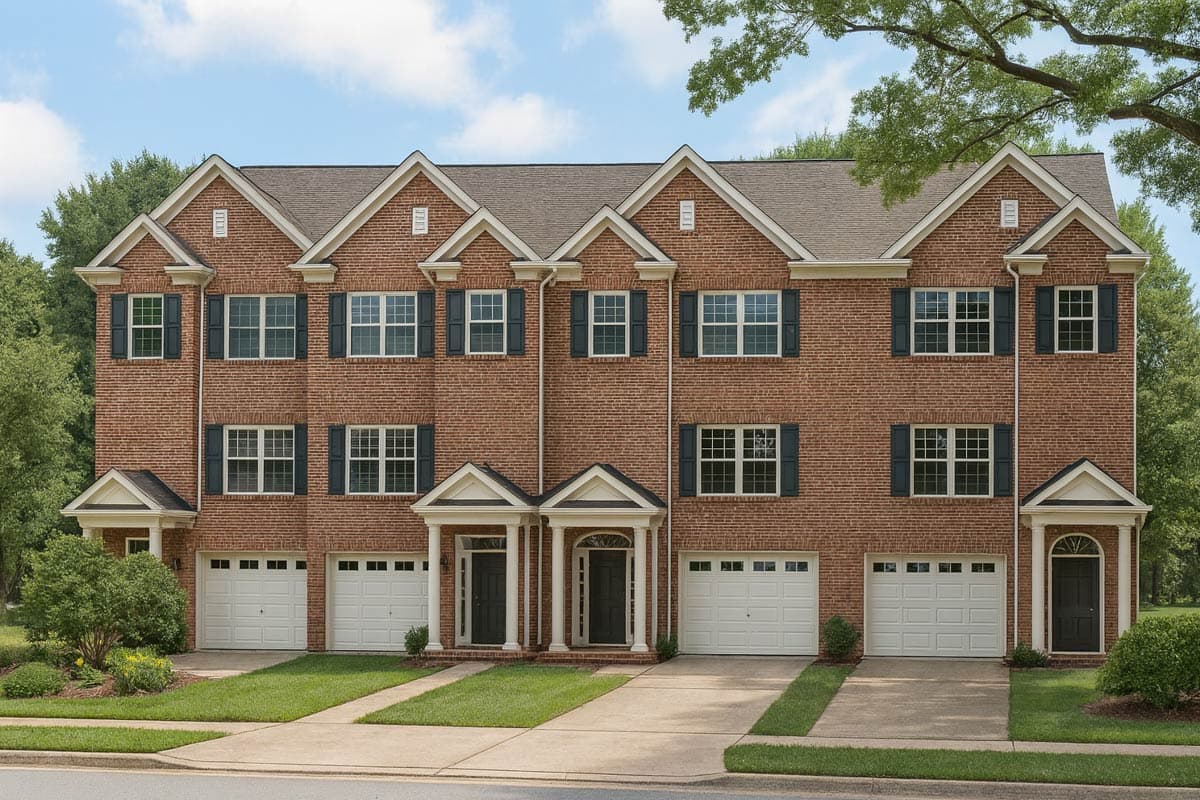

Multi-Plex House Plan with Drive-Under Parking and 1295 Square Foot 2 Bedroom Units
Heated S.F.
5,180
Units
4
Width
73'
Depth
39' 8"
Cars
4
What's Included
Plan Details
  • This multi-plex house plan features a single garage and optional 256 square foot bonus room on the ground floor for each of the 4 apartments.
  • Each unit delivers 1,295 square feet of heated living with 2 beds and 2.5 baths.
  • The lower level is dedicated to parking and bonus space.
  • The main floor has a great room with a cozy corner fireplace, an open kitchen with an eat-at island bar, dining area and a convenient half bath. A deck is off the dining area, perfect for entertaining.
  • The top floor is dedicated to bedrooms and laundry.
Unit A
1,295 Sq. Ft.
667 Sq. Ft. 1st Floor
628 Sq. Ft. 2nd Floor
2 Beds
2 Full Baths
1 Vehicle
Drive Under
403 Sq. Ft.
18' 3" w 39' 8" d 44' h
Unit B
1,295 Sq. Ft.
667 Sq. Ft. 1st Floor
628 Sq. Ft. 2nd Floor
2 Beds
2 Full Baths
1 Vehicle
Drive Under
403 Sq. Ft.
18' 3" w 39' 8" d 44' h
Unit C
1,295 Sq. Ft.
667 Sq. Ft. 1st Floor
628 Sq. Ft. 2nd Floor
2 Beds
2 Full Baths
1 Vehicle
Drive Under
403 Sq. Ft.
18' 3" w 39' 8" d 44' h
Unit D
1,295 Sq. Ft.
667 Sq. Ft. 1st Floor
628 Sq. Ft. 2nd Floor
2 Beds
2 Full Baths
1 Vehicle
Drive Under
403 Sq. Ft.
18' 3" w 39' 8" d 44' h
What's Included
  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Multi-Plex House Plan with Drive-Under Parking and 1295 Square Foot 2 Bedroom Units

  • 5,180

    Heated s.f.

  • 4

    Units

  • 73'

    Width

  • 39' 8"

    Depth

Floor Plan

  • Garage Level

  • Main Level

  • Upper Level

Plan Details

Square Footage Breakdown

  • Total: 5,180 sq. ft.
  • 1st Floor: 2,668 sq. ft.
  • 2nd Floor: 2,512 sq. ft.

Dimensions

  • Width: 73' 0"
  • Depth: 39' 8"
  • Max ridge height: 44' 8"

Beds/Baths

  • Bedrooms: 8
  • Full bathrooms: 8
  • Half bathrooms: 4

Garage

  • Type: Drive Under
  • Area: 1612 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
