Mutli-generational Sloping Lot Mountain House Plan

Plan 68918VR

  • 2,411

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Stories

  • A timber-frame truss lends character to the front porch of this sloping-lot mountain house plan. With two kitchen and living areas, it makes a great multi-generational home.
  • The sun-drenched interior features a two-story great room with a vaulted ceiling and floor to ceiling windows. The adjoining eat-in kitchen includes a multi-purpose island and easy access to the deck for grilling.
  • The master bedroom is located on the main floor and has a 4-fixture bathroom and a large walk-in closet.
  • In the lower level, there are two bedrooms that share a bath and a second kitchen and open area. There's also a dedicated area for mechanicals. Two sets of sliding doors in the family area open to outside.
  • Related Plans: Get an alternate version with house plans 68856VR and 68747VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

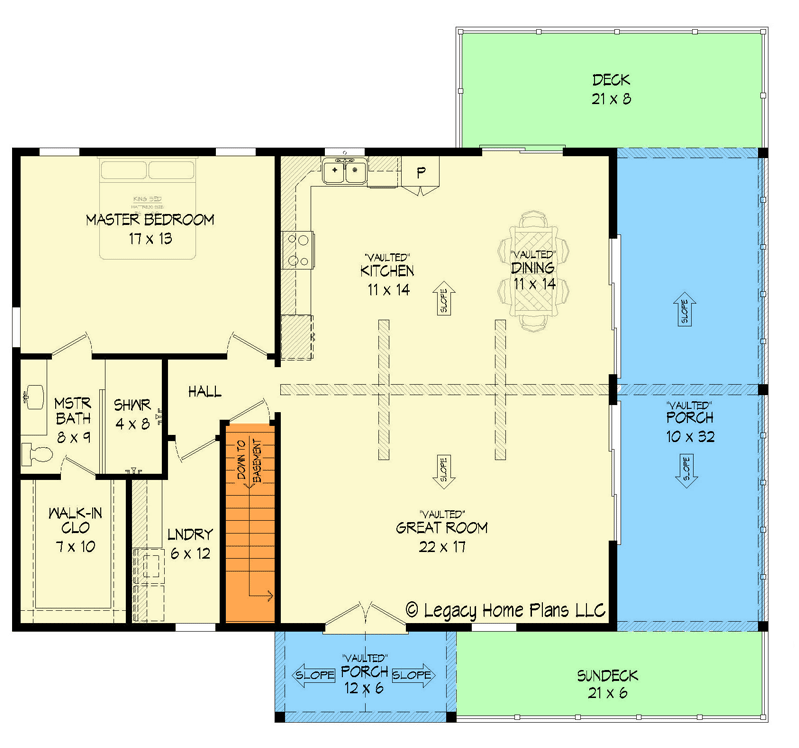

Mutli-generational Sloping Lot Mountain House Plan - 68918VR floor plan - Main Level

Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

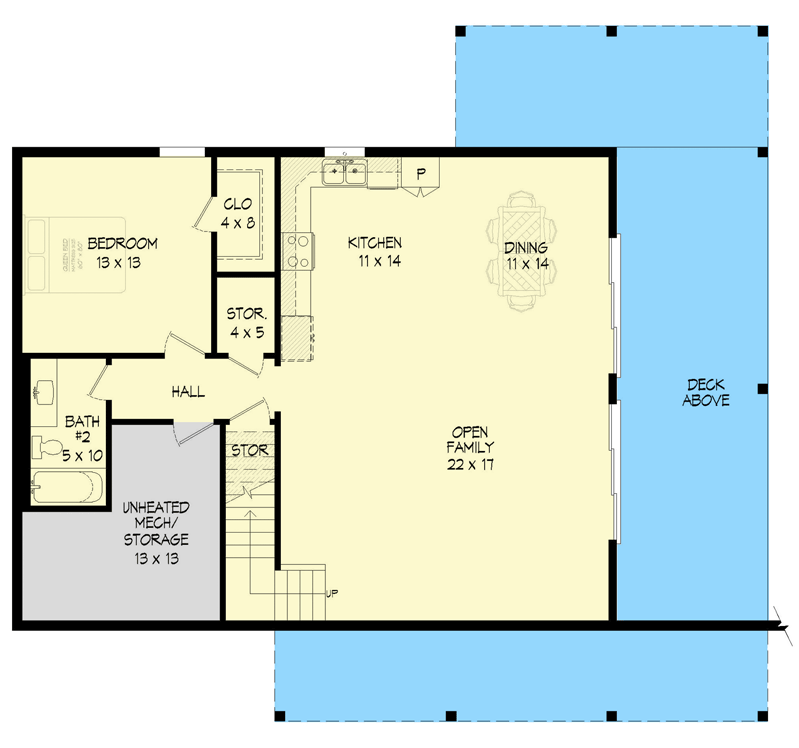

Mutli-generational Sloping Lot Mountain House Plan - 68918VR floor plan - Basement

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,411 sq. ft.
  • Lower Level: 1,131 sq. ft.
  • 1st Floor: 1,280 sq. ft.
  • Porch, Combined: 684 sq. ft.
  • Basement Unfinished: 149 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Walkout
  • Optional Foundations: Crawl, Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 50' 0"
  • Depth: 44' 0"
  • Max ridge height: 27' 2"

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 9' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Mutli-generational Sloping Lot Mountain House Plan

  • 2,411

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $1,375
  • 5 Sets $1,460
  • 5 Sets + PDF $1,598
  • CAD + PDF - Single-Build $1,925
  • View all purchase option online

About This Plan

  • A timber-frame truss lends character to the front porch of this sloping-lot mountain house plan. With two kitchen and living areas, it makes a great multi-generational home.
  • The sun-drenched interior features a two-story great room with a vaulted ceiling and floor to ceiling windows. The adjoining eat-in kitchen includes a multi-purpose island and easy access to the deck for grilling.
  • The master bedroom is located on the main floor and has a 4-fixture bathroom and a large walk-in closet.
  • In the lower level, there are two bedrooms that share a bath and a second kitchen and open area. There's also a dedicated area for mechanicals. Two sets of sliding doors in the family area open to outside.
  • Related Plans: Get an alternate version with house plans 68856VR and 68747VR.

Floor Plans

  • Main Level

  • Basement

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,411 sq. ft.
  • Lower Level: 1,131 sq. ft.
  • 1st Floor: 1,280 sq. ft.
  • Porch, Combined: 684 sq. ft.
  • Basement Unfinished: 149 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Crawl, Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 50' 0"
  • Depth: 44' 0"
  • Max ridge height: 27' 2"

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
