Plan 9310EL

Exclusive

Nantucket Style Manor House Plan

Heated S.F.
3,756
Beds
3 - 4
Baths
3.5
Stories
2
Cars
3

Floor Plan

Plan 9310EL

Main Level
Main Level
2nd Floor
2nd Floor

Plan 9310EL

M-F 9am-5pm EST |

1-203-761-8500

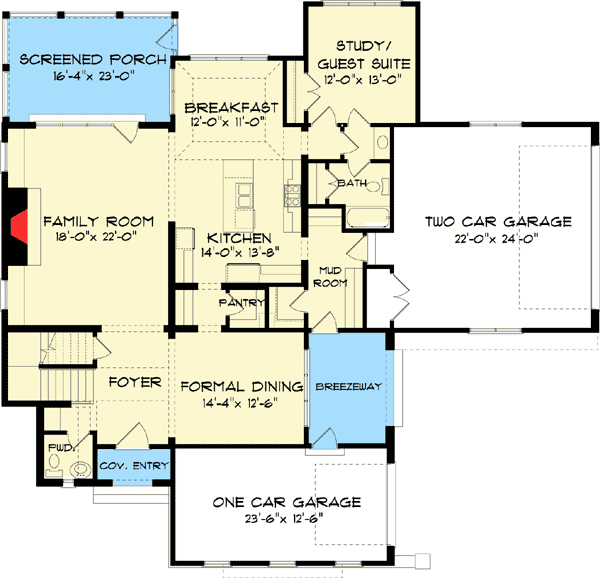

Main Level

Plan 9310EL: Nantucket Style Manor House Plan - Floor Plan - Main Level - Cottage, Southern, Traditional

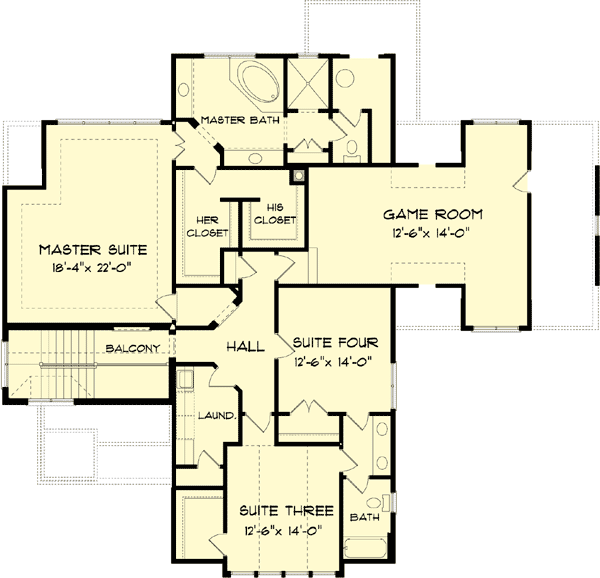

2nd Floor

Plan 9310EL: Nantucket Style Manor House Plan - Floor Plan - 2nd Floor - Cottage, Southern, Traditional

Plan Details

  • This amazing English Manor Nantucket style open floor plan is perfect for both everyday living and entertaining.
  • The gourmet island kitchen includes a large breakfast area, walk-in pantry and an adjacent formal dining room.
  • There's flex space that's just right for an office, playroom or mother-in-law suite.
  • The spacious family room opens onto a screened porch.
  • Upstairs features a spacious owner's suite with his and her's walk-in closets, plus a game room.
  • Parking is no problem, thanks to two separate garages, one with 2-car dimensions and the other for a single car.

What's Included

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • Floor Plan
  • Bird's Eye Roof Plan
  • 4 Elevations
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • Electrical

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,756 sq. ft.

1st Floor

1,682 sq. ft.

2nd Floor

2,074 sq. ft.

Porch, Combined

376 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

65' 10"

Depth

63' 6"

Max Ridge Height

36' 8"

Garage

Type

Attached

Area

822 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

14 on 12

Framing Type

Stick

Architectural Style

Cottage

Southern

Traditional

Special Features

Butler Walk-in Pantry

Formal Dining

Game/Rec Room

Home Office

In-Law Suite

Jack & Jill Bath

Laundry - Main Level

Master Suite - Upstairs

Playroom

Plan Collections

Exclusive

Home Office

Photo Gallery
