Narrow 3-Story Townhouse Plan - 1986 Sq Ft - Architectural Designs

Heated S.F.
1,986
Beds
4
Baths
3.5
Stories
3
Cars
1

Floor Plan

Plan 23941JD

Ground Level
Ground Level
2nd Floor
2nd Floor
3rd Floor
3rd Floor

Plan 23941JD

M-F 9am-5pm EST |

1-203-761-8500

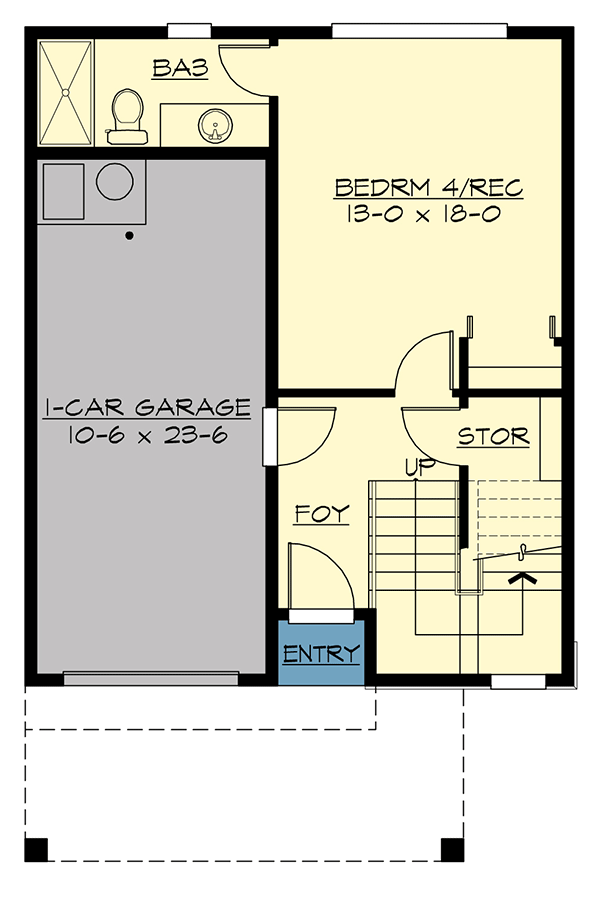

Ground Level

Plan 23941JD: Narrow 3-Story Townhouse Plan - 1986 Sq Ft - Architectural Designs - Floor Plan - Ground Level - Contemporary, Northwest, Prairie, Transitional

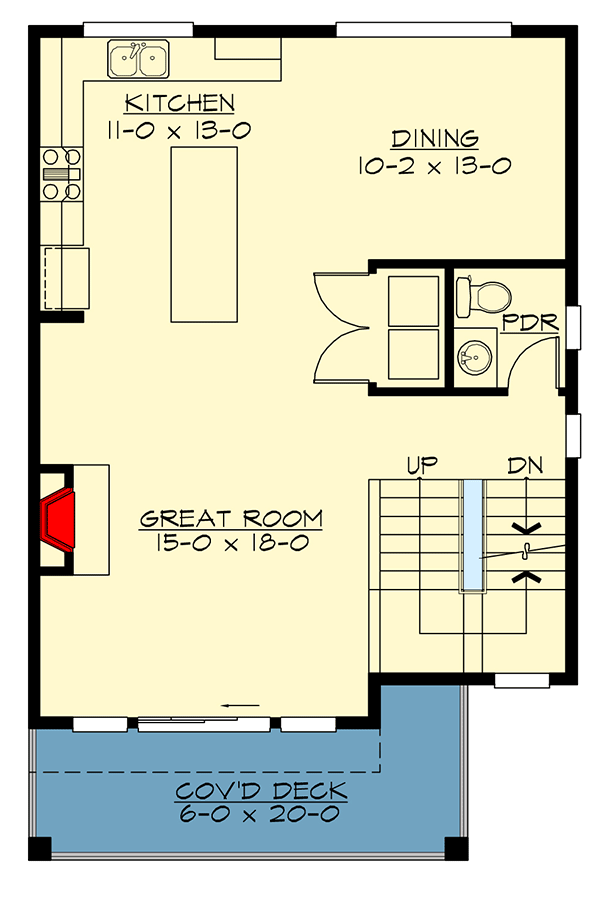

2nd Floor

Plan 23941JD: Narrow 3-Story Townhouse Plan - 1986 Sq Ft - Architectural Designs - Floor Plan - 2nd Floor - Contemporary, Northwest, Prairie, Transitional

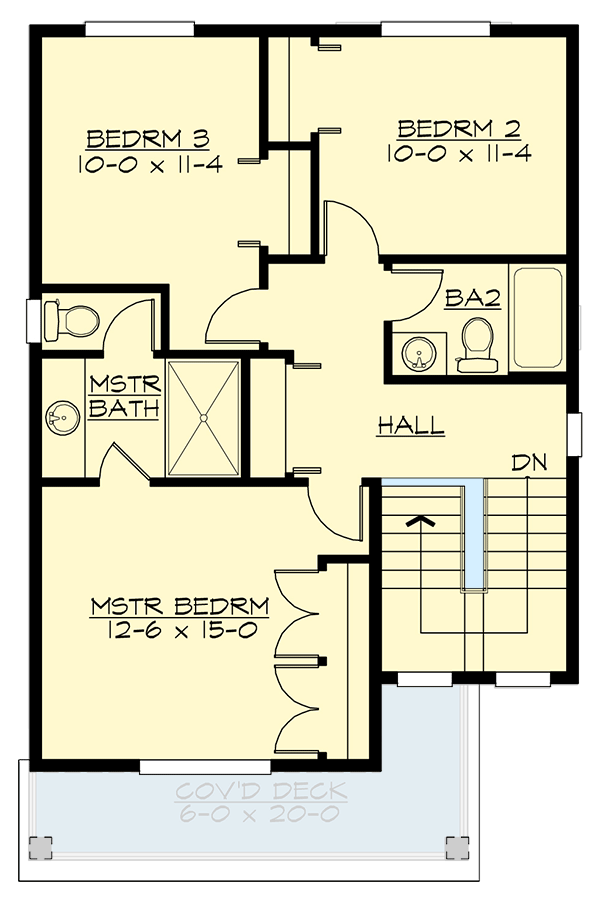

3rd Floor

Plan 23941JD: Narrow 3-Story Townhouse Plan - 1986 Sq Ft - Architectural Designs - Floor Plan - 3rd Floor - Contemporary, Northwest, Prairie, Transitional

Plan Details

  • This 3-story narrow lot house plan gives has a 25-foot-wide footprint making it ideal for your narrow lot needs. Inside, it gives you 4 beds, 3.5 baths and 1986 square feet of heated living.
  • The ground level has parking for 1 car (266 square feet), a flex room suite and a family foyer.
  • The second floor is open concept and where you'll gather with friends in the great room with fireplace and covered deck access which is open to the dining room and kitchen with double sink overlooking the back. Laundry is tucked away in a closet.
  • Three bedrooms are on the third floor.
  • Related Plan: Get an alternate 25'-wide home with house plan 23942JD.
  • NOTE: If building in the state of Washington, your plan purchase cannot be done online.  Please contact us directly.

What's Included

  • Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
  • Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
  • Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

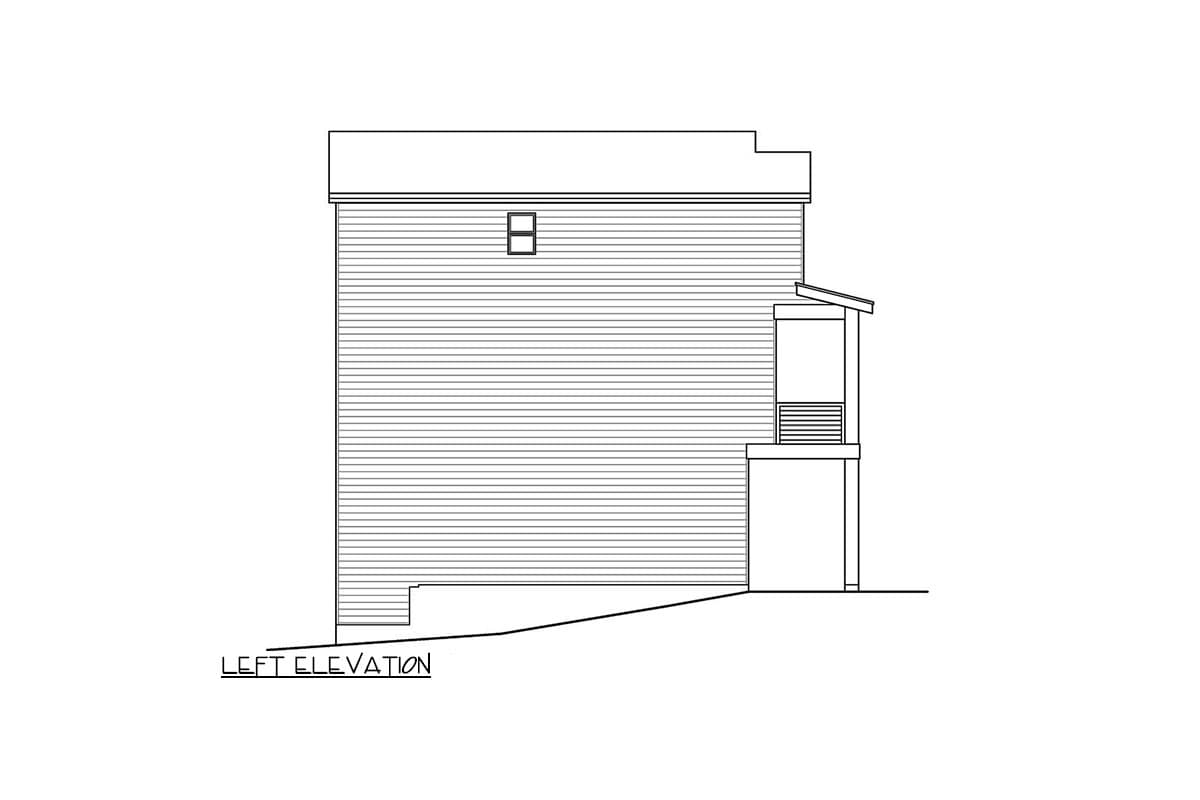

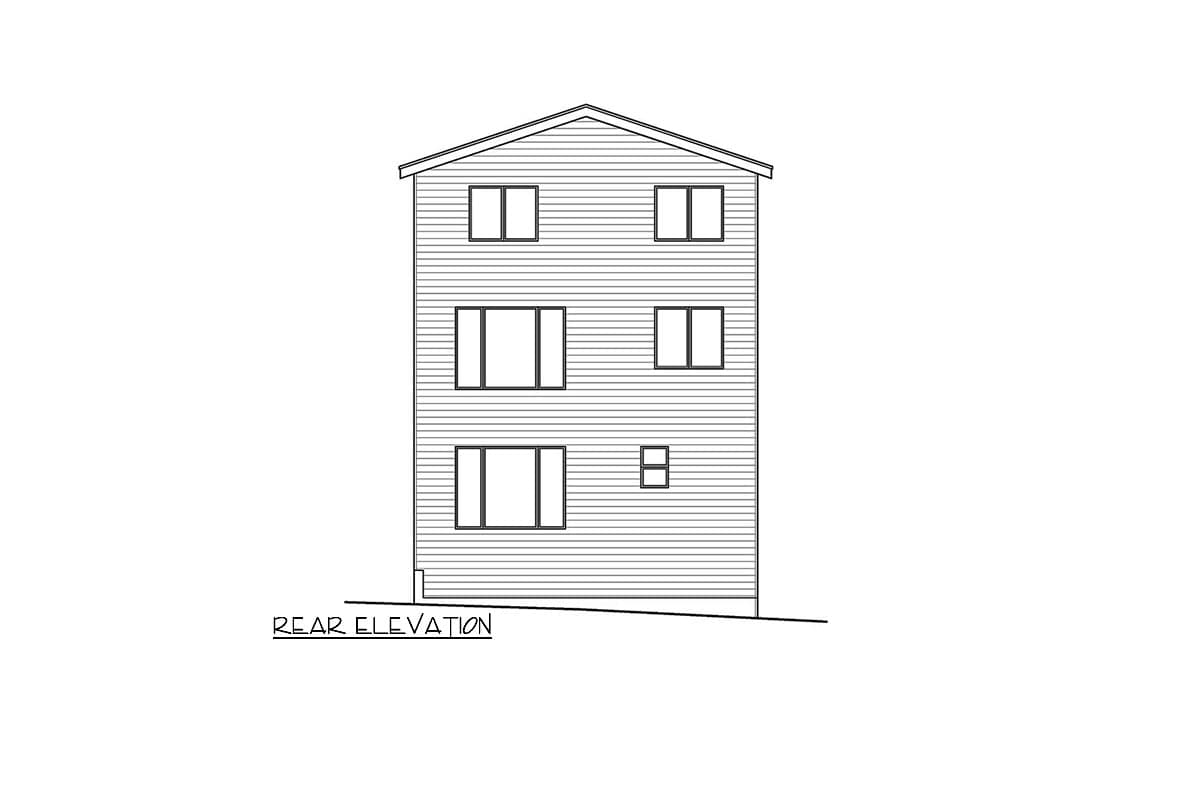

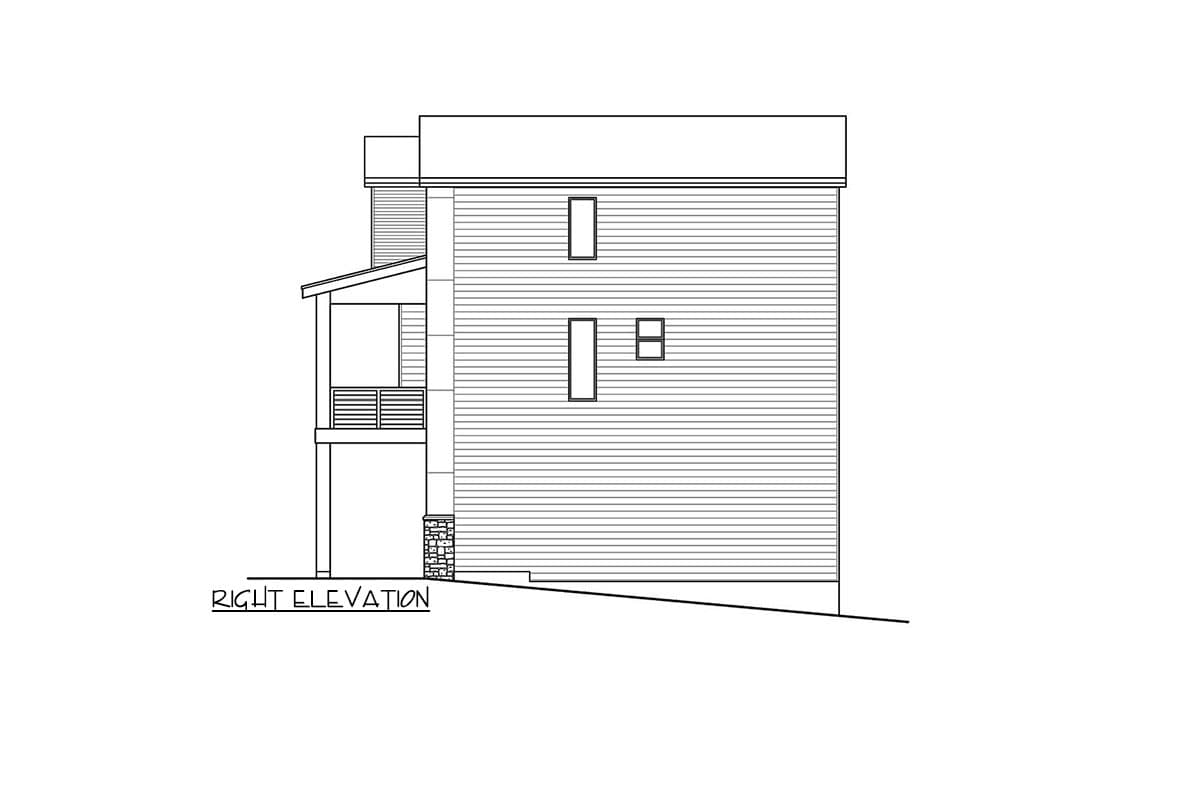

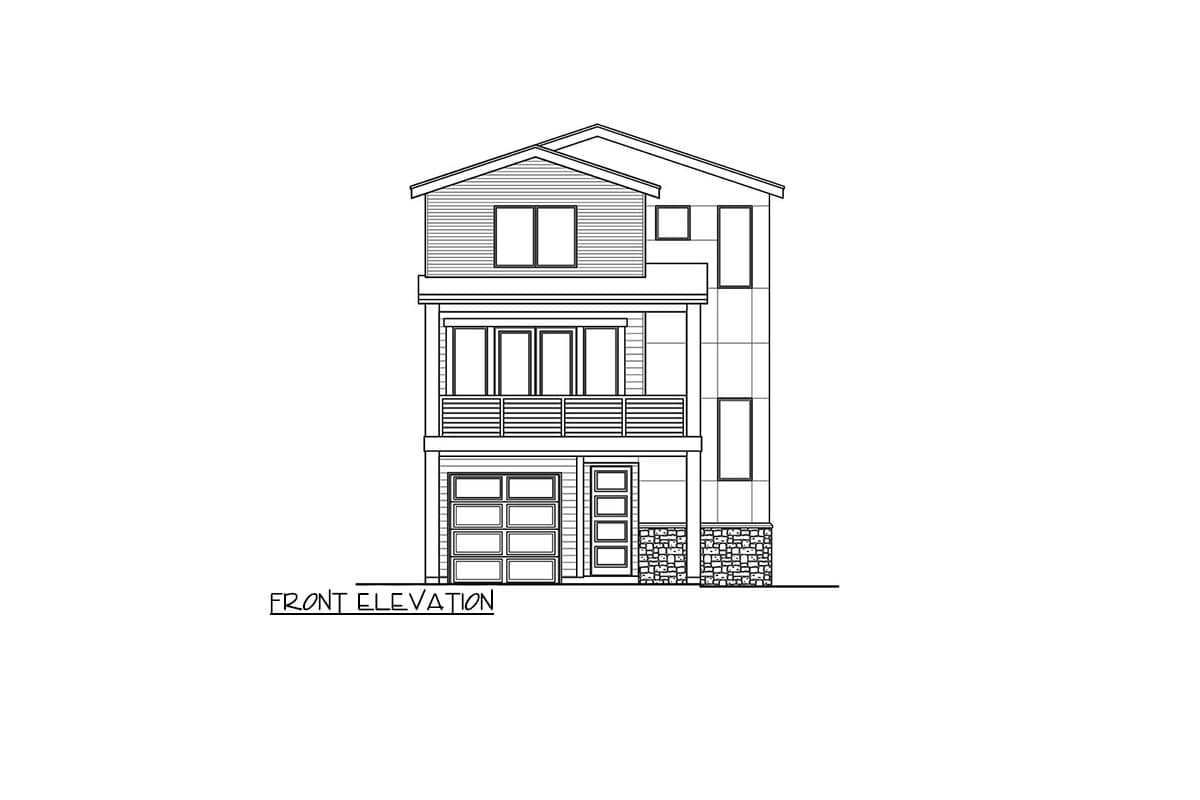

  • Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • Building Section Sheet - Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
View Sample Plan

What's Not Included

  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,986 sq. ft.

1st Floor

473 sq. ft.

2nd Floor

782 sq. ft.

3rd Floor

731 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

25' 0"

Depth

38' 0"

Max Ridge Height

33' 0"

Garage

Type

Drive Under, Attached

Area

266 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

3 on 12

Framing Type

Truss

Architectural Style

Contemporary

Northwest

Prairie

Transitional

Special Features

Bedrooms - Clustered

Flex Room

Game/Rec Room

Laundry - Upstairs

Square Footage Breakdown

Total Heated Area

1,986 sq. ft.

1st Floor

473 sq. ft.

2nd Floor

782 sq. ft.

3rd Floor

731 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

25' 0"

Depth

38' 0"

Max Ridge Height

33' 0"

Garage

Type

Drive Under, Attached

Area

266 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

3 on 12

Framing Type

Truss

Architectural Style

Contemporary

Northwest

Prairie

Transitional

Special Features

Bedrooms - Clustered

Flex Room

Game/Rec Room

Laundry - Upstairs
