Plan: 51715HZ

Narrow 4 Bed Cottage with Metal Roof

2,184 4 3 2 2
Pageloader

Narrow 4 Bed Cottage with Metal Roof

Plan 51715HZ

  • 2,184

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • This narrow lot house plan has a great appeal with 10' ceilings throughout the first floor. The spacious front porch enters into a large great room featuring a gas fireplace and a decorative staircase entrance to the second floor.
  • The kitchen and dining room have the advantage of a nearby pantry and are open to the great room for convenience in entertaining.
  • The master suite is nestled privately down the hall on the first floor. It offers a sizable master bath and closet. Three other bedrooms are situated on the second floor featuring 9 foot ceilings.
  • The generous loft opens to all three upstairs' bedrooms and the second full bath.
  • Plenty of attic storage is also readily available on the second floor.
  • The standing seam metal roof is stick framed with a 9:12 main pitch and a 12:12 secondary pitch

This designer's plans include the following details:

  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

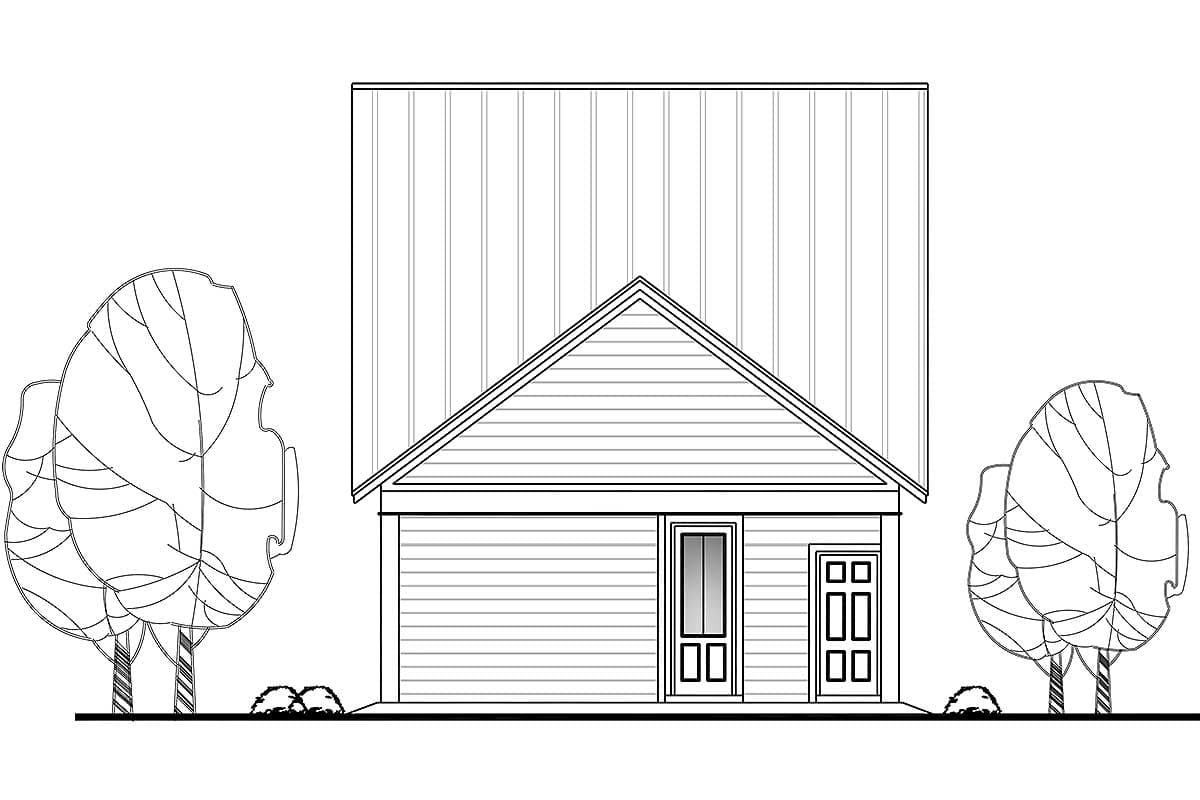

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section
  • Kitchen cabinet views
  • Electrical plan
  • Span charts and other misc details

Floor Plan

Plan details



Narrow 4 Bed Cottage with Metal Roof

  • 2,184

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $1,045
  • 5 Sets $1,195
  • CAD - multi-use $1,845
  • View all purchase option online

About This Plan

  • This narrow lot house plan has a great appeal with 10' ceilings throughout the first floor. The spacious front porch enters into a large great room featuring a gas fireplace and a decorative staircase entrance to the second floor.
  • The kitchen and dining room have the advantage of a nearby pantry and are open to the great room for convenience in entertaining.
  • The master suite is nestled privately down the hall on the first floor. It offers a sizable master bath and closet. Three other bedrooms are situated on the second floor featuring 9 foot ceilings.
  • The generous loft opens to all three upstairs' bedrooms and the second full bath.
  • Plenty of attic storage is also readily available on the second floor.
  • The standing seam metal roof is stick framed with a 9:12 main pitch and a 12:12 secondary pitch

Floor Plans

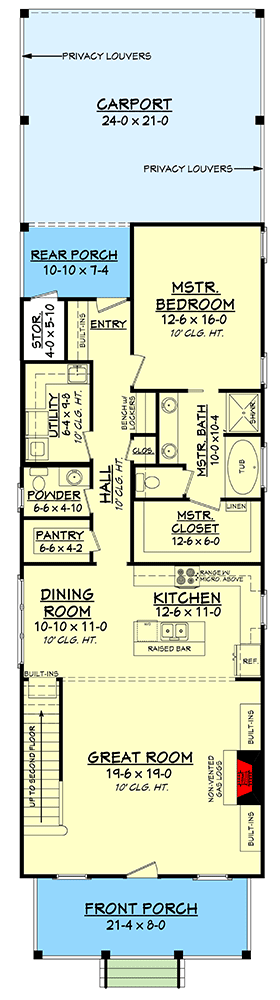

  • Main Level

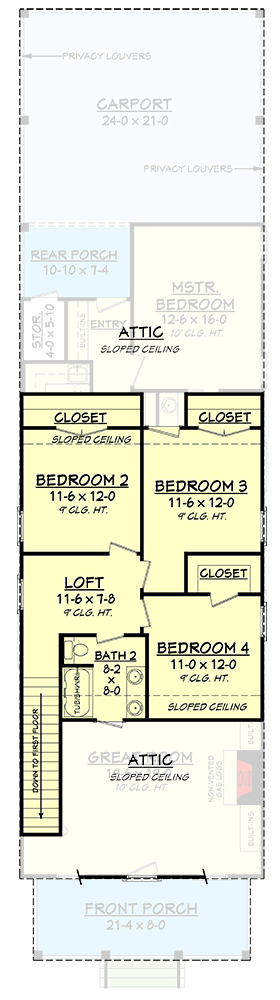

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,184 sq. ft.
  • 1st Floor: 1,438 sq. ft.
  • 2nd Floor: 746 sq. ft.
  • Porch, Front: 171 sq. ft.
  • Porch, Rear: 79 sq. ft.
  • Storage: 278 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 24' 0"
  • Depth: 93' 4"
  • Max ridge height: 31' 0"

Garage

  • Type: Carport
  • Area: 504 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: Lower Level / 9' 4" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

  • Cottage
  • Country
  • Southern
  • Vacation

Special features

  • 1st Floor Master Suite
  • CAD Available
  • PDF
