Plan 23901JD Narrow Contemporary Northwest House Plan with Den and Main-floor Master Bedroom

3,550 4 3.5 1 2
1 Client
Album Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Narrow Contemporary Northwest House Plan with Den and Main-floor Master Bedroom

Plan 23901JD

  • 3,550

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 2

    Cars

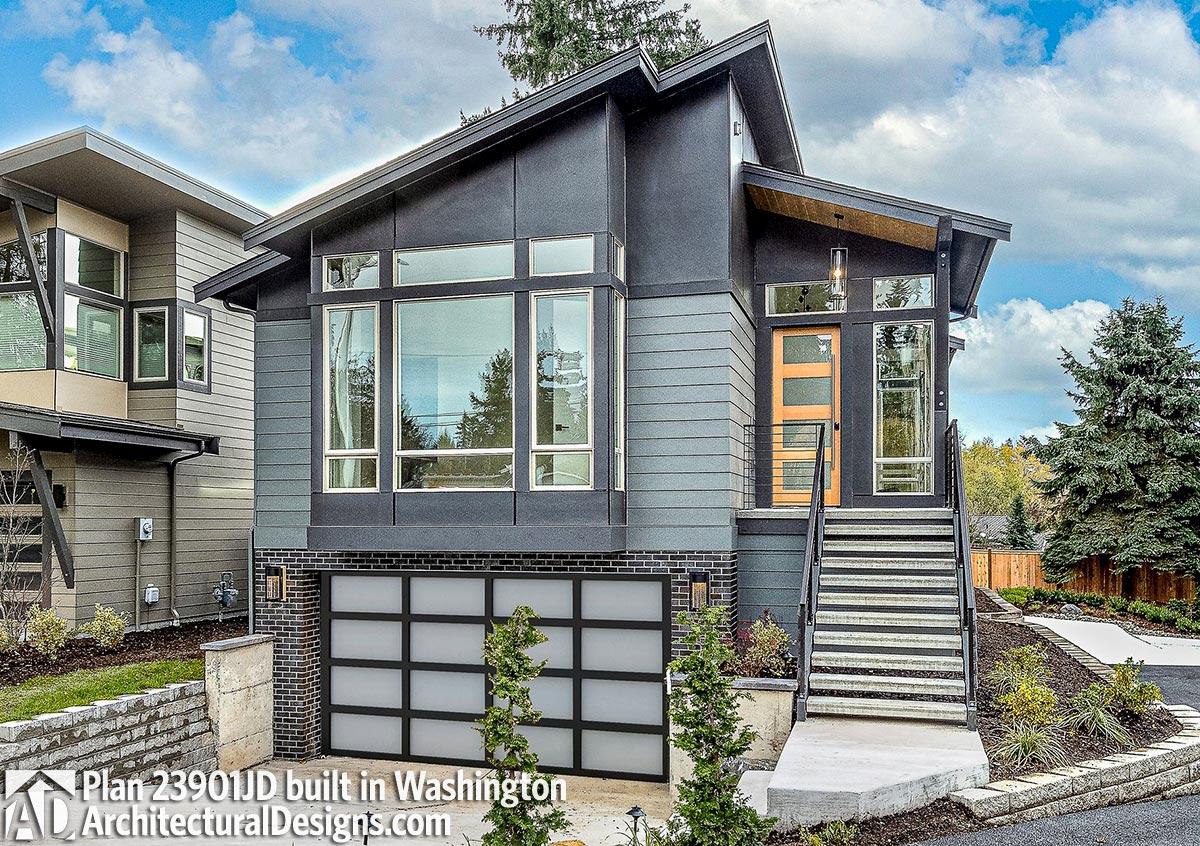

  • With a width of 30 feet, this Contemporary Northwest house plan fits in narrow plots of land and delivers an abundance of curb appeal with its sharp rooflines and modern siding materials.

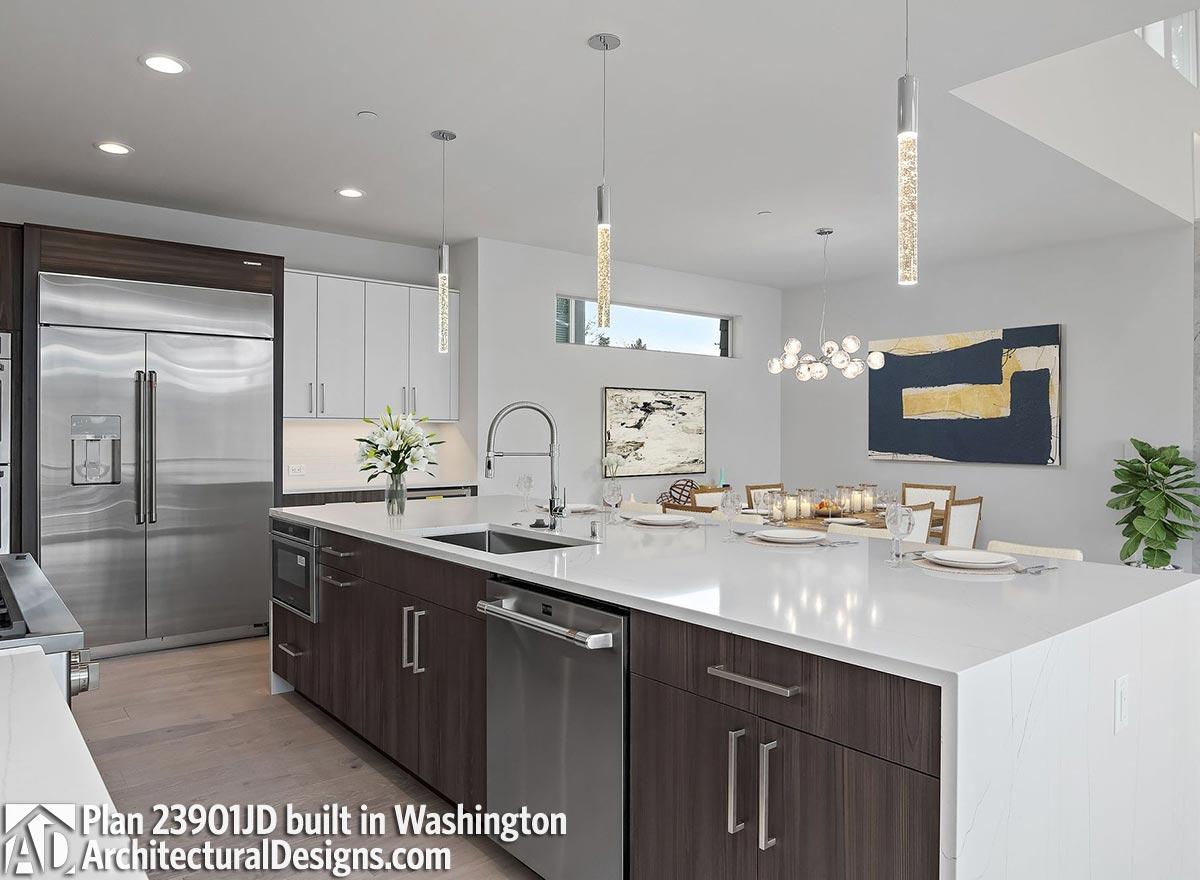

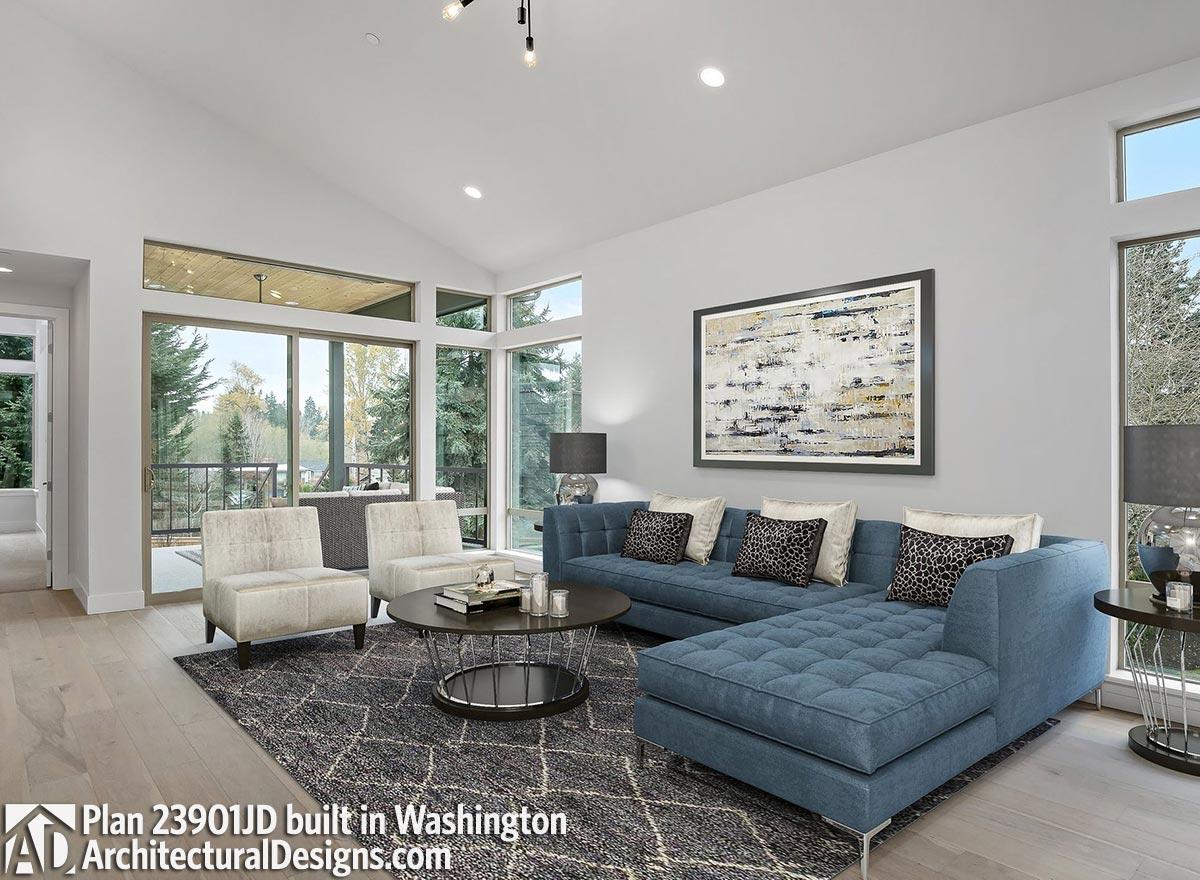

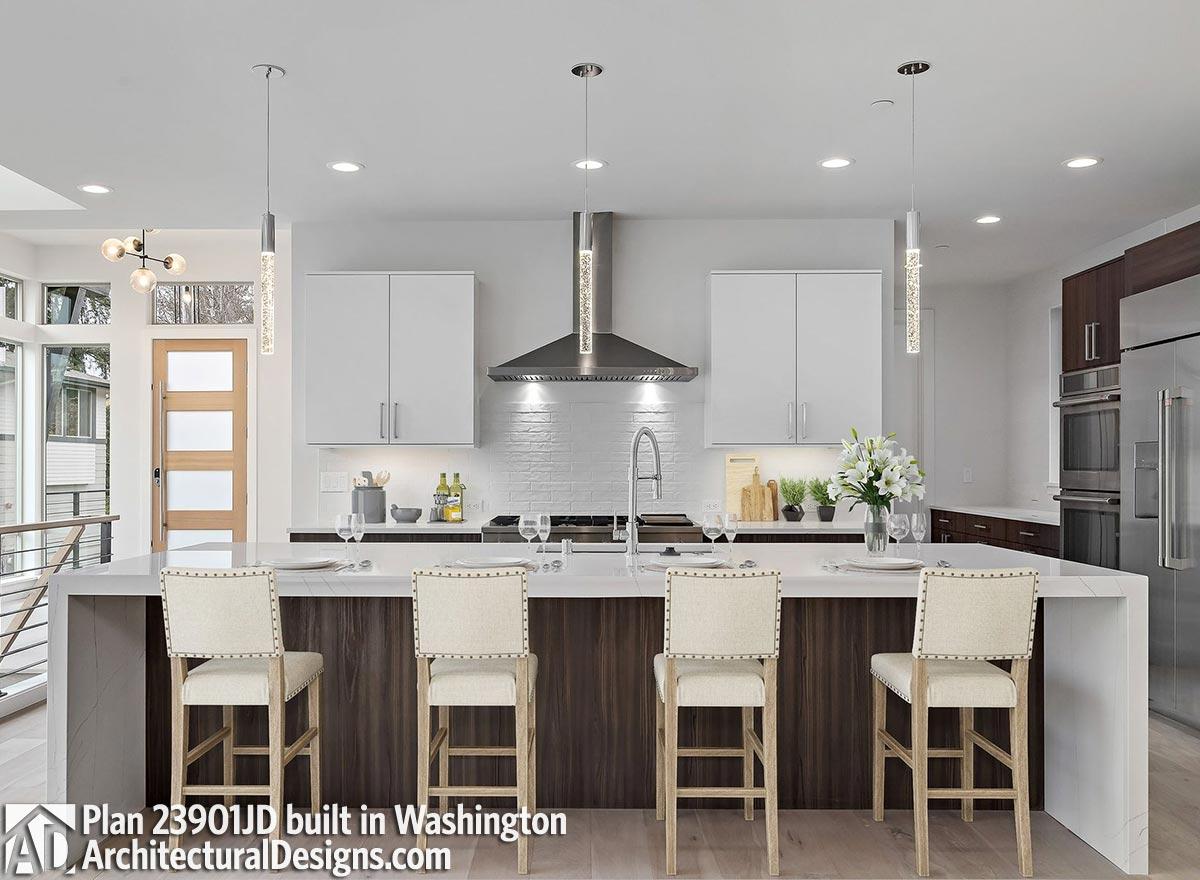

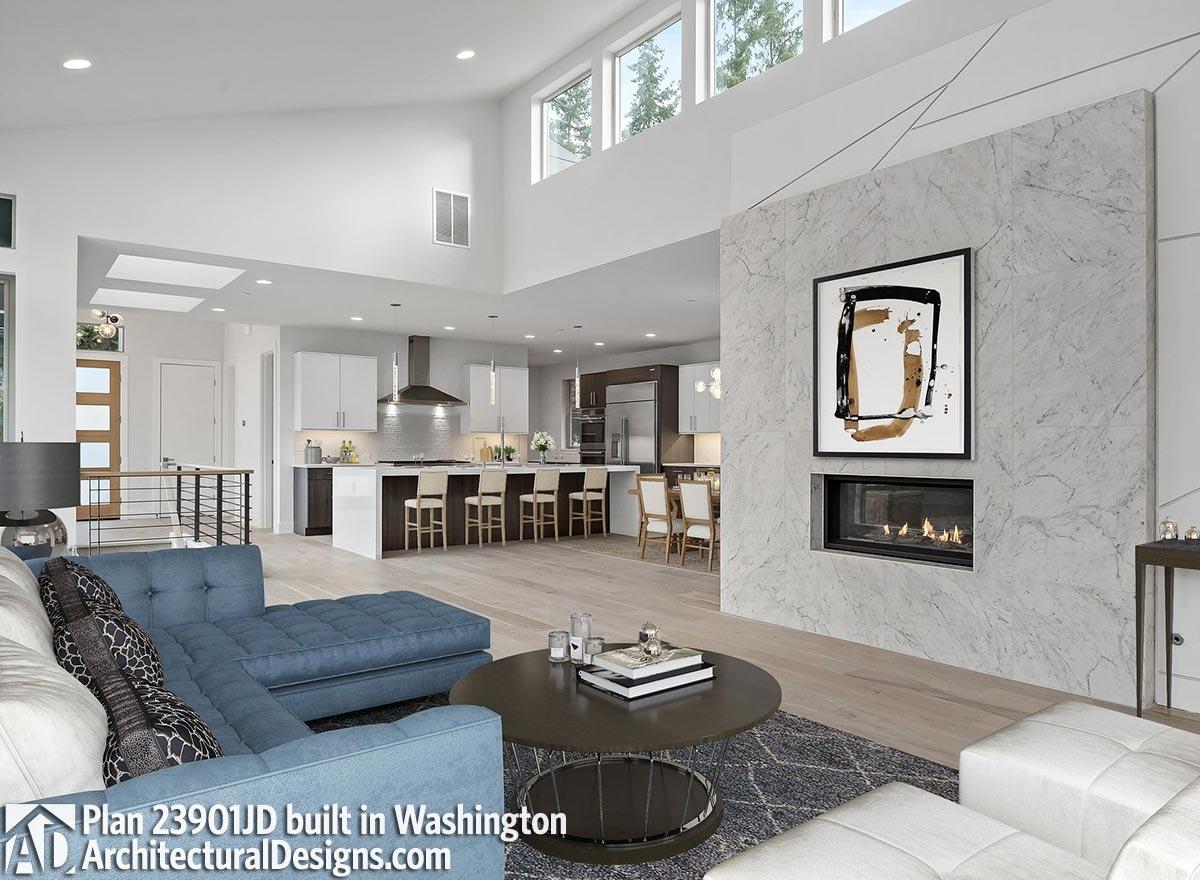

  • A quiet den can be found just off the foyer and provides a shortcut to the kitchen. Guests can enjoy your company at the kitchen island, or relax in the adjoining great room next to the fireplace.

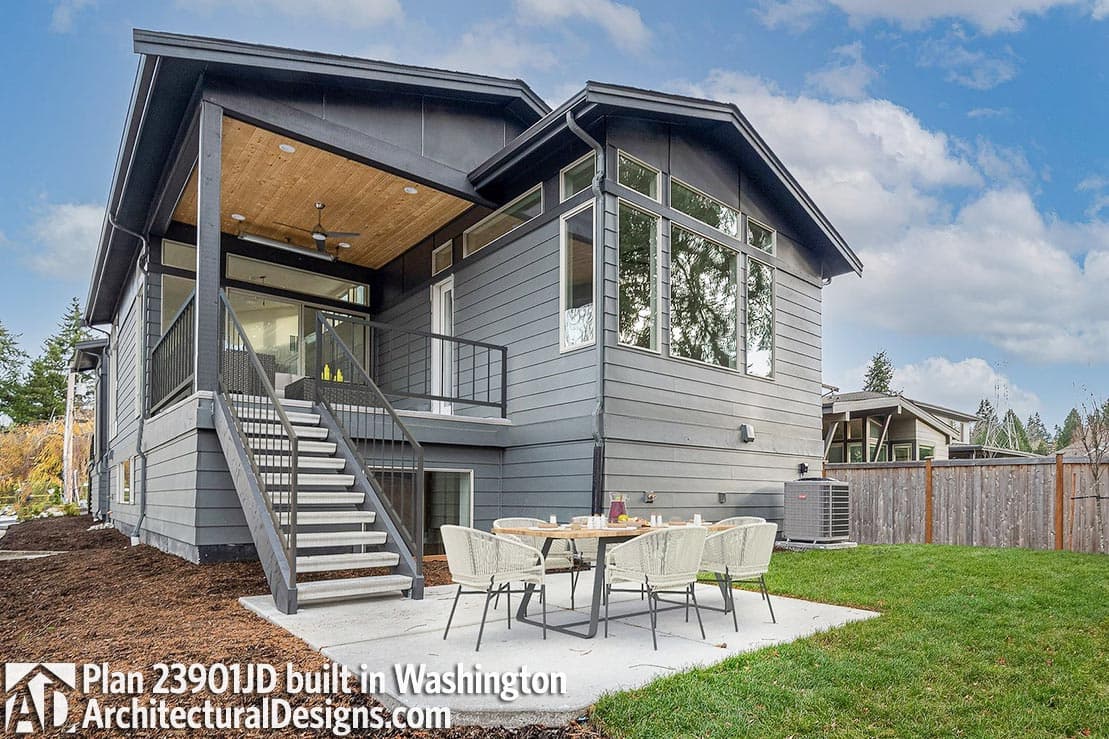

  • The master bedroom rounds out the main level and provides a second access point to the covered porch. The ensuite features a freestanding tub, toilet room, and sizable walk-in closet.
  • Enter the lower level from the double garage to find a coat closet and laundry room.
  • Three family bedrooms surround the recreation room downstairs; two share a Jack-and-Jill bathroom, and one has access to a full bath.
  • IMPORTANT NOTE: If building in the state of Washington, your plan purchase cannot be done online.  Please contact us directly.

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
Elevation Sheet

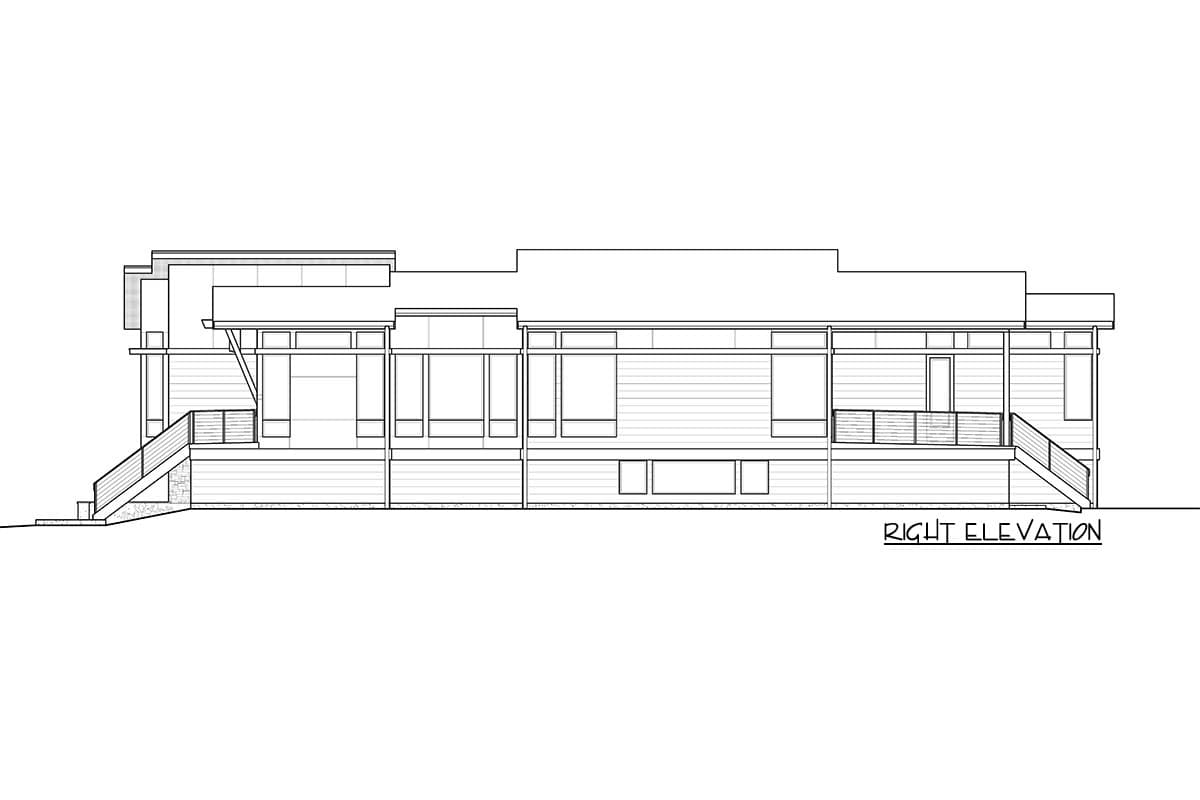

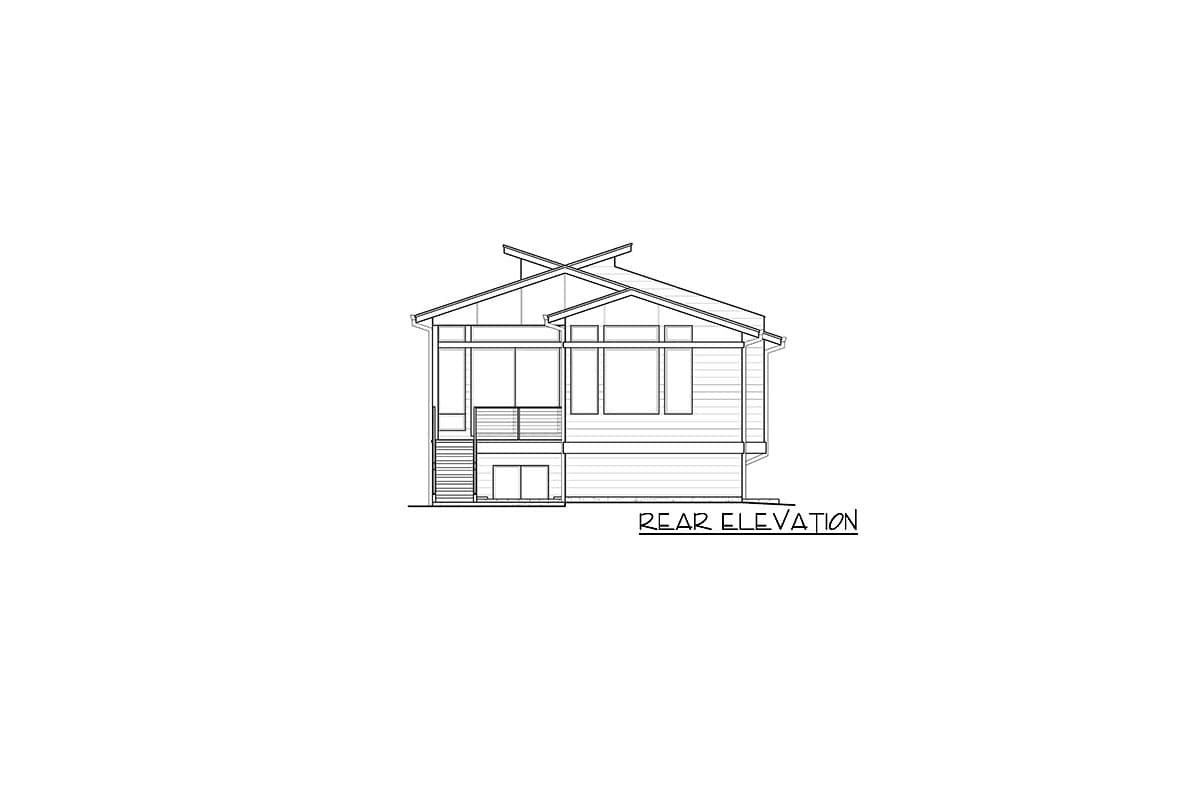

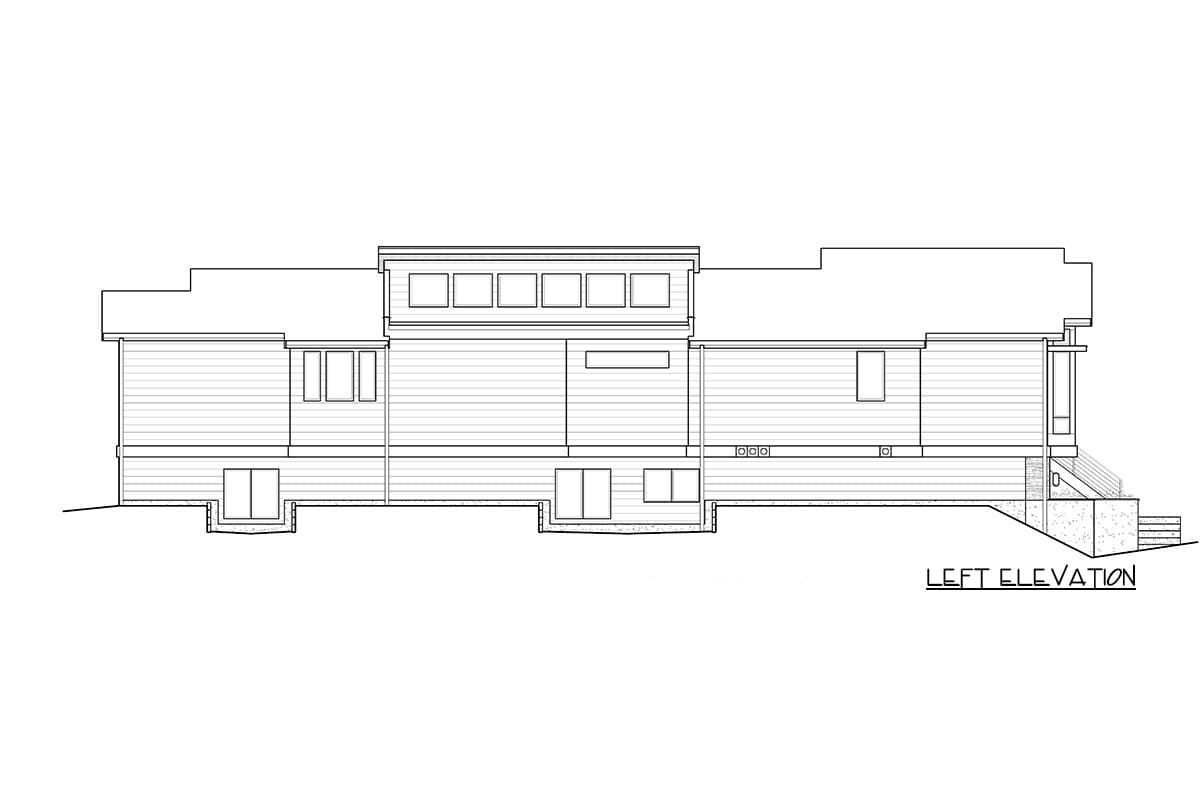

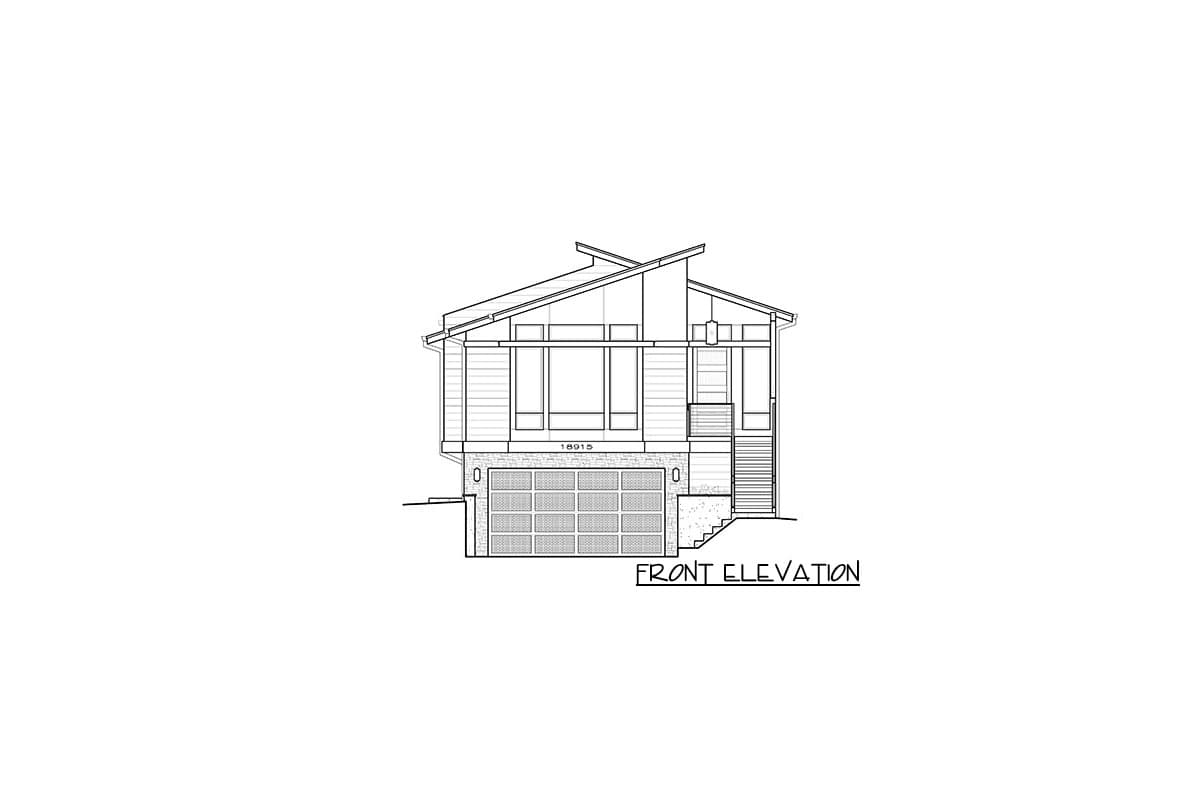

Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

These items are NOT included:

  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

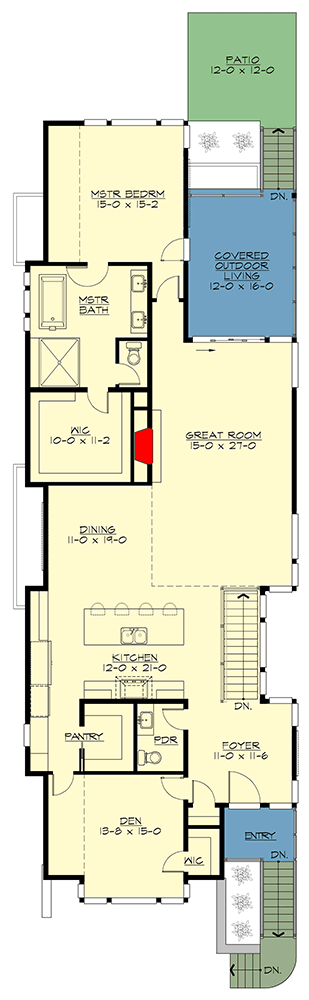

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Narrow Contemporary Northwest House Plan with Den and Main-floor Master Bedroom - 23901JD floor plan - Main Level

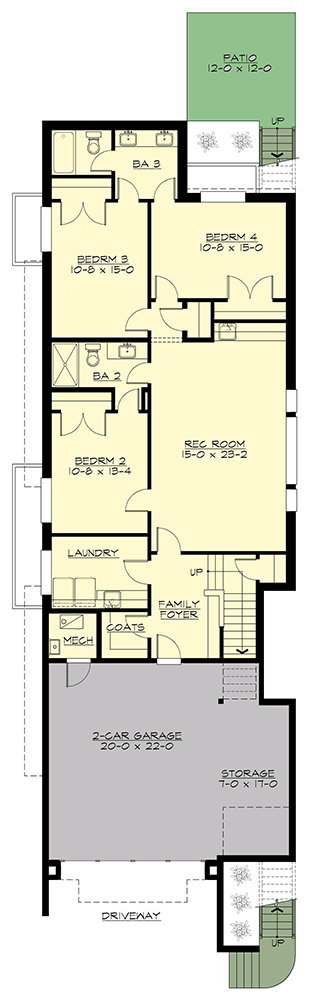

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Narrow Contemporary Northwest House Plan with Den and Main-floor Master Bedroom - 23901JD floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,550 sq. ft.
  • Lower Level: 1,485 sq. ft.
  • 1st Floor: 2,065 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Daylight

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 30' 0"
  • Depth: 86' 6"
  • Max ridge height: 17' 6"

Garage

  • Type: Drive Under, Attached
  • Area: 650 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 11' 0"

Roof Details

  • Primary Pitch: 4 on 12
  • Framing Type: Stick And Truss

Architectural Style

Special features

Plan Collections

Narrow Contemporary Northwest House Plan with Den and Main-floor Master Bedroom

  • 3,550

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $2,200
  • CAD + PDF - Unlimited Build $3,700
  • View all purchase option online

About This Plan

  • With a width of 30 feet, this Contemporary Northwest house plan fits in narrow plots of land and delivers an abundance of curb appeal with its sharp rooflines and modern siding materials.
  • A quiet den can be found just off the foyer and provides a shortcut to the kitchen. Guests can enjoy your company at the kitchen island, or relax in the adjoining great room next to the fireplace.
  • The master bedroom rounds out the main level and provides a second access point to the covered porch. The ensuite features a freestanding tub, toilet room, and sizable walk-in closet.
  • Enter the lower level from the double garage to find a coat closet and laundry room.
  • Three family bedrooms surround the recreation room downstairs; two share a Jack-and-Jill bathroom, and one has access to a full bath.
  • IMPORTANT NOTE: If building in the state of Washington, your plan purchase cannot be done online.  Please contact us directly.

Floor Plans

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,550 sq. ft.
  • Lower Level: 1,485 sq. ft.
  • 1st Floor: 2,065 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Daylight

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 30' 0"
  • Depth: 86' 6"
  • Max ridge height: 17' 6"

Garage

  • Type: Drive Under, Attached
  • Area: 650 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 11' 0"

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Stick And Truss
Plan 23901JD
View this and more for this plan by visiting www.architechtecturaldesigns.com/23901JD
|
