Plan 765031TWN Narrow Country Cottage Plan with 3 Bedrooms

Narrow Country Cottage Plan with 3 Bedrooms

Plan 765031TWN

  • 1,599

    Heated s.f.

  • 2-3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • Wooden brackets support the deep, gable overhangs, and a circular window above the front porch contributes character to the great curb appeal.
  • The heart of the home resides towards the back of the home and takes advantage of any rearward views. Sliding doors off the dining area lead to a large deck, half of which is covered for when you desire shade.
  • An oversized prep island anchors the shared living space, and a roomy walk-in pantry sits nearby.
  • The master bedroom disrupts the rectangular design by protruding from the front of the home, offering more privacy to the homeowner. The 4-fixture master bath includes dual vanities and a sizable walk-in closet.
  • Across the hall, bedrooms 2 and 3 share a Jack-and-Jill bath. Pocket doors in the main hallway reveal a laundry room, conveniently located near all of the bedrooms.
  • Related Plan: Build on a crawlspace with house plan 765013TWN.

This designer's plans include the following:

  • Cover sheet with general notes
  • Foundation page
  • Detailed floor plans
  • Roof plan
  • Electrical plans
  • Elevations
  • Typical wall section and cross section
  • General details
  • Cabinet elevations
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

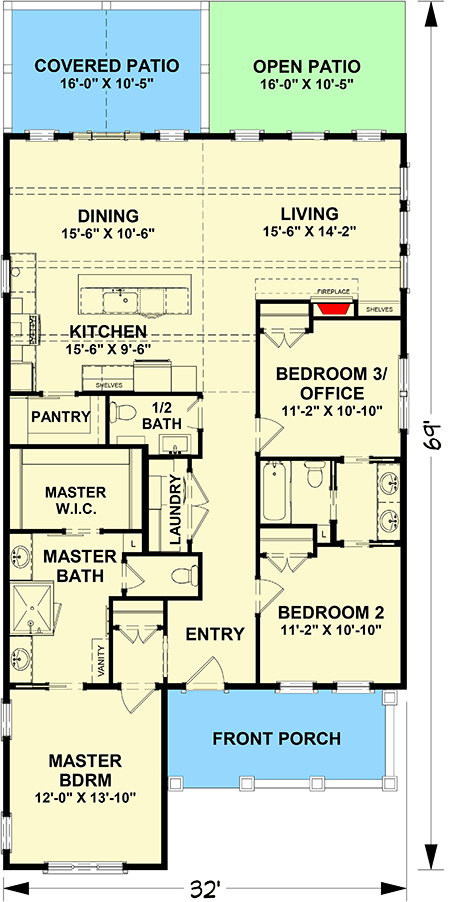

Narrow Country Cottage Plan with 3 Bedrooms - 765031TWN floor plan - Main Level

Plan details

Narrow Country Cottage Plan with 3 Bedrooms

  • 1,599

    Heated s.f.

  • 2 - 3

    Beds

  • 3

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $1,250
  • CAD - Single-Build $1,550
  • Chief Architect Plan File - Single Build $1,950
  • View all purchase option online

About This Plan

  • Wooden brackets support the deep, gable overhangs, and a circular window above the front porch contributes character to the great curb appeal.
  • The heart of the home resides towards the back of the home and takes advantage of any rearward views. Sliding doors off the dining area lead to a large deck, half of which is covered for when you desire shade.
  • An oversized prep island anchors the shared living space, and a roomy walk-in pantry sits nearby.
  • The master bedroom disrupts the rectangular design by protruding from the front of the home, offering more privacy to the homeowner. The 4-fixture master bath includes dual vanities and a sizable walk-in closet.
  • Across the hall, bedrooms 2 and 3 share a Jack-and-Jill bath. Pocket doors in the main hallway reveal a laundry room, conveniently located near all of the bedrooms.
  • Related Plan: Build on a crawlspace with house plan 765013TWN.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,599 sq. ft.
  • 1st Floor: 1,599 sq. ft.
  • Porch, Combined: 309 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 32' 0"
  • Depth: 69' 0"
  • Max ridge height: 23' 2"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Stick And Truss
