Plan 31603GF
Narrow Country Home Plan with 4 Bedrooms - 1932 Sq Ft
Heated S.F.
1,932
Beds
4
Baths
3
Stories
2
Floor Plan

Plan 31603GF

Main Level
slide image 0
2nd Floor
slide image 1

Plan 31603GF

1-800-854-7852

1-262-521-4596

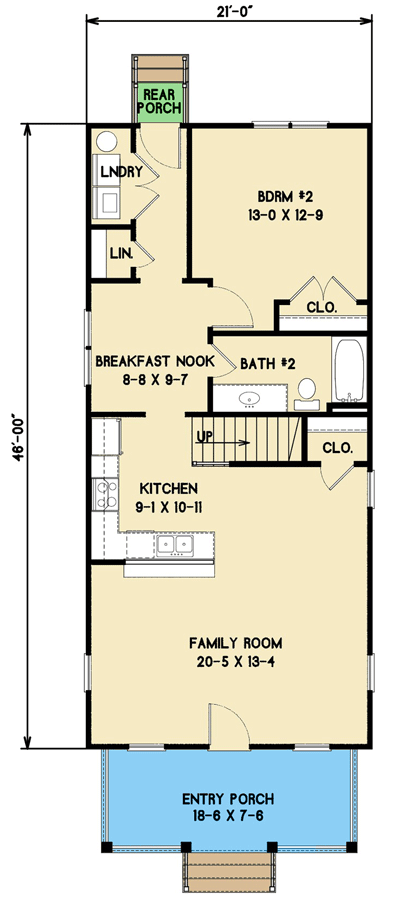

Main Level
floor plan image Main Level

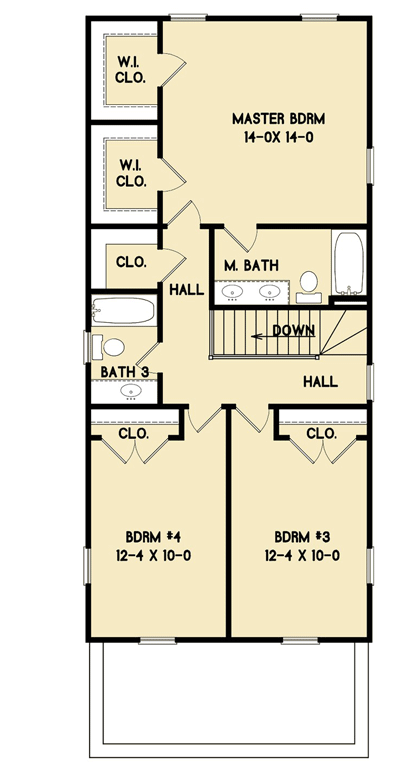

2nd Floor
floor plan image 2nd Floor
Plan Details
  • The 21-foot width makes this Country home plan perfect for narrow plot lines. The charming entry porch welcomes you home.
  • The family room greets you once inside. L-shaped cabinetry forms the kitchen and provides an eating bar that connects to the living room.
  • A nearby breakfast nook offers views into the side yard and provides access to a main-level bedroom (or home office) that neighbors a full bath.
  • A laundry and linen closet line the hallway that leads to the back door.
  • Discover the master bedroom upstairs with twin closets and a dual-sink vanity in the attached bath. Bedrooms 2 and 3 are identical in size and share the hall bath.
What's Included
  • Cover Sheet: Shows typical notes and requirements.

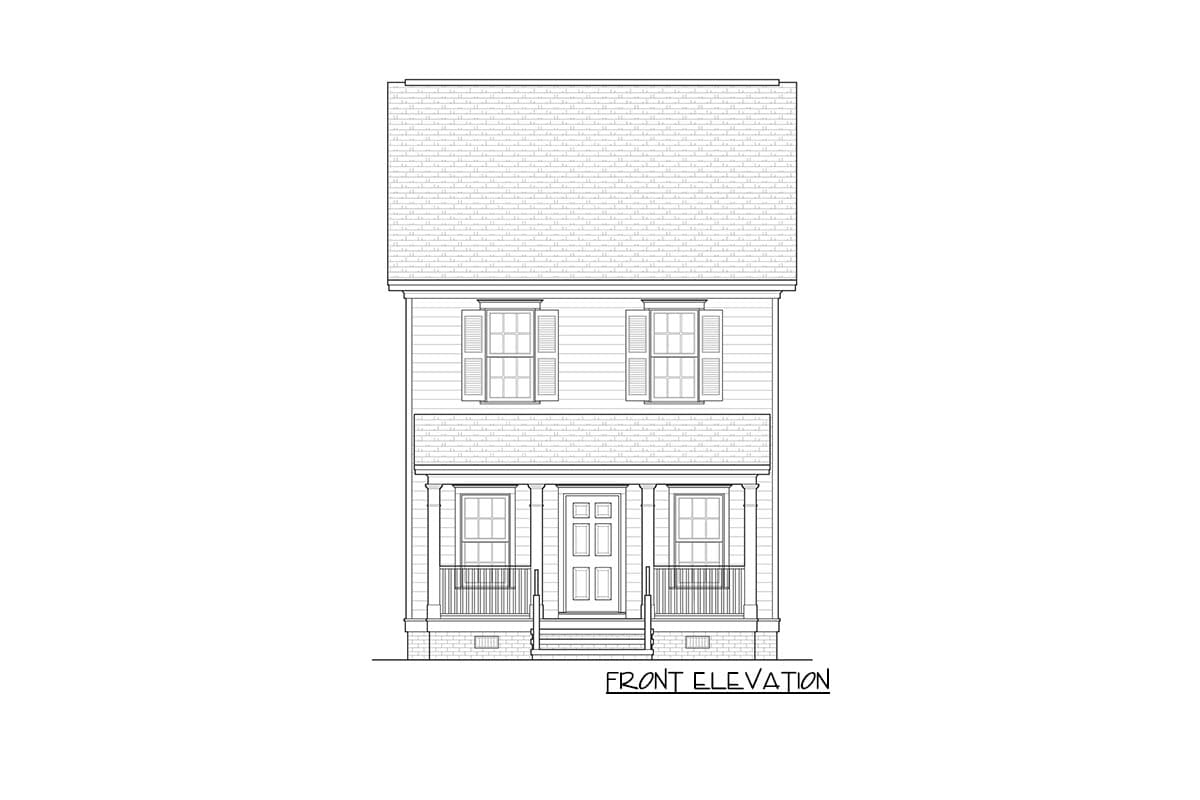

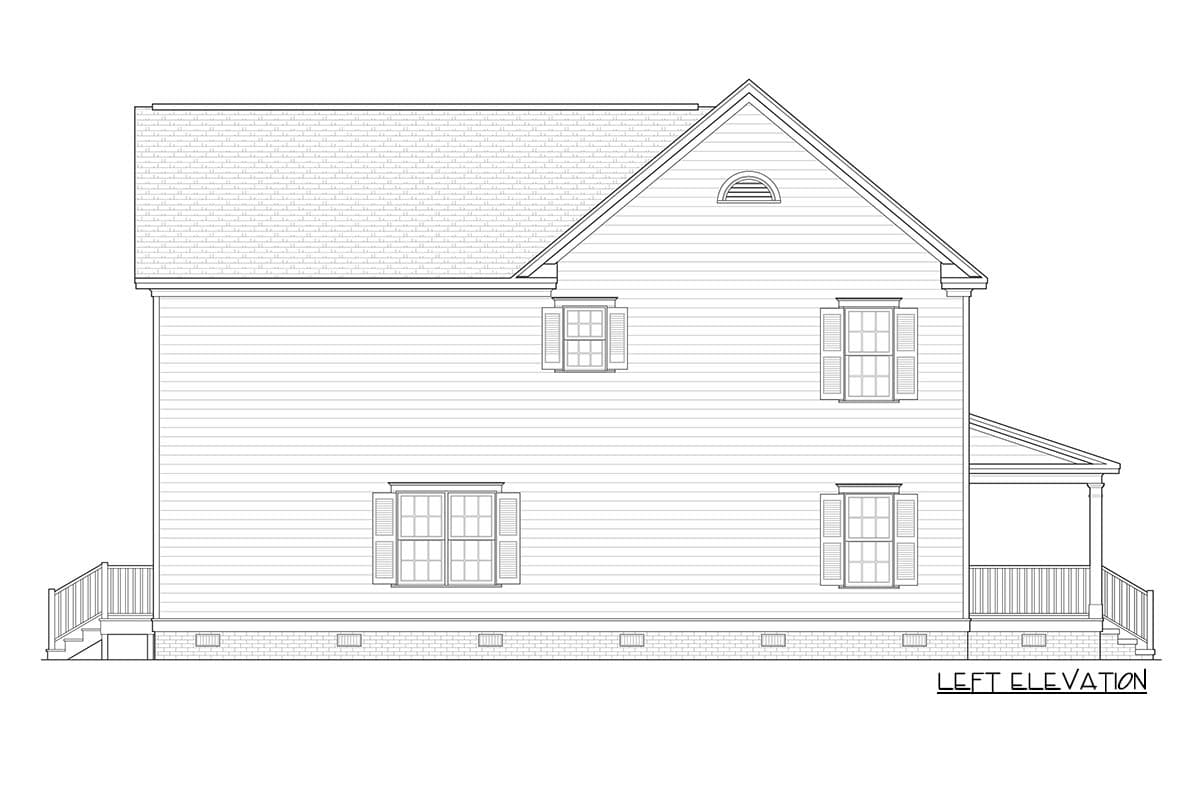

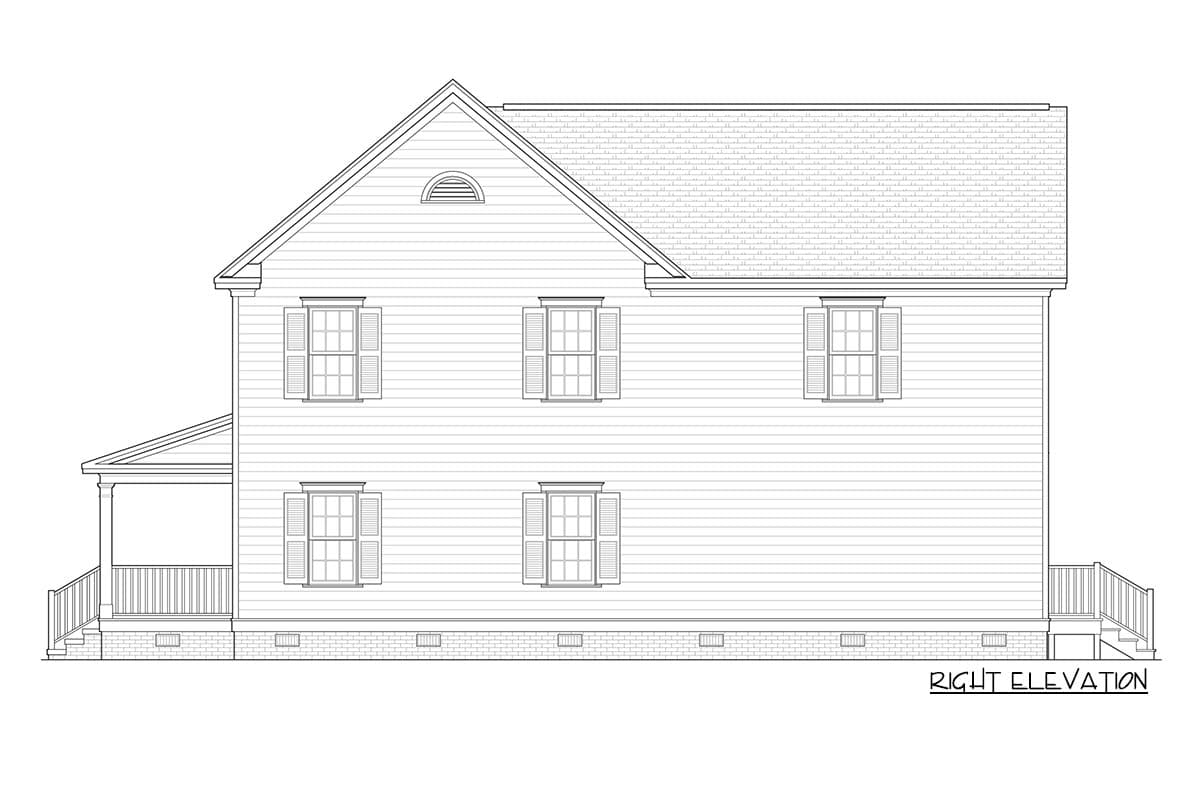

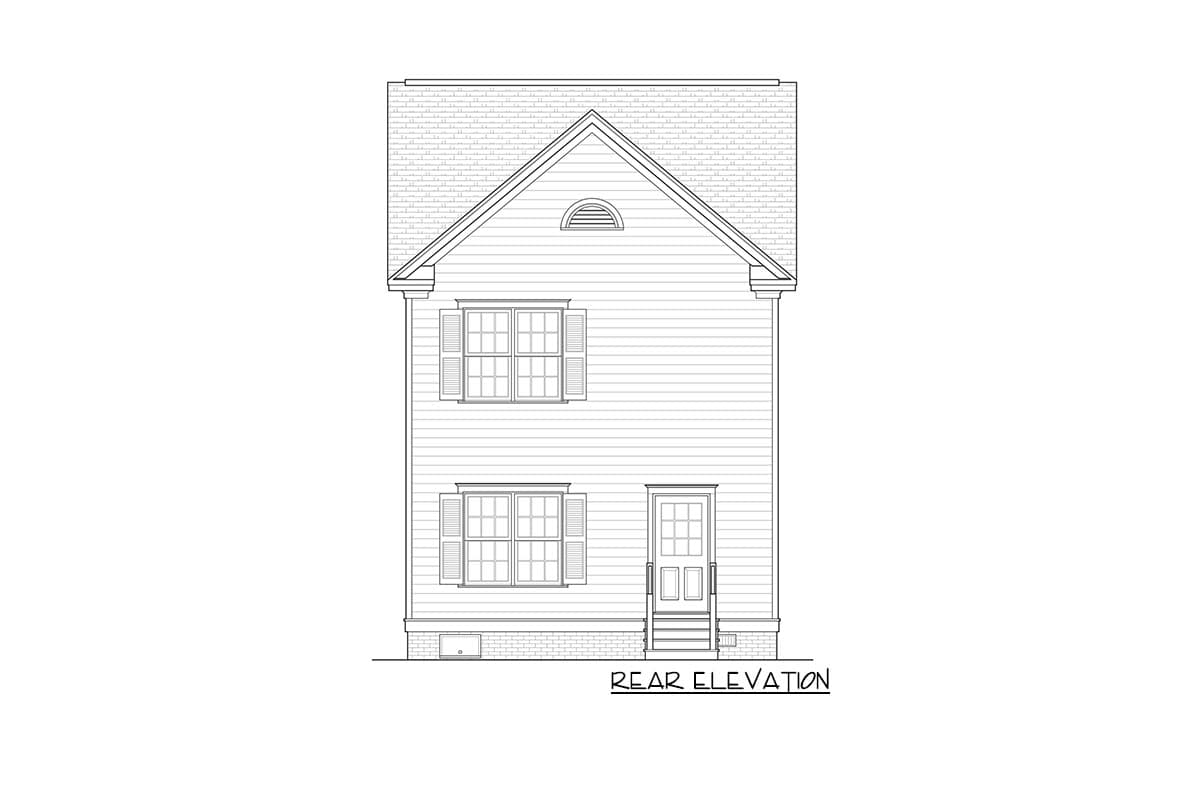

  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Typical wall section
  • Typical stair section (if applicable)
  • Typical shelving and cabinet details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

1,932 sq. ft.

1st Floor

966 sq. ft.

2nd Floor

966 sq. ft.

Porch, Front

139 sq. ft.

Porch, Rear

12 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

21' 0"

Depth

46' 0"

Max Ridge Height

32' 10"

Ceiling Heights

First Floor

1' 9"

Second Floor

1' 8"

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Country

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Main Level

Master Suite - 2nd Floor

Mudroom

Square Footage Breakdown

Total Heated Area

1,932 sq. ft.

1st Floor

966 sq. ft.

2nd Floor

966 sq. ft.

Porch, Front

139 sq. ft.

Porch, Rear

12 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

21' 0"

Depth

46' 0"

Max Ridge Height

32' 10"

Ceiling Heights

First Floor

1' 9"

Second Floor

1' 8"

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Country

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Main Level

Master Suite - 2nd Floor

Mudroom
