Plan 23270JD

Narrow Craftsman with Drive-Under Garage

Heated S.F.
3,427
Beds
4
Baths
3.5
Stories
2
Cars
2

Floor Plan

Plan 23270JD

Basement
Basement
Main Level
Main Level
2nd Floor
2nd Floor

Plan 23270JD

M-F 9am-5pm EST |

1-203-761-8500

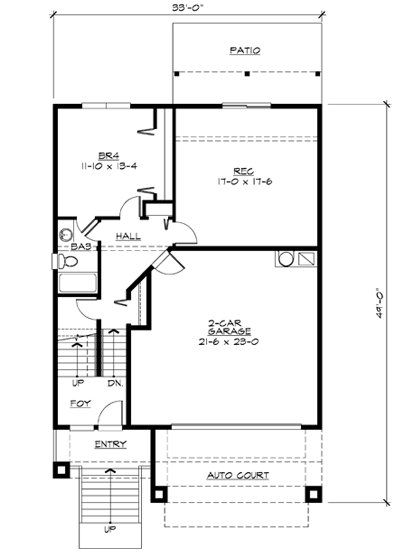

Basement

Plan 23270JD: Narrow Craftsman with Drive-Under Garage - Floor Plan - Basement - Craftsman, Northwest

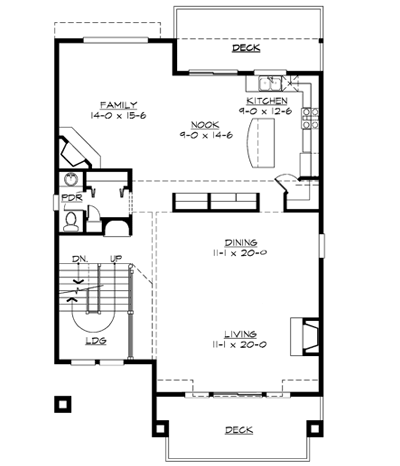

Main Level

Plan 23270JD: Narrow Craftsman with Drive-Under Garage - Floor Plan - Main Level - Craftsman, Northwest

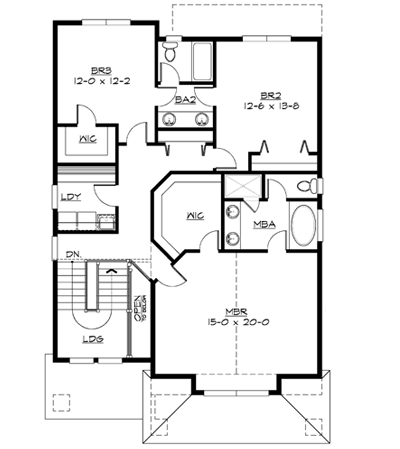

2nd Floor

Plan 23270JD: Narrow Craftsman with Drive-Under Garage - Floor Plan - 2nd Floor - Craftsman, Northwest

Plan Details

  • Just 33' wide, this two-story Craftsman house plan is designed to fit on a narrow lot.
  • The home comes with a 2 car drive-under garage with a bedroom and rec room on this level.
  • A huge open space is the first thing you see when you enter the second level.
  • Sliding glass doors in the living room open to the front-facing deck.
  • In fact, another open area includes the kitchen and family room plus an informal eating nook.
  • On the top floor, the huge master suite gets a vaulted ceiling, private bathroom and spacious walk-in closet.
  • Bedrooms 2 and 3 share a connected bathroom and the nearby laundry room serves all three bedrooms.
  • IMPORTANT NOTE: If building in the state of Washington, your plan purchase cannot be done online.  Please contact us directly.

What's Included

  • Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
  • Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
  • Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

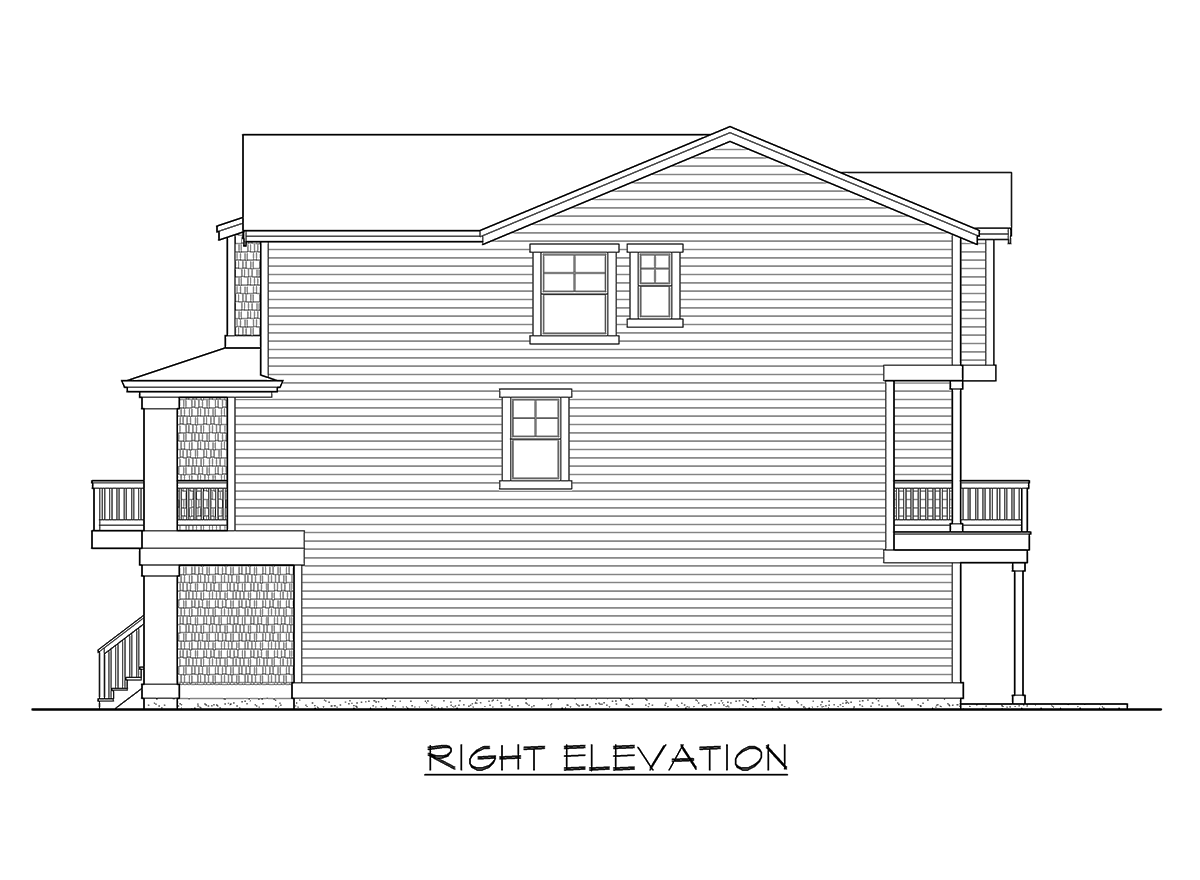

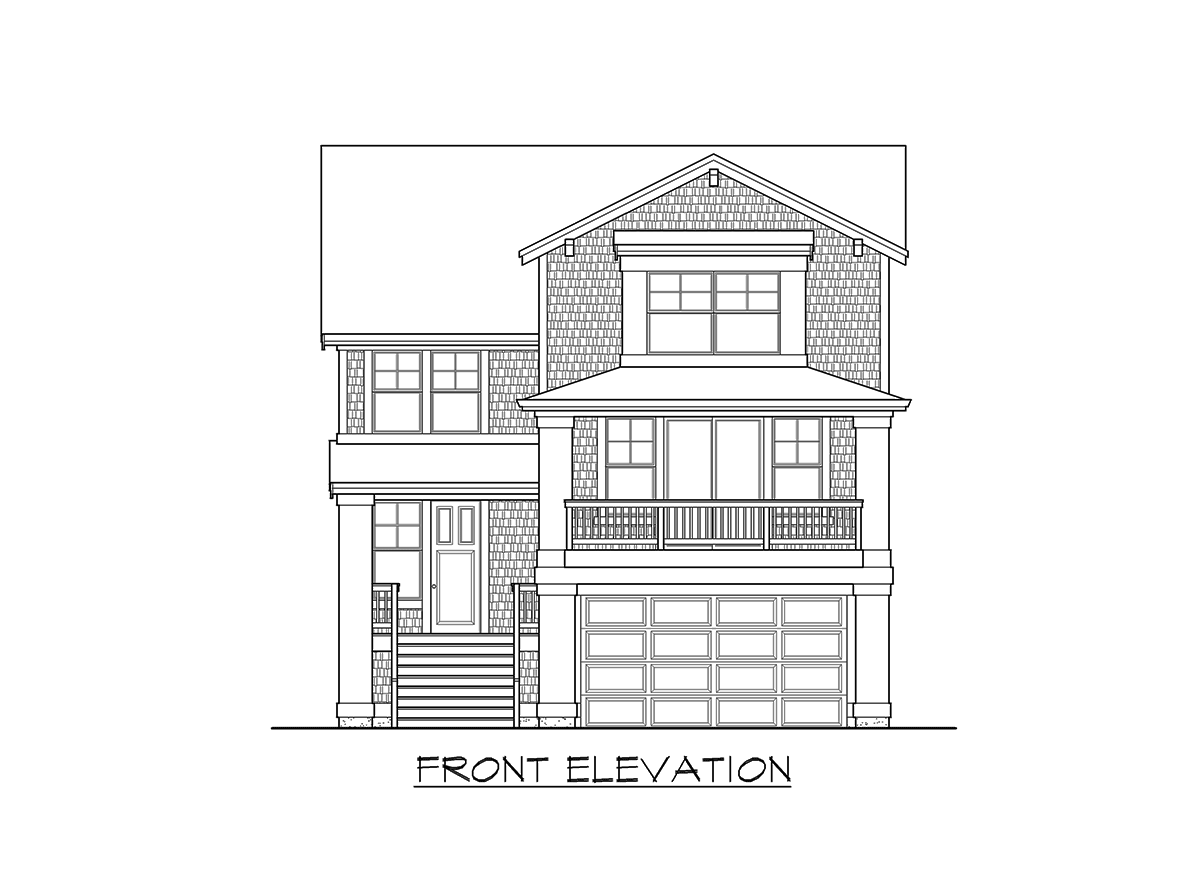

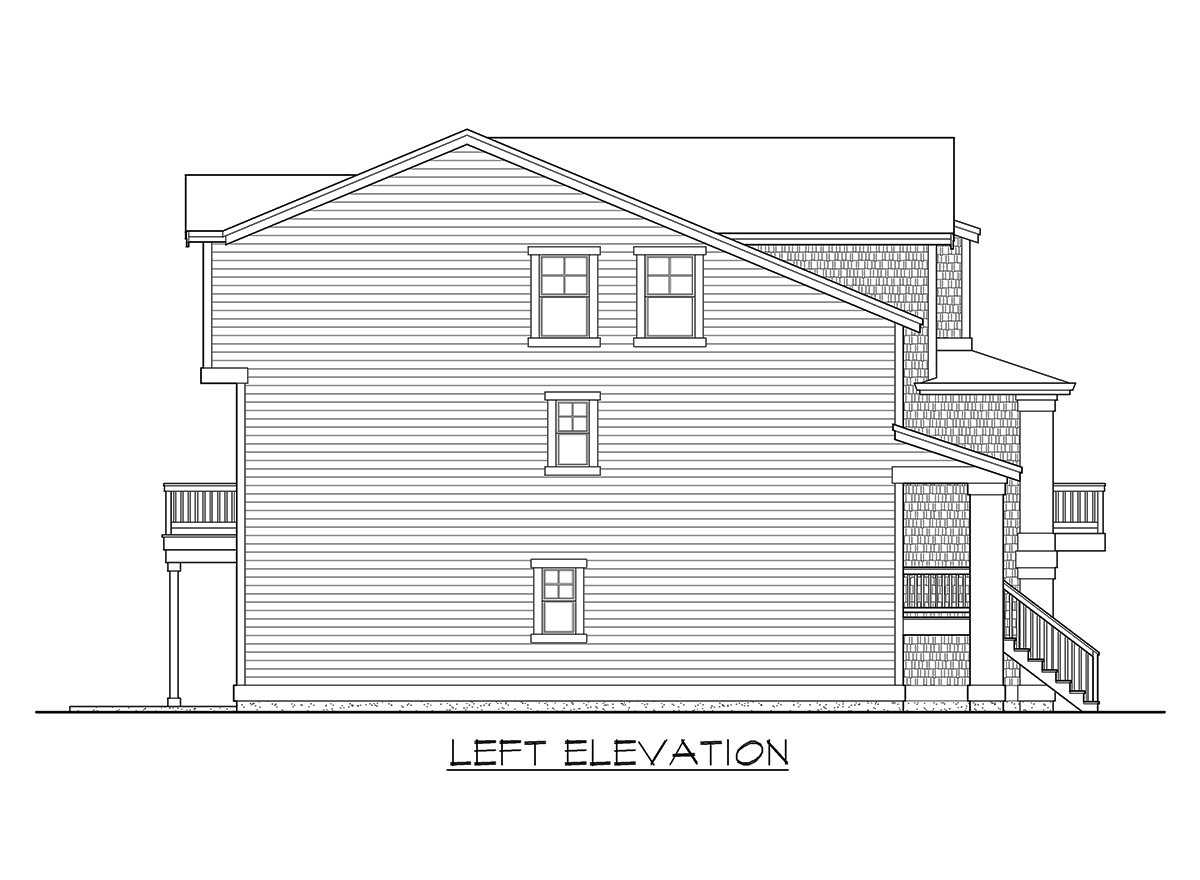

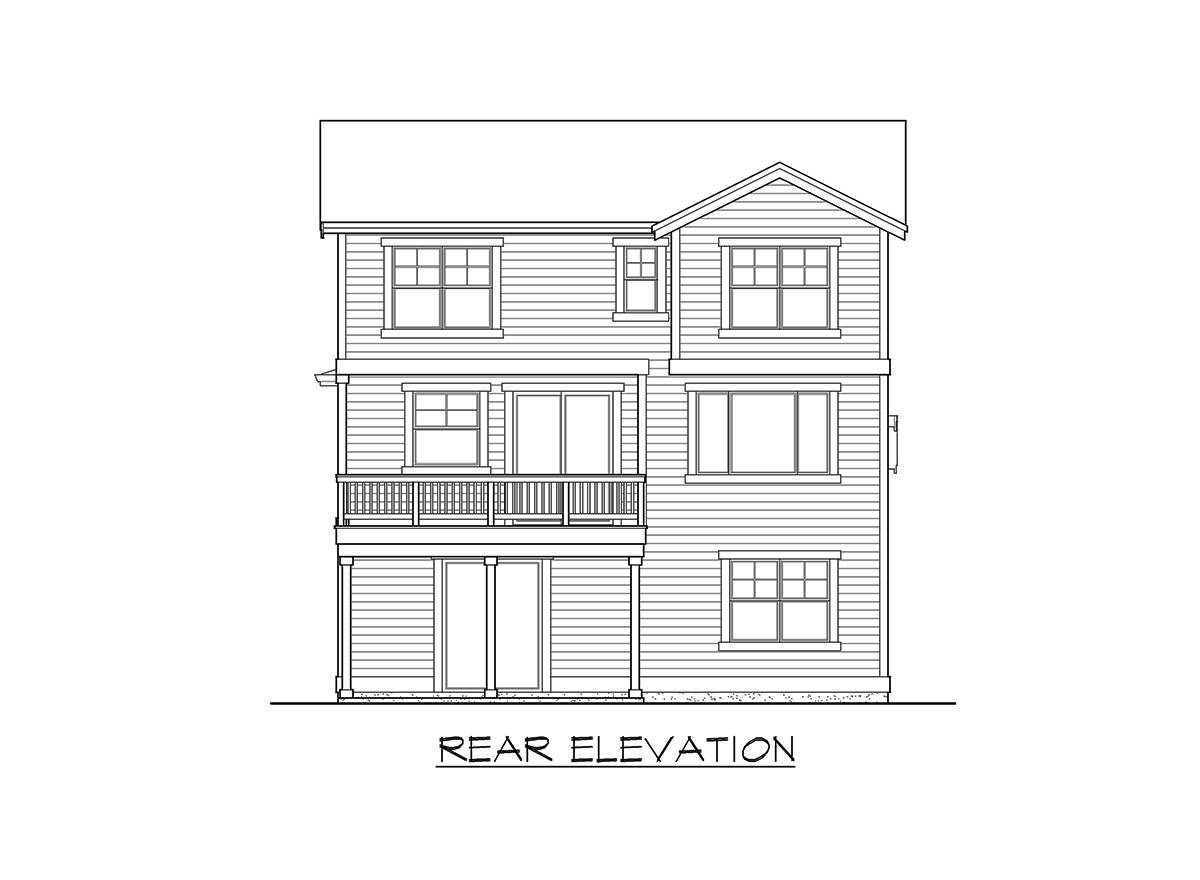

  • Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • Building Section Sheet - Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
View Sample Plan

What's Not Included

  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,427 sq. ft.

Lower Level

830 sq. ft.

1st Floor

1,332 sq. ft.

2nd Floor

1,265 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

33' 0"

Depth

49' 0"

Max Ridge Height

35' 6"

Garage

Type

Drive Under

Area

490 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Breakfast Nook

Game/Rec Room

Jack & Jill Bath

Laundry - Main Level

Master Suite - Upstairs

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

3,427 sq. ft.

Lower Level

830 sq. ft.

1st Floor

1,332 sq. ft.

2nd Floor

1,265 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

33' 0"

Depth

49' 0"

Max Ridge Height

35' 6"

Garage

Type

Drive Under

Area

490 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Breakfast Nook

Game/Rec Room

Jack & Jill Bath

Laundry - Main Level

Master Suite - Upstairs

Walk-in Pantry
