Plan 57148HA
Narrow Escape
Heated S.F.
1,131
Beds
2
Baths
2.5
Stories
2
What's Included
Plan Details
  • Inviting porch and roof dormer create a charming exterior
  • The spacious area on the first floor is perfect for a large shop, private studio, office or cottage great room and includes a fireplace, kitchenette and half bath
  • Two bedrooms, a full bath and attic storage comprise the second floor which has its own private entrance and wide sunny hallway
What's Included

  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan
  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Narrow Escape

  • 1,131

    Heated s.f.

  • 2

    Beds

  • 2.5

    Baths

  • 2

    Floors

Floor Plan

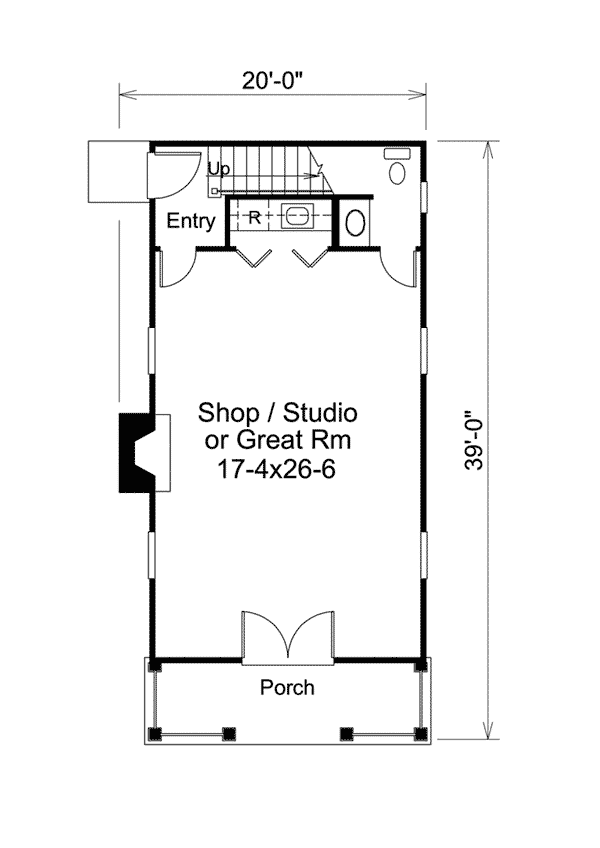

  • Main Level

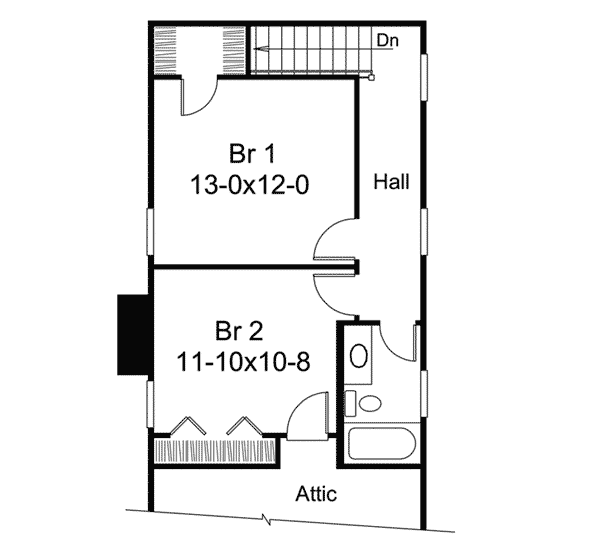

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,131 sq. ft.
  • 1st Floor: 612 sq. ft.
  • 2nd Floor: 519 sq. ft.

Dimensions

  • Width: 20' 0"
  • Depth: 39' 0"
  • Max ridge height: 27' 0"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site

Narrow Escape

  • 1,131

    Heated s.f.

  • 2

    Beds

  • 2.5

    Baths

  • 2

    Floors

Narrow Escape

  • 1,131

    Heated s.f.

  • 2

    Beds

  • 2.5

    Baths

  • 2

    Floors

Plan Details

Square Footage Breakdown

  • Total: 1,131 sq. ft.
  • 1st Floor: 612 sq. ft.
  • 2nd Floor: 519 sq. ft.

Dimensions

  • Width: 20' 0"
  • Depth: 39' 0"
  • Max ridge height: 27' 0"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Truss

    Main Level

    2nd Floor
