Plan 72798DA

Narrow Home with Two Upstairs Spaces

Narrow Home with Two Upstairs Spaces

Plan 72798DA

  • 2,184

    Heated s.f.

  • 1-3

    Beds

  • 1 - 4

    Baths

  • 2

    Stories

  • 4

    Cars

  • Perfect for a narrow city lot or out on rural property, this house plan will bring country charm to where ever you choose to build it. The entry is tucked around the corner of the large covered porch.
  • The main level is open and spacious with all of the gathering spaces in the rear of the home. One bedroom is located on the main floor and would also be a great guest suite, office or whatever else suits.
  • On the second floor is another bedroom, utility room and owners' suite. The
  • garage is connected by a covered breezeway which can be adjusted in length for your building lot. This garage provides you with additional ground level storage as well as a bonus second floor recreation room.
  • The roof is a truss design with 8:12 pitch.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

Plan details

Architectural Style

Plan Collections



Narrow Home with Two Upstairs Spaces

  • 2,184

    Heated s.f.

  • 1 - 3

    Beds

  • 1 +

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • 1 Set $870
  • PDF Light $1,110
  • 5 Sets $1,110
  • 5 Sets PLUS $1,230
  • 8 Sets $1,290
  • PDF - single-use $2,165
  • CAD $2,345
  • CAD - multi-use $2,595
  • View all purchase option online

About This Plan

  • Perfect for a narrow city lot or out on rural property, this house plan will bring country charm to where ever you choose to build it. The entry is tucked around the corner of the large covered porch.
  • The main level is open and spacious with all of the gathering spaces in the rear of the home. One bedroom is located on the main floor and would also be a great guest suite, office or whatever else suits.
  • On the second floor is another bedroom, utility room and owners' suite. The
  • garage is connected by a covered breezeway which can be adjusted in length for your building lot. This garage provides you with additional ground level storage as well as a bonus second floor recreation room.
  • The roof is a truss design with 8:12 pitch.

Floor Plans

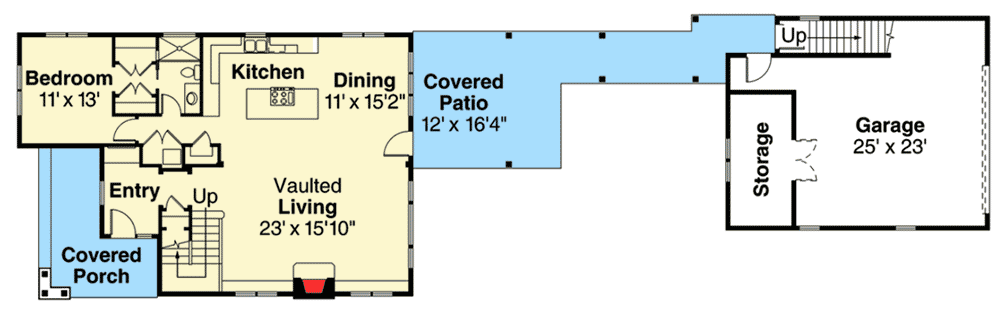

  • Main Level

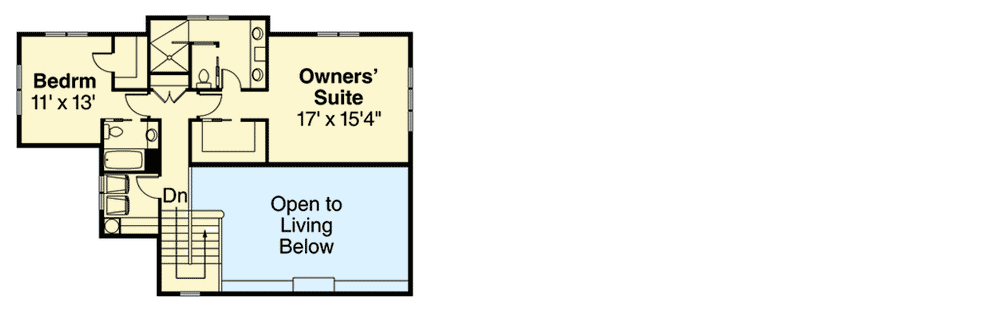

  • 2nd Floor

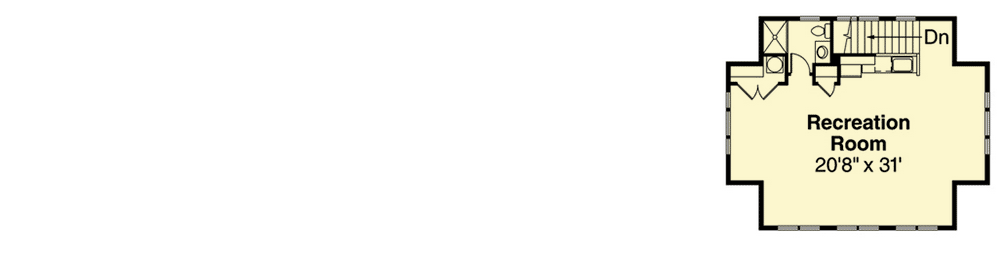

  • Bonus

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,184 sq. ft.
  • 1st Floor: 1,309 sq. ft.
  • 2nd Floor: 875 sq. ft.
  • Bonus: 697 sq. ft.

Beds/Baths

  • Bedrooms: 1, 2, & 3
  • Full bathrooms: 1, 2, 3, & 4

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 32' 4"
  • Depth: 60' 0"
  • Max ridge height: 28' 8"

Garage

  • Type: Detached
  • Area: 805 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
