Plan 68497VR
Narrow Lot Beach Cottage
Heated S.F.
2,000
Beds
4
Baths
4
Stories
2
Cars
2
Plan Details
  • Get lots of square footage in a narrow footprint with this stylish Beach cottage.
  • A vaulted ceiling unites the living room and dining room that are both open to each other.
  • Sight lines continue on to the kitchen that has an efficient peninsula eating bar.
  • Deck space close by is ideal for grilling those outdoor meals.
  • There are two large bedrooms on the main level, each with a walk-in closet.
  • Head upstairs for two more bedrooms, one with a built-in desk and one with a private bathroom.
  • Related Plans: Get an alternate floor plan with house plans 68567VR (2,005 sq. ft.), 68588VR (2,118 sq. ft.) and 68560VR (2,360 sq. ft.). Eliminate the upper floor with house plans 68480VR (1,267 sq. ft.) and 68568VR (1,361 sq. ft.).
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Narrow Lot Beach Cottage

  • 2,000

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

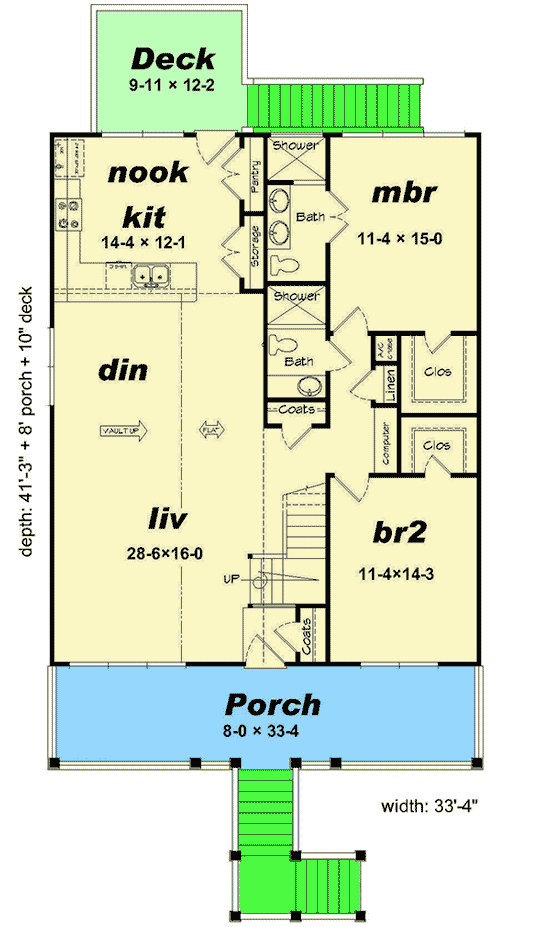

Floor Plan

  • Main Level

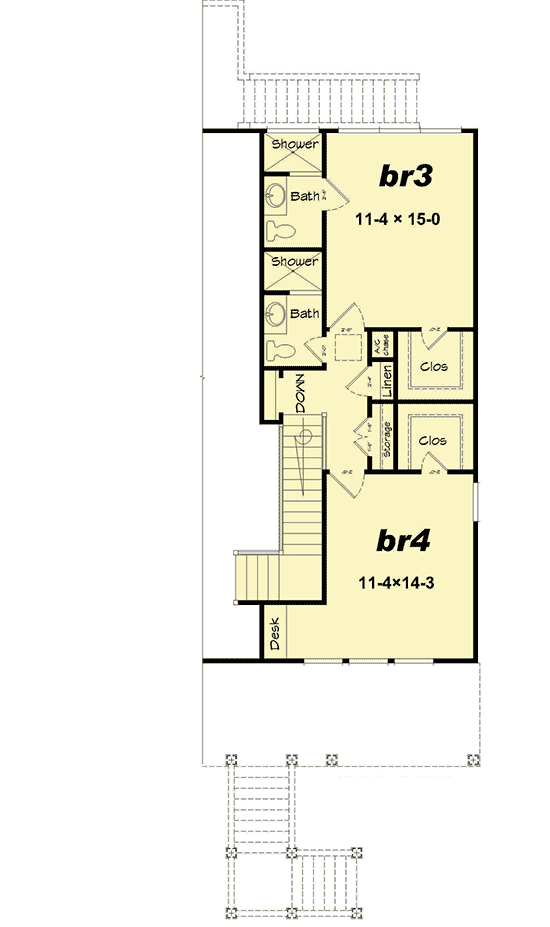

  • 2nd Floor

  • Basement

Plan Details

Square Footage Breakdown

  • Total: 2,000 sq. ft.
  • 1st Floor: 1,375 sq. ft.
  • 2nd Floor: 625 sq. ft.

Dimensions

  • Width: 33' 4"
  • Depth: 50' 1"
  • Max ridge height: 24' 6"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Garage

  • Type: Drive Under
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Pier
    • Optional Foundations: Basement, Slab, Walkout, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Stick
