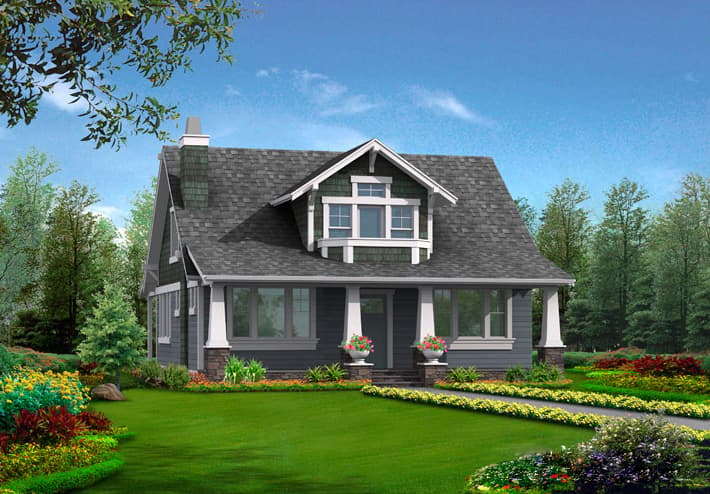

Narrow Lot Cottage with Upper Deck

Plan 23254JD

  • 1,969

    HEATED S.F.

  • 3

    BEDS

  • 3

    BATHS

  • 2

    FLOORS

  • 2

    CAR GARAGE

About this Plan

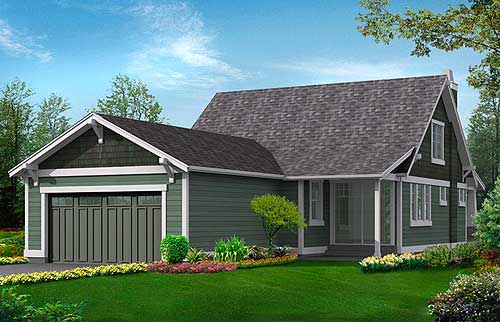

  • Clocking in well under 40' with a garage accessed from the back, this cottage house plan is perfect for the narrow or in-fill lot.

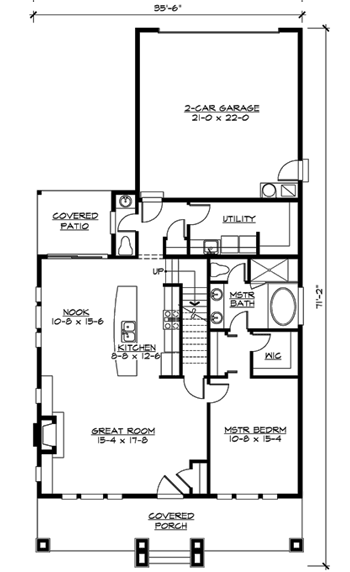

  • The great room is open to the kitchen. Sliding doors take you to the corner covered patio.
  • The master bedroom is conveniently located on the ground floor.

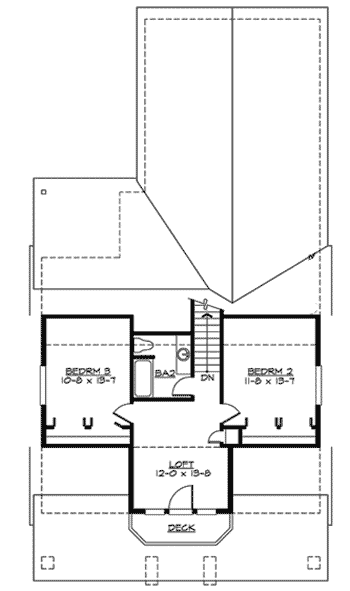

  • Upstairs, two bedrooms share a bath and a loft occupies the large dormer. It even has deck access - a nice touch.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

See What's Included in this Plan...

Floor Plan

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,969 sq. ft.
  • 1st Floor: 1,318 sq. ft.
  • 2nd Floor: 651 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Dimensions

  • Width: 35' 6"
  • Depth: 71' 2"
  • Max ridge height: 24' 0"

Garage

  • Type: Attached
  • Area: 495 sq. ft.
  • Details: 2 Cars
  • Location: Side

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Stick and Truss

Architectural Style
