Plan 66386WE

Narrow Lot Florida House Plan

1,748 3 2 1 2
Pageloader

Narrow Lot Florida House Plan

Plan 66386WE

  • 1,748

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • This very special Florida house plan has gorgeous exterior crown molding and a handsome metal roof.
  • Inside, every room in the house has eye-catching special ceiling treatments plus a host of built-ins and lots of glass to bring in light.
  • Designed for a narrow lot, this home packs a lot into its 35' width.
  • There's a wet bar to aid in entertaining and the folding glass door system slides back to take you out to the spacious covered lanai.
  • The home even comes with an outdoor shower so you can rinse all that sand and salt water off after a day at the beach.
  • Homeowners gets a beautiful vaulted and beamed ceiling that extends right into the master bathroom.

Elevations

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale,and Includes:
Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Floor Plans

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching

*Slab Plan

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)



Roof Design Plan

Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers

Building Sections

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections

Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)



*We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.


Floor Plan

Plan details

Architectural Style



Narrow Lot Florida House Plan

  • 1,748

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • Reproducible Set $1,200
  • PDF - single-use $1,200
  • CAD $1,200
  • View all purchase option online

About This Plan

  • This very special Florida house plan has gorgeous exterior crown molding and a handsome metal roof.
  • Inside, every room in the house has eye-catching special ceiling treatments plus a host of built-ins and lots of glass to bring in light.
  • Designed for a narrow lot, this home packs a lot into its 35' width.
  • There's a wet bar to aid in entertaining and the folding glass door system slides back to take you out to the spacious covered lanai.
  • The home even comes with an outdoor shower so you can rinse all that sand and salt water off after a day at the beach.
  • Homeowners gets a beautiful vaulted and beamed ceiling that extends right into the master bathroom.

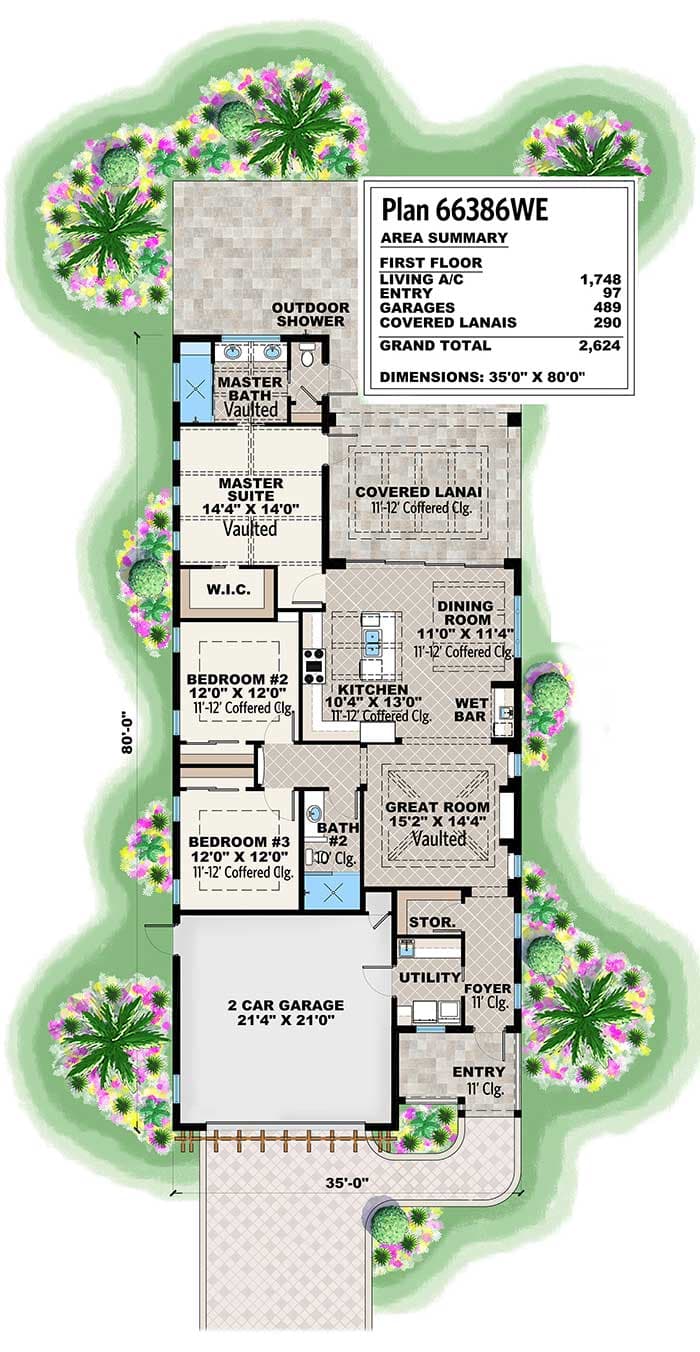

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,748 sq. ft.
  • 1st Floor: 1,748 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block
  • Optional Type(s): 2x6

Dimensions

  • Width: 35' 0"
  • Depth: 80' 0"

Garage

  • Type: Attached
  • Area: 489 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front
