Plan 62441DJ

Narrow Lot Home Plan with 20

Heated S.F.

2,333

Beds

4

Baths

2.5

Stories

2

Cars

2

What's Included

Floor Plan

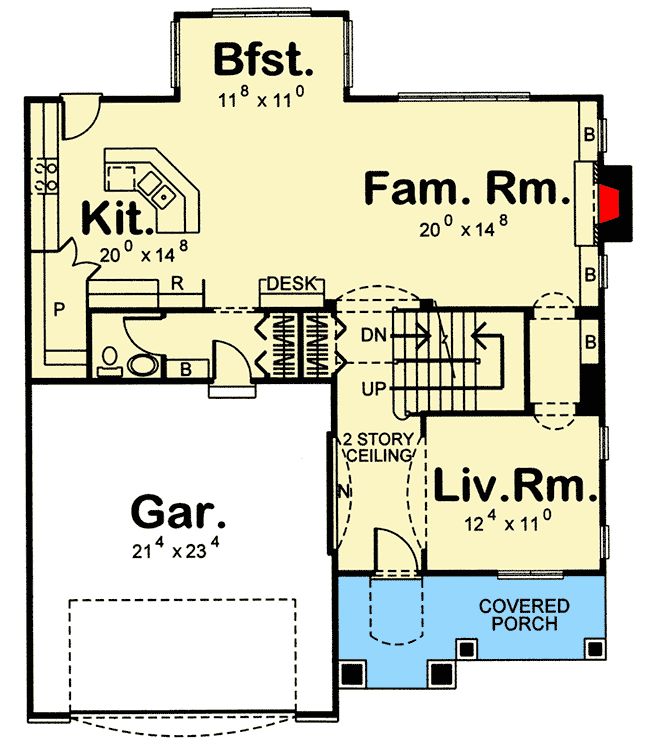

Main Level

Reverse Floor Plan

Narrow Lot Home Plan with 20 - 62441DJ floor plan - Main Level

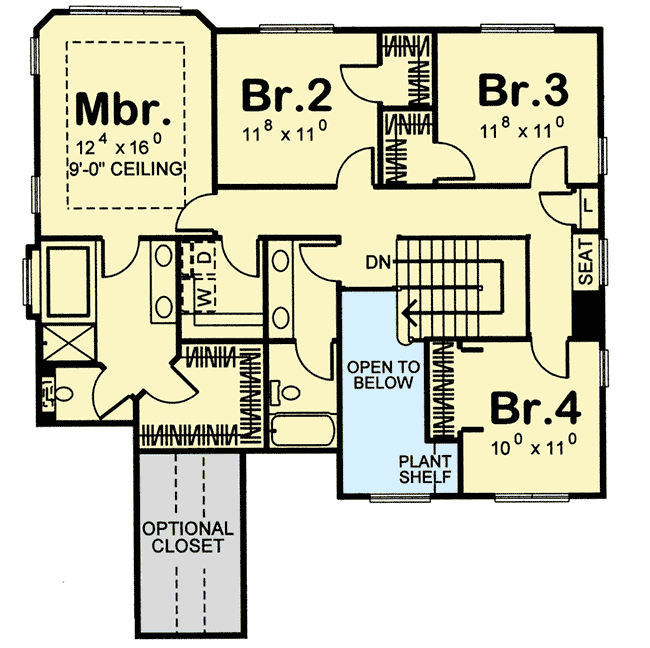

2nd Floor

Reverse Floor Plan

Narrow Lot Home Plan with 20 - 62441DJ floor plan - 2nd Floor

Plan Details

This home plans gives you a design suitable for a narrow lot with curb appeal. The inside emphasizes family living.
A 2-story entry is what you see when you enter the home, while an open kitchen helps maintain a comfortable feel with views into the family room and breakfast nook.
As you continue upstairs the second level offers 4 bedrooms and a 2nd level laundry.
The master suite has a boxed ceiling and a luxury master bath with a large walk in closet.

What's Included

Cover Sheet: Shows the front elevation and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Roof Plan
Typical Wall Section
Typical Stair Section
Cabinets Elevations

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Square Footage Breakdown

Total Heated Area:

2,333 sq. ft.

1st Floor:

1,175 sq. ft.

2nd Floor:

1,158 sq. ft.

Porch, Front:

136 sq. ft.

Beds/Baths

Bedrooms:

4

Full bathrooms:

2

Half bathrooms:

1

Foundation Type

Standard Foundations:

Basement

Optional Foundations:

Walkout, Slab, Crawl

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x4

Optional Type(s):

2x6

Dimensions

Width:

43' 0"

Depth:

50' 0"

Max Ridge Height:

27' 7"

Garage

Type:

Attached

Area:

573 sq. ft.

Count:

2 Cars

Entry Location:

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch:

7 on 12

Framing Type:

Stick

Architectural Style

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Laundry - Upstairs

Master Suite - 2nd Floor
