Plan 28139J
Narrow Lot House Plan Just 15-Feet-Wide with 3 Bedrooms - 1807 Sq Ft
Heated S.F.
1,807
Beds
3
Baths
2.5
Stories
2
Cars
1
What's Included
Plan Details
  • This narrow lot house plan - just 15' wide - gives you 3 beds, 2.5 baths and 1,807 square feet of heated living space and is perfect for your narrow or infill lot.

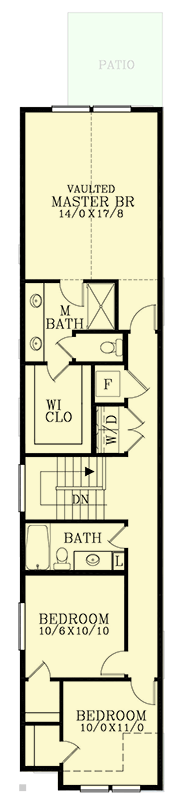

  • All three bedrooms are located on the second floor, as is laundry for your convenience. The master suite has a vaulted ceiling and a 4-fixture bath.

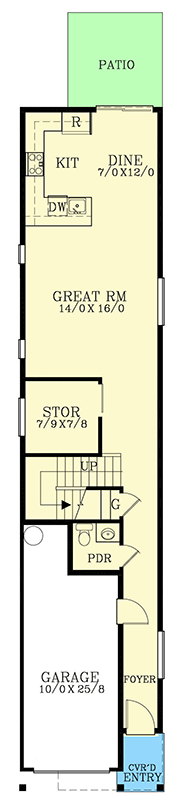

  • Enter the home through the foyer or from the garage and find yourself in a hallway with a powder room located before you get to the stairs.
  • The back of the home is open from the kitchen with island to the dining and great rooms. Sliding doors on the back wall take you to a patio.
  • Related Plans: Get alternate versions with house plans 28085J (70' deep), 28084J (64' deep), 28083J (62' deep) and 28082J (60' deep).
What's Included
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Narrow Lot House Plan Just 15-Feet-Wide with 3 Bedrooms - 1807 Sq Ft

  • 1,807

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 1

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,807 sq. ft.
  • 1st Floor: 791 sq. ft.
  • 2nd Floor: 1,016 sq. ft.

Dimensions

  • Width: 15' 0"
  • Depth: 70' 0"
  • Max ridge height: 25' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 235 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Post/Beam

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 10
  • Framing Type: Truss
