Plan 737004LVL
Narrow Lot Northwest House Plan
Heated S.F.
1,708
Beds
4
Baths
2.5
Stories
2
Cars
2
What's Included
Plan Details
  • This two-story Northwest house plan comes in at just 28' wide making it ideal for a narrow lot.
  • Long and narrow, the house has an open floor plan that makes the home feel larger.
  • Sliding glass doors near the kitchen lead out to an uncovered patio where you can set up your grill.
  • The second floor  is huge, using the space over the two car garage to add square footage.
  • The master suite is in back and has a private bathroom and walk-in closet.
  • There's also a handy laundry closet close to all four bedrooms.
What's Included
  • Cover sheet
  • Foundation plan
  • Floor plans
  • Roof framing plan
  • Building section and typical wall sections

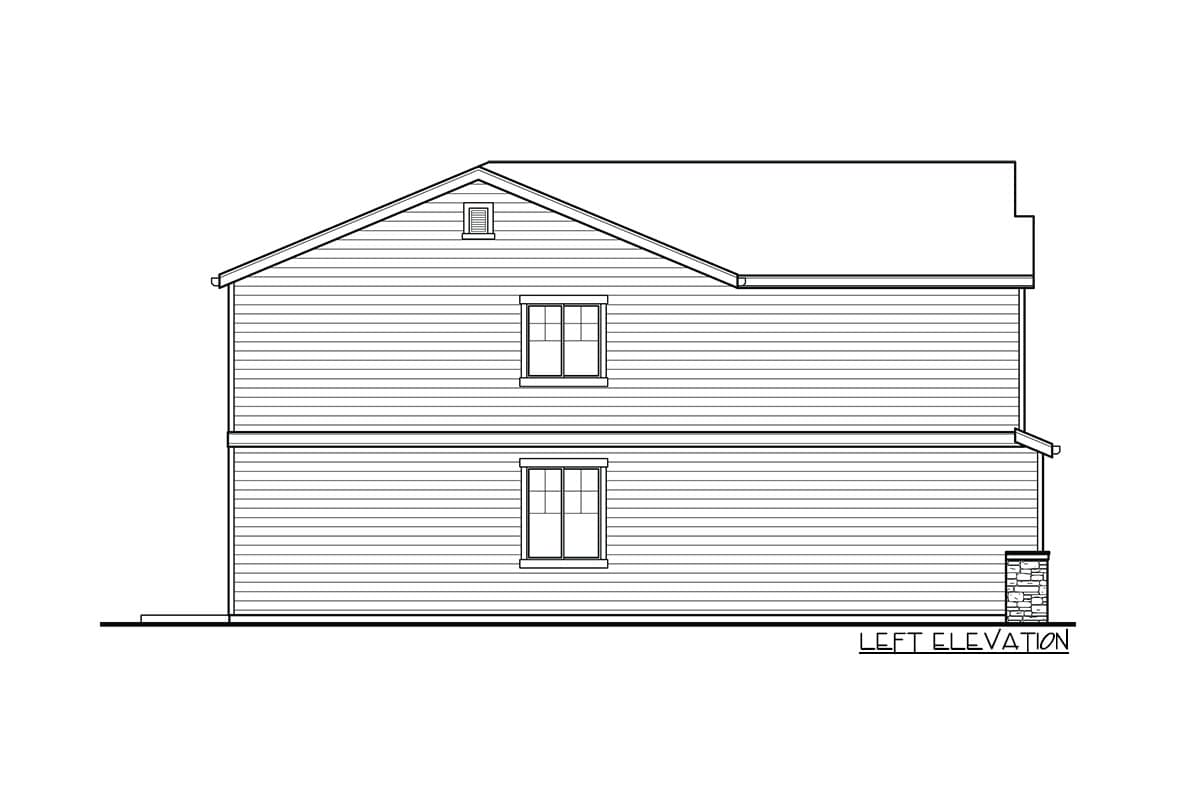

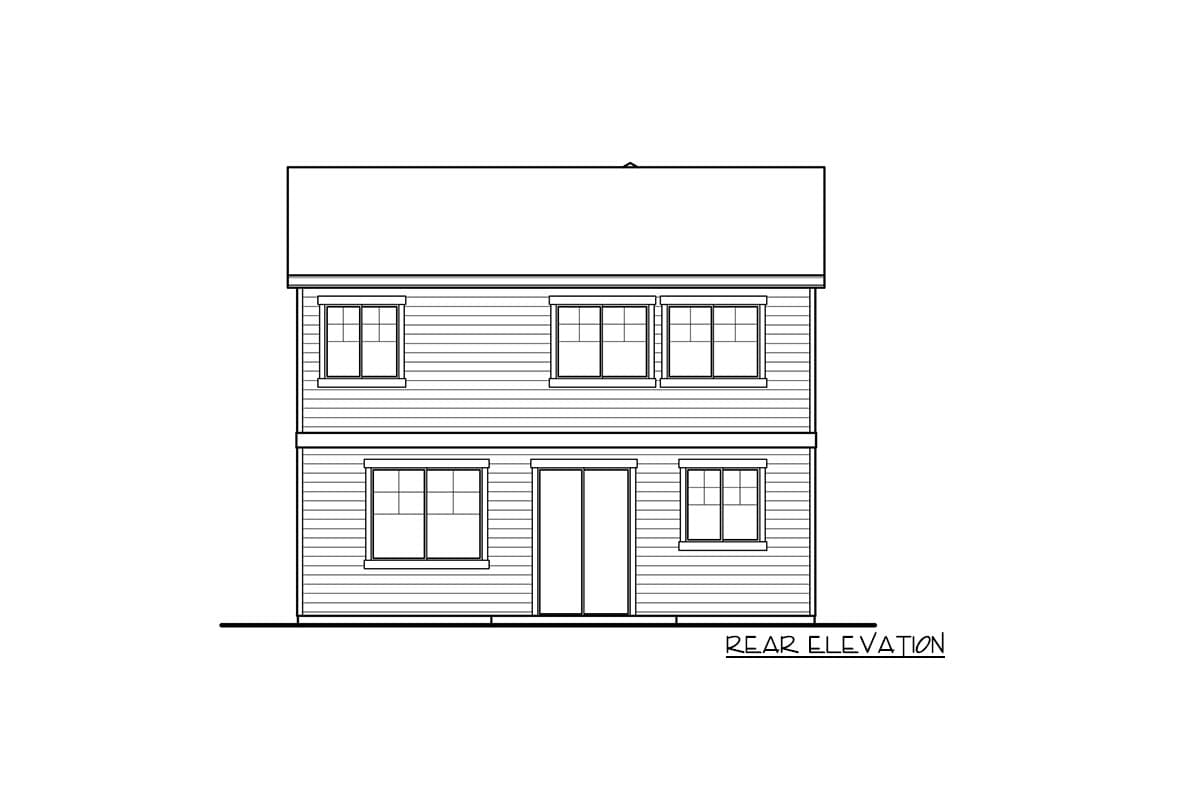

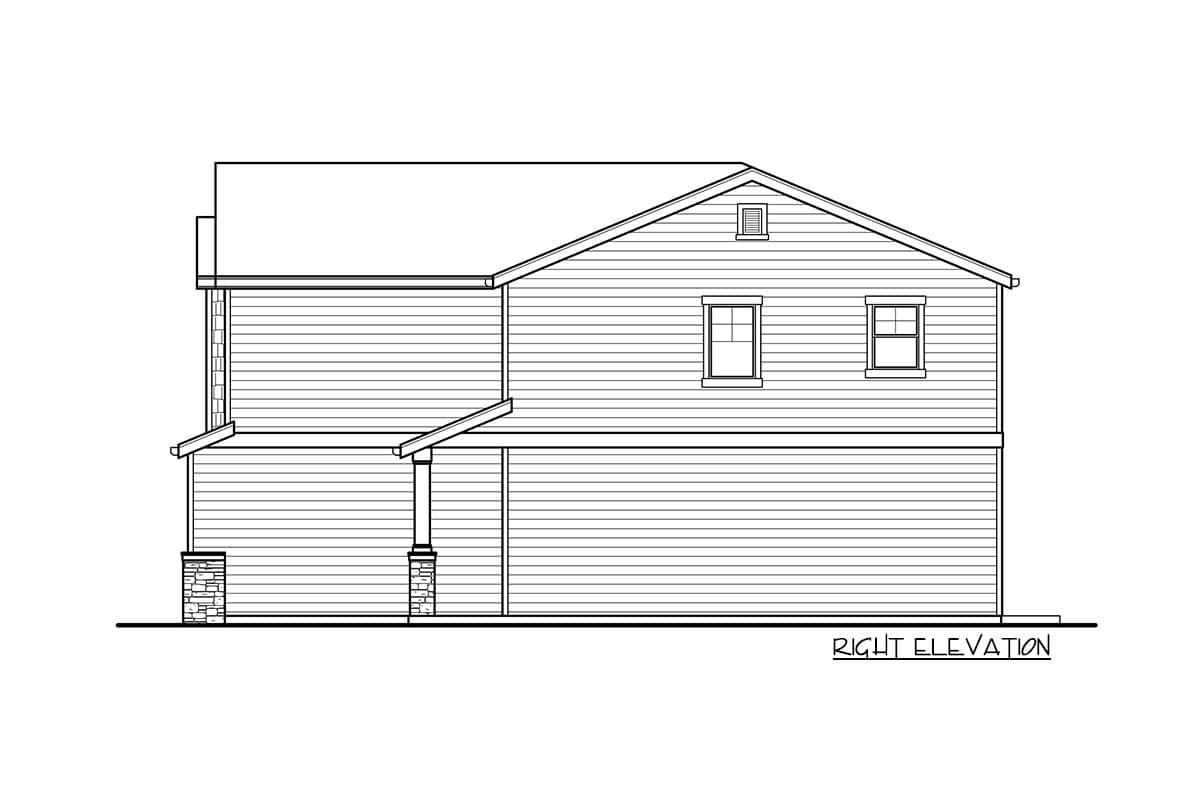

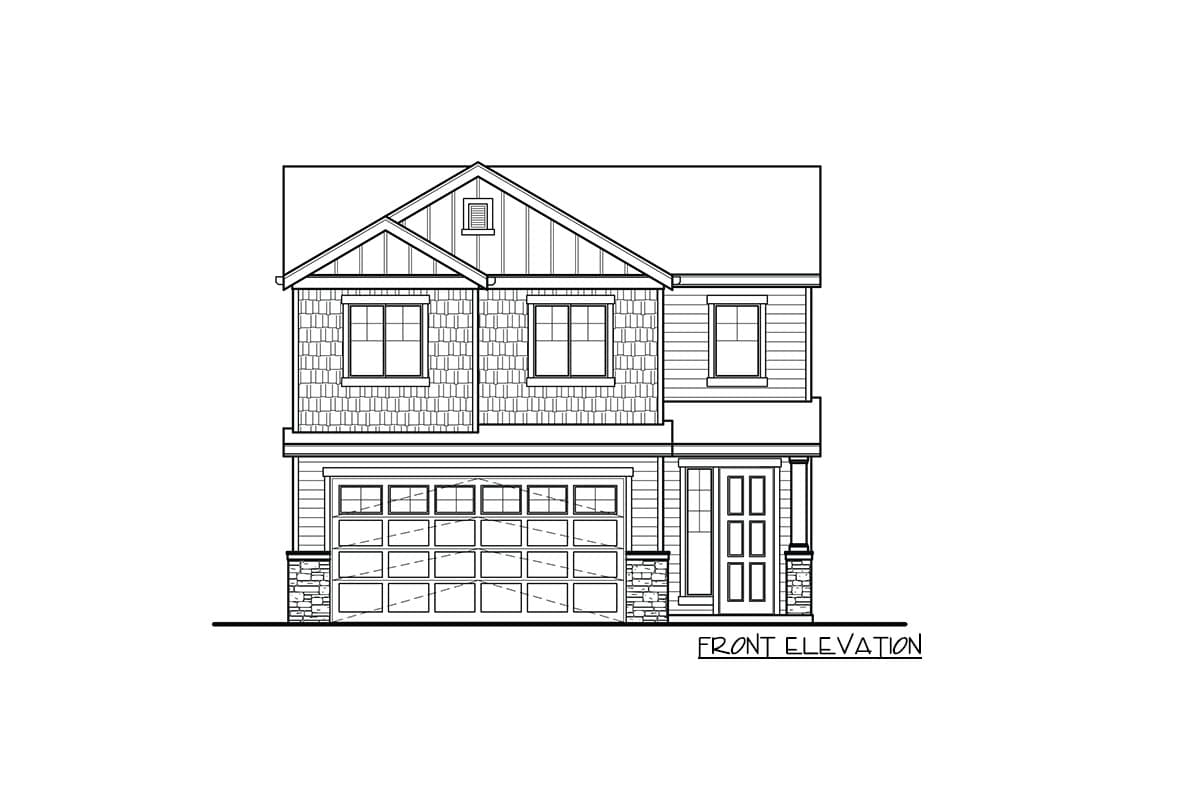

  • Elevations
  • General construction details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Narrow Lot Northwest House Plan

  • 1,708

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

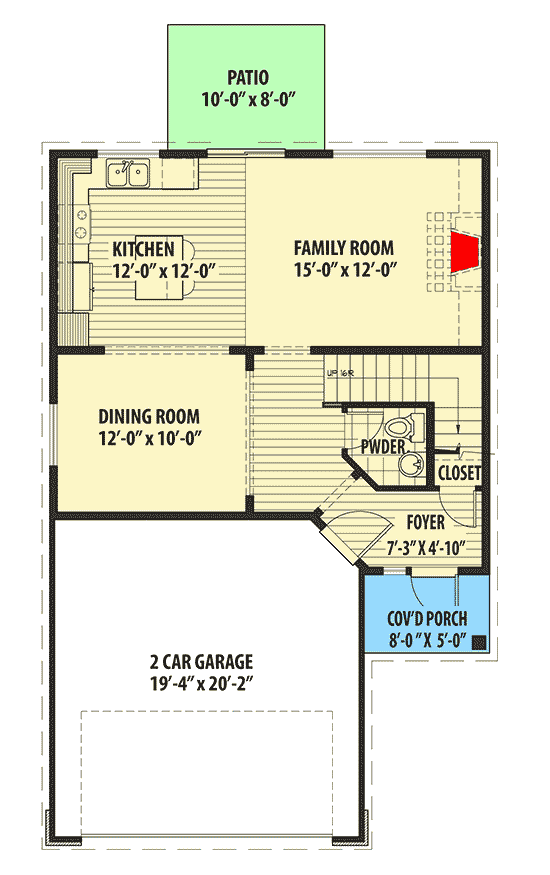

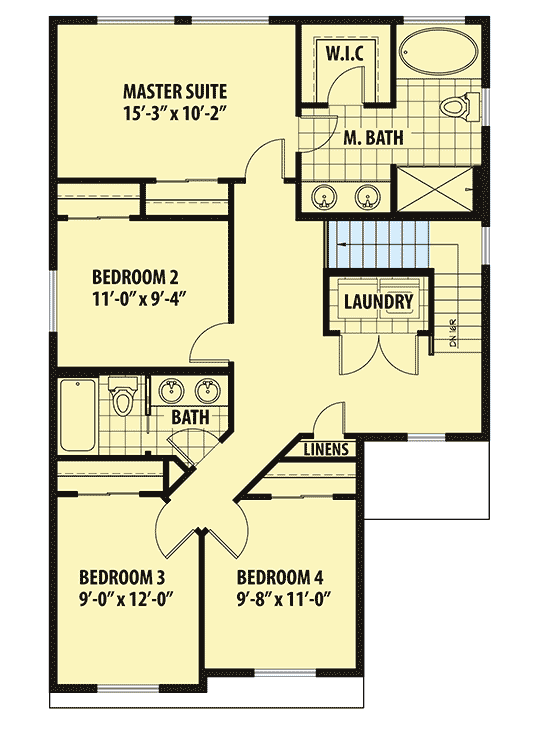

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,708 sq. ft.
  • 1st Floor: 692 sq. ft.
  • 2nd Floor: 1,016 sq. ft.

Dimensions

  • Width: 28' 0"
  • Depth: 44' 0"
  • Max ridge height: 24' 9"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 404 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 5 on 12
  • Secondary Pitch: 7 on 12
  • Framing Type: Stick
