Plan 21930DR Narrow Lot Raised Cottage

870 2 1 1
Print
Compare
...

Narrow Lot Raised Cottage

Plan 21930DR

  • 870

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Stories

  • This economical two-bedroom house plan offers you flexiblity for a narrow lot. It is available in two version, one with brick and one with siding.
  • Step across the covered front porch, hang your coat in the closet and step into your open floor plan design.
  • The family room flows into the dining room and the kitchen with eating bar.
  • Two bedrooms share a spacious bathroom with a jetted tub.
  • Related Plan: Get a version with a full clapboard siding exterior with house plan 21715DR.

Each plan includes the following:

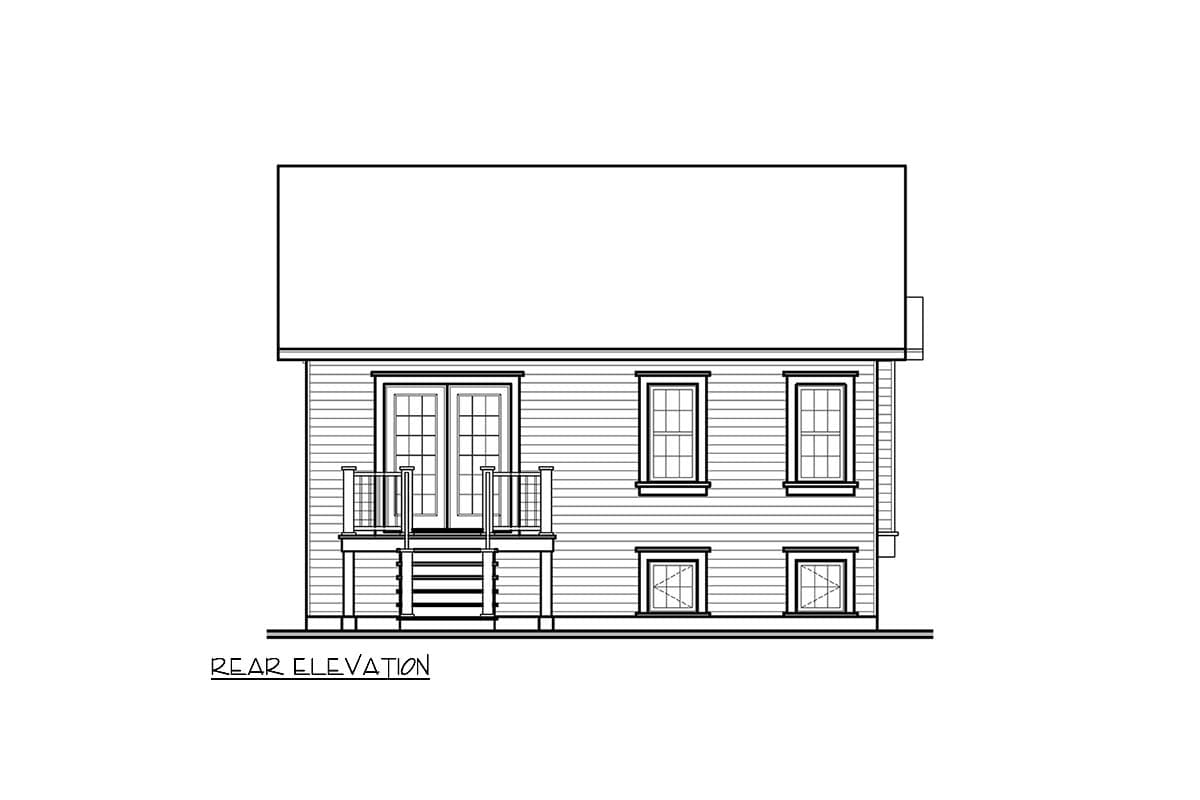

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Truss Diagrams & Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

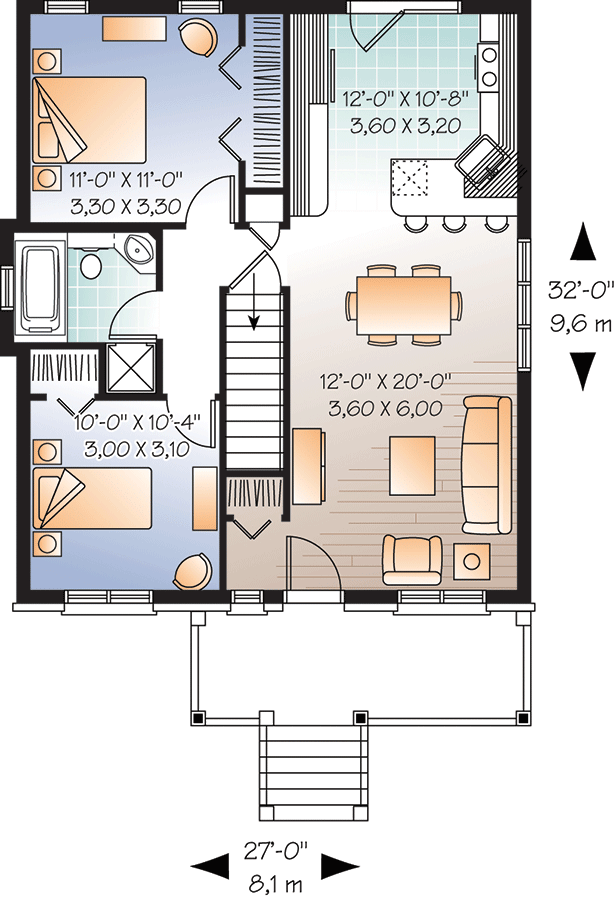

Narrow Lot Raised Cottage - 21930DR floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 870 sq. ft.
  • 1st Floor: 870 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Slab, Daylight, Walkout, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 27' 0"
  • Depth: 32' 0"
  • Max ridge height: 21' 4"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof Details

  • Framing Type: Truss

Architectural Style

Special features

Plan Collections



Narrow Lot Raised Cottage

  • 870

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $870
  • Reproducible Set $870
  • 5 Sets + PDF $995
  • CAD - Single-Build $1,470
  • View all purchase option online

About This Plan

  • This economical two-bedroom house plan offers you flexiblity for a narrow lot. It is available in two version, one with brick and one with siding.
  • Step across the covered front porch, hang your coat in the closet and step into your open floor plan design.
  • The family room flows into the dining room and the kitchen with eating bar.
  • Two bedrooms share a spacious bathroom with a jetted tub.
  • Related Plan: Get a version with a full clapboard siding exterior with house plan 21715DR.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 870 sq. ft.
  • 1st Floor: 870 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Daylight, Walkout, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 27' 0"
  • Depth: 32' 0"
  • Max ridge height: 21' 4"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Framing Type: Truss

Plan 21930DR
View this and more for this plan by visiting www.architechtecturaldesigns.com/21930DR
|
