Plan 31522GF
Narrow Lot Townhome
Heated S.F.
1,564
Beds
3
Baths
2.5
Stories
2
What's Included
Plan Details
  • Less than 20' wide, this attractive townhome fits well on a narrow lot.
  • Enjoy the fresh air on the big front porch or grill out back.
  • The spacious living room has a big fireplace as the focal point with built-in cabinetry on either side.
  • A kitchen island gives you extra counter space and storage and is open to the dining room so the whole space feels large.
  • Sliding glass doors take you out back to the rear porch.
  • All three bedrooms are upstairs with the front bedroom having a lovely bay window.
What's Included
  • Cover Sheet: Shows typical notes and requirements.

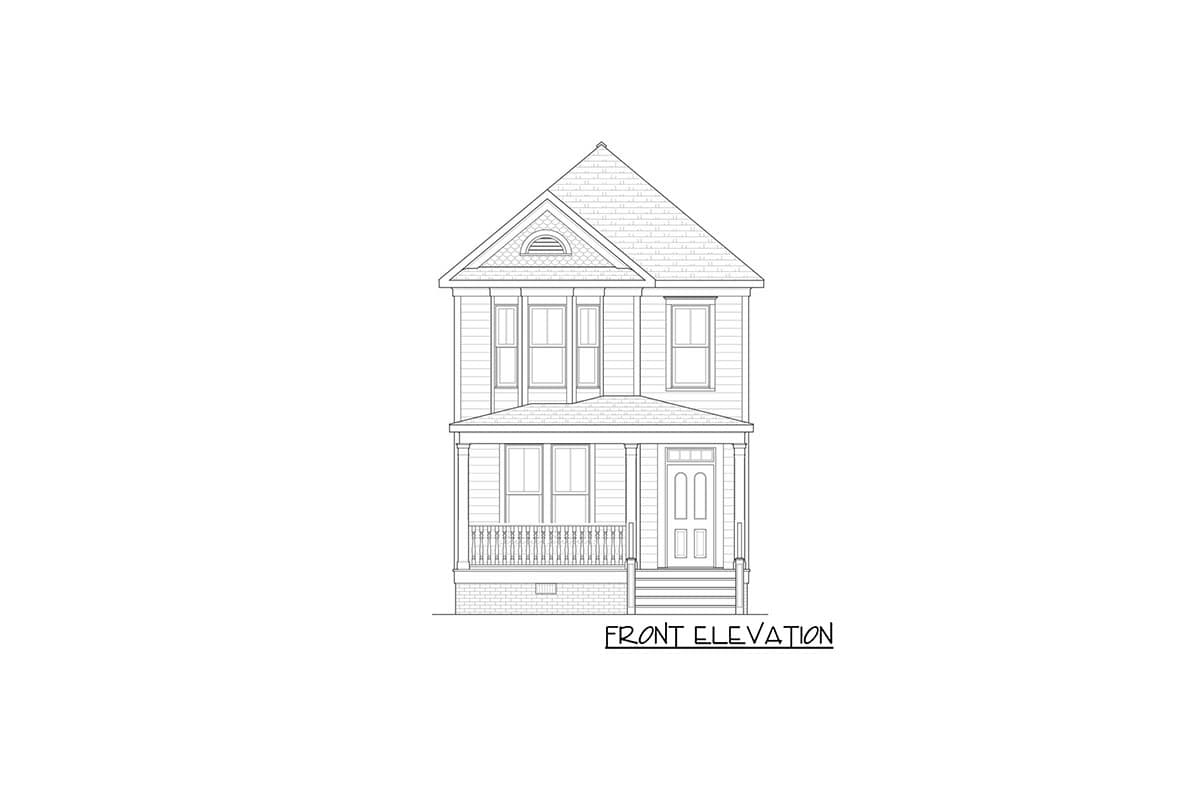

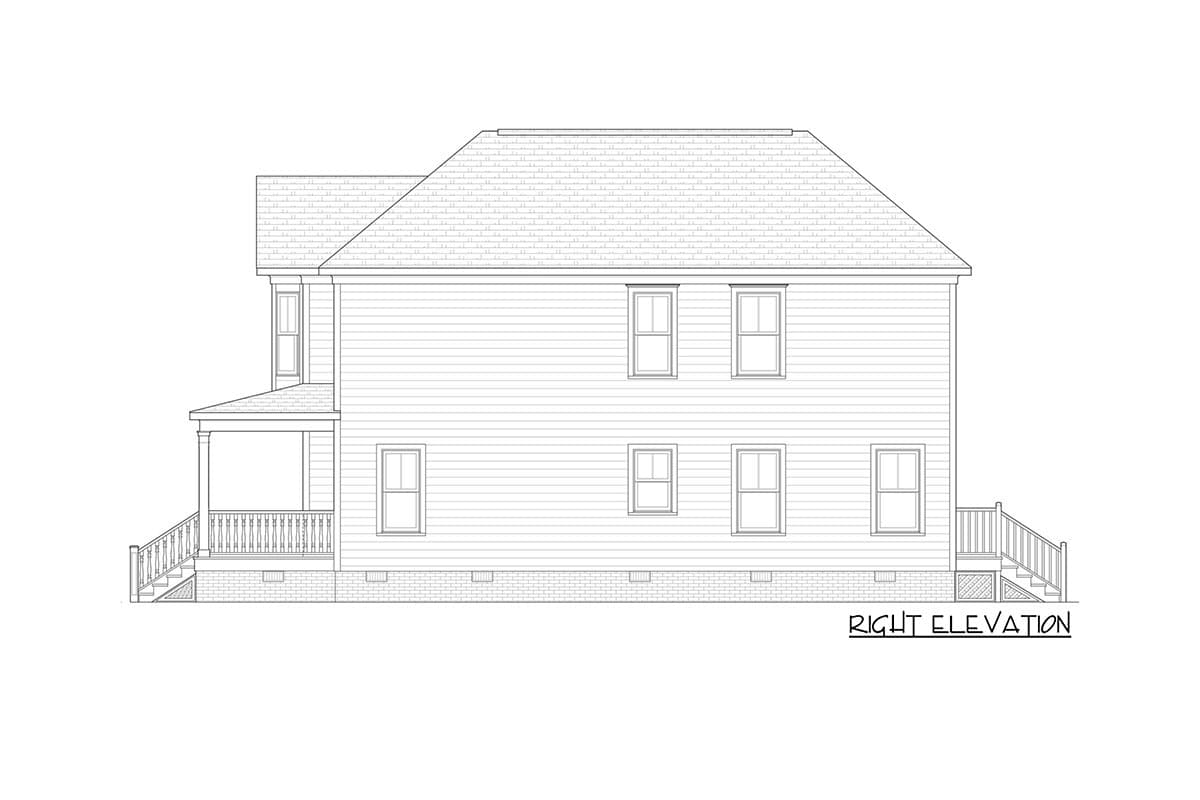

  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Typical wall section
  • Typical stair section (if applicable)
  • Typical shelving and cabinet details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Narrow Lot Townhome

  • 1,564

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

Floor Plan

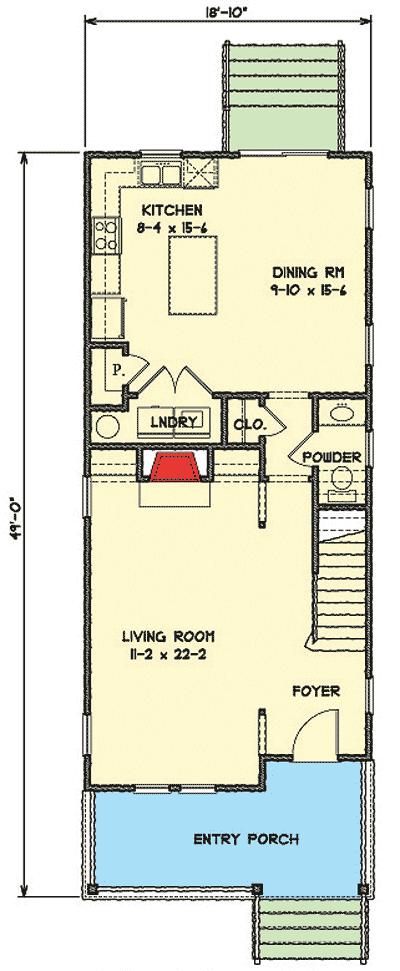

  • Main Level

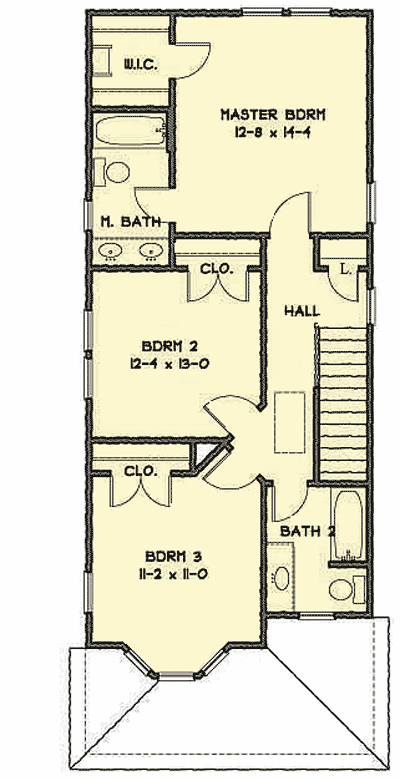

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,564 sq. ft.
  • 1st Floor: 777 sq. ft.
  • 2nd Floor: 787 sq. ft.

Dimensions

  • Width: 18' 10"
  • Depth: 42' 0"
  • Max ridge height: 30' 6"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 3 on 12
