Narrow Lot Tudor Home Plan
Heated S.F.
2,250
Beds
3
Baths
2.5
Stories
2
Cars
2
What's Included
Plan Details
  • A sheltered entry porch ushers you into the foyer of this lovely Tudor home plan designed for a narrow lot.

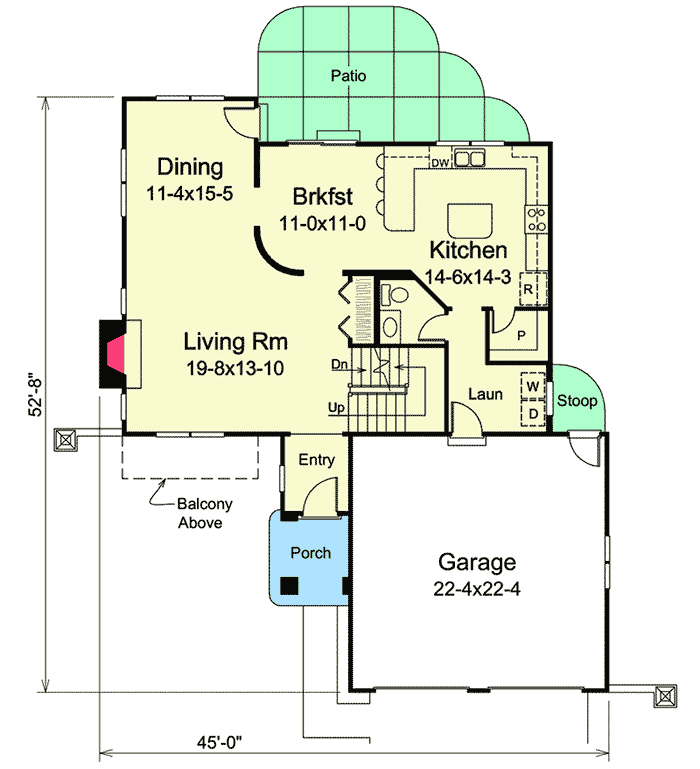

  • Both the living and dining rooms are open to each other for wonderful views and ease of movement.
  • The breakfast nook and kitchen are also open to each other making the space seem even larger.

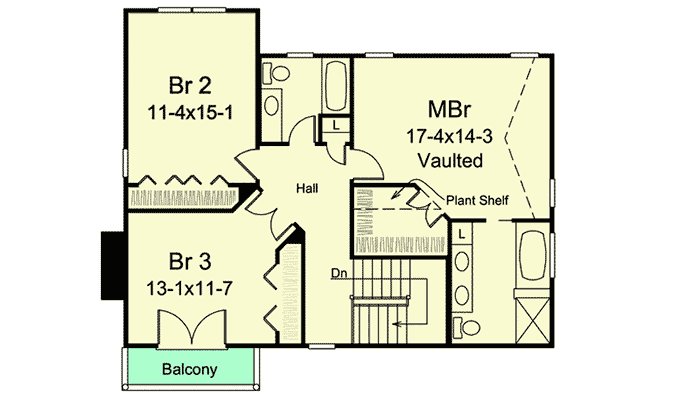

  • On the second floor, the vaulted master suite has a walk-in closet with a plant shelf.
  • Bedroom three has a charming balcony accessed through double doors.
What's Included

  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan

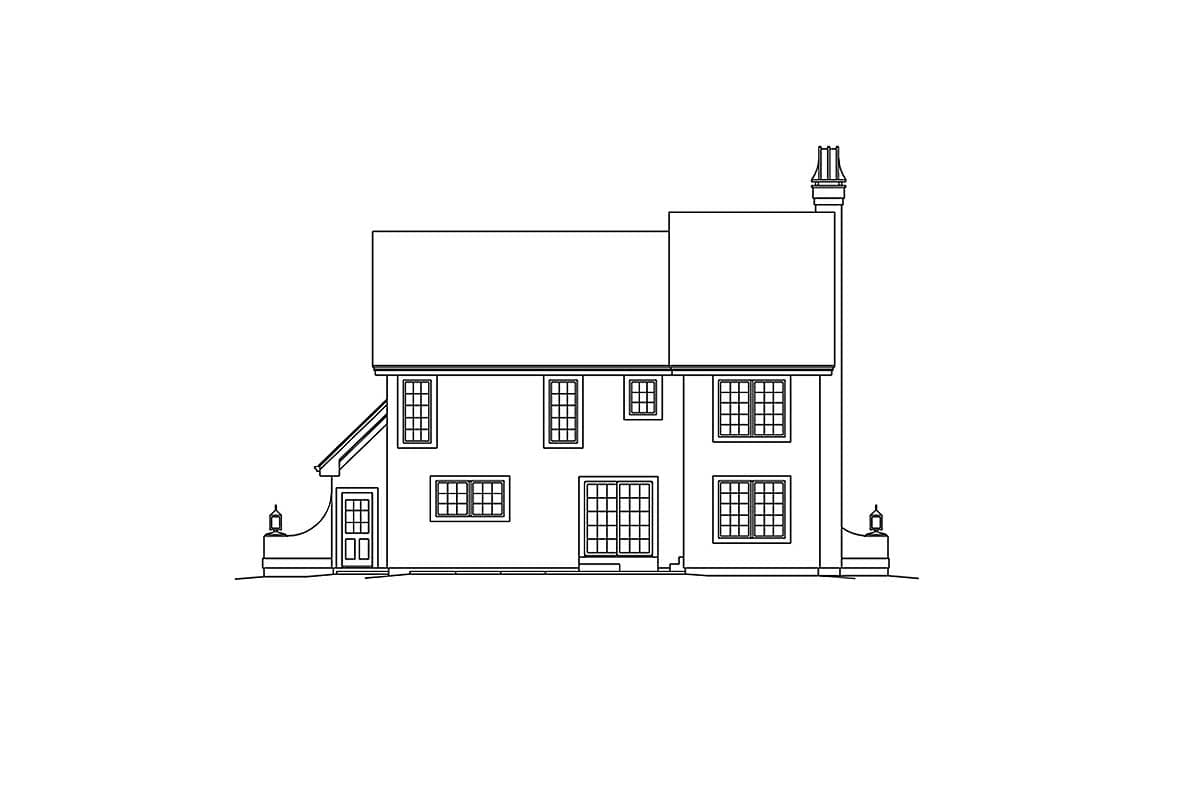

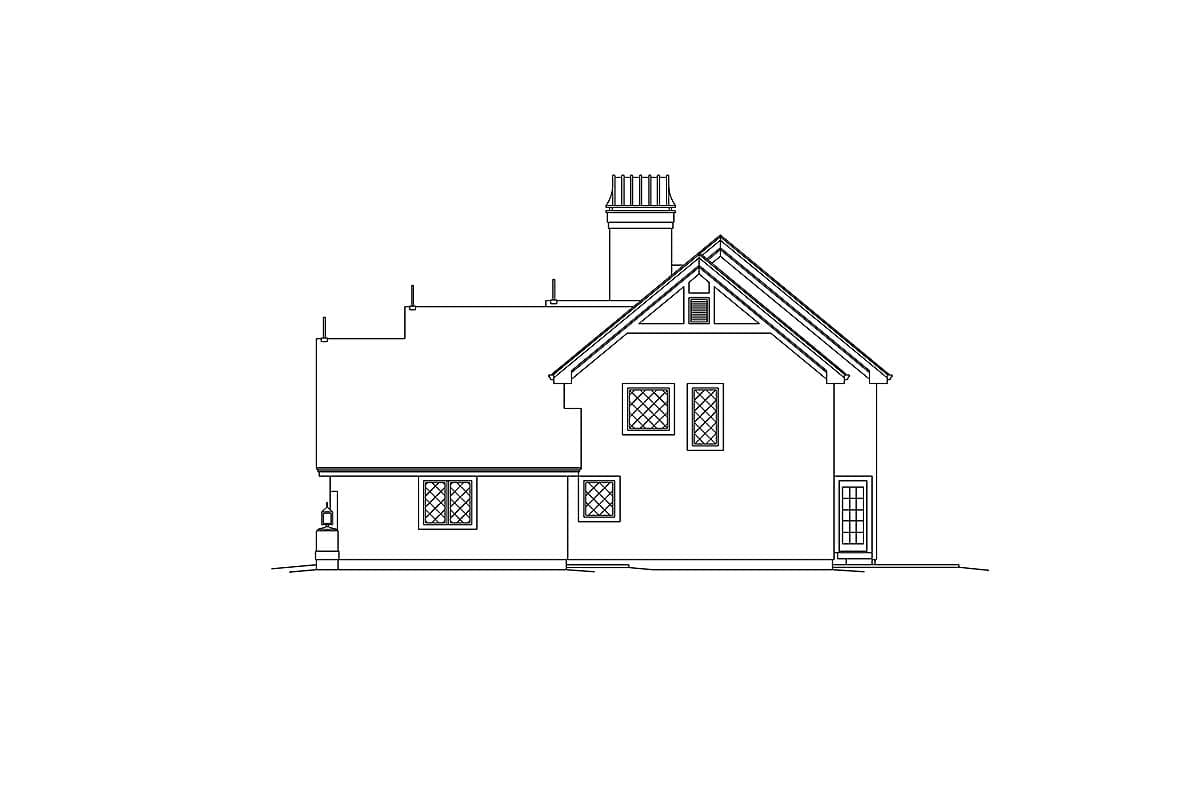

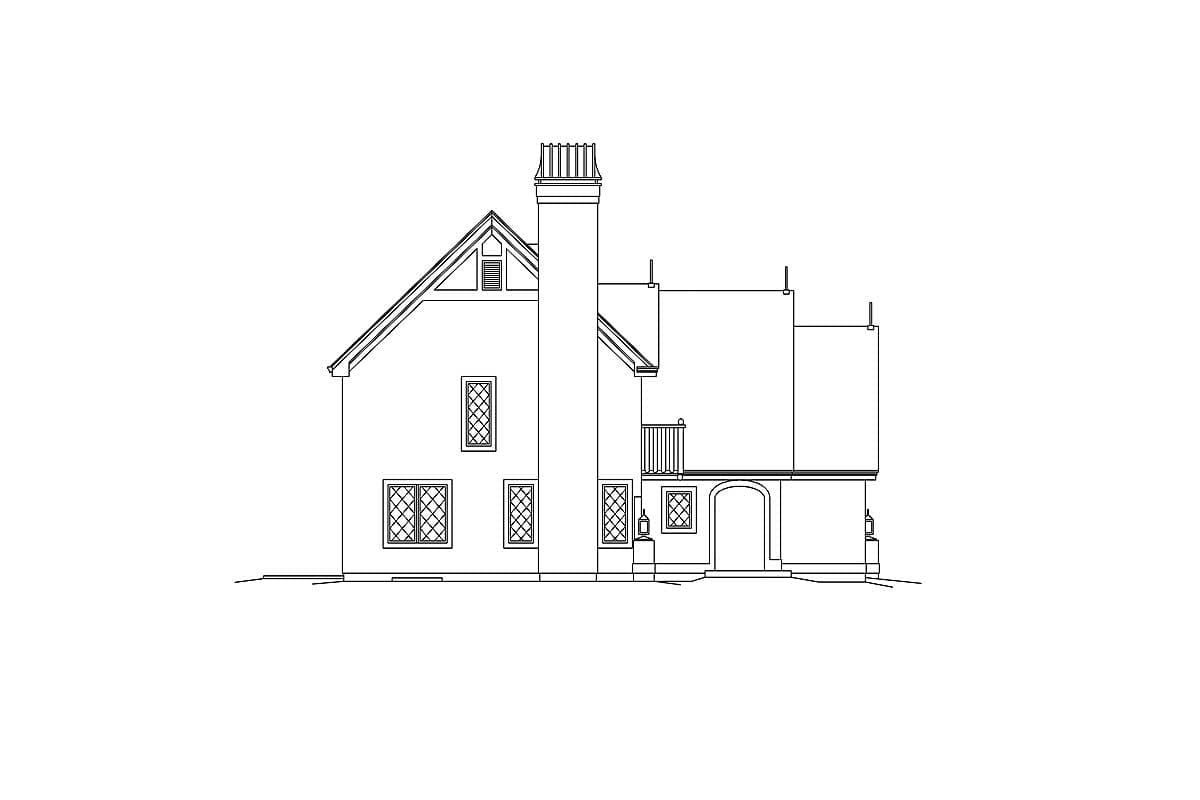

  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
