Plan 57039HA

Narrow Lot Vacation Plan

Heated S.F.
1,498
Beds
2
Baths
2.5
Stories
2
Cars
1

Floor Plan

Plan 57039HA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 57039HA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

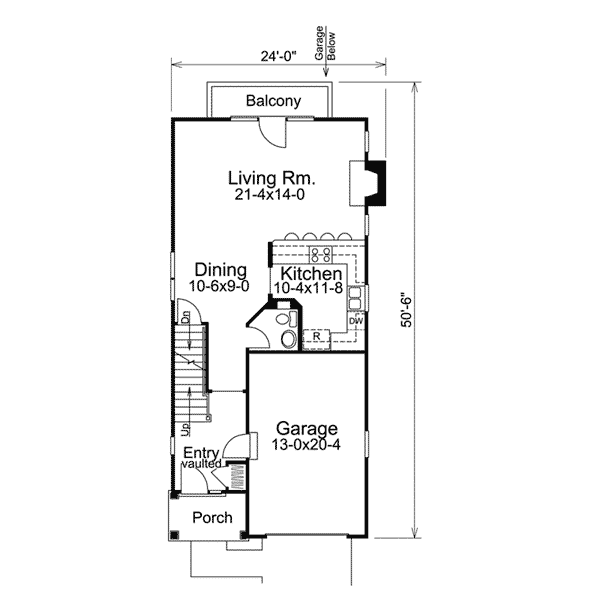

Plan 57039HA: Narrow Lot Vacation Plan - Floor Plan - Main Level - Country, Vacation

2nd Floor

Plan 57039HA: Narrow Lot Vacation Plan - Floor Plan - 2nd Floor - Country, Vacation

Plan Details

  • The perfect home plan for a narrow and sloping lot features both front and rear garages.
  • Two-story foyer leads past a well placed half bath to dining area with an adjacent U-shaped kitchen.
  • Straight ahead the large living room has fireplace, rear outdoor balcony and a pass-through snack bar connecting it with the spacious kitchen.
  • One the second floor the roomy master bedroom has a private luxury bath and two walk-in closets.
  • Secondary bedroom has its own walk-in closet and is handy to both hall bath and laundry room.

What's Included

  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan
  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,498 sq. ft.

1st Floor

827 sq. ft.

2nd Floor

671 sq. ft.

Porch, Combined

294 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

24' 0"

Depth

50' 6"

Max Ridge Height

27' 0"

Garage

Type

Attached

Area

797 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Country

Vacation

Special Features

Master Suite - Upstairs

Plan Collections

Sloping Lot

Square Footage Breakdown

Total Heated Area

1,498 sq. ft.

1st Floor

827 sq. ft.

2nd Floor

671 sq. ft.

Porch, Combined

294 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

24' 0"

Depth

50' 6"

Max Ridge Height

27' 0"

Garage

Type

Attached

Area

797 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Country

Vacation

Special Features

Master Suite - Upstairs

Plan Collections

Sloping Lot
