Plan 666211RAF
Narrow Mid-Century Modern House Plan with Rear Garage
Heated S.F.
2,658
Beds
5
Baths
3
Stories
2
Cars
2
What's Included
Plan Details
  • With a width of 34 feet and a rear-entry garage, this Mid-Century Modern house plan is ideal for narrow lots.
  • A 6'6" porch welcomes you inside where a foyer is framed by a flex room and guest bedroom. The remainder of the main level is open in order to enjoy the company of others.
  • Enter from the double garage to find your self in the open living space with easy access to the kitchen to unload groceries.
  • Four bedrooms and the laundry room are located upstairs.
  • The master suite has a vaulted ceiling and dresser niche, and the attached bathroom features a toilet room and walk-in closet.
What's Included
  • Cover Sheet with plan info
  • General notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building cross section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
What's Not Included
  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans   - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Narrow Mid-Century Modern House Plan with Rear Garage

  • 2,658

    Heated s.f.

  • 5

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

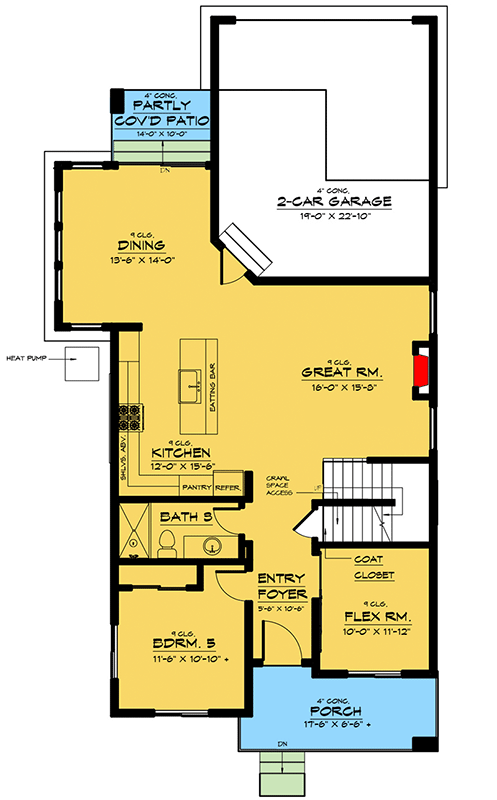

  • Main Level

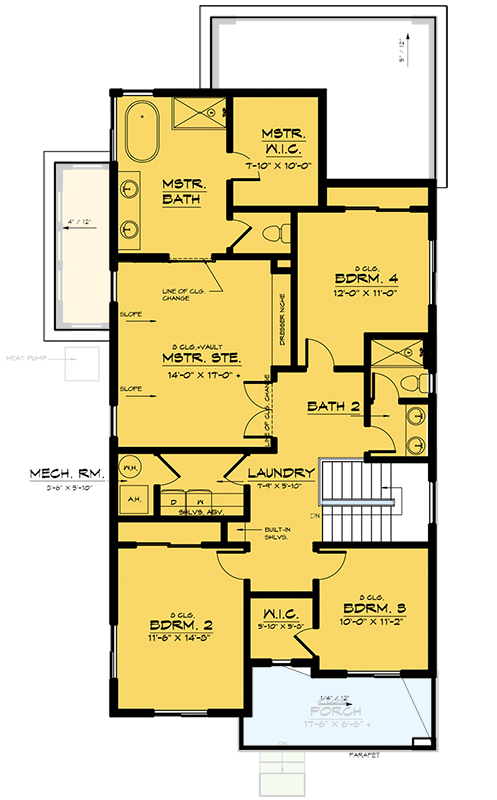

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,658 sq. ft.
  • 1st Floor: 1,251 sq. ft.
  • 2nd Floor: 1,407 sq. ft.

Dimensions

  • Width: 34' 0"
  • Depth: 62' 6"
  • Max ridge height: 25' 3"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 456 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 1.5 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
