Plan 623541DJ

Narrow Traditional House Plan with Upstairs Master Suite

Heated S.F.
1,415
Beds
3
Baths
2.5
Stories
2
Tour

Floor Plan

Plan 623541DJ

Main Level
Main Level
2nd Floor
2nd Floor

Plan 623541DJ

M-F 9am-5pm EST |

1-203-761-8500

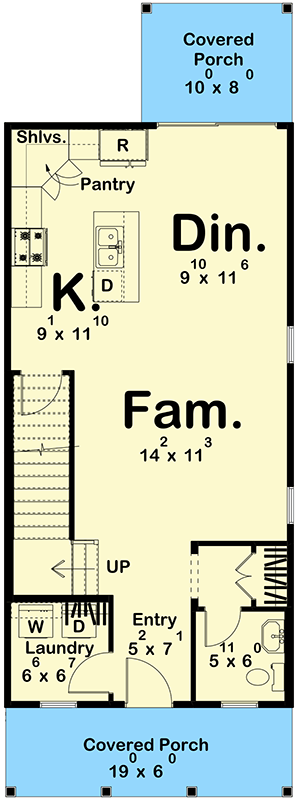

Main Level

Plan 623541DJ: Narrow Traditional House Plan with Upstairs Master Suite - Floor Plan - Main Level - Traditional

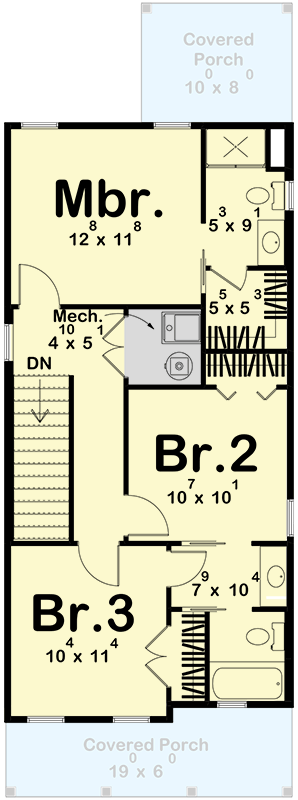

2nd Floor

Plan 623541DJ: Narrow Traditional House Plan with Upstairs Master Suite - Floor Plan - 2nd Floor - Traditional

Plan Details

  • Experience cozy living in this 1,415 sq. ft. traditional-style home featuring 3 bedrooms, 2.5 baths, and a thoughtfully designed layout. Enjoy the inviting atmosphere of the 194 sq. ft. combined porch area.

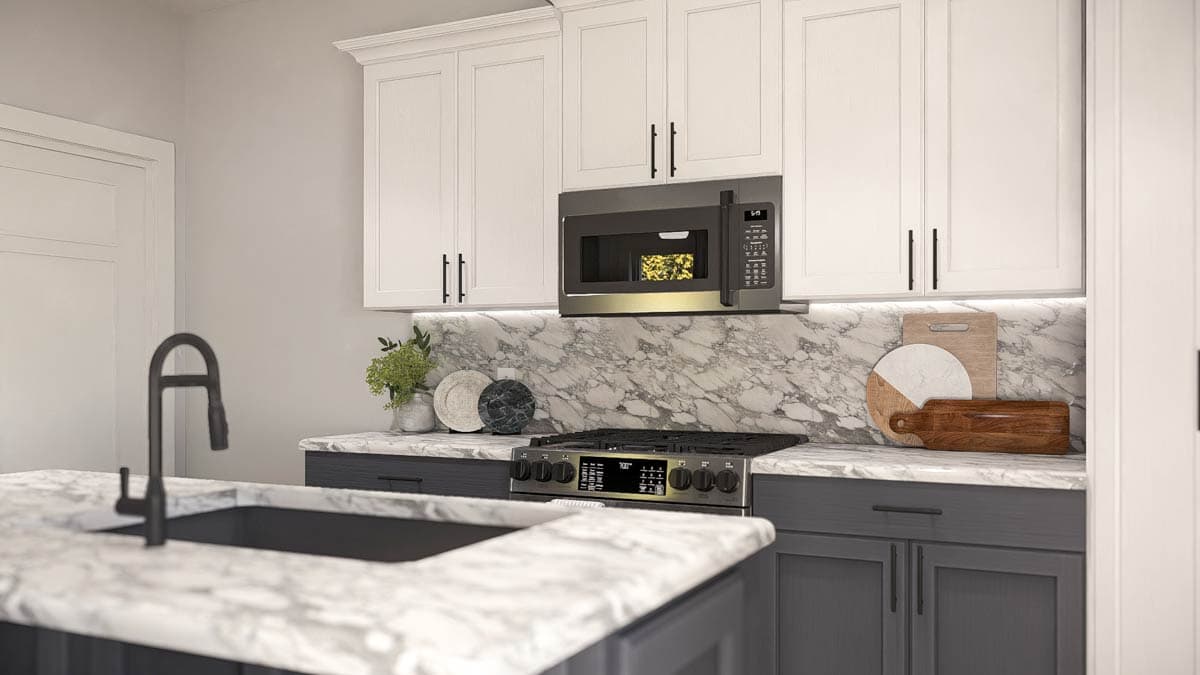

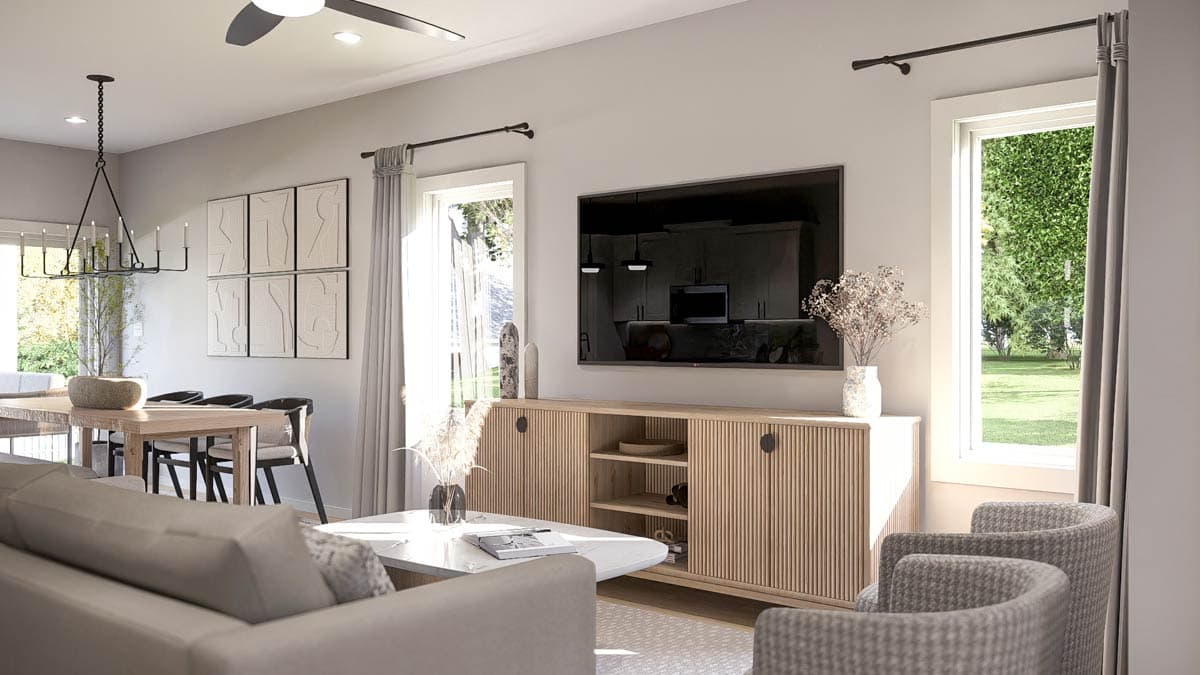

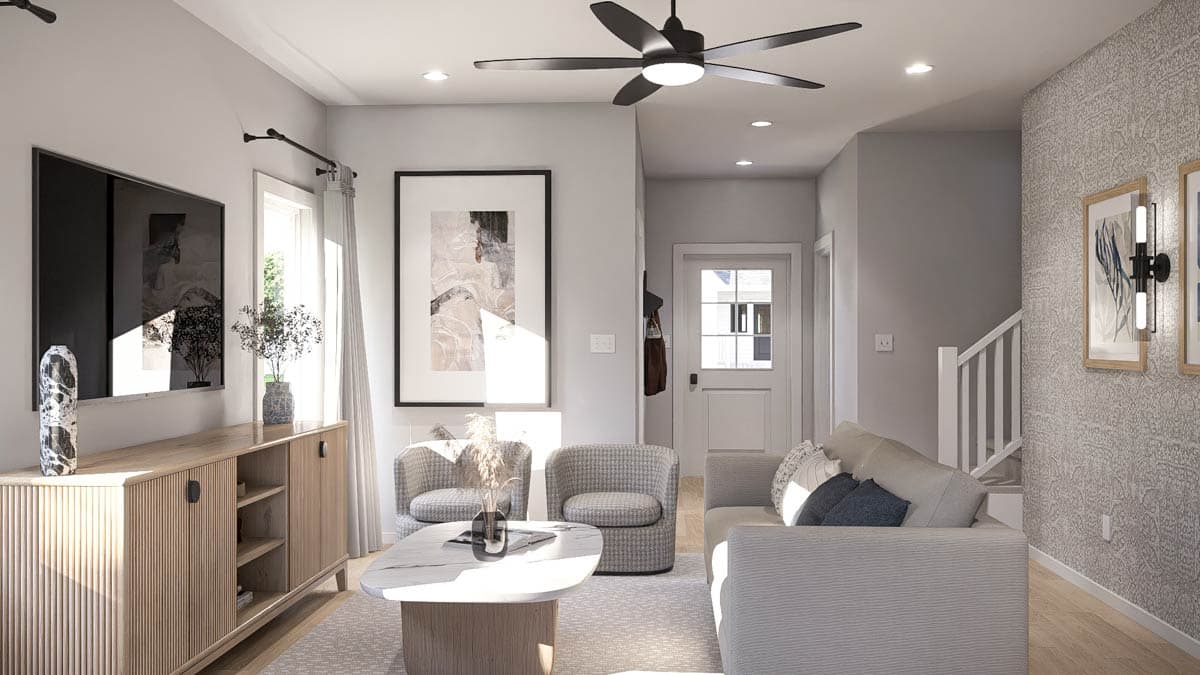

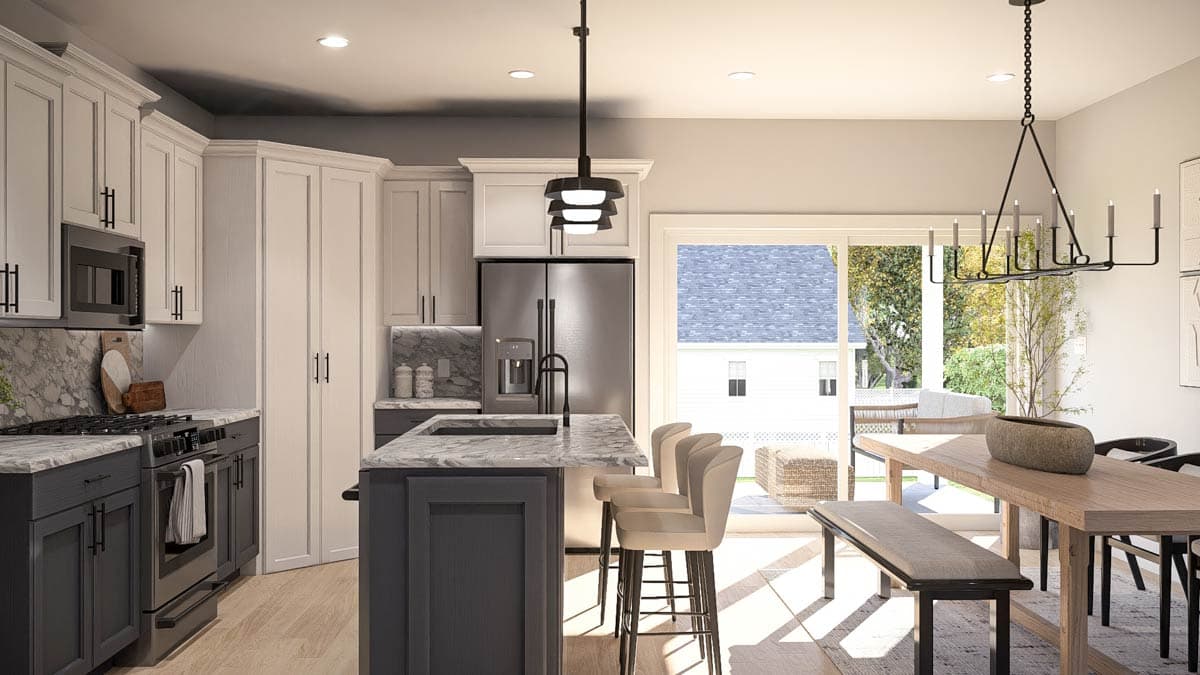

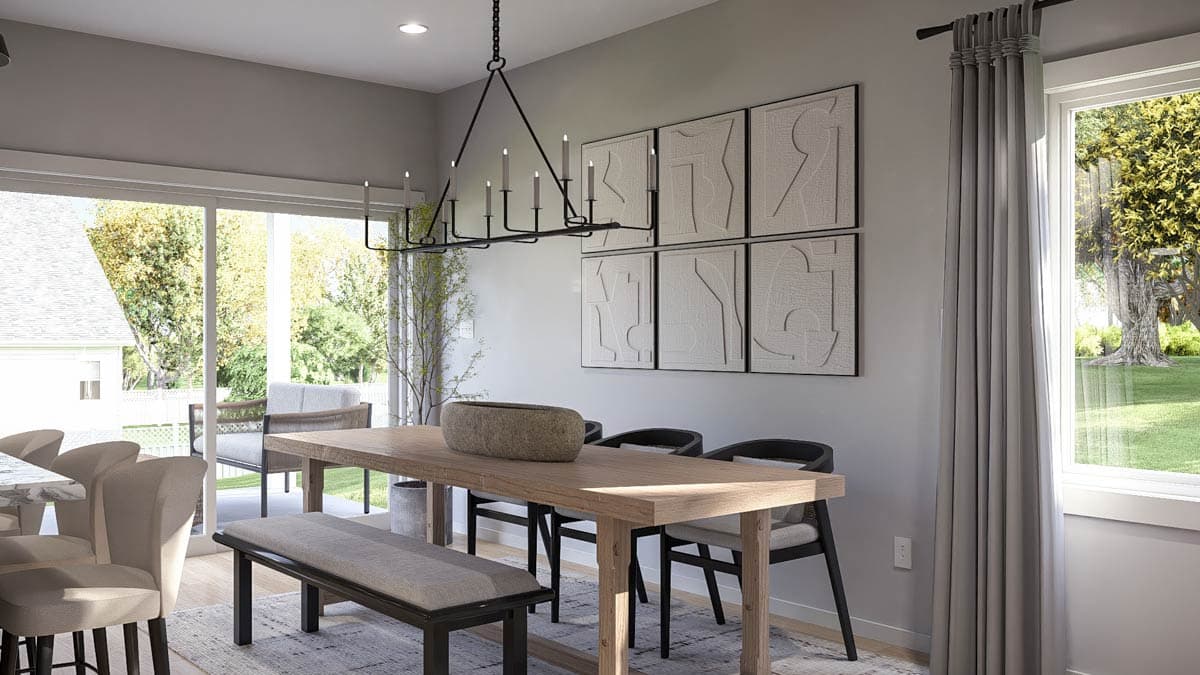

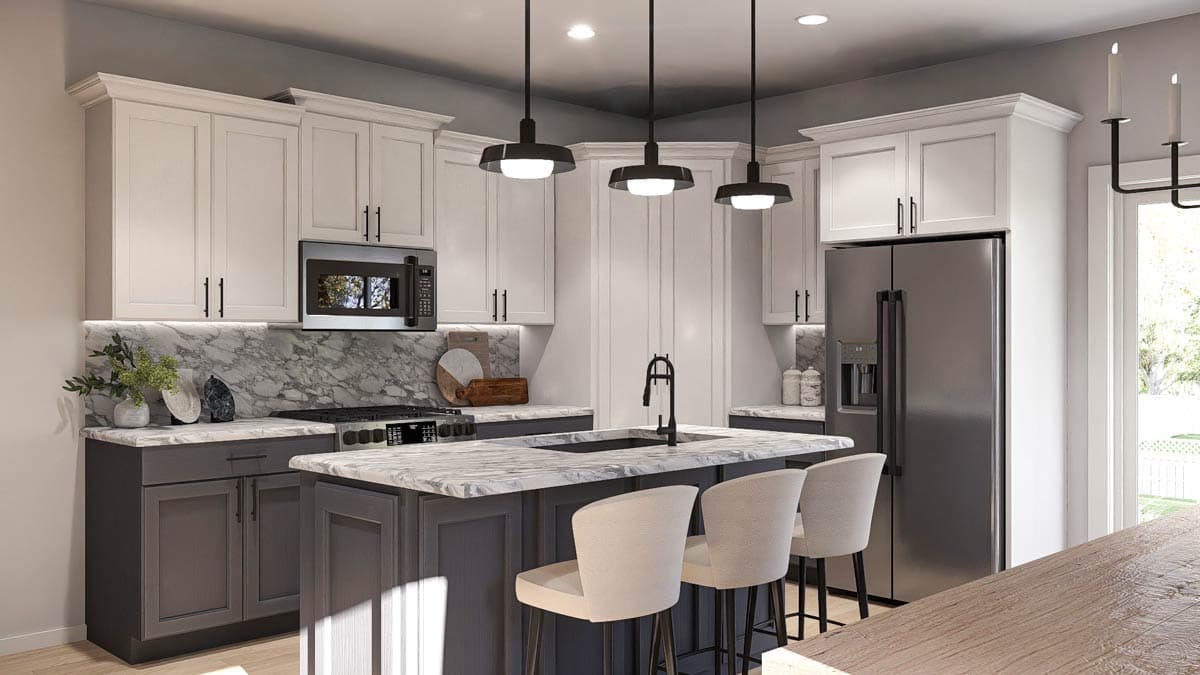

  • Walk into a welcoming entry that leads to an open-concept family room, alongside a well-placed kitchen with a pantry and a dining area.
  • The main floor layout encourages smooth flow between common areas, perfect for daily living and easy gatherings.

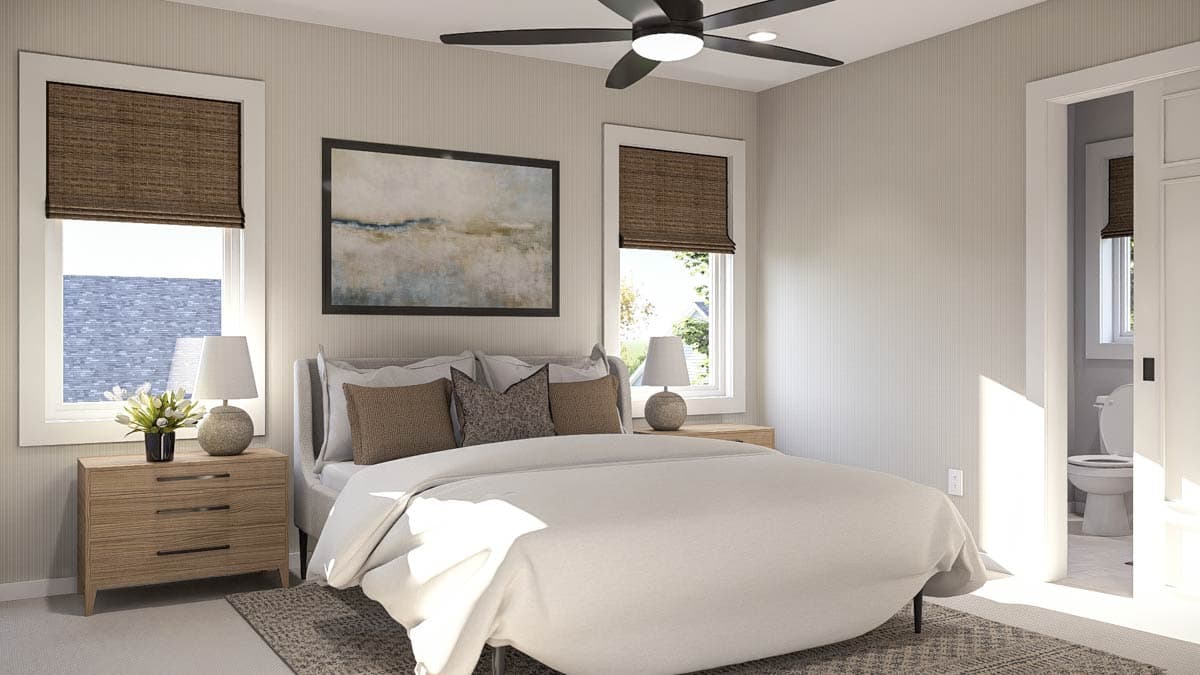

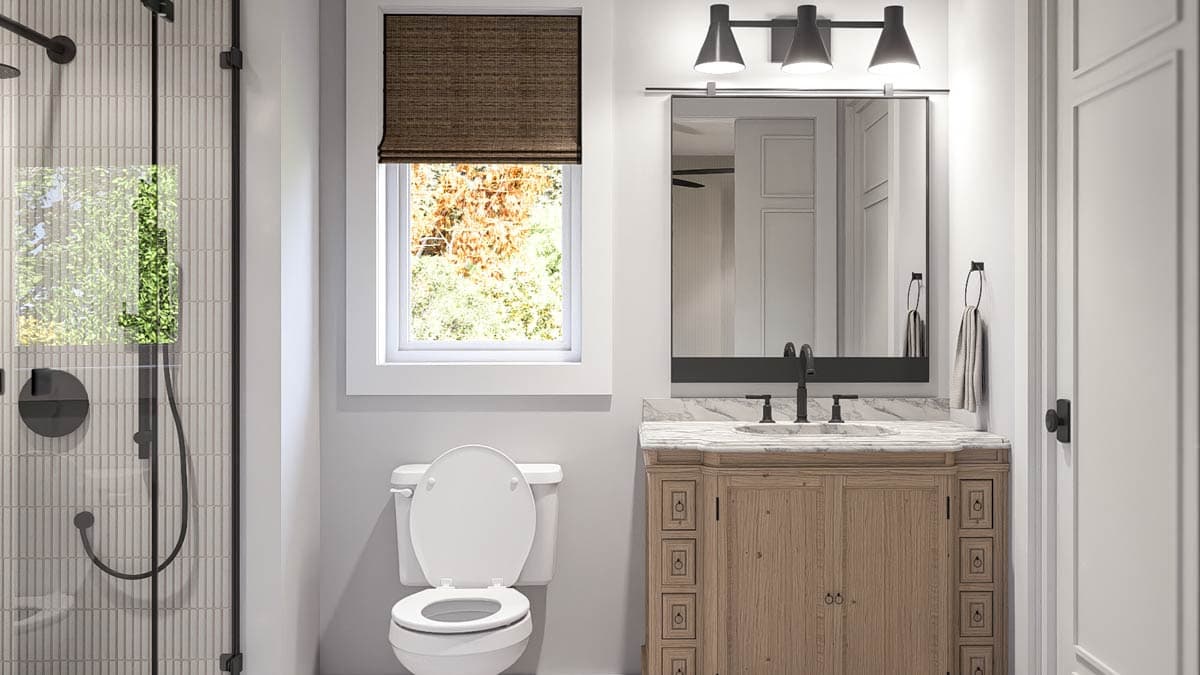

  • Upstairs, find a private master suite with an ensuite bath, strategically separated from two additional bedrooms by a Jack & Jill bath for optimal privacy.

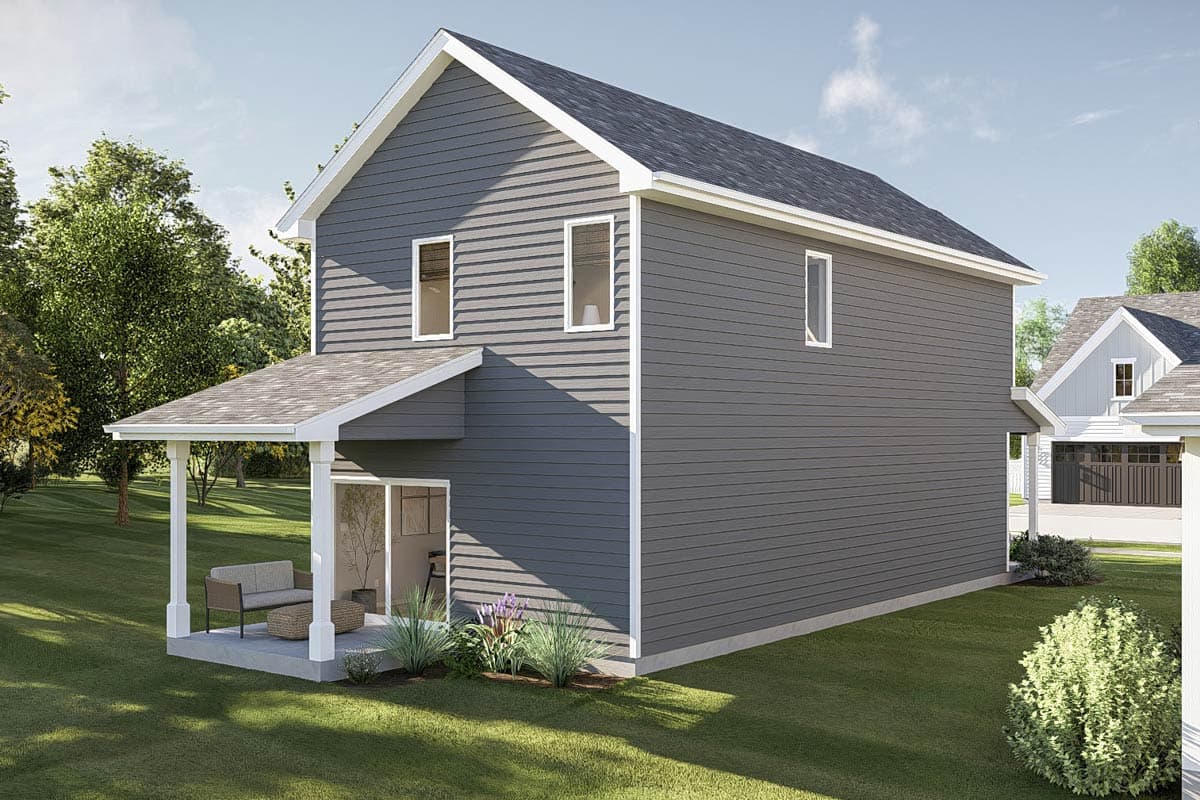

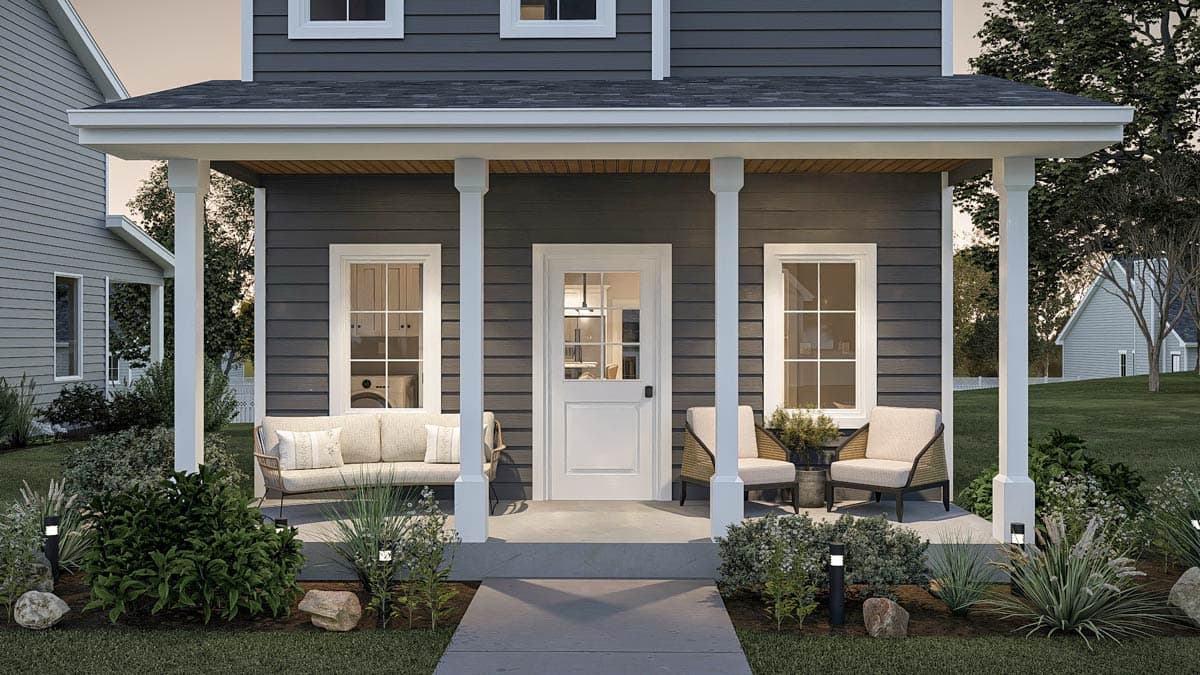

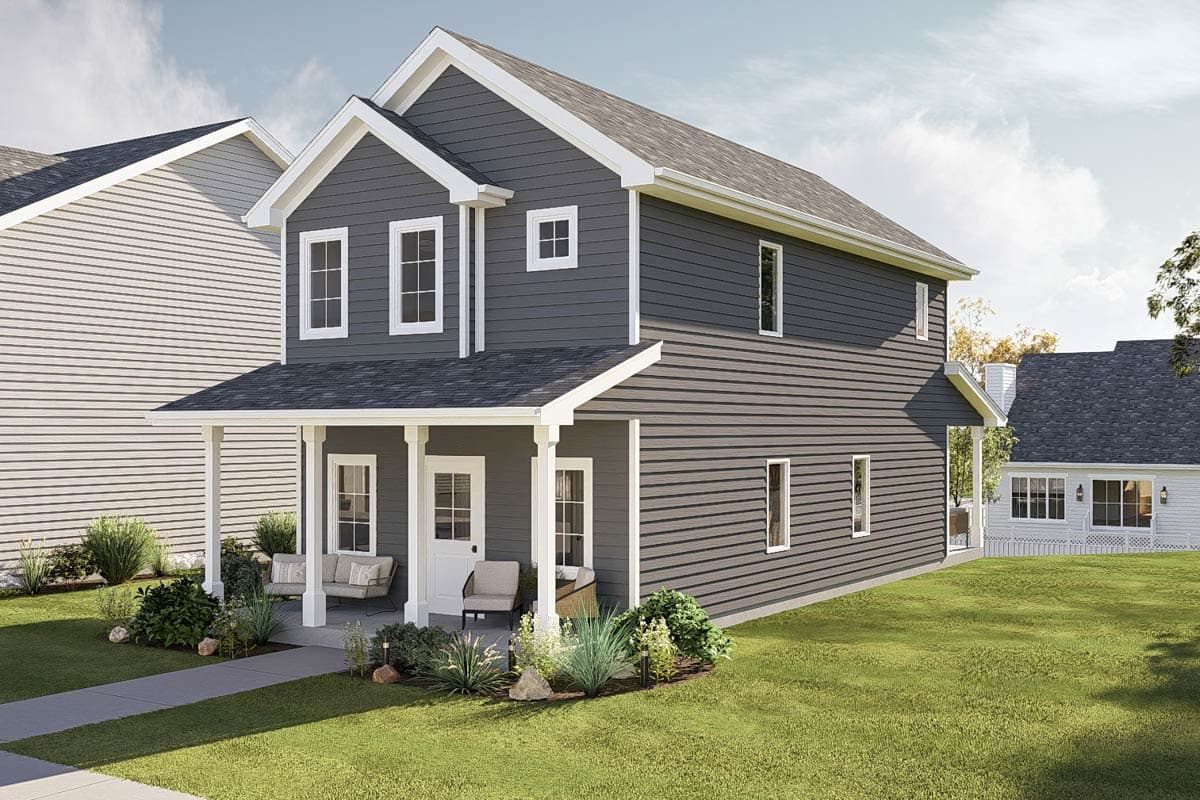

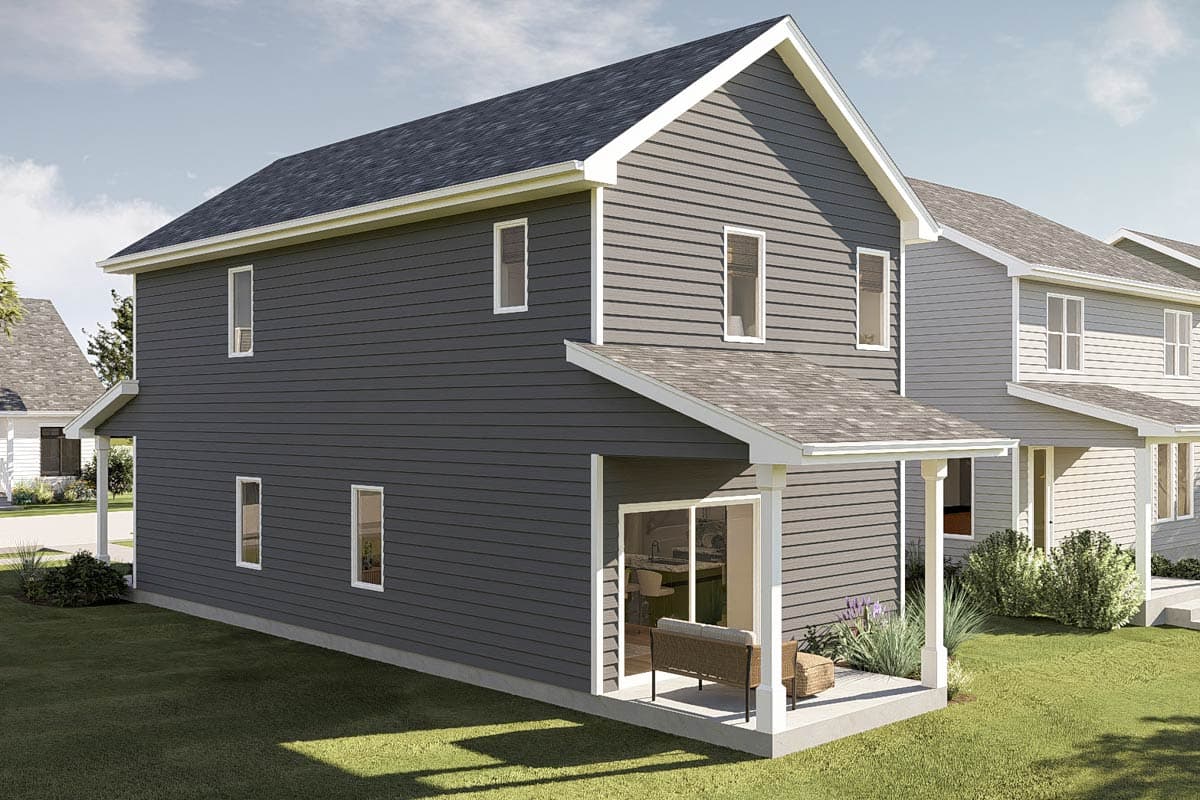

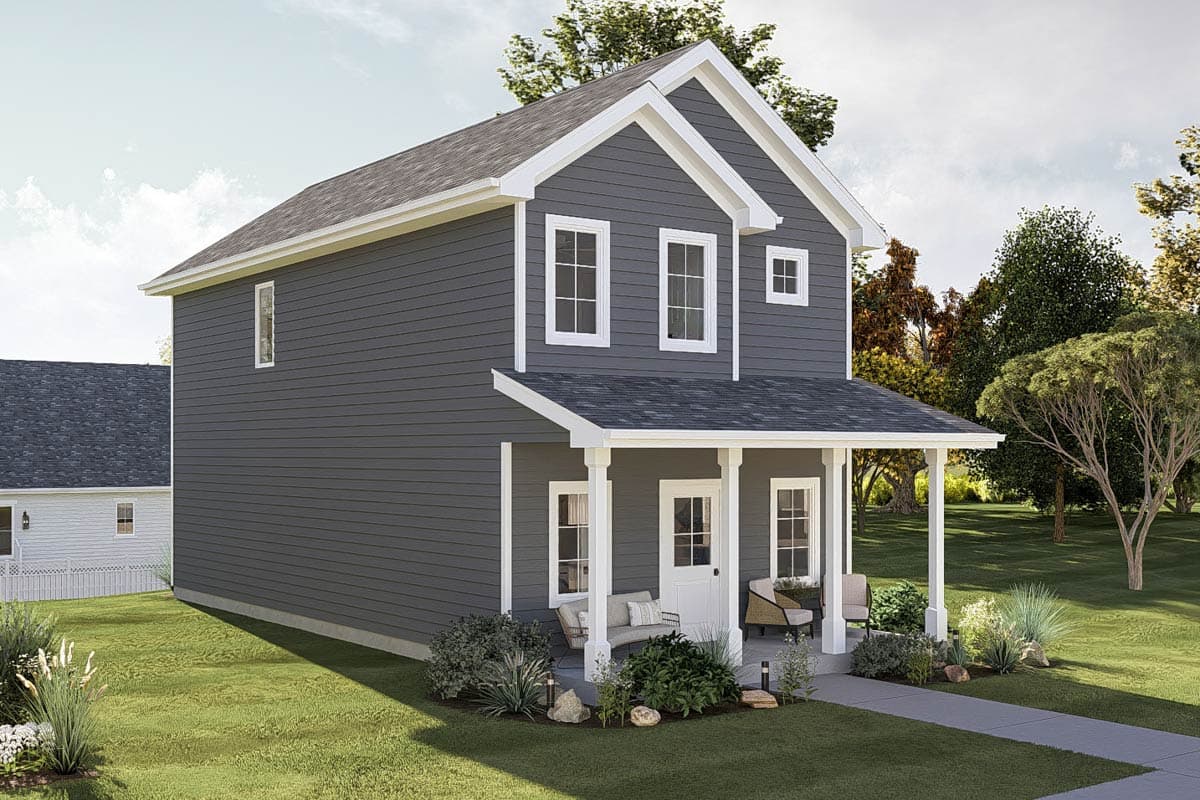

  • Outdoor living is enhanced by front and rear covered porches that invite leisurely afternoons and morning coffees.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,415 sq. ft.

1st Floor

735 sq. ft.

2nd Floor

680 sq. ft.

Porch, Combined

194 sq. ft.

Porch, Front

114 sq. ft.

Porch, Rear

80 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

19' 0"

Depth

52' 8"

Max Ridge Height

25' 11"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Traditional

Special Features

Bedrooms - Split

Jack & Jill Bath

Laundry - Main Level

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

1,415 sq. ft.

1st Floor

735 sq. ft.

2nd Floor

680 sq. ft.

Porch, Combined

194 sq. ft.

Porch, Front

114 sq. ft.

Porch, Rear

80 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

19' 0"

Depth

52' 8"

Max Ridge Height

25' 11"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Traditional

Special Features

Bedrooms - Split

Jack & Jill Bath

Laundry - Main Level

Master Suite - Upstairs
