Narrow Two-Story 3-Bed House Plan with Detached Garage with Apartment Above

Heated S.F.
1,535
Beds
3 - 4
Baths
2.5 - 3.5
Stories
2
Cars
2

Floor Plan

Plan 421515CHD

Main Level
Main Level
2nd Floor
2nd Floor

Plan 421515CHD

M-F 9am-5pm EST |

1-203-761-8500

Main Level

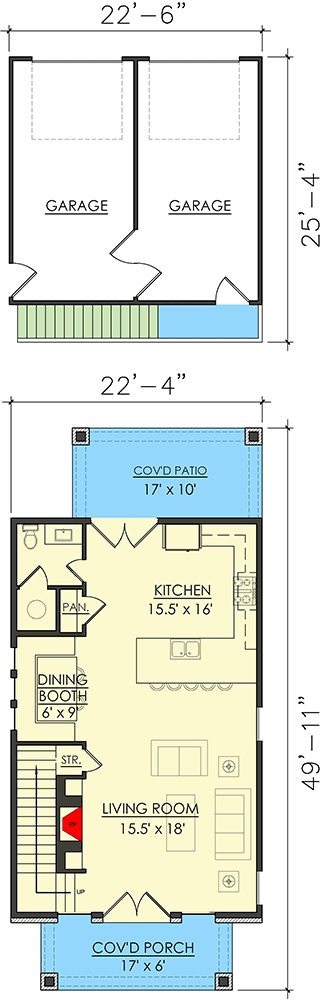

Plan 421515CHD: Narrow Two-Story 3-Bed House Plan with Detached Garage with Apartment Above - Floor Plan - Main Level - Craftsman, New American, Traditional

2nd Floor

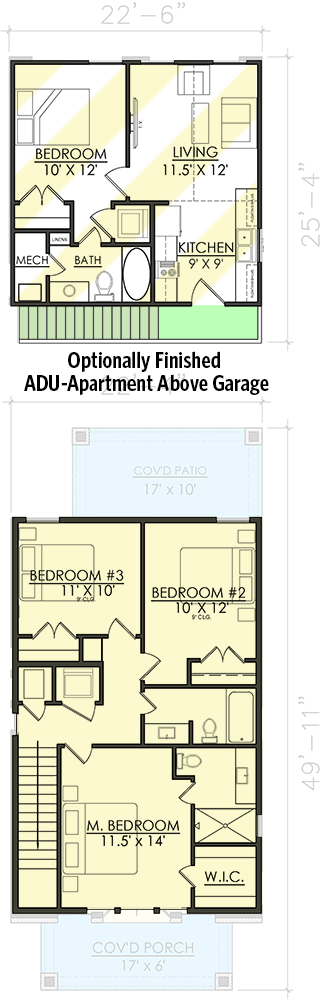

Plan 421515CHD: Narrow Two-Story 3-Bed House Plan with Detached Garage with Apartment Above - Floor Plan - 2nd Floor - Craftsman, New American, Traditional

Plan Details

  • This 22'4"-wide house plan has a 2-car detached garage with alley access and an apartment above (the garage and apartment each are 495 square feet; the apartment is not factored into the overall living area making it perfect for someone looking at a narrow lot with rental property potential.
  • The main floor is open concept with the living room with fireplace in front open to the C-shaped kitchen with peninsula seating and a dining booth. French doors open to the covered patio in back.
  • A powder room is tucked into the back-right corner.
  • Upstairs, the master suite with walk-in closet located in front and Beds 2 and 3 in back. A stackable washer/dryer is located in a hall closet.
  • An external staircase runs in back of the rear-facing 2-car detached garage and takes you to the apartment, perfect for us as a rental, an ADU, in-law or nanny space.

What's Included

  • Cover Page
  • Foundation Plan with Notes and Footing Details
  • Dimensioned Floor Plans with Notes
  • Exterior Elevations and Roof Plan with Notes
  • Electrical Layout Plans with Legend

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,535 sq. ft.

1st Floor

802 sq. ft.

2nd Floor

733 sq. ft.

Apartment

495 sq. ft.

Porch, Front

102 sq. ft.

Porch, Rear

135 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

22' 4"

Depth

76' 11"

Garage

Type

Detached

Area

495 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Craftsman

New American

Traditional

Special Features

Breakfast Nook

Laundry - Upstairs

Master Suite - Upstairs

Plan Collections

ADU

Square Footage Breakdown

Total Heated Area

1,535 sq. ft.

1st Floor

802 sq. ft.

2nd Floor

733 sq. ft.

Apartment

495 sq. ft.

Porch, Front

102 sq. ft.

Porch, Rear

135 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

22' 4"

Depth

76' 11"

Garage

Type

Detached

Area

495 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Craftsman

New American

Traditional

Special Features

Breakfast Nook

Laundry - Upstairs

Master Suite - Upstairs

Plan Collections

ADU
