Plan 52018HZ

New American 4 Bed House Plan with Split Suites and Butler Pantry

Heated S.F.
1,880
Beds
4
Baths
2
Stories
1

Floor Plan

Plan 52018HZ

Main Level
Main Level
Basement Stairs Location
Basement Stairs Location

Plan 52018HZ

M-F 9am-5pm EST |

1-203-761-8500

Main Level

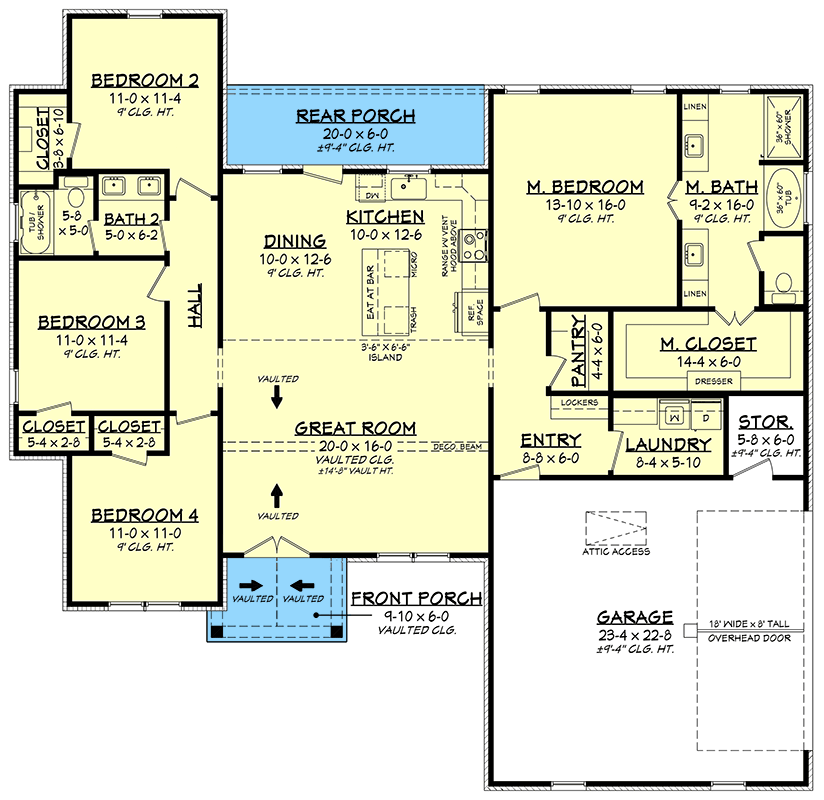

Plan 52018HZ: New American 4 Bed House Plan with Split Suites and Butler Pantry - Floor Plan - Main Level - Craftsman, New American, Ranch, Traditional

Basement Stairs Location

Plan 52018HZ: New American 4 Bed House Plan with Split Suites and Butler Pantry - Floor Plan - Basement Stairs Location - Craftsman, New American, Ranch, Traditional

Plan Details

  • This inviting 1,880 sq. ft. New American and Craftsman-style house plan features 4 bedrooms, 2 full bathrooms, and a spacious 550 sq. ft. side-entry 2-car garage.
  • Step inside through the welcoming front porch entry, where a spacious foyer with 9-foot ceilings opens directly into the impressive vaulted great room, setting the stage for an open-concept living experience.
  • The heart of the home seamlessly connects the great room to the dining area and kitchen, creating an ideal flow for everyday living and gatherings. The well-appointed kitchen boasts a large island with an eating bar and a substantial butler walk-in pantry, perfect for culinary endeavors and organized storage.
  • The private primary suite, located on the first floor, offers a tranquil retreat with a spacious bedroom, an elegant ensuite bathroom, and an expansive walk-in closet. Three additional bedrooms and a shared full bath are thoughtfully situated on the opposite side of the home, providing privacy and comfort for family or guests.
  • Beyond the main living areas, a practical mudroom offers a convenient transition from the side-entry garage, complete with a dedicated laundry area and an additional storage room for household essentials, ensuring a clutter-free environment.
  • Enjoy the outdoors from the inviting front porch, perfect for greeting guests, or unwind on the generous rear porch, offering a secluded space for morning coffee or evening relaxation.

What's Included

  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Kitchen cabinet views
  • Electrical plan
  • Span charts and other misc details

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,880 sq. ft.

1st Floor

1,880 sq. ft.

Porch, Front

56 sq. ft.

Porch, Rear

120 sq. ft.

Storage

38 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

59' 8"

Depth

58' 0"

Max Ridge Height

24' 8"

Garage

Type

Standard, Attached

Area

550 sq. ft.

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Craftsman

New American

Ranch

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

1,880 sq. ft.

1st Floor

1,880 sq. ft.

Porch, Front

56 sq. ft.

Porch, Rear

120 sq. ft.

Storage

38 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

59' 8"

Depth

58' 0"

Max Ridge Height

24' 8"

Garage

Type

Standard, Attached

Area

550 sq. ft.

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Craftsman

New American

Ranch

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Plan Collections

Photo Gallery
