Plan 70887MK

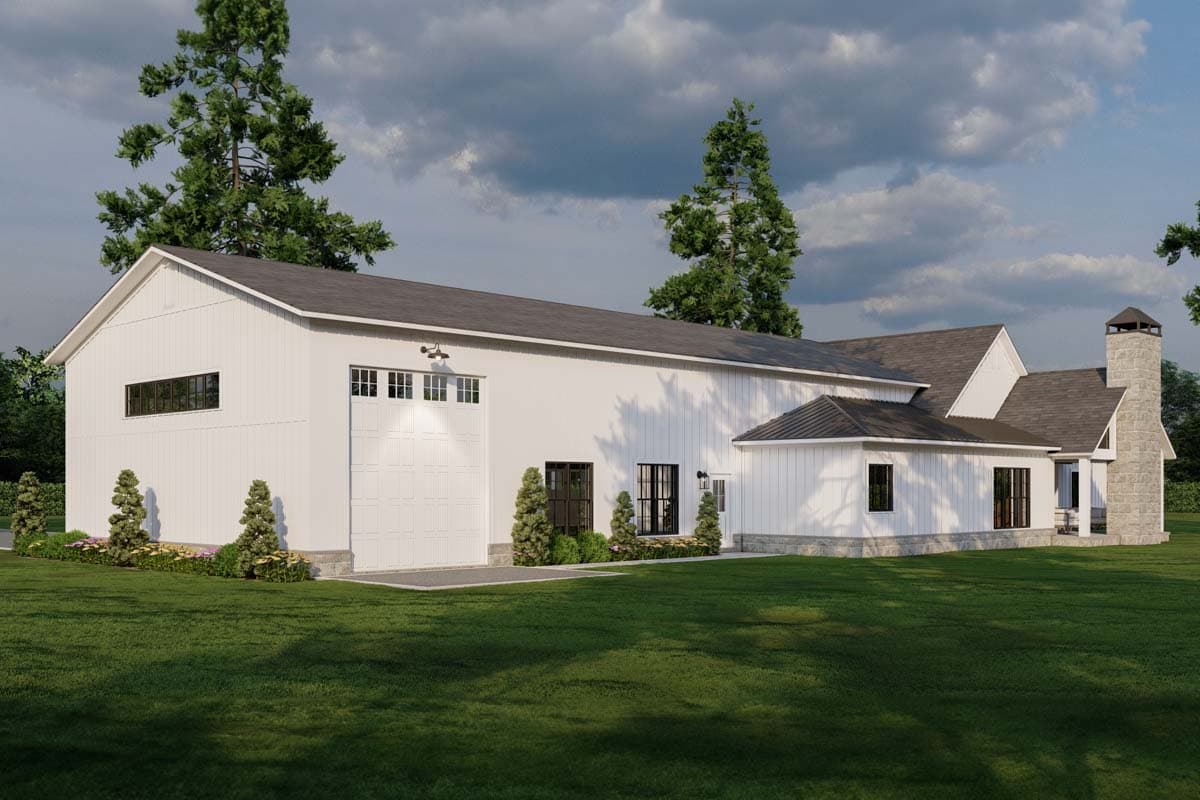

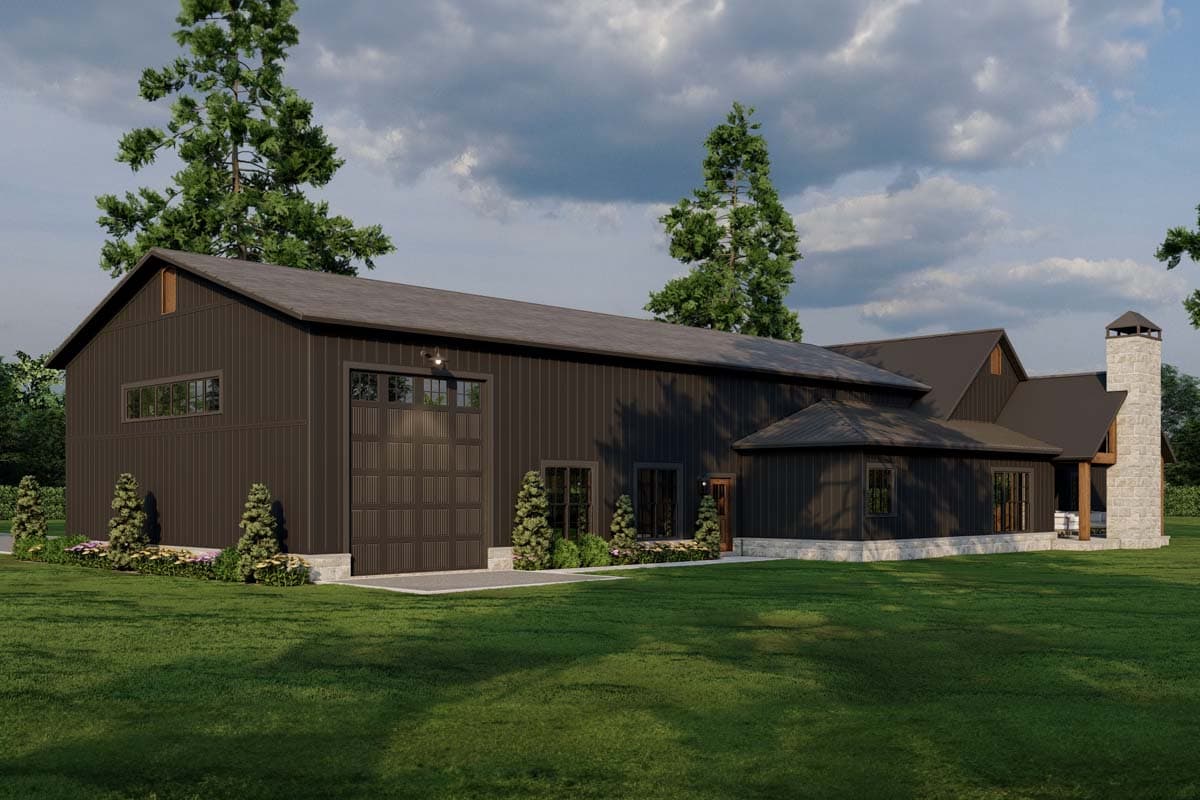

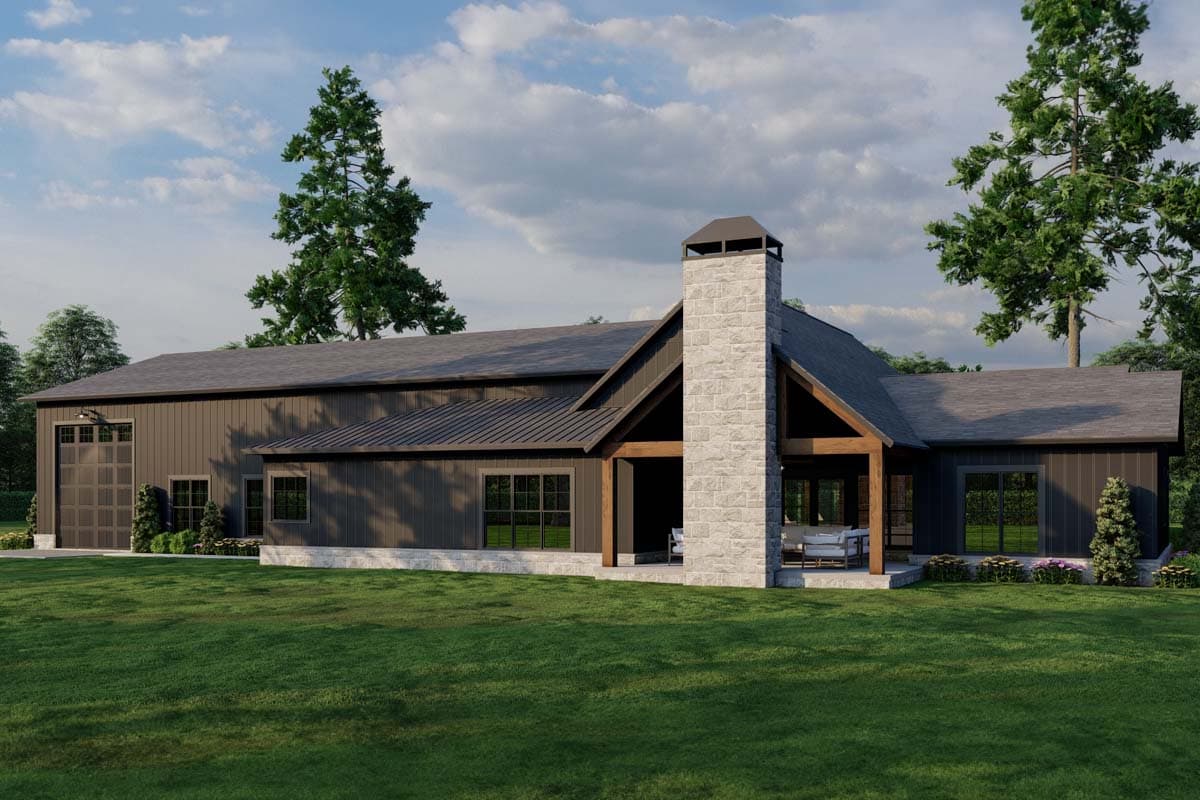

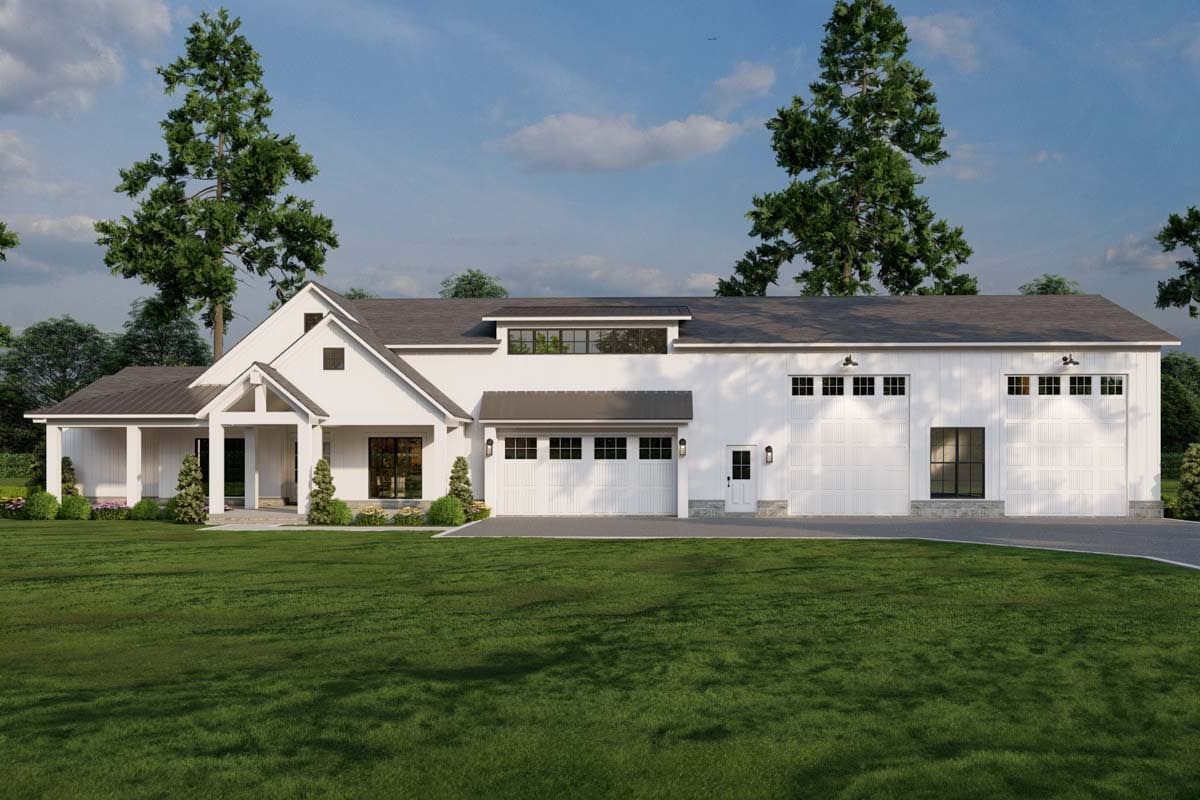

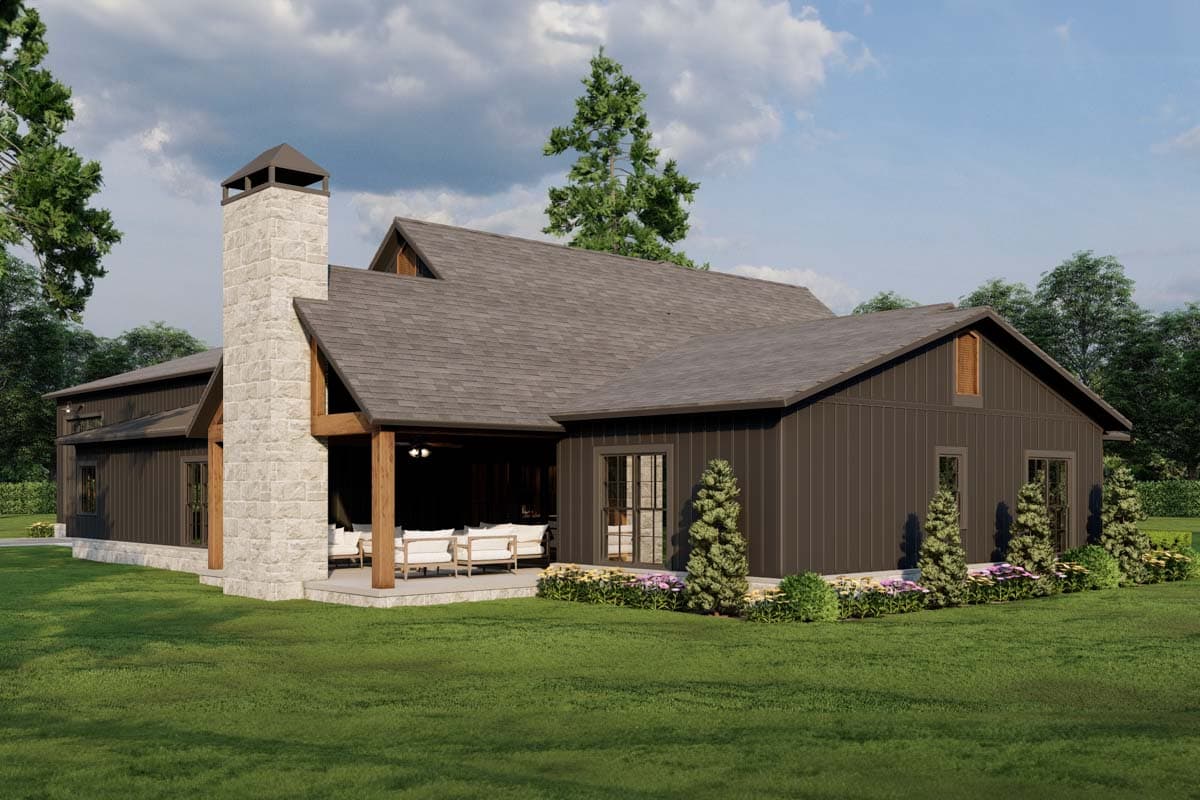

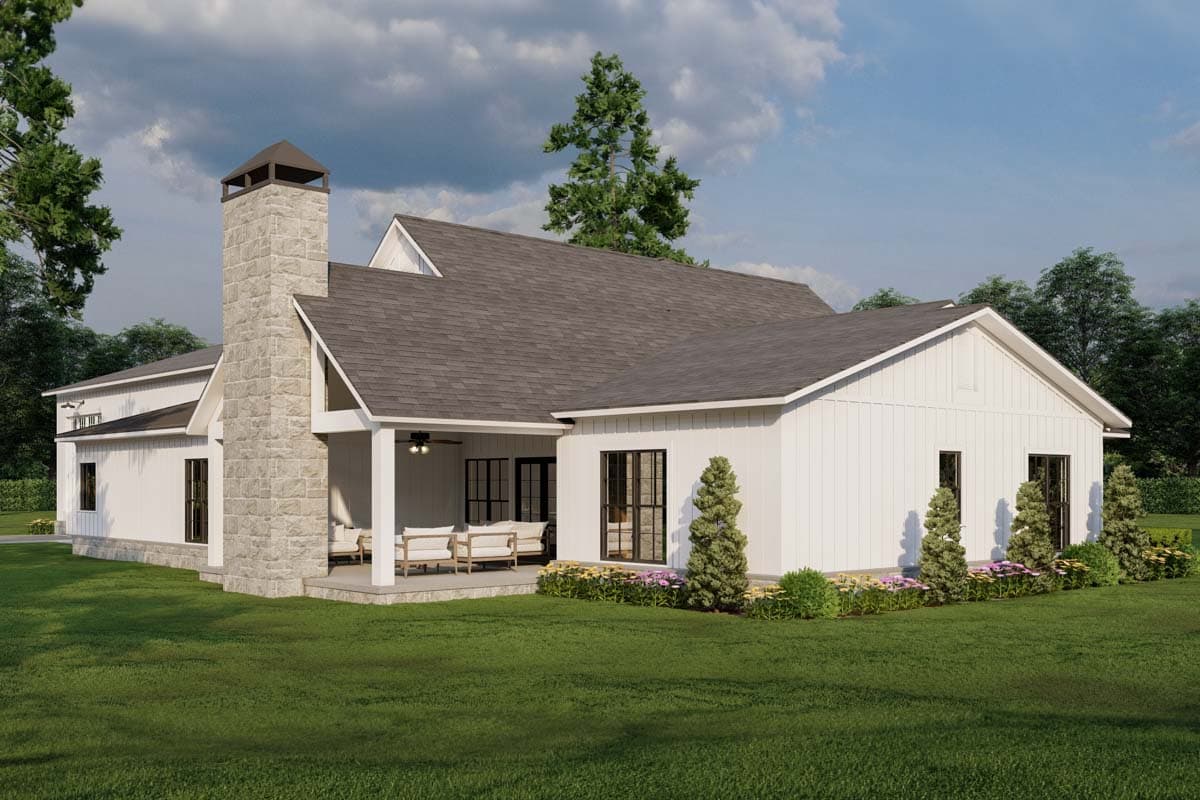

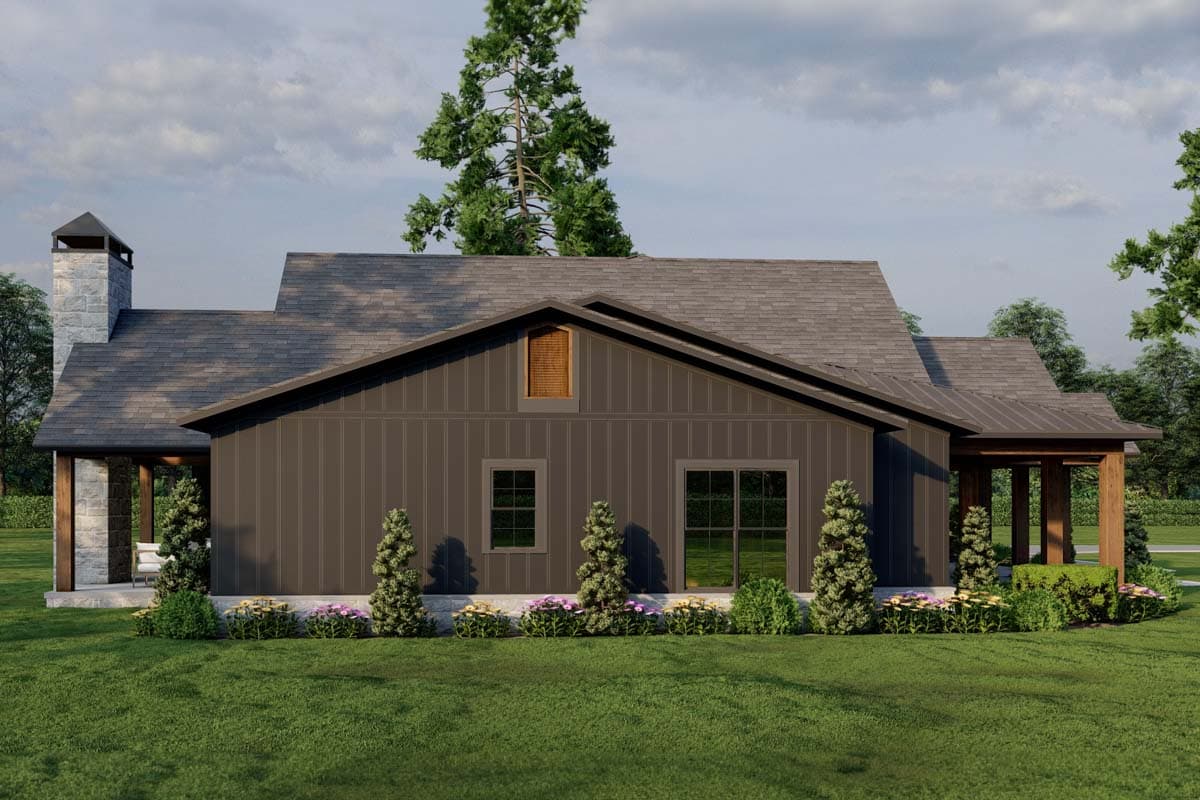

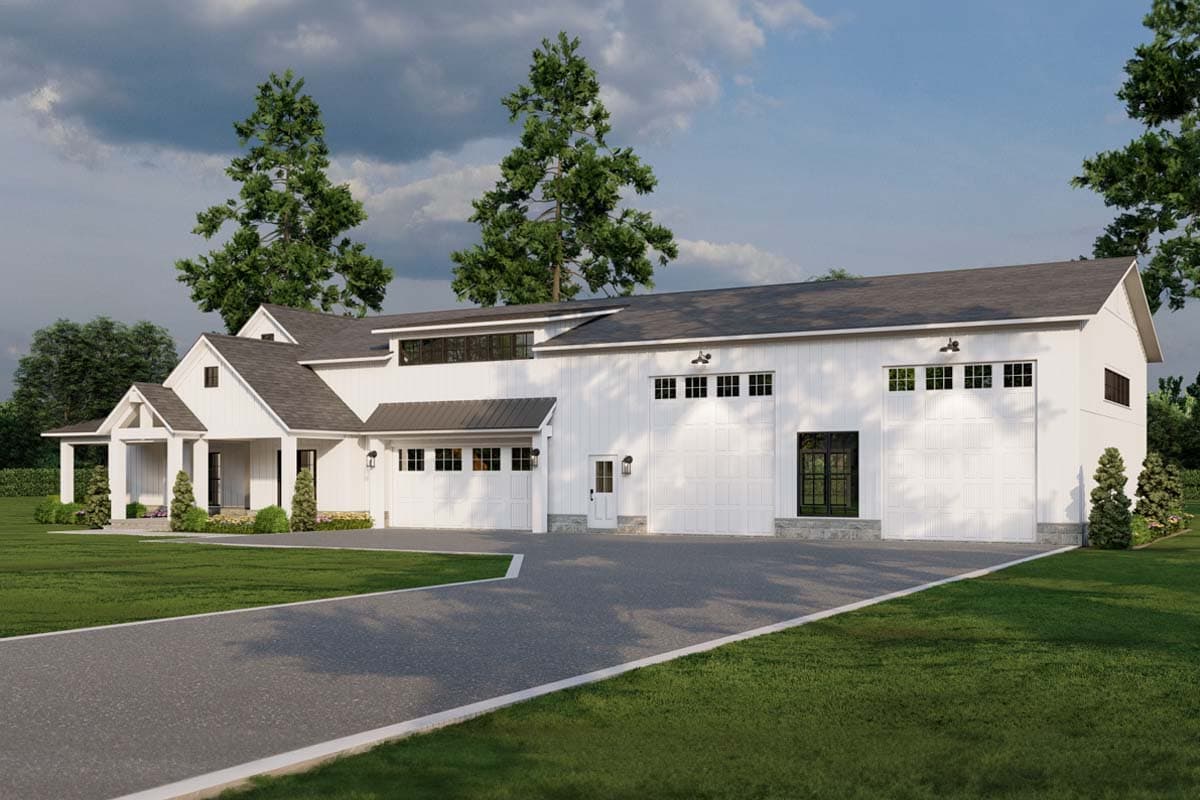

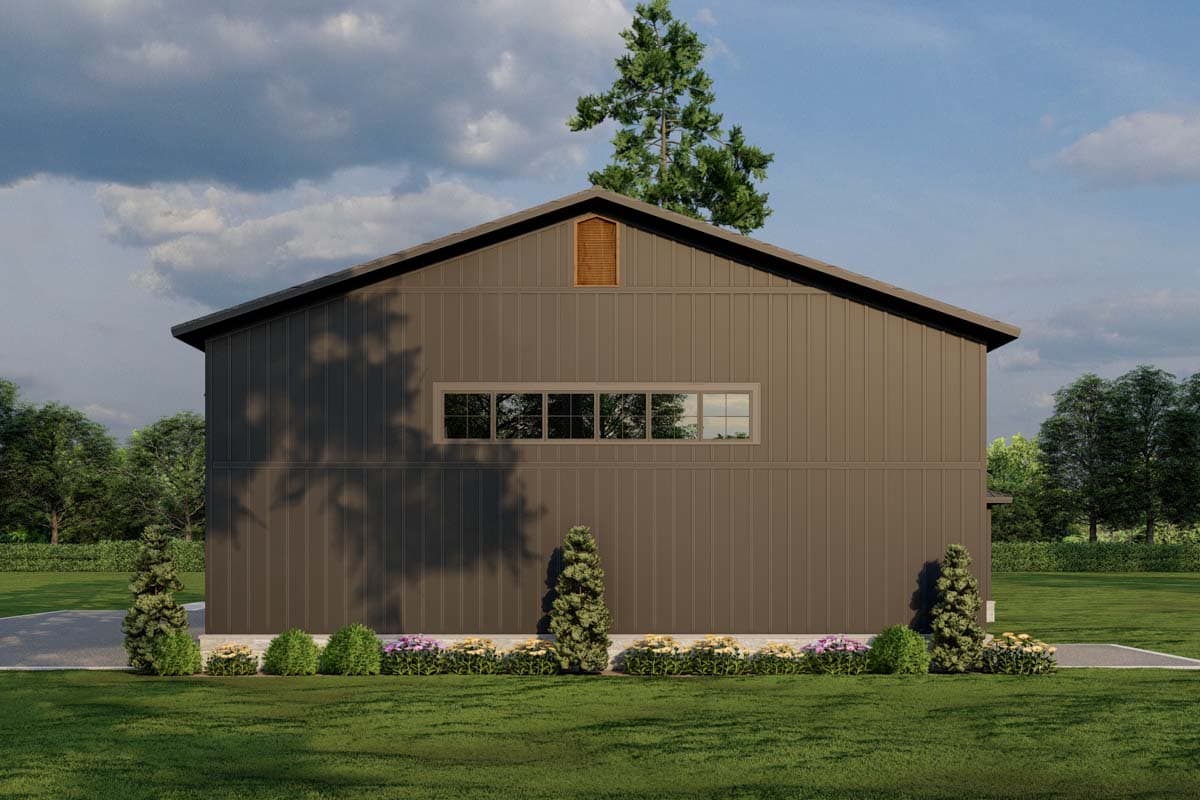

New American Barndominium-Style Plan with Outdoor Fireplace and Oversized RV Garage- 2631 Sq Ft

Heated S.F.
2,631
Beds
4
Baths
2.5
Stories
1
Cars
4

Floor Plan

Plan 70887MK

Main Level
Main Level
Bonus Level
Bonus Level

Plan 70887MK

M-F 9am-5pm EST |

1-203-761-8500

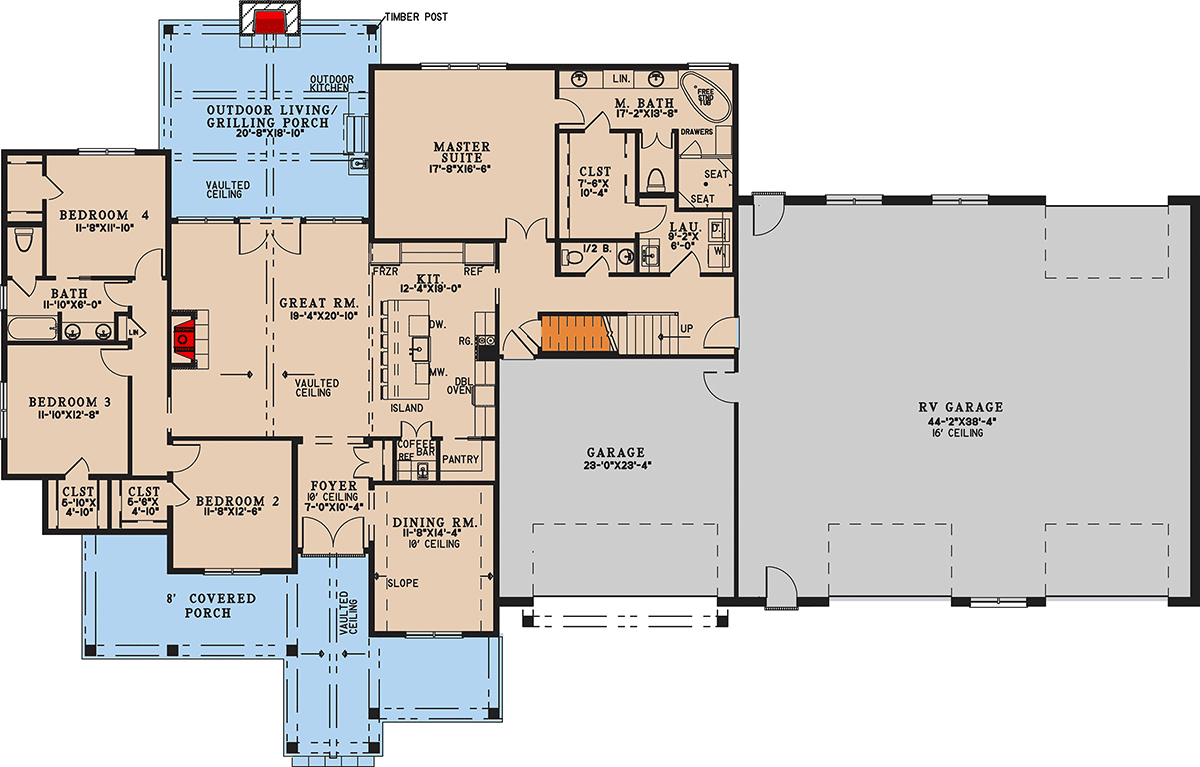

Main Level

Plan 70887MK: New American Barndominium-Style Plan with Outdoor Fireplace and Oversized RV Garage- 2631 Sq Ft - Floor Plan - Main Level - Barndominium, Country, Craftsman, Farmhouse, New American, Southern

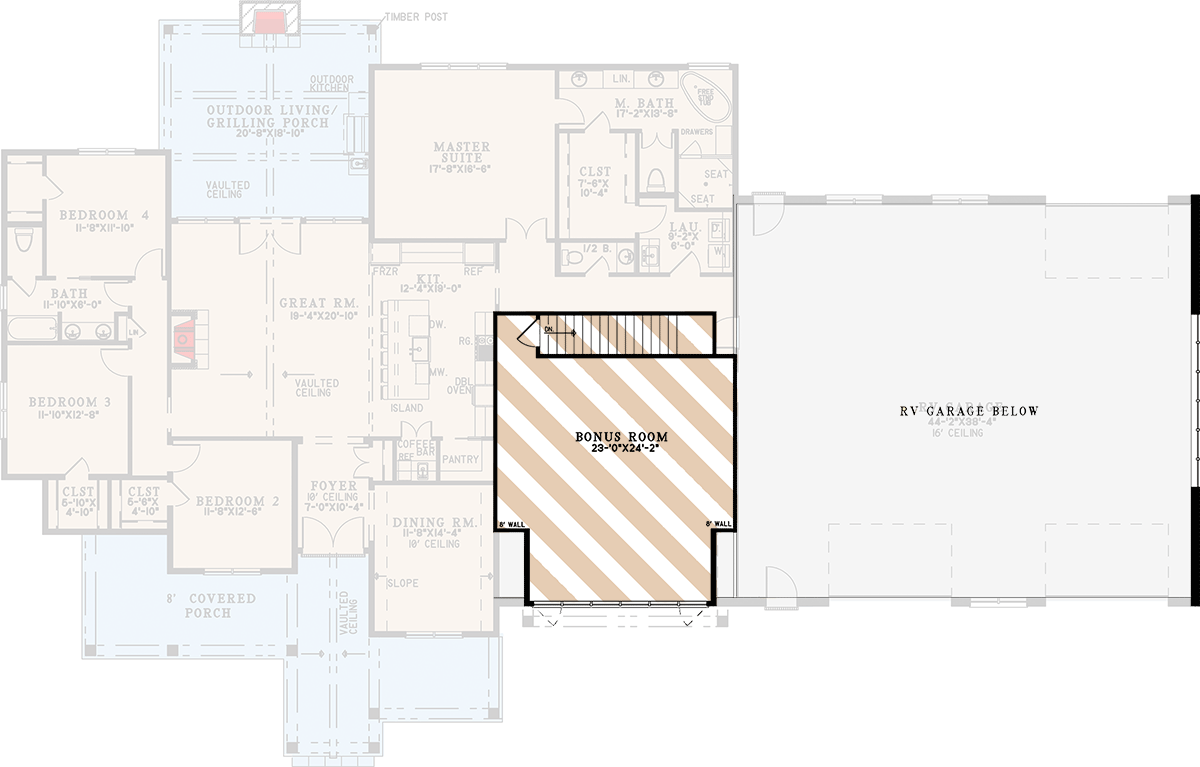

Bonus Level

Plan 70887MK: New American Barndominium-Style Plan with Outdoor Fireplace and Oversized RV Garage- 2631 Sq Ft - Floor Plan - Bonus Level - Barndominium, Country, Craftsman, Farmhouse, New American, Southern

Plan Details

  • This 2,631 square foot New American design with Barndominium-inspired charm offers 4-bedrooms, 2.5 baths, and an 2,634 square foot 4-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof Overview Plan (1/4"=1")
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,631 sq. ft.

1st Floor

2,631 sq. ft.

Bonus

562 sq. ft.

Porch, Combined

860 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

116' 10"

Depth

71' 0"

Max Ridge Height

23' 2"

Garage

Type

Attached, RV Garage

Area

2364 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Barndominium

Country

Craftsman

Farmhouse

New American

Southern

Special Features

Bedrooms - Split

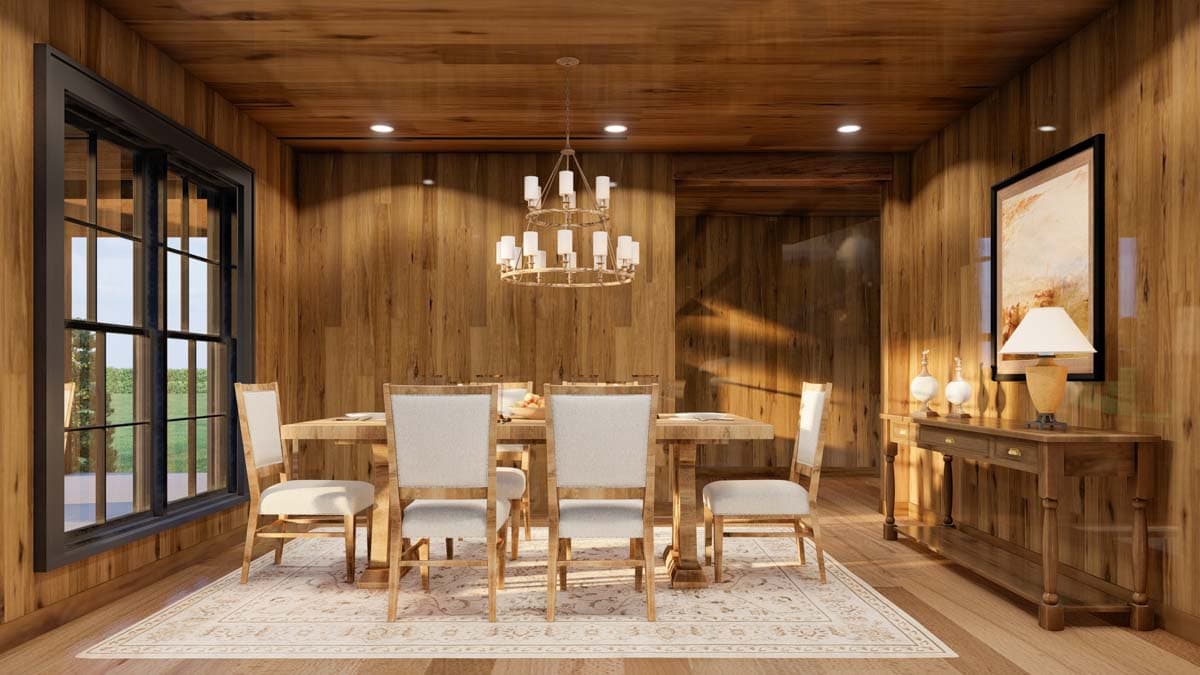

Formal Dining

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Optionally Finished Bonus Room

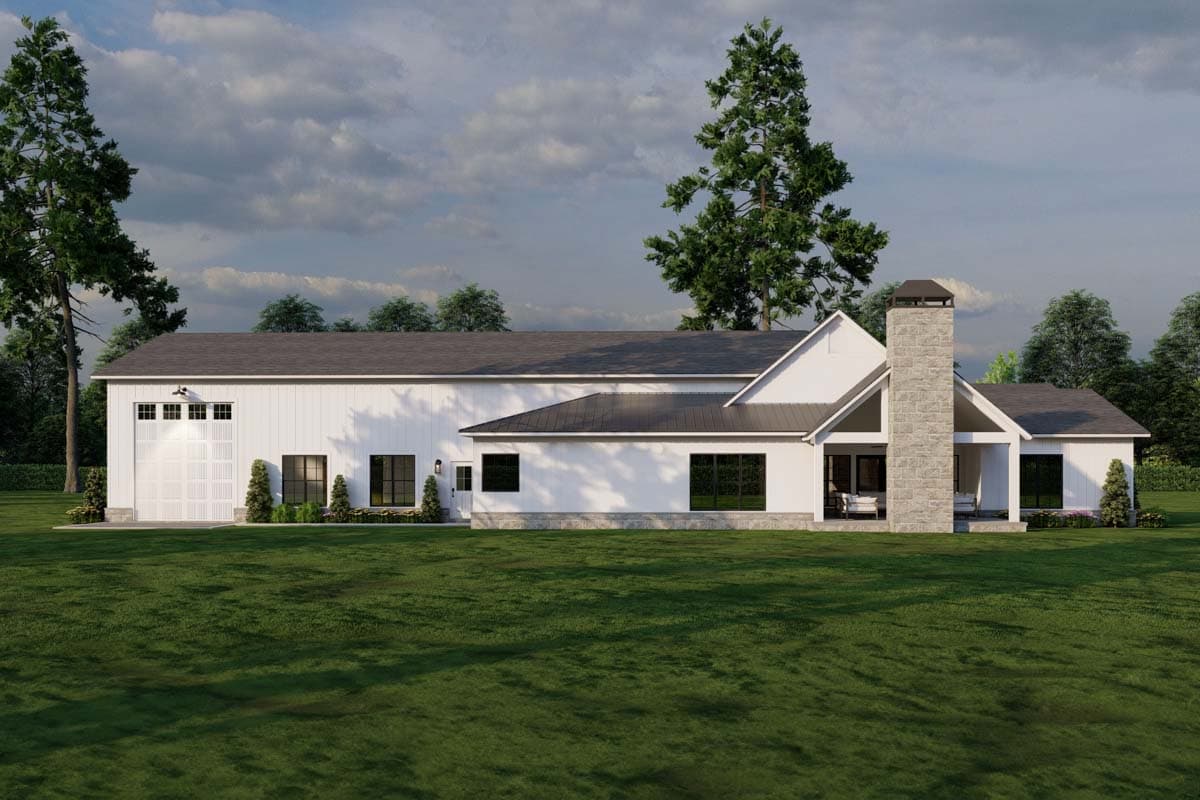

Outdoor Fireplace

Outdoor Kitchen

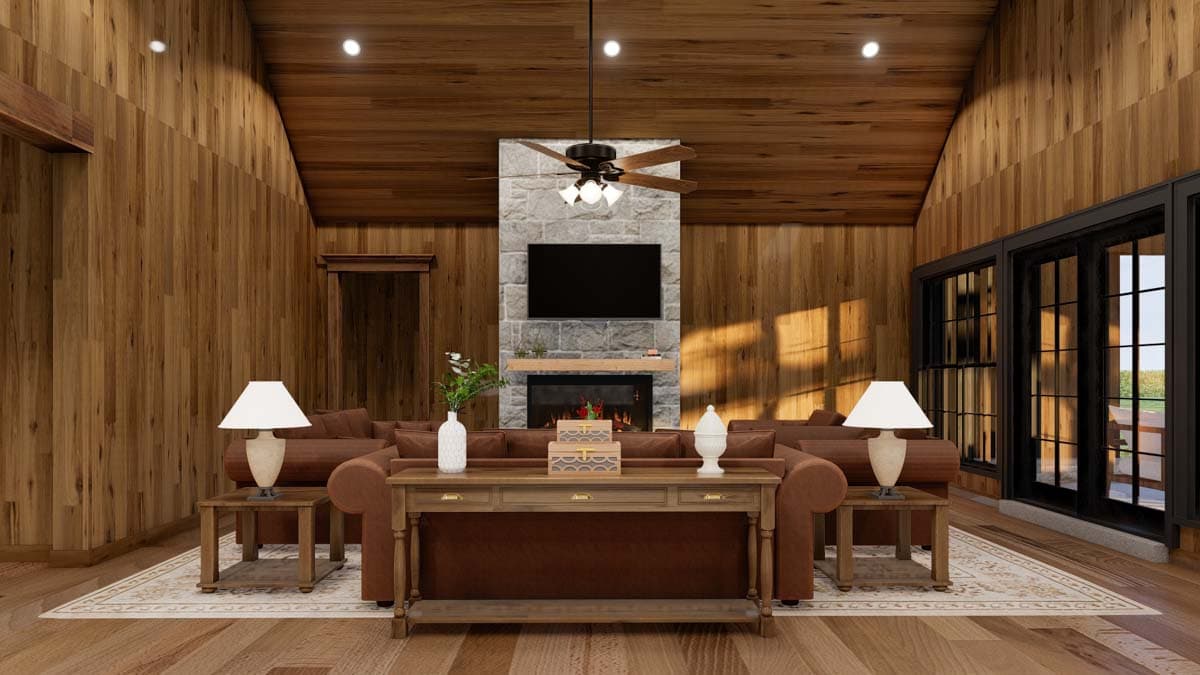

Two Story Great Room

Walk-in Pantry

Wraparound Porch

Square Footage Breakdown

Total Heated Area

2,631 sq. ft.

1st Floor

2,631 sq. ft.

Bonus

562 sq. ft.

Porch, Combined

860 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

116' 10"

Depth

71' 0"

Max Ridge Height

23' 2"

Garage

Type

Attached, RV Garage

Area

2364 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Barndominium

Country

Craftsman

Farmhouse

New American

Southern

Special Features

Bedrooms - Split

Formal Dining

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Optionally Finished Bonus Room

Outdoor Fireplace

Outdoor Kitchen

Two Story Great Room

Walk-in Pantry

Wraparound Porch
