Plan 51941HZ
New American Carriage House Plan with 2 Bedrooms and Parking for 3 Cars
Heated S.F.
1,271
Beds
2
Baths
1
Stories
2
Cars
3
What's Included
Plan Details
  • This stylish carriage house is perfect for someone looking for additional parking and storage and some added living space. Build this to give you more parking and living space on your property or as a standalone home.
  • Three garage bays - each with 9' by 8' overhead doors - on the ground floor give you access to the 1,092 square feet of parking space. The entry with stairs to the living floor above is accessible from the right-most bay and the from the covered porch.
  • An open concept area greets you at the top of the stairs and gives you a combined dining and living room. An eat-at bar gives you casual seating and provides some separation between the kitchen and the dining room.
  • Bedrooms line the left side of the plan and share a bath off a hall with laundry hidden away in the hall closet.
What's Included
Page 1  Cover Sheet with abbreviations, rendering and sheet index
Page 2  Foundation and roof plan with details and span charts
Page 3  Detailed first and second floor plan (includes window sizes, ceiling joist directions, etc.)

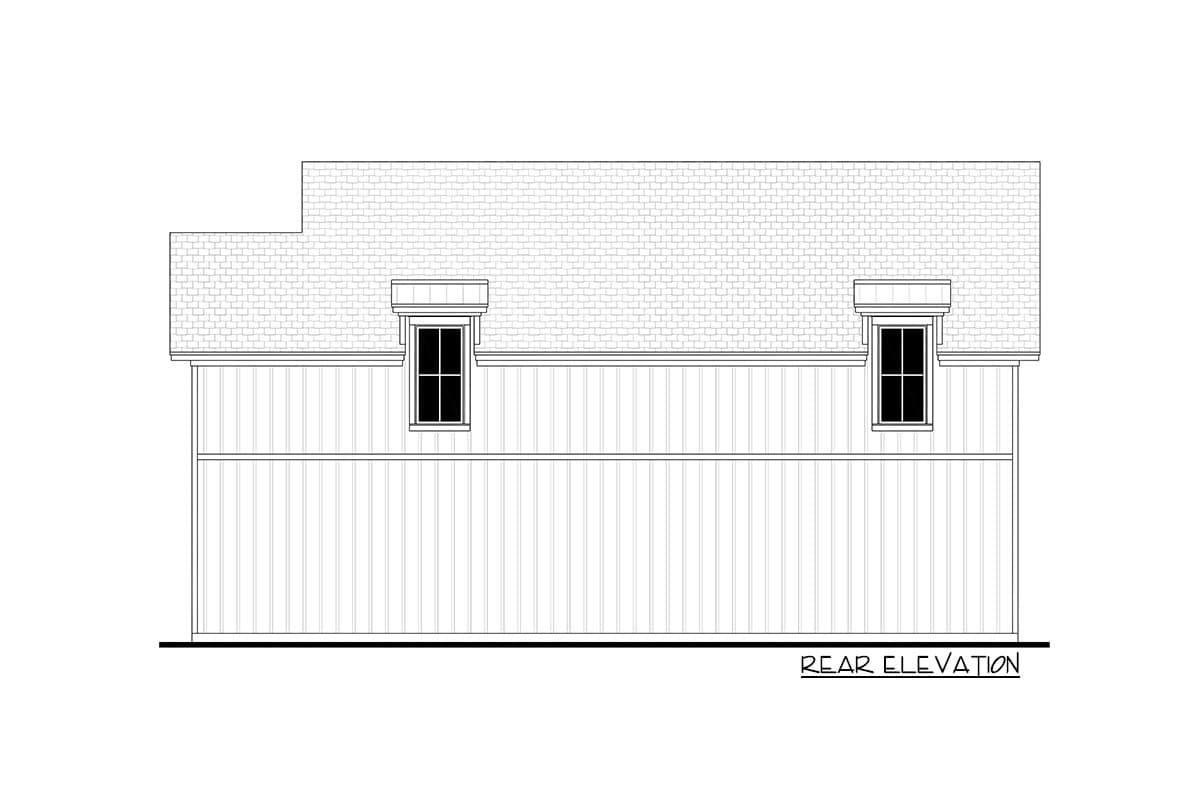

Page 4  Exterior views with additional details
Page 5  Cross section with kitchen cabinet views and additional notes and details
Page 6  First and second floor electrical plans with notes and details
Page N1 Code Information
Page N2 Code Information
Page N3 Code Information
Page N4 Energy Code Information

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

New American Carriage House Plan with 2 Bedrooms and Parking for 3 Cars

  • 1,271

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,271 sq. ft.
  • 1st Floor: 52 sq. ft.
  • 2nd Floor: 1,219 sq. ft.

Dimensions

  • Width: 50' 0"
  • Depth: 28' 0"
  • Max ridge height: 29' 0"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Garage

  • Type: Attached
  • Area: 1092 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 10' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site

New American Carriage House Plan with 2 Bedrooms and Parking for 3 Cars

  • 1,271

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 2

    Floors

  • 3

    Car garage

New American Carriage House Plan with 2 Bedrooms and Parking for 3 Cars

  • 1,271

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 2

    Floors

  • 3

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 1,271 sq. ft.
  • 1st Floor: 52 sq. ft.
  • 2nd Floor: 1,219 sq. ft.

Dimensions

  • Width: 50' 0"
  • Depth: 28' 0"
  • Max ridge height: 29' 0"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Garage

  • Type: Attached
  • Area: 1092 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 10' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick

    Main Level

    2nd Floor
