New American Craftsman Home Plan with 2-Story Living Room
Heated S.F.
3,880
Beds
4
Baths
3.5
Stories
2
Cars
3
What's Included
Plan Details

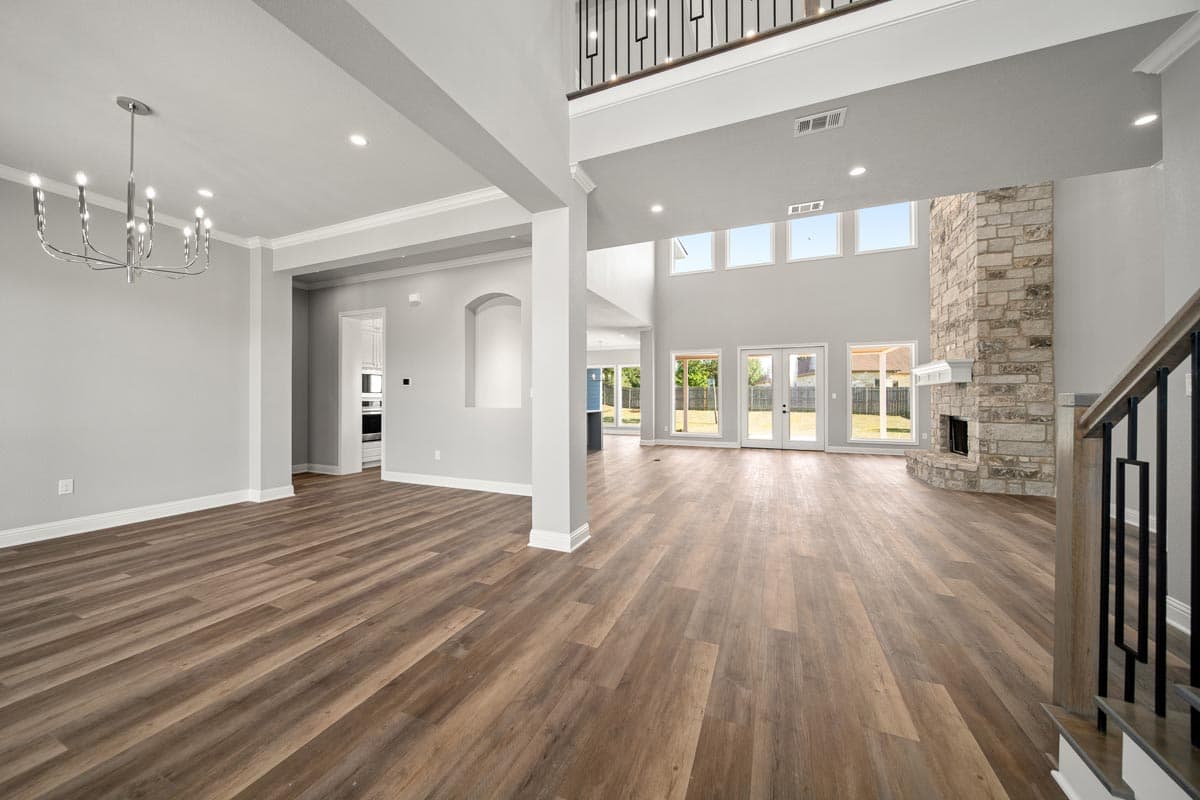

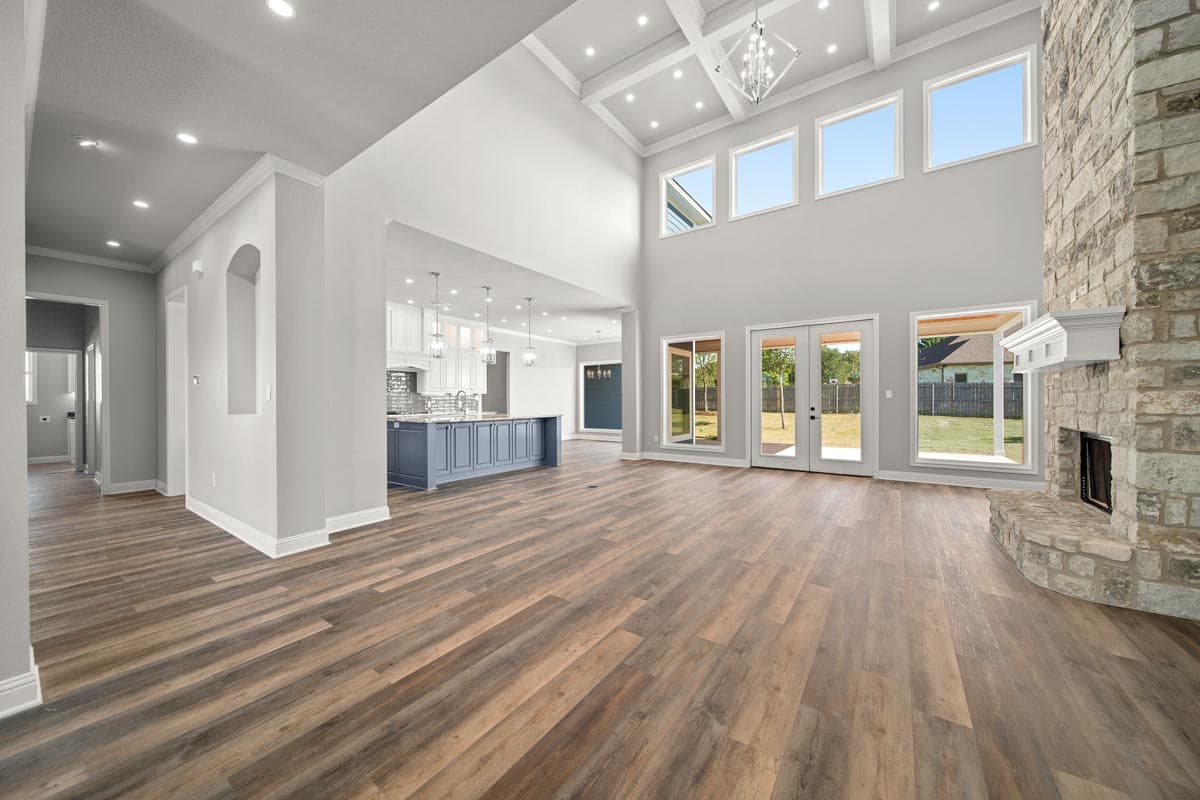

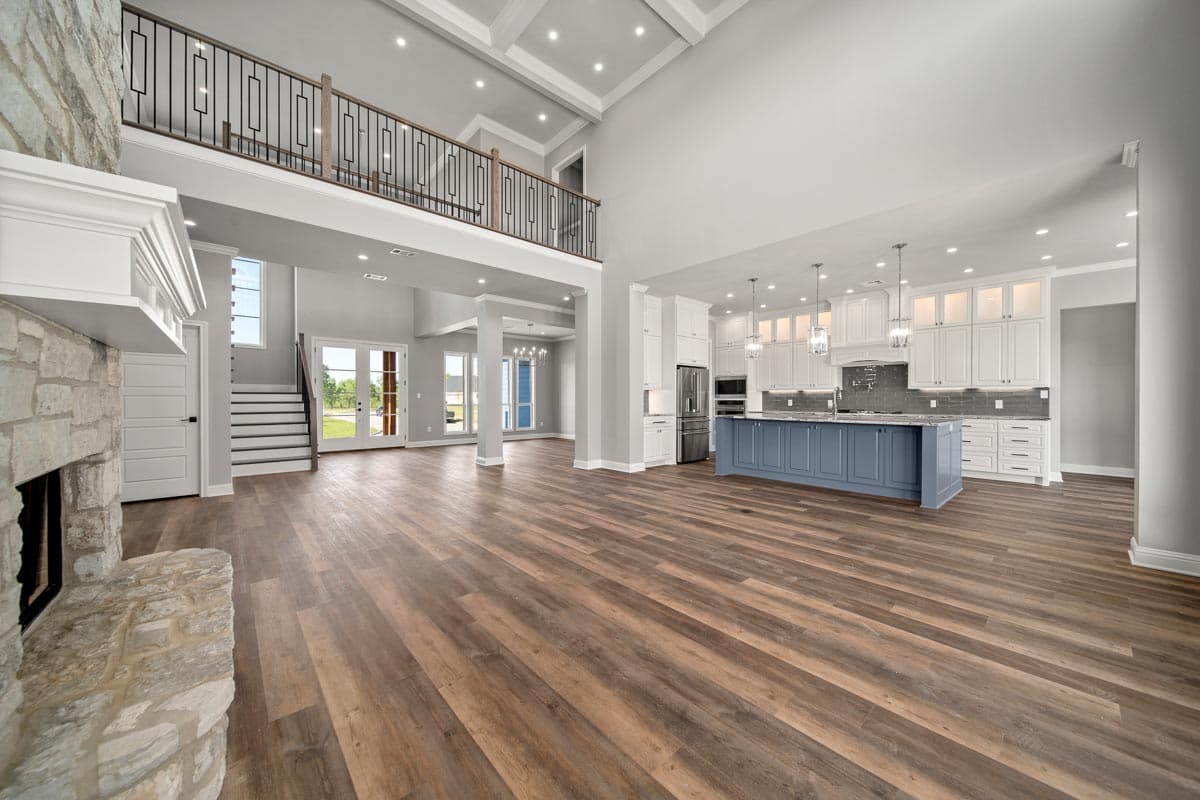

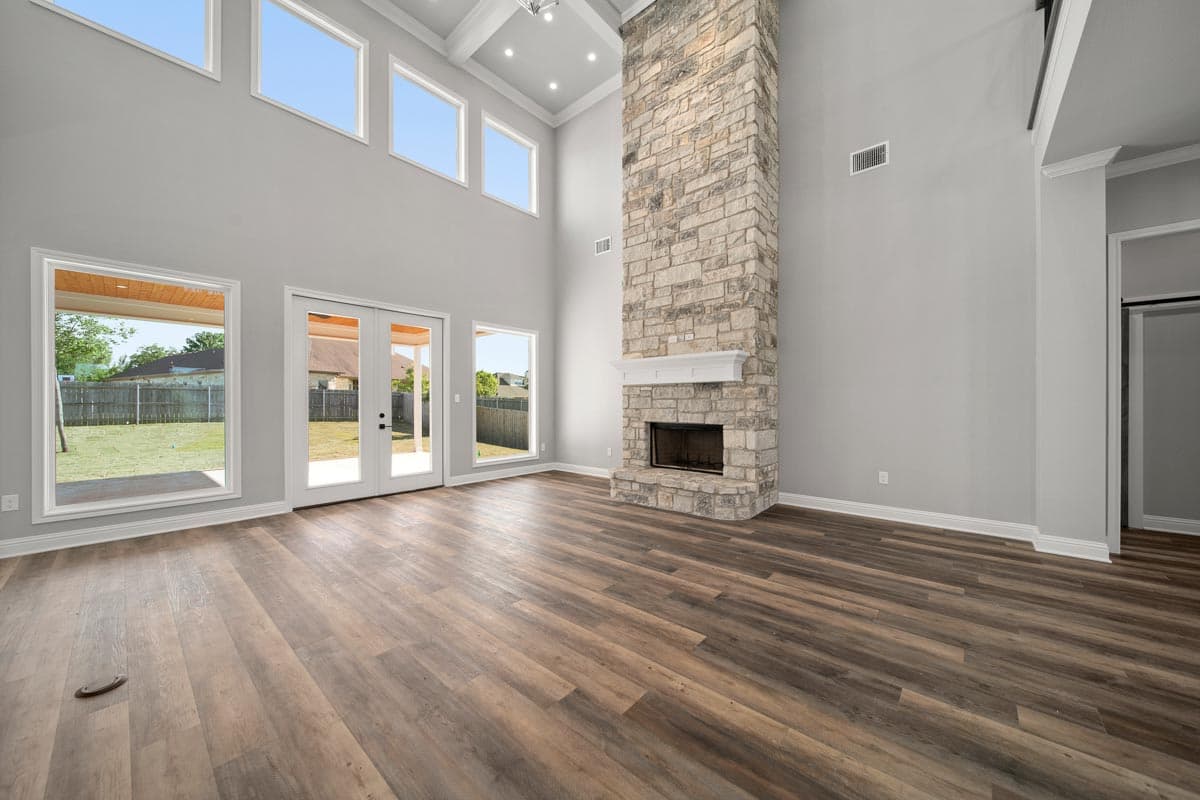

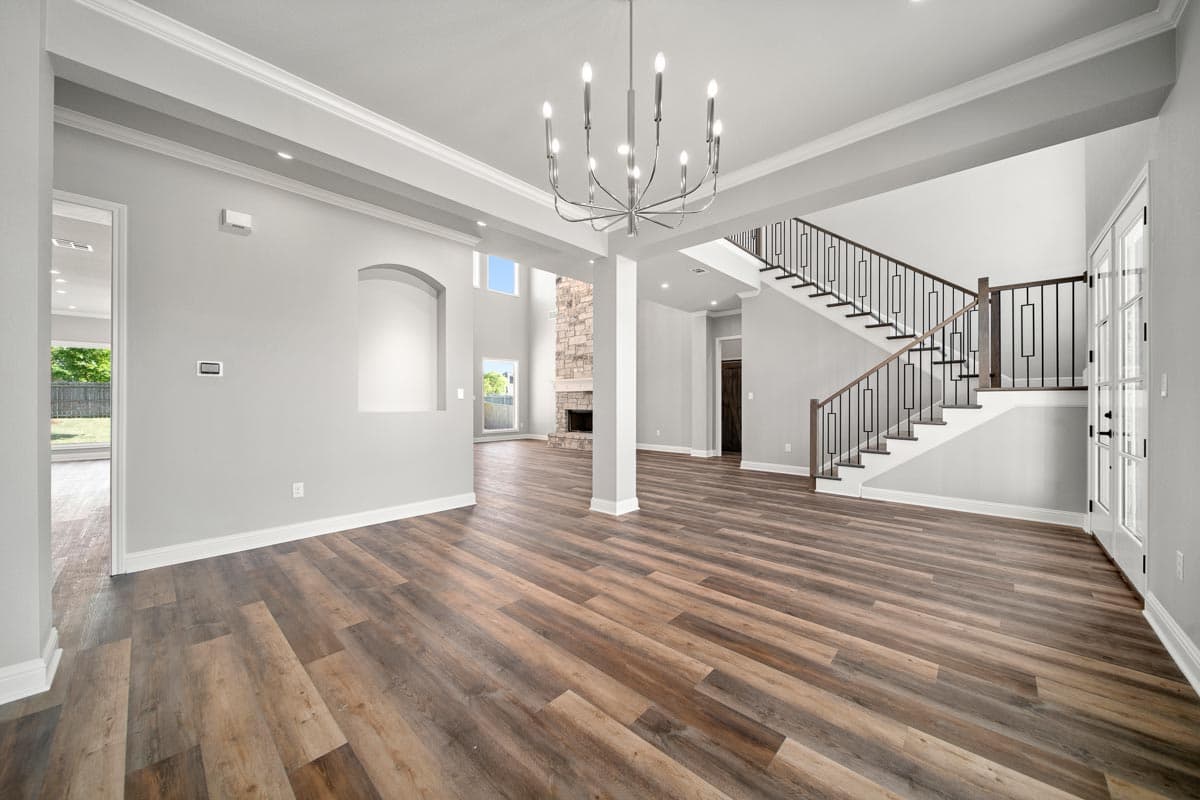

  • With over 3,800 square feet of living space, this New American Craftsman home plan boasts a central family room with a tall, coffered ceiling above a grand fireplace.

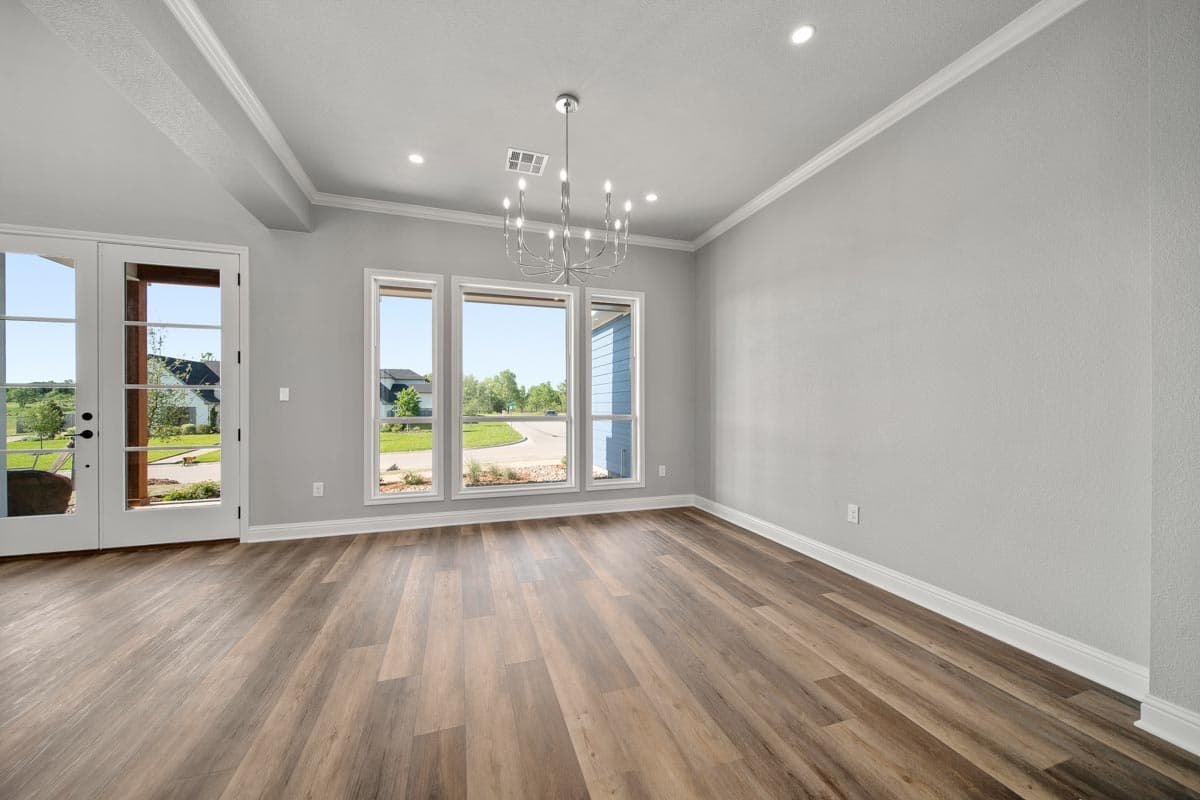

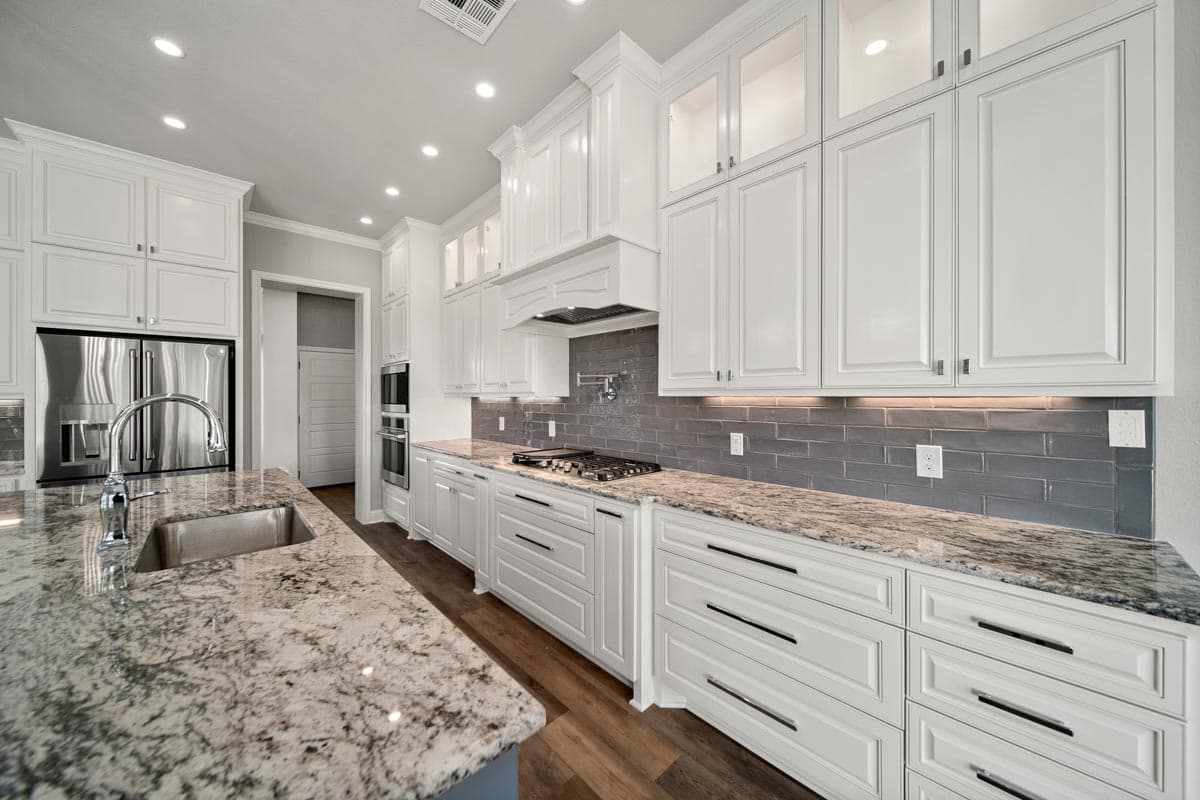

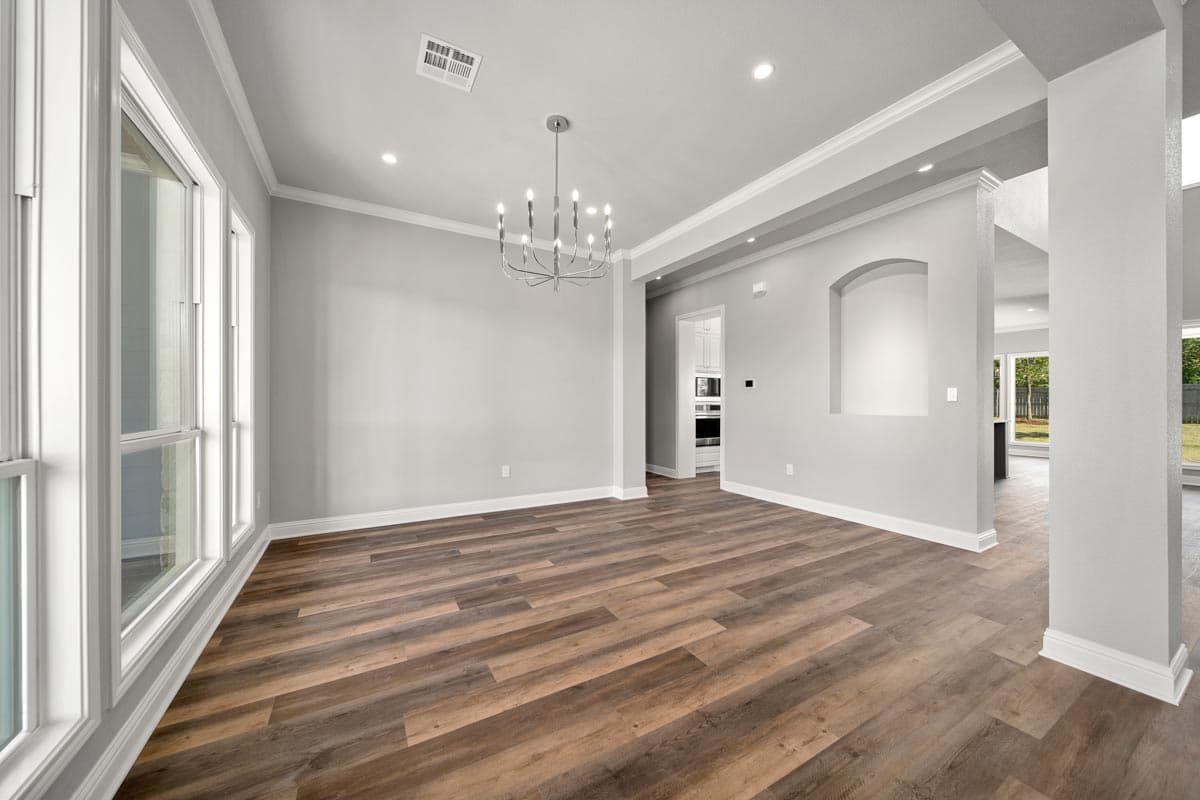

  • The rear walls are lined with windows to maximize natural light while providing views of the back porch and beyond. A formal dining room is defined by a single pillar just off the foyer and casual dining is available near the kitchen.

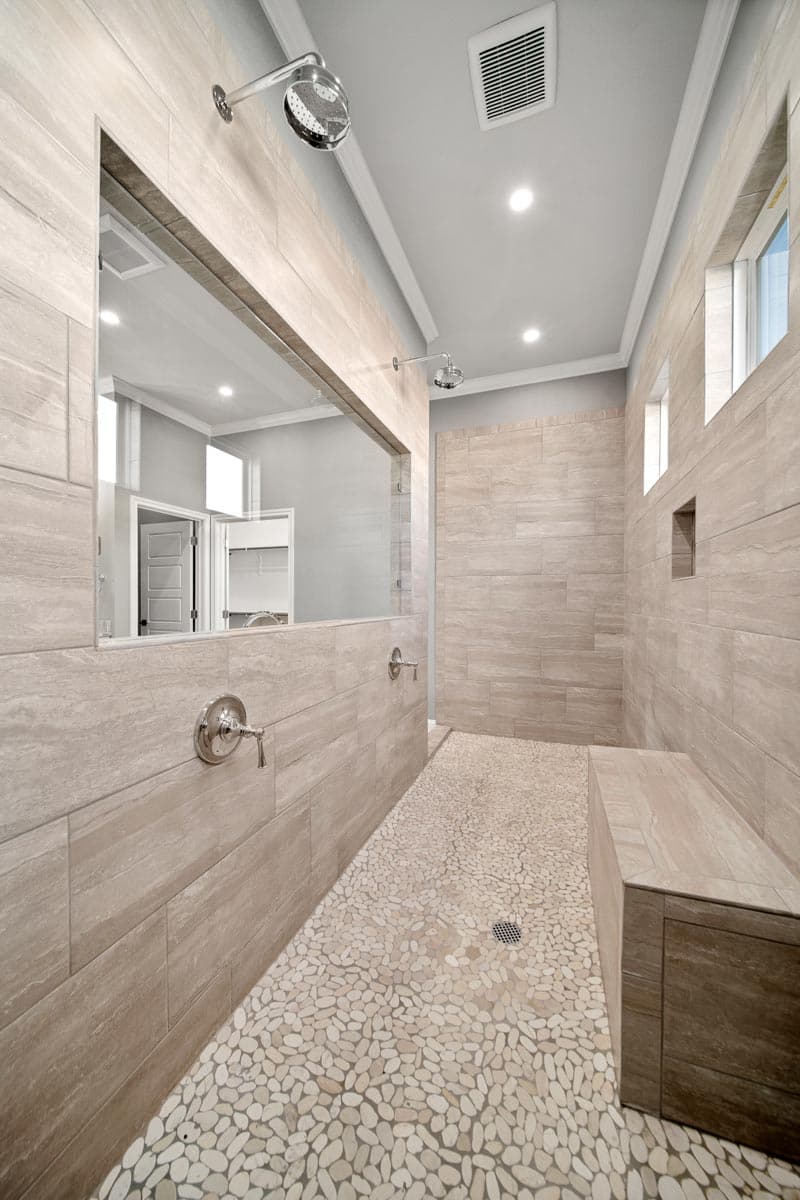

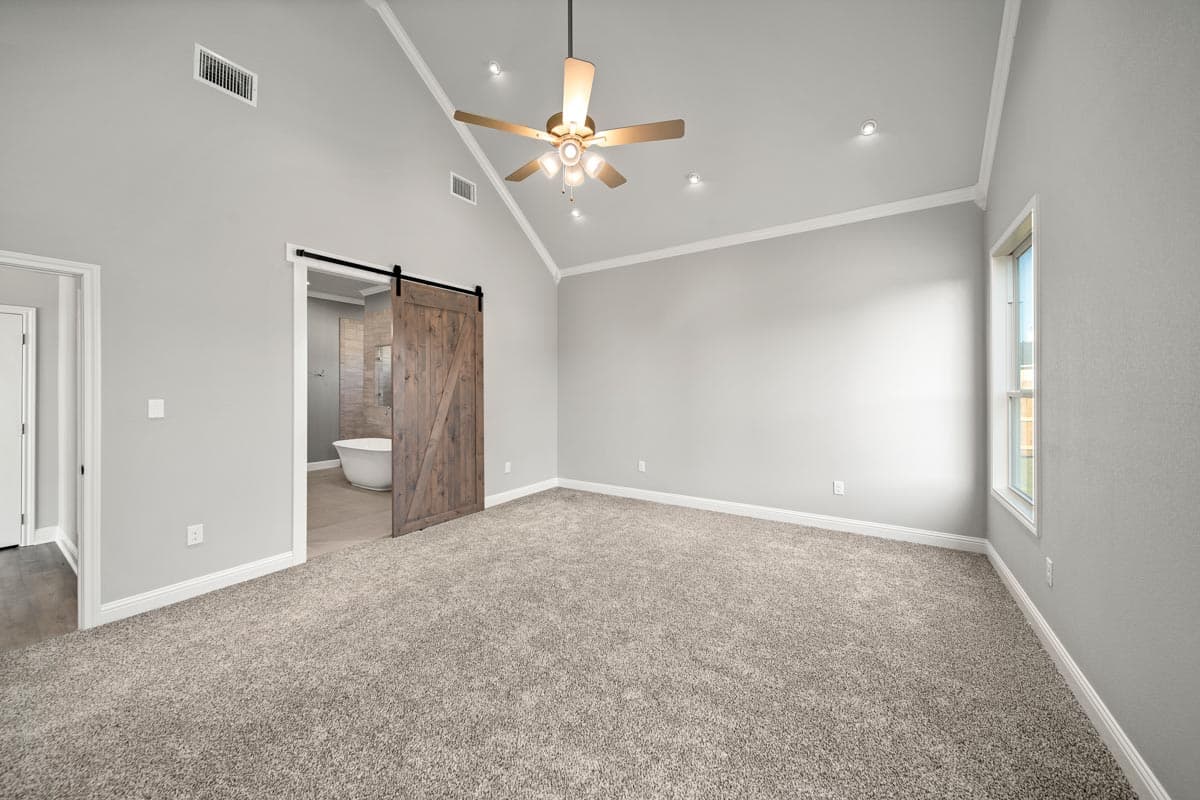

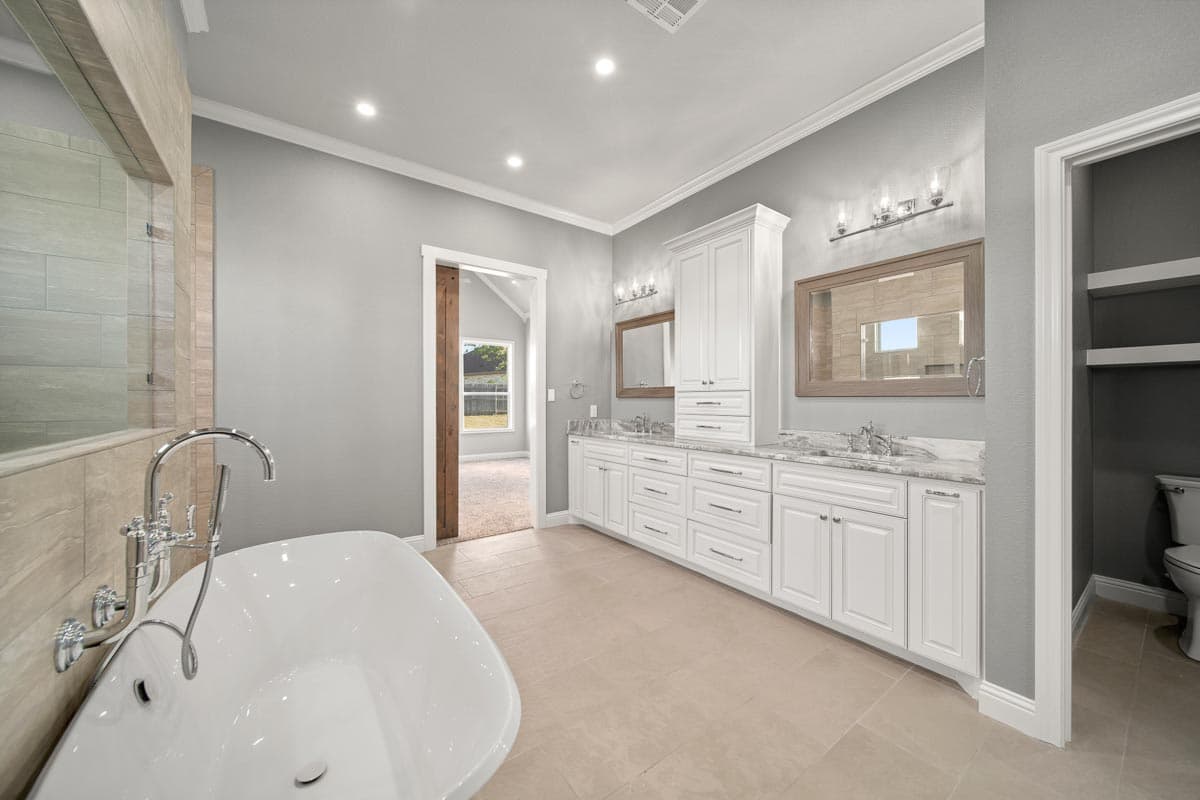

  • The deluxe primary suite is tucked behind the 3-car garage and features a vaulted ceiling. A sizable ensuite completes the homeowner's oasis with an oversized shower and pass-thru closet that connects to the laundry room.
  • Bedrooms 2 and 3 share a Jack-and-Jill bathroom on the opposite side of the main level.
  • Upstairs, discover a fourth bedroom and a game room offers the family a flexible space to enjoy.
What's Included
  • Foundation plan
  • Detailed floorplans
  • Roof plan

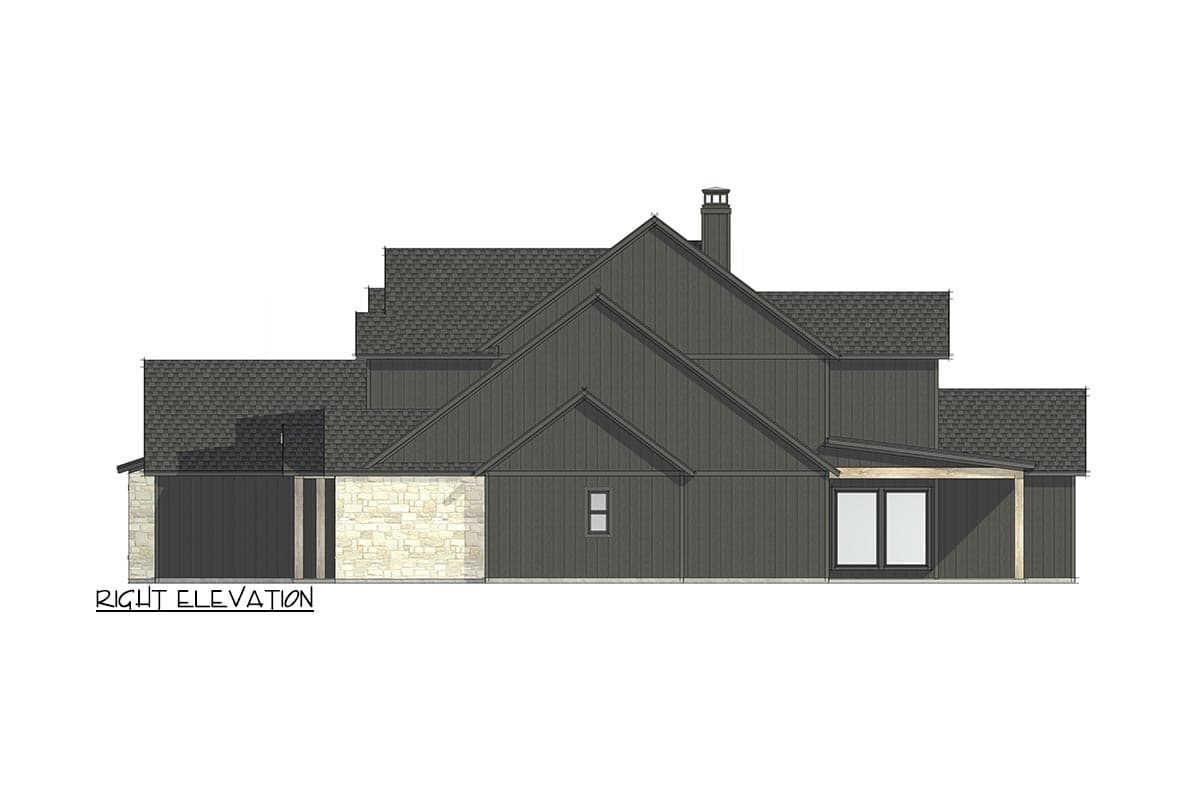

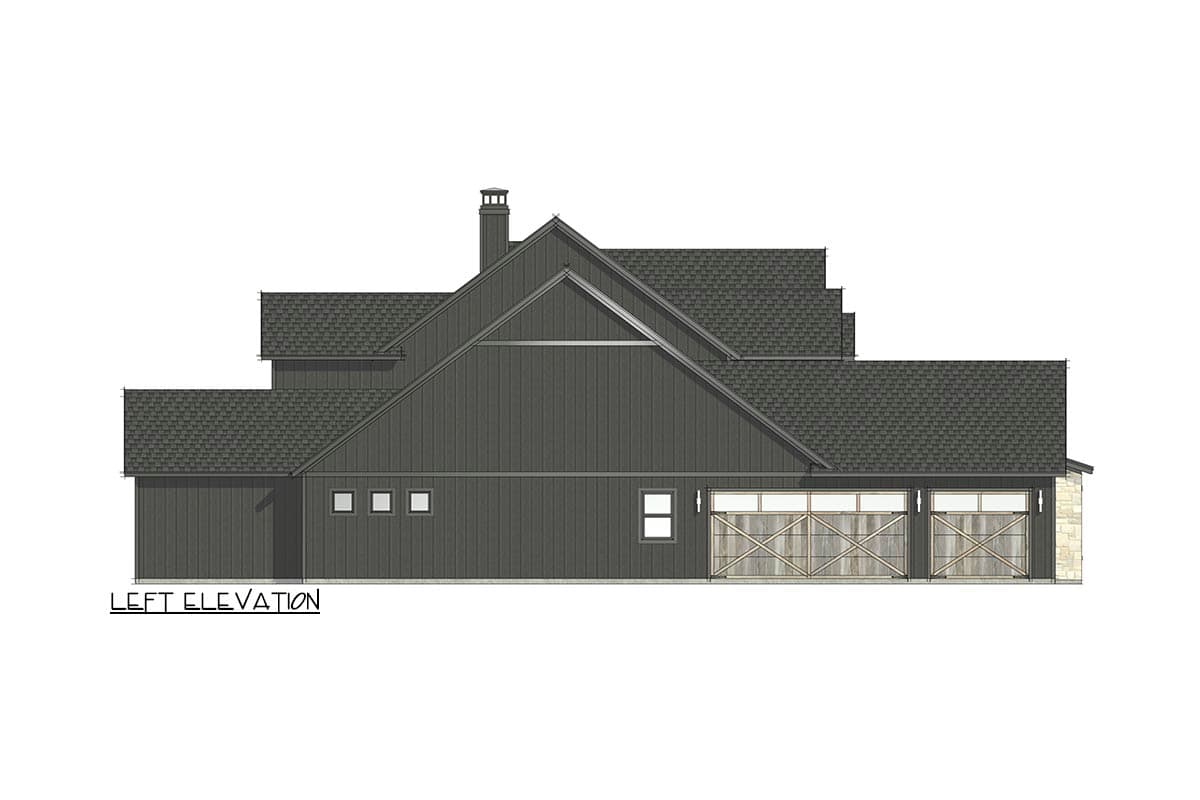

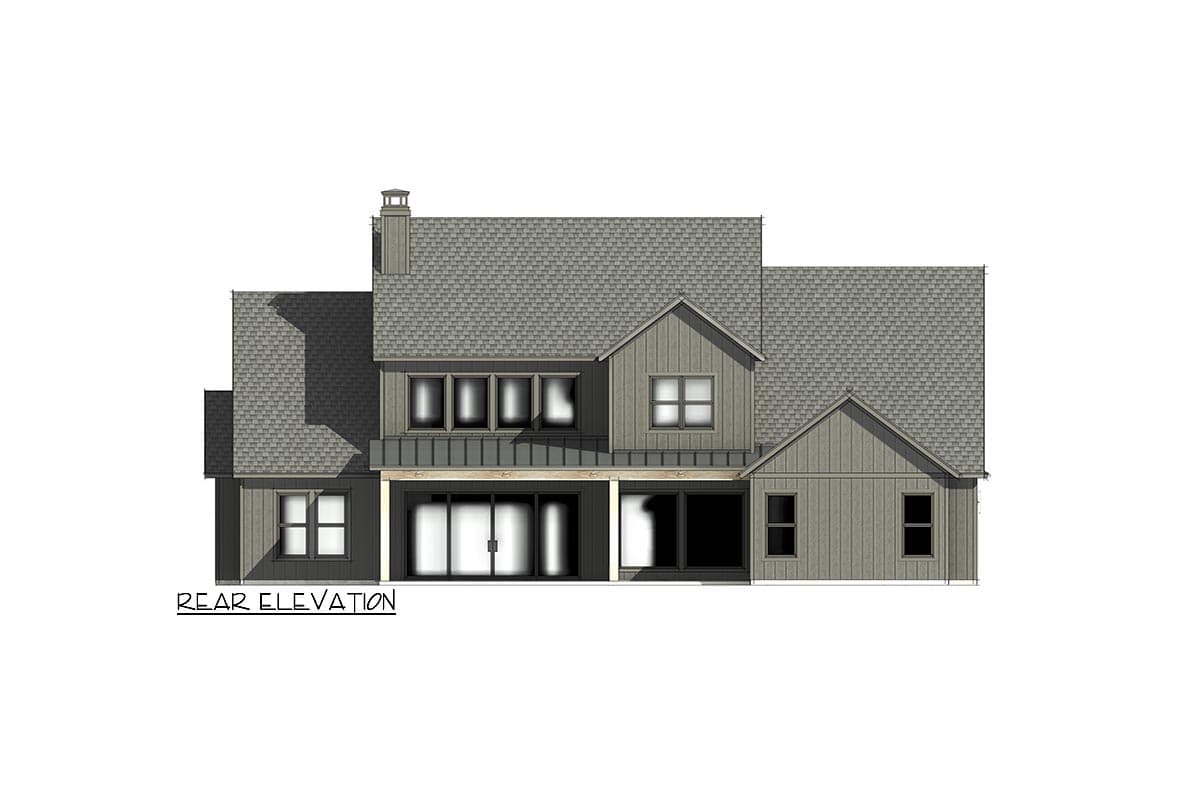

  • Four elevations
  • Electrical schematic
  • Cross section(s)
  • Rafter plan and ceiling joist plans (Beam, joist, and rafters to be sized locally by an engineer or framer)
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

New American Craftsman Home Plan with 2-Story Living Room

  • 3,880

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

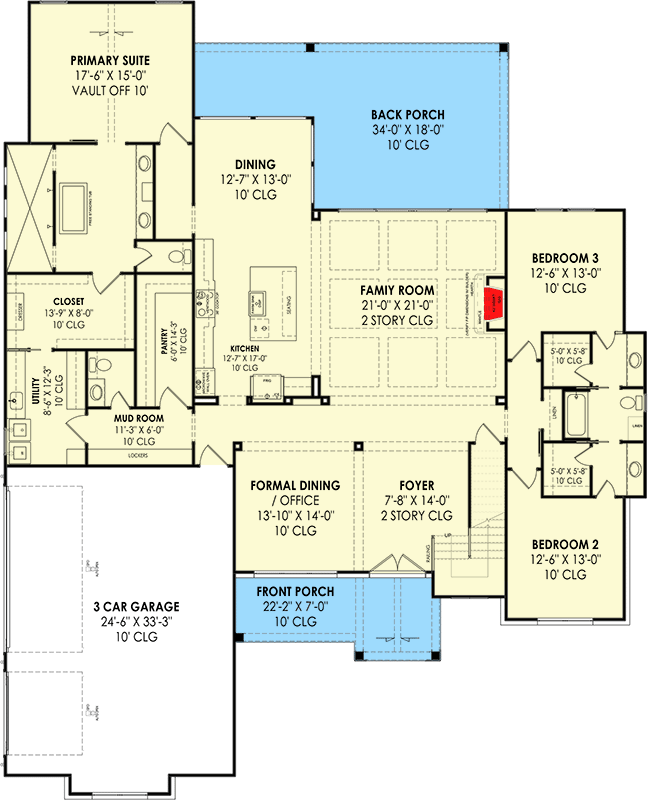

  • Main Level

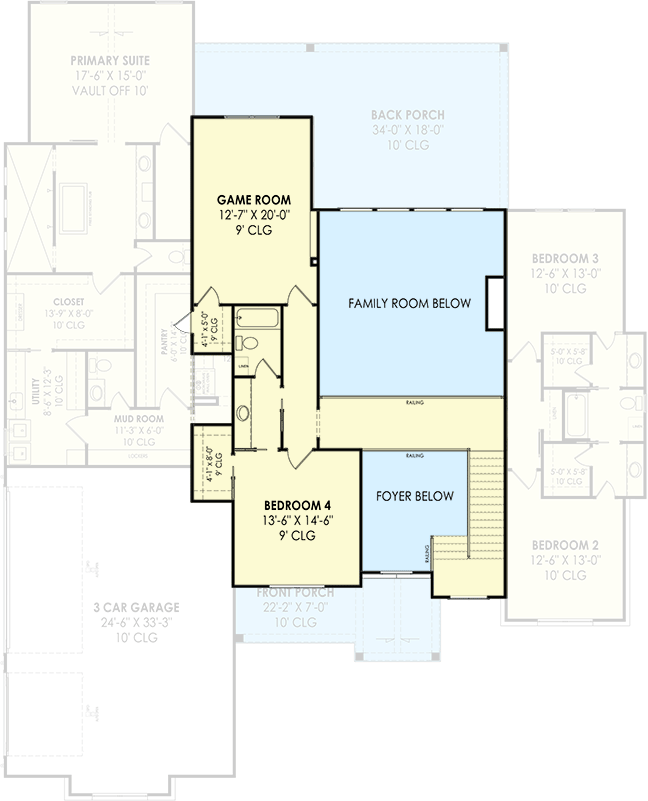

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,880 sq. ft.
  • 1st Floor: 3,061 sq. ft.
  • 2nd Floor: 819 sq. ft.

Dimensions

  • Width: 69' 7"
  • Depth: 86' 7"
  • Max ridge height: 33' 1"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 860 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Monolithic Slab
    • Optional Foundations: Walkout, Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 1.5 on 12
  • Framing Type: Stick
