Plan 280093JWD
New American Craftsman Home Plan with Attachable Garage
Heated S.F.
2,794
Beds
3-4
Baths
3
Stories
2
Cars
1-2
What's Included
Floor Plan
PRINT PLANS

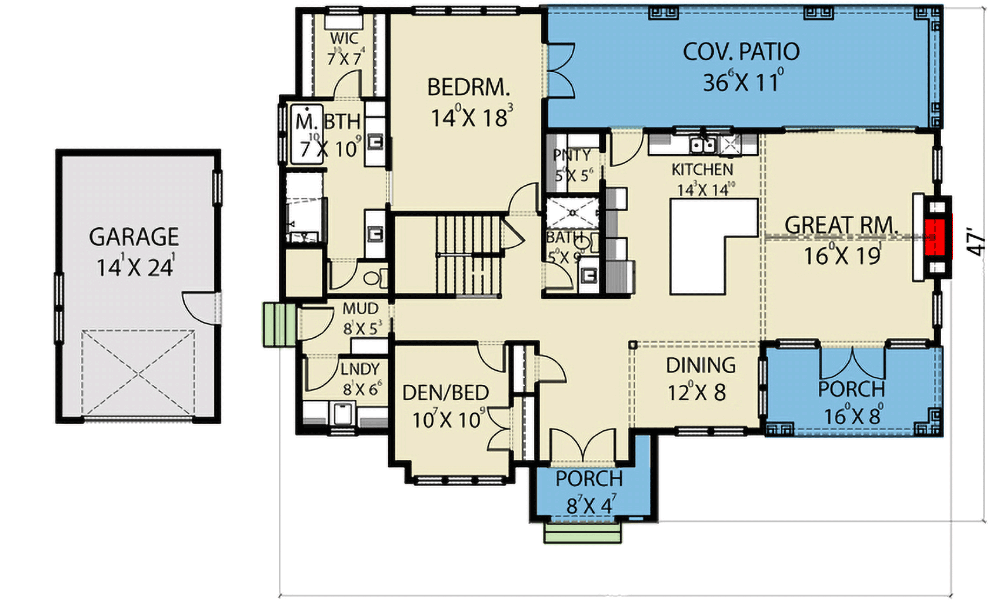

Main Level
Reverse Floor Plan
New American Craftsman Home Plan with Attachable Garage - 280093JWD floor plan - Main Level

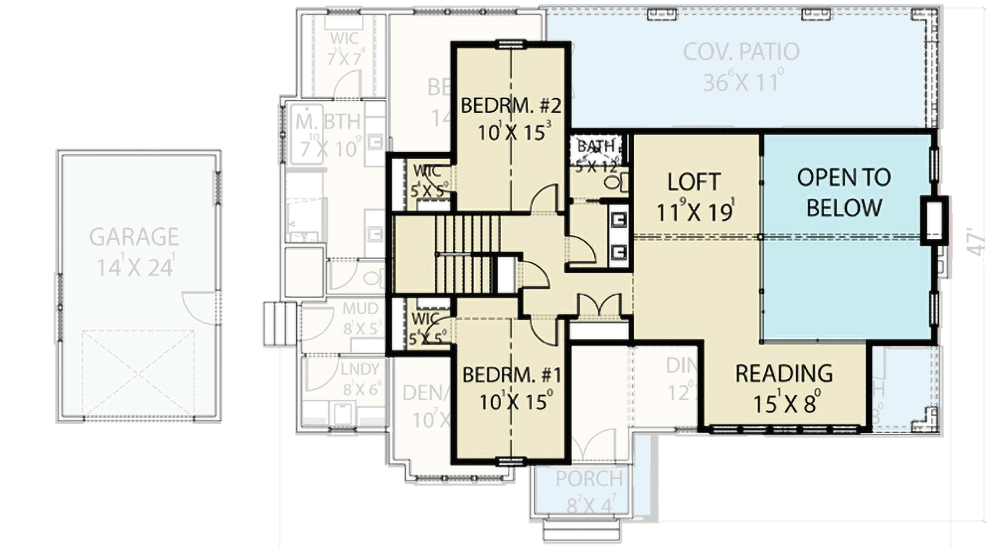

2nd Floor
Reverse Floor Plan
New American Craftsman Home Plan with Attachable Garage - 280093JWD floor plan - 2nd Floor

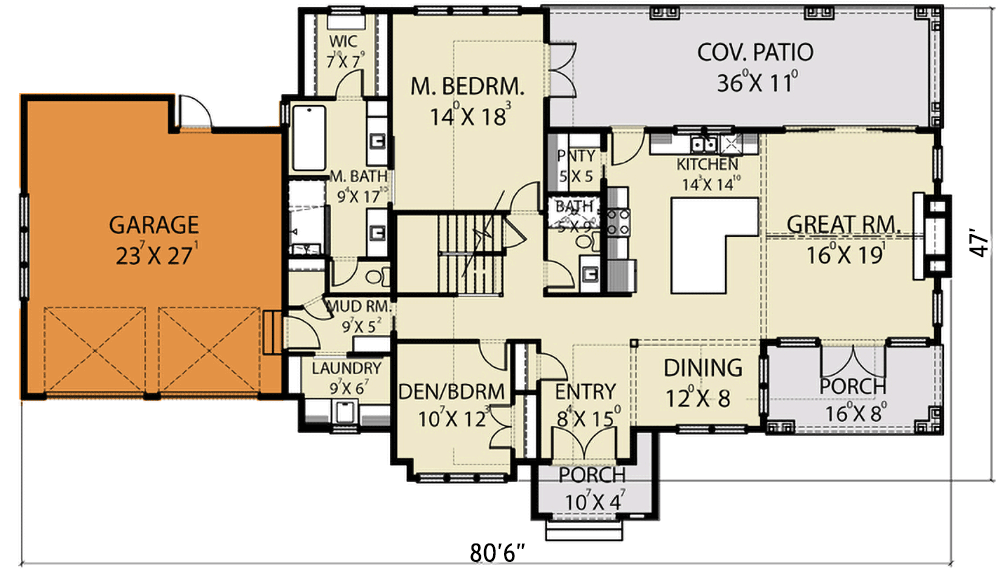

2-Car Attached Garage Option
Reverse Floor Plan
New American Craftsman Home Plan with Attachable Garage - 280093JWD floor plan - 2-Car Attached Garage Option
Plan Details
  • The fresh exterior of this New American, Craftsman home plan offers a blend of siding materials, accented by natural wood elements. The flexible design provides the option for a single detached garage, or a double garage that is attached to the home.
  • French doors lead into the formal entryway with a coat closet to the left, across from the dining area. An expansive, L-shaped island anchors the combined kitchen and great room, where a fireplace serves as the focal point.
  • Slip out the sliding doors in the great room, and find a spacious covered patio, ideal for grilling, dining, or relaxing outdoors.
  • The master bedroom is located on the main level for the utmost convenience, and includes a 5-fixture bath and a walk-in closet. A den across the hall can double as a fourth bedroom, if needed.
  • Upstairs, two family bedrooms sit on either side of the staircase, and share a compartmentalized bath. A reading nook and loft overlook the great room below, while providing a communal space on the second level.
What's Included

  • Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

New American Craftsman Home Plan with Attachable Garage

  • 2,794

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 1 - 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • 2-Car Attached Garage Option

Plan Details

Square Footage Breakdown

  • Total: 2,794 sq. ft.
  • 1st Floor: 1,888 sq. ft.
  • 2nd Floor: 906 sq. ft.

Dimensions

  • Width: 61' 6"
  • Depth: 47' 0"
  • Max ridge height: 27' 0"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Garage

  • Type: Detached, Attached
  • Area: 375 sq. ft.
  • Count: 1 or 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 13 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Stick And Truss
