  • This New American Craftsman home plan totals 2,796 square feet of living space, including a home office, media room (or optional fourth bedroom), and a private primary bedroom.
  • The open and airy living space flows seamlessly into the kitchen and dining area, where you'll find an island with an eating bar and plenty of meal prep space.
  • Enter from the double or single garage bay to find the laundry room and neighboring mudroom, along with a walk-in pantry ready to store your bulk grocery goods.
  • The primary bedroom makes privacy a priority, and includes a 5-fixture bathroom and walk-in closet with a shortcut to the laundry room.
  • Bedrooms 2 and 3 share a full bath, and the rear media room provides a space for the TV and electronics.

Plans include the following:
  • Cover Sheet w/General Notes
  • Foundation Plan (Dimension Control)
  • Floor Plan(s) w/Door and Window Schedule
  • Roof Plan
  • Building Section (through the whole space) + Wall Section (showing materials, etc)
  • Exterior Elevations
  • Carriage House Floor Plan, Electrical Plan and Roof Plan (when applicable)
  • Carriage House Elevations (when applicable)
  • Electrical Floor Plan(s) w/legend
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

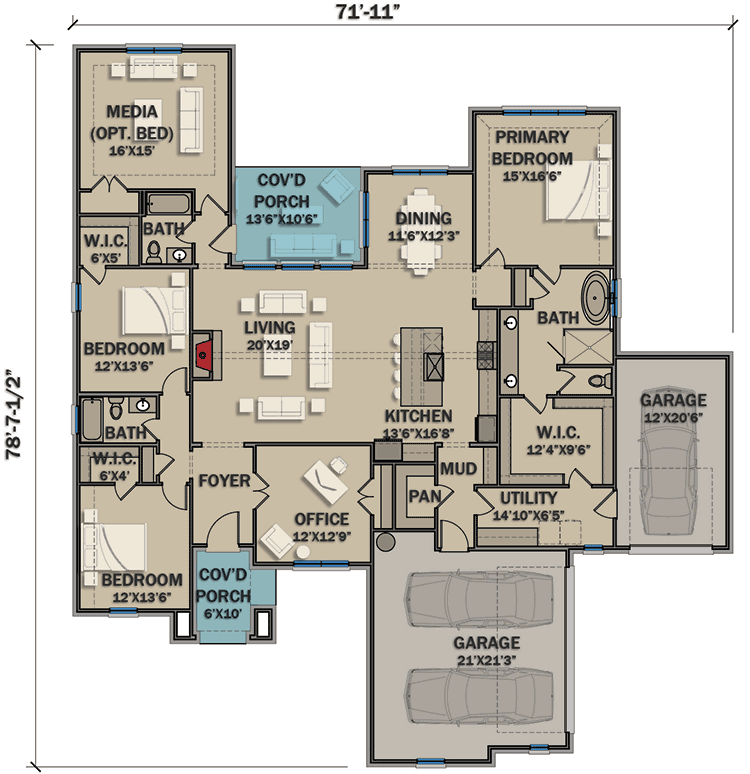

New American Craftsman Plan with 3-Car Garage and Office - 25424TF floor plan - Main Level

Plan details

New American Craftsman Plan with 3-Car Garage and Office

  • 2,796

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $1,199
  • PDF - Single-Build $1,229
  • CAD - Single-Build $1,829
  • View all purchase option online

About This Plan

  • This New American Craftsman home plan totals 2,796 square feet of living space, including a home office, media room (or optional fourth bedroom), and a private primary bedroom.
  • The open and airy living space flows seamlessly into the kitchen and dining area, where you'll find an island with an eating bar and plenty of meal prep space.
  • Enter from the double or single garage bay to find the laundry room and neighboring mudroom, along with a walk-in pantry ready to store your bulk grocery goods.
  • The primary bedroom makes privacy a priority, and includes a 5-fixture bathroom and walk-in closet with a shortcut to the laundry room.
  • Bedrooms 2 and 3 share a full bath, and the rear media room provides a space for the TV and electronics.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,796 sq. ft.
  • 1st Floor: 2,796 sq. ft.
  • Entry: 90 sq. ft.
  • Porch, Rear: 140 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 71' 11"
  • Depth: 78' 8"
  • Max ridge height: 24' 2"

Garage

  • Type: Attached
  • Area: 809 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Stick Or Truss
