Plan 28009J
New American Craftsman Plan with 4 Beds and Over 1600 Square Feet of Living Area
Heated S.F.
1,655
Beds
4
Baths
2.5
Stories
2
Cars
2
What's Included
Plan Details
  • With over 1,600 square feet of living space, this New American Craftsman home plan delivers 4 bedrooms, 2.5 baths, and a 2-car garage with extra space for storage.

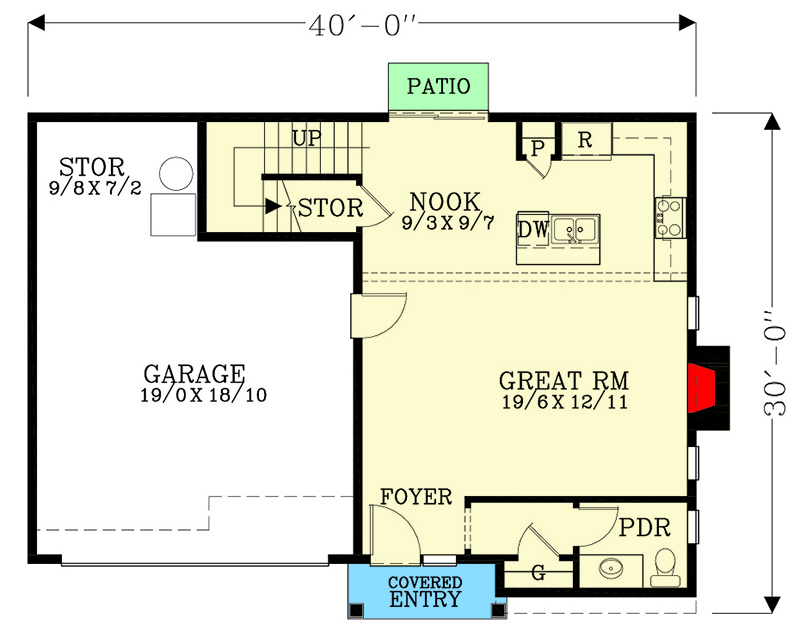

  • An open and airy living space consumes the main level with a fireplace anchoring the right wall and an island serving as a natural conversation hub.
  • Sliding doors off the dining area permit access to the back yard, and additional storage / pantry space is available beneath the staircase.

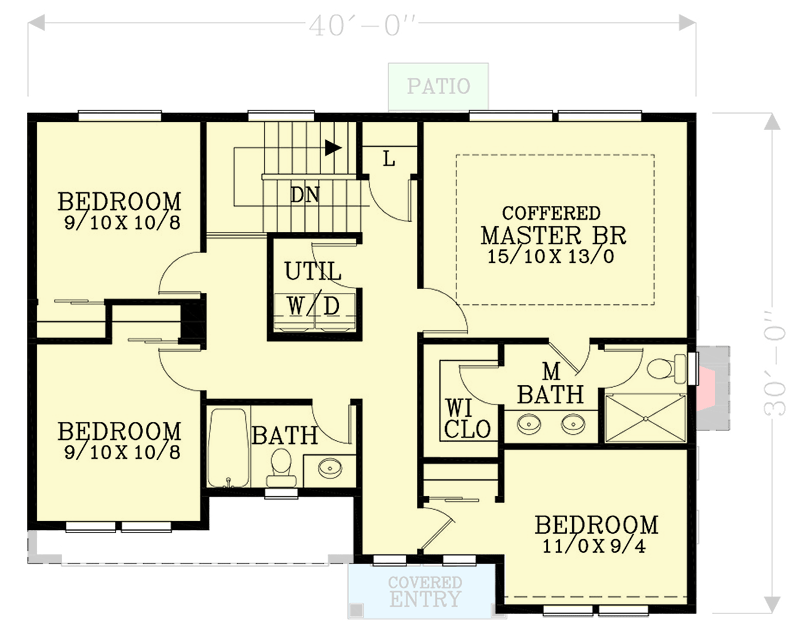

  • Four bedrooms surround the laundry room upstairs with the largest bedroom reserved for the homeowner.
  • Related Plans: Add a study with house plan 28010J and get an alternate version with house plans 28011J and 28095J.
What's Included
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

New American Craftsman Plan with 4 Beds and Over 1600 Square Feet of Living Area

  • 1,655

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,655 sq. ft.
  • 1st Floor: 661 sq. ft.
  • 2nd Floor: 994 sq. ft.

Dimensions

  • Width: 40' 0"
  • Depth: 30' 0"
  • Max ridge height: 27' 5"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 342 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6
