Plan 267027SPK
EXCLUSIVE
New American Craftsman Plan with Bonus Room above 3-Car Garage
Heated S.F.
2,304
Beds
4
Baths
2.5
Stories
2
Cars
3
What's Included
Plan Details
  • A blend of siding materials pairs perfectly to form this New American Craftsman home plan with an 8'-deep front porch to welcome you inside.

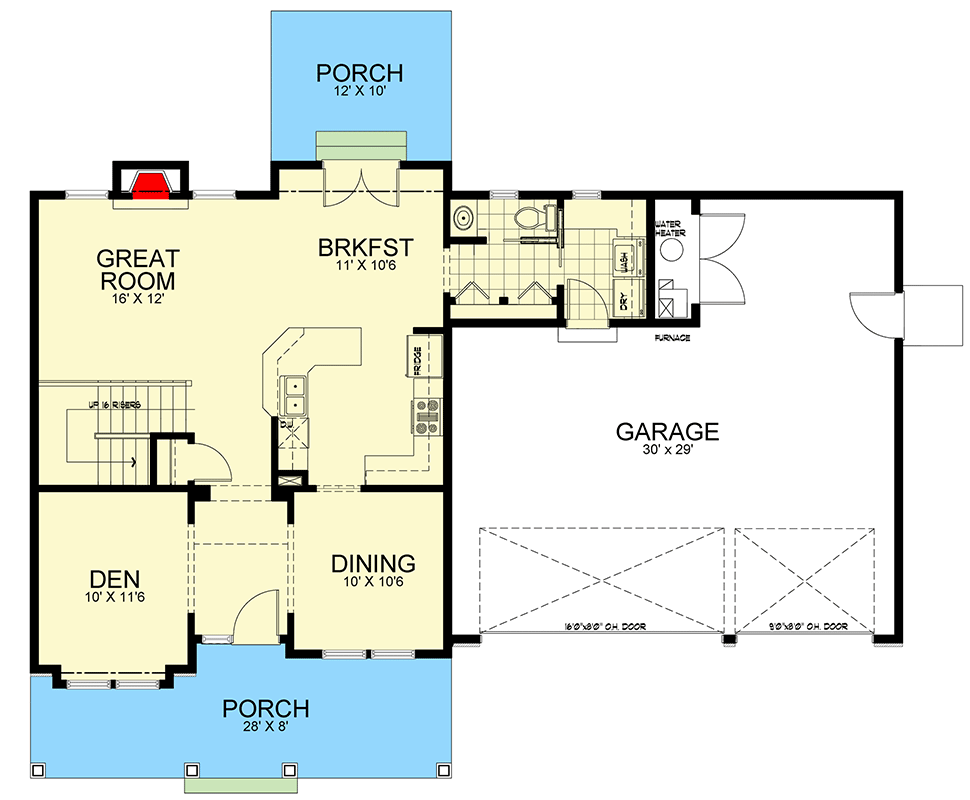

  • A formal den and dining room reside on either side of the entryway, while the open great room and kitchen offer rearward views and access to the 12' by 10' grilling porch.
  • Enter from the 3-car garage to find a laundry room next to a mud hall with coat closets and a powder bath.

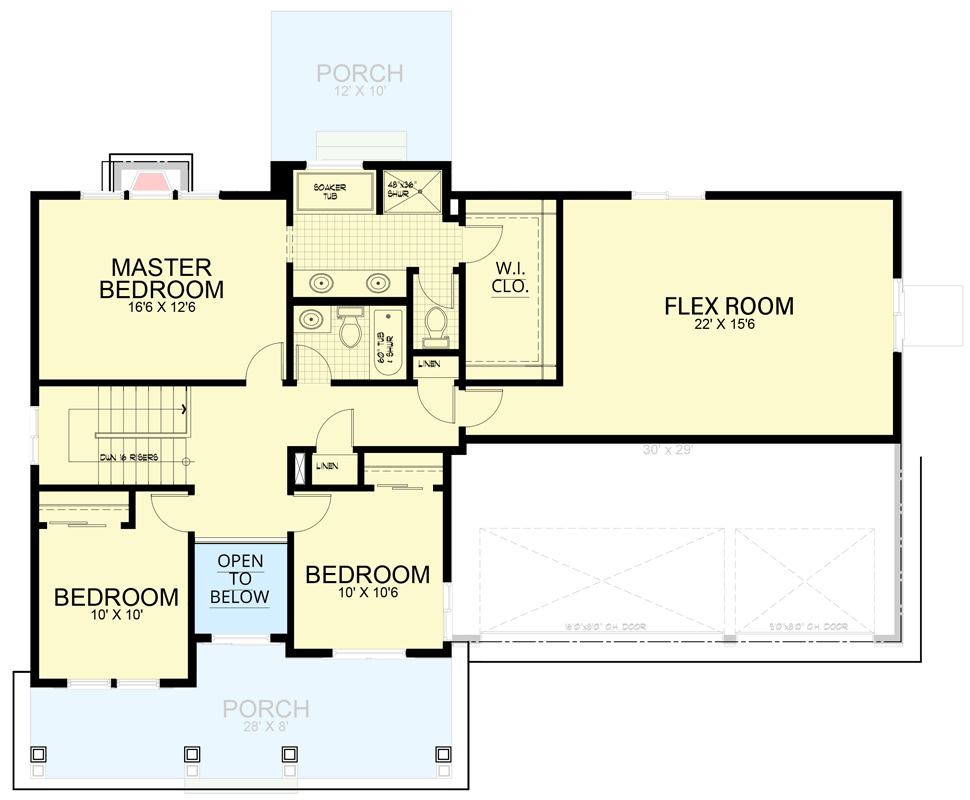

  • Upstairs, three bedrooms and a full bath share the second level with a spacious bonus room that can serve a variety of purposes.
  • Three side-by-side windows create a light and airy master bedroom that is paired with a 5-fixture bathroom and walk-in closet.
What's Included

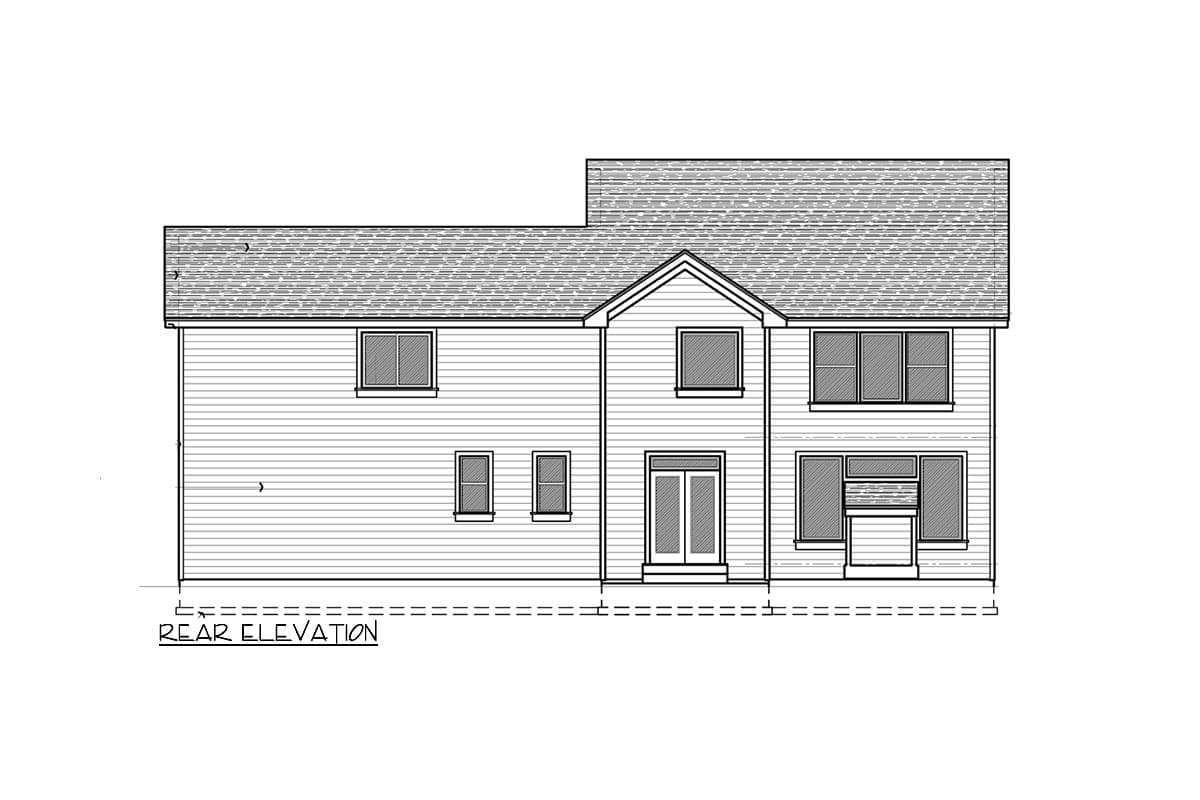

  • Exterior Elevations, Roof plan
  • Floor plan
  • Foundation plan
  • Typical details, building section
  • Notes and specifications
What's Not Included
  • Electrical Plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

New American Craftsman Plan with Bonus Room above 3-Car Garage

  • 2,304

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,304 sq. ft.
  • 1st Floor: 1,026 sq. ft.
  • 2nd Floor: 900 sq. ft.

Dimensions

  • Width: 58' 0"
  • Depth: 35' 0"
  • Max ridge height: 29' 9"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 870 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick
