Plan 790153GLV
EXCLUSIVE
New American Craftsman Plan with Bonus Room above Garage
Heated S.F.
2,382
Beds
3-4
Baths
3
Stories
2
Cars
3
What's Included
Plan Details
  • The board and batten accents on the exterior of this New American Craftsman home plan offer a modern interpretation of the classic siding material.
  • A wraparound porch welcomes you inside where an open living space allows you to easily gather with family and friends.
  • The island kitchen includes a pantry closet and windows lining the rear elevation create an interior filled with natural light.
  • A mudroom serves as the catchall when entering from the 3-car garage, and a bedroom suite on the main level can double as a study.
  • Three bedrooms, a bonus room, and laundry room consume the second level. The main bedroom includes a 4-fixture bathroom, while a compartmentalized bath sits across from 2 family bedrooms.
What's Included
  • Cover sheet with notes

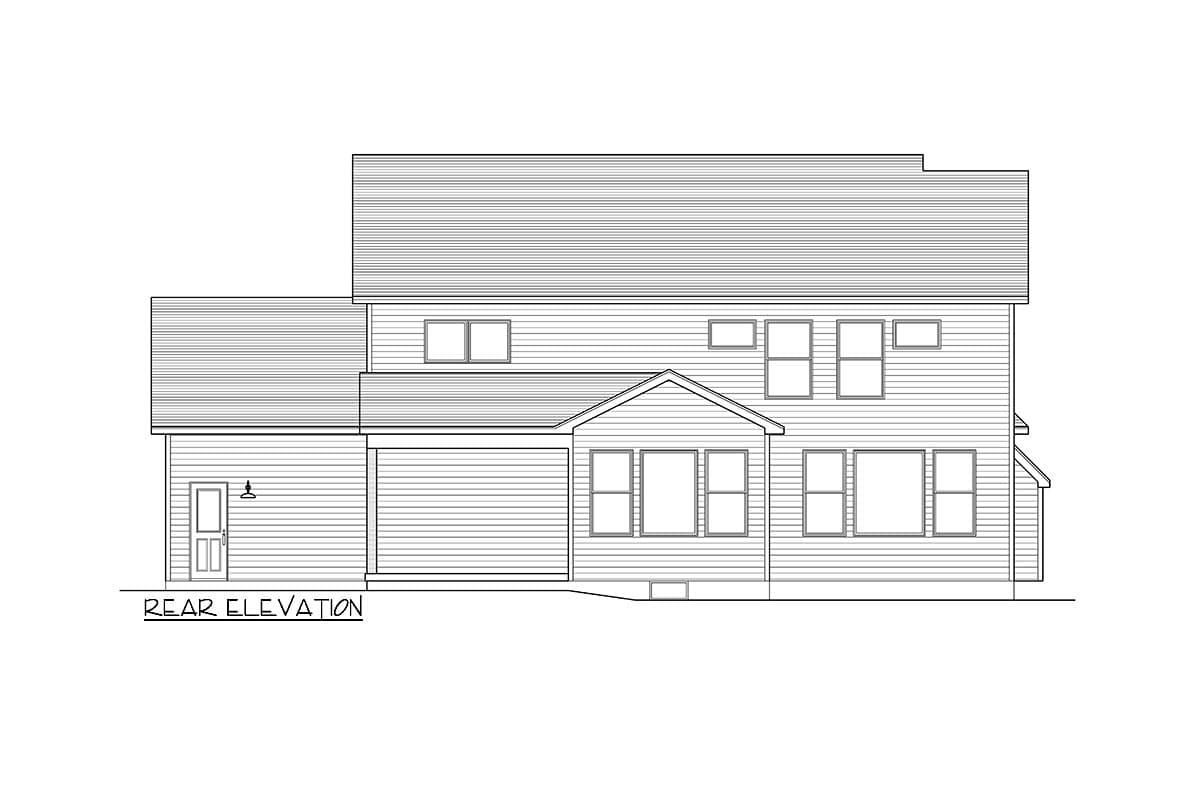

  • Elevations
  • Basement and foundation plan and typical wall section
  • Detailed floor plans
  • Sections
  • Roof plan
  • Details
  • Reinforcing notes
What's Not Included
  • Electrical Plans
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

New American Craftsman Plan with Bonus Room above Garage

  • 2,382

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 3

    Car garage

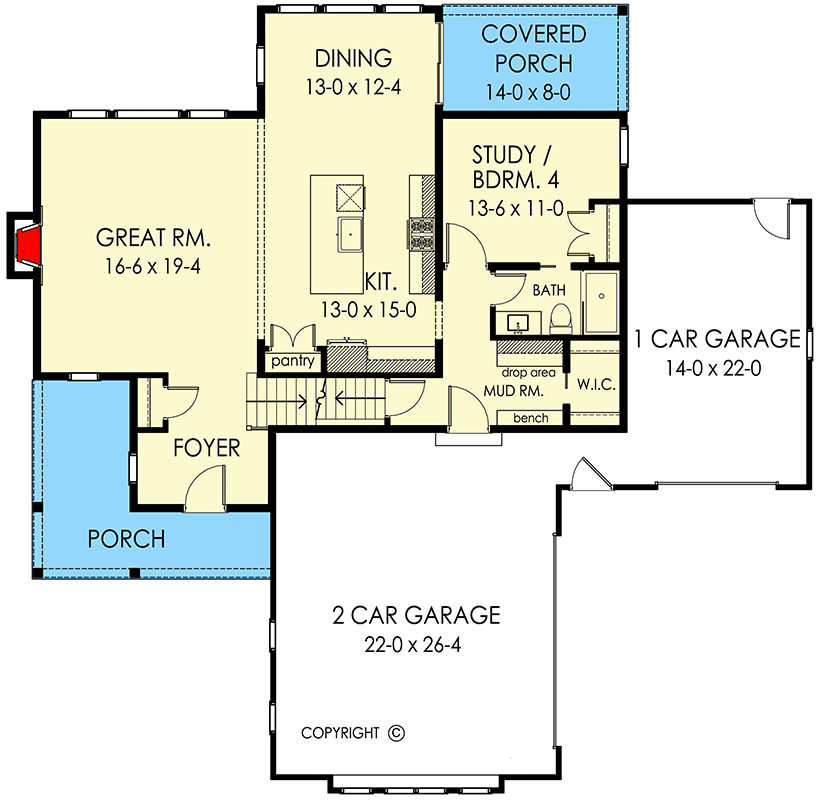

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,382 sq. ft.
  • 1st Floor: 1,243 sq. ft.
  • 2nd Floor: 1,139 sq. ft.

Dimensions

  • Width: 59' 0"
  • Depth: 58' 8"
  • Max ridge height: 30' 4"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 907 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side, Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss
