Plan 365043PED
EXCLUSIVE
New American Craftsman Plan with Front or Side Load Garage
Heated S.F.
2,530
Beds
3-5
Baths
2.5 - 3.5
Stories
2
Cars
2
What's Included
Floor Plan
PRINT PLANS

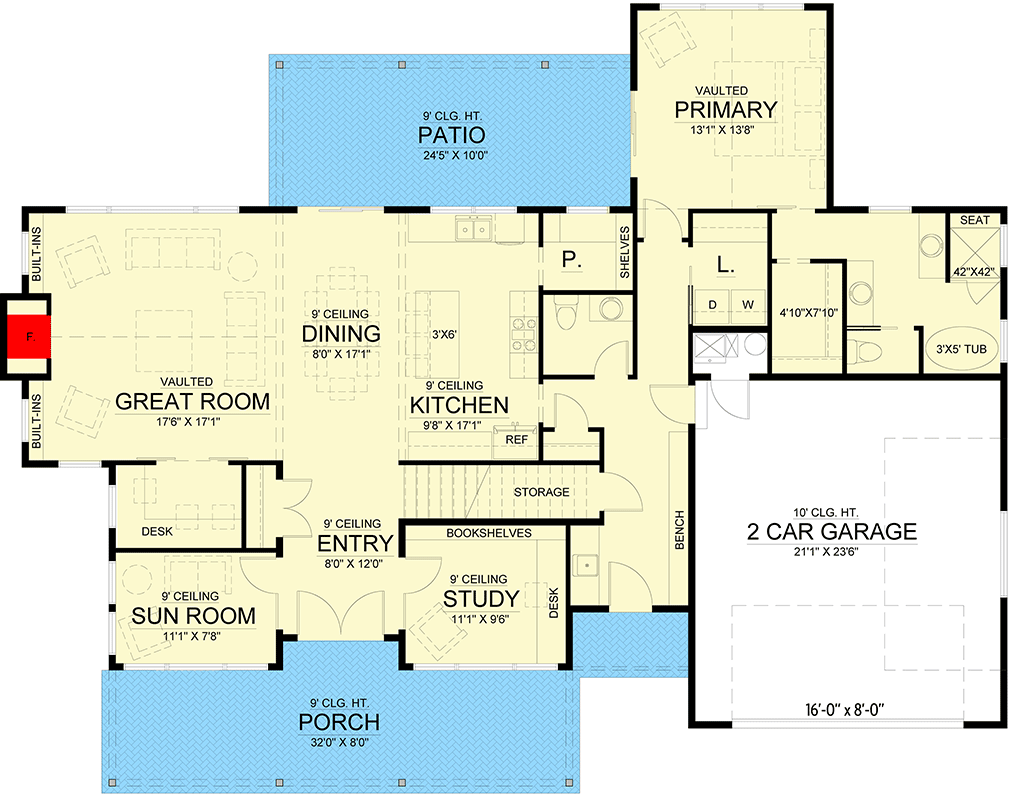

Main Level
Reverse Floor Plan
New American Craftsman Plan with Front or Side Load Garage - 365043PED floor plan - Main Level

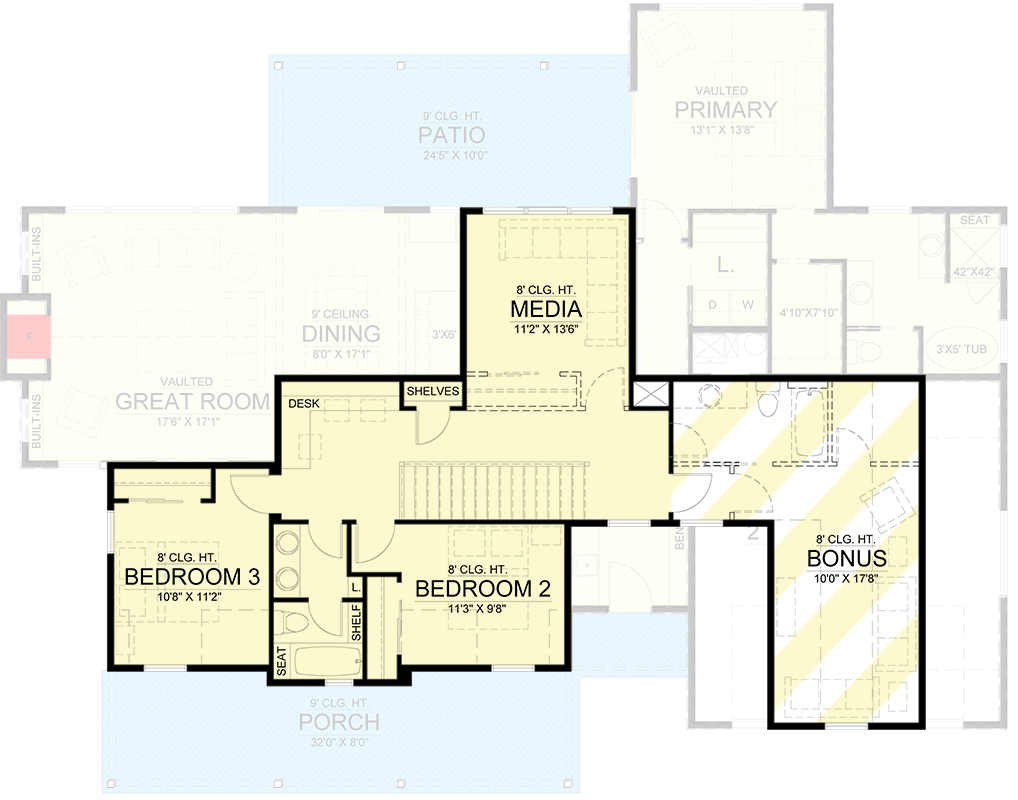

2nd Floor
Reverse Floor Plan
New American Craftsman Plan with Front or Side Load Garage - 365043PED floor plan - 2nd Floor

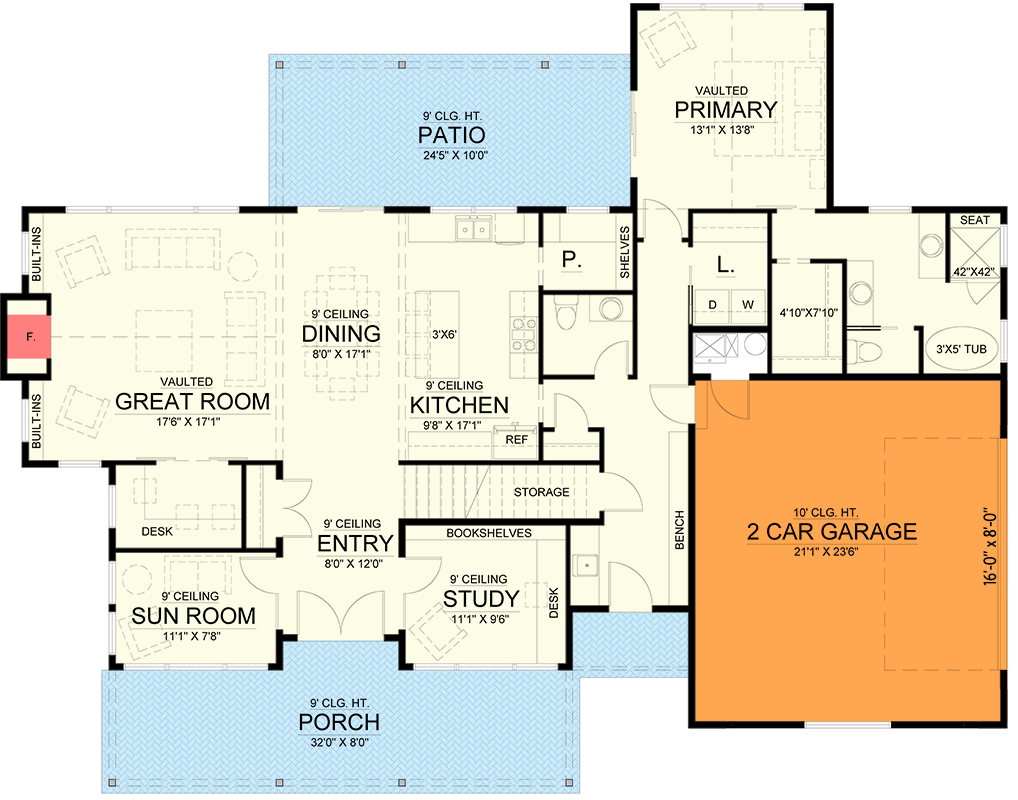

Main Level - 2 - Car Side Garage
Reverse Floor Plan
New American Craftsman Plan with Front or Side Load Garage - 365043PED floor plan - Main Level - 2 - Car Side Garage
Plan Details
  • With just over 2,500 square feet of living space, this New American Craftsman home plan presents a charming facade with a front or side-entry garage.
  • The vaulted great room features a statement fireplace surrounded by builtins and tons of natural light. A home office, or school room, is located just off the great room.
  • Enjoy the easy flow of the C-shaped kitchen with a central island and walk-in pantry. A study and sunroom frame the generous entry, complete with character-rich builtins.
  • The primary bedroom is conveniently situated on the main level, behind the double garage, with access to the rear covered patio, laundry, walk-in closet, and spa bathroom.
  • The second-level bedrooms are built into the trusses, each with a quaint dormer, and sloped ceilings. An optional 313 square foot bonus loft over garage with additional bathroom could be guest suite, media room, play room, etc.
What's Included
  • Cover sheet with general information
  • Detailed floor plans for each floor
  • Elevations for each side of the home
  • Roof plan
  • Building section and details
  • Electrical schematic plans for each floor
  • Foundation plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

New American Craftsman Plan with Front or Side Load Garage

  • 2,530

    Heated s.f.

  • 3-5

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Main Level - 2 - Car Side Garage

Plan Details

Square Footage Breakdown

  • Total: 2,530 sq. ft.
  • 1st Floor: 1,800 sq. ft.
  • 2nd Floor: 713 sq. ft.

Dimensions

  • Width: 69' 6"
  • Depth: 54' 0"
  • Max ridge height: 27' 9"

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 538 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side, Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Truss
