New American Craftsman Plan with Study and Screened Porch

Plan 93177EL

  • 3,822

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Craftsman details adorn the facade of this New American home plan, which is exclusive to Architectural Designs and provide 3,822 square feet of living space.

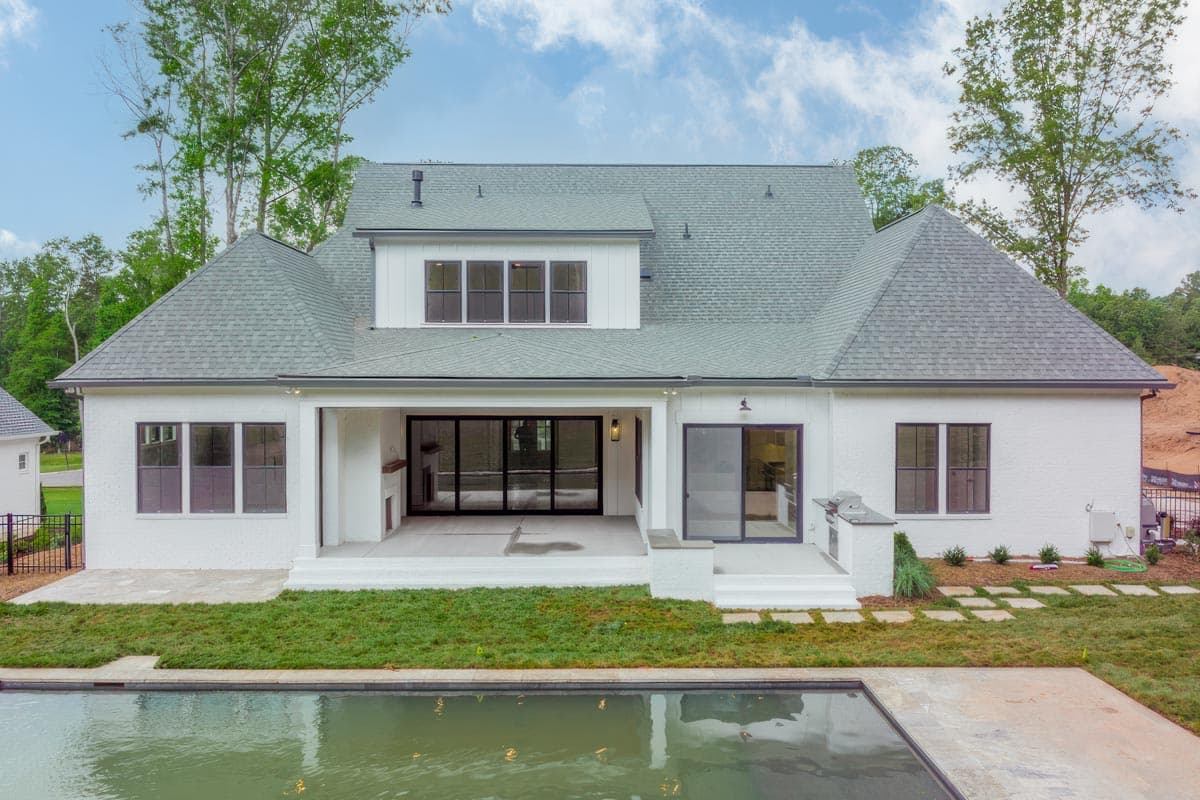

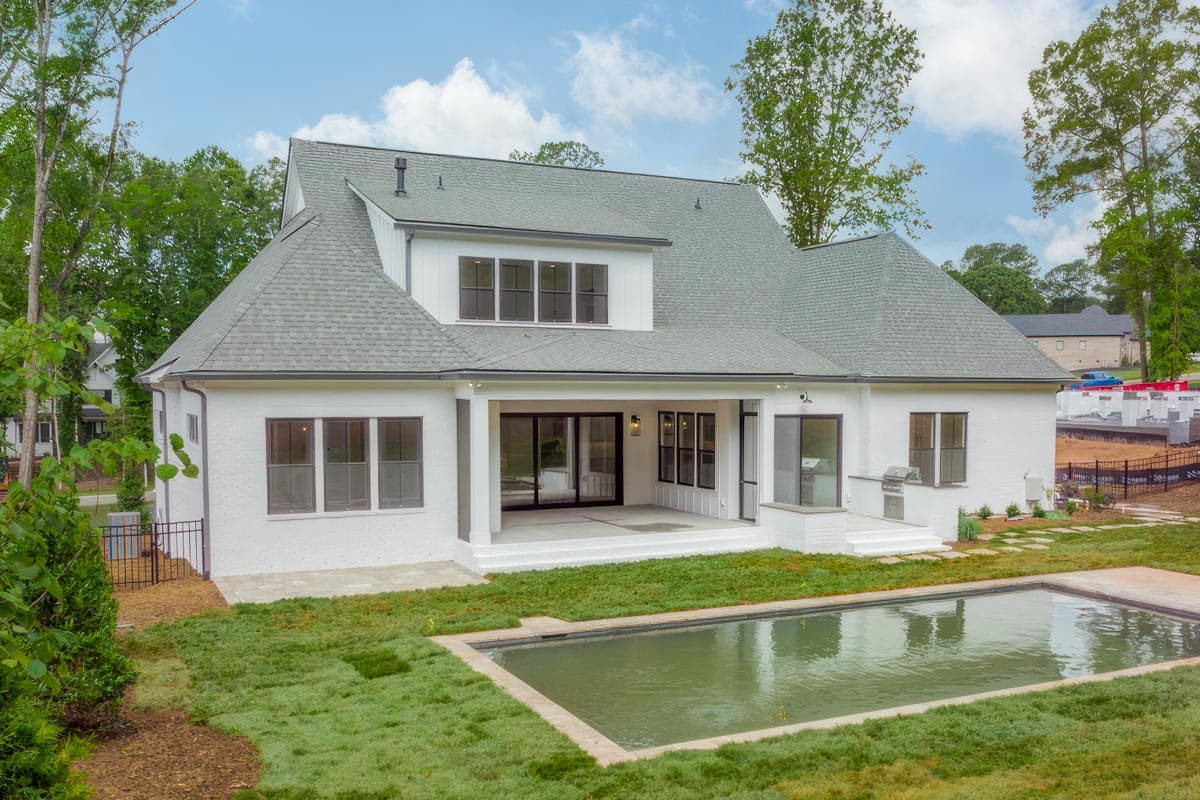

  • Enjoy family and friends in this comfortable design that features a cozy fireplace in the great room, framed by the open kitchen and screened porch.

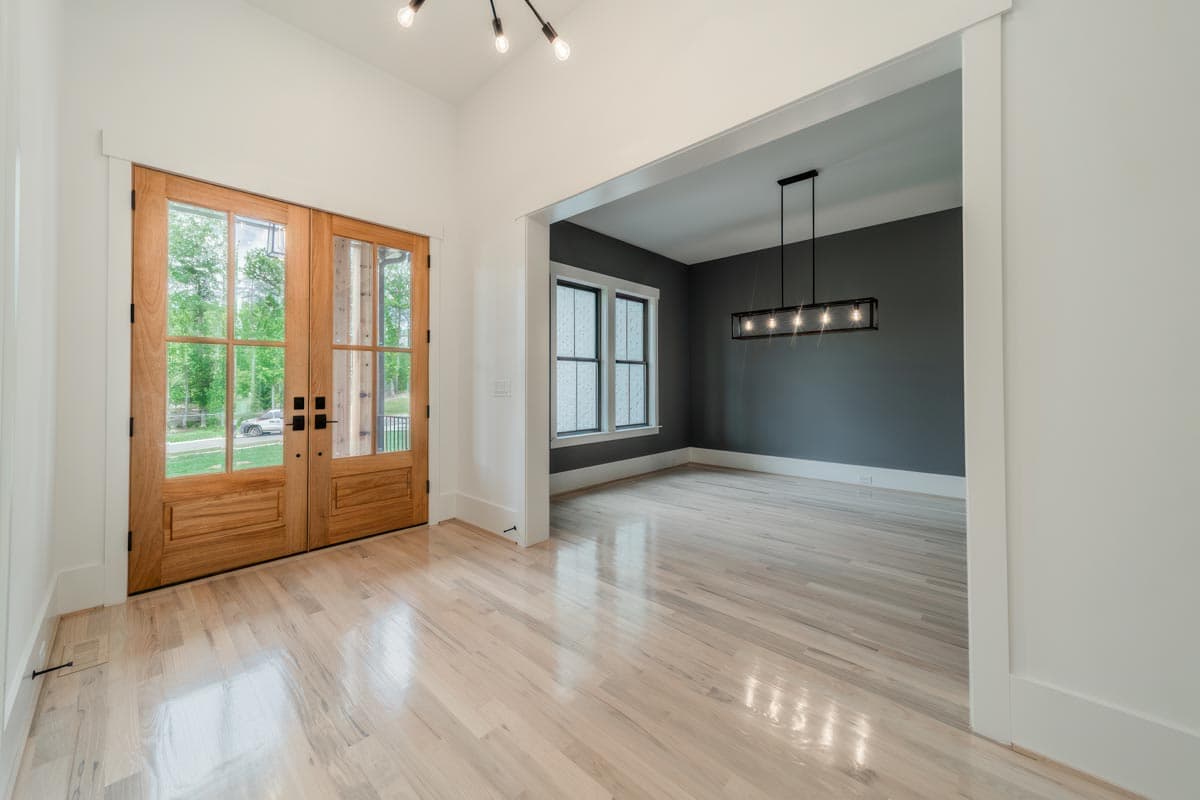

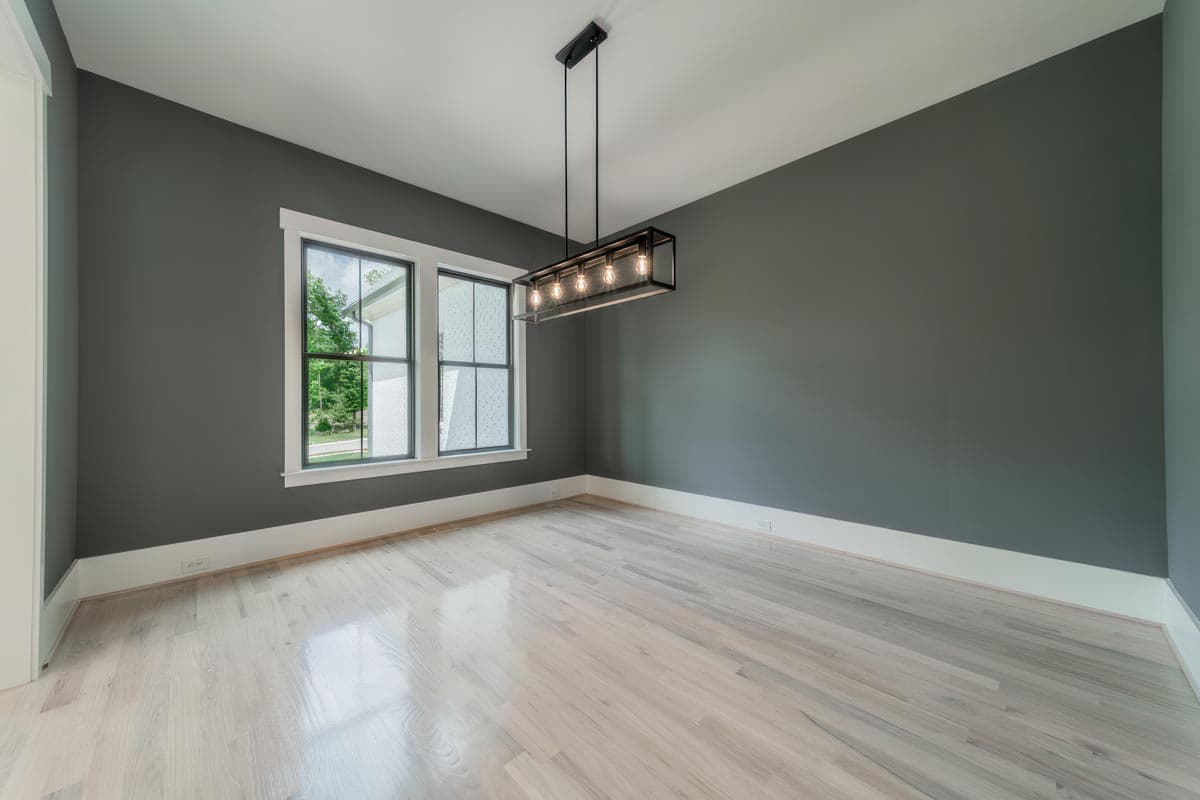

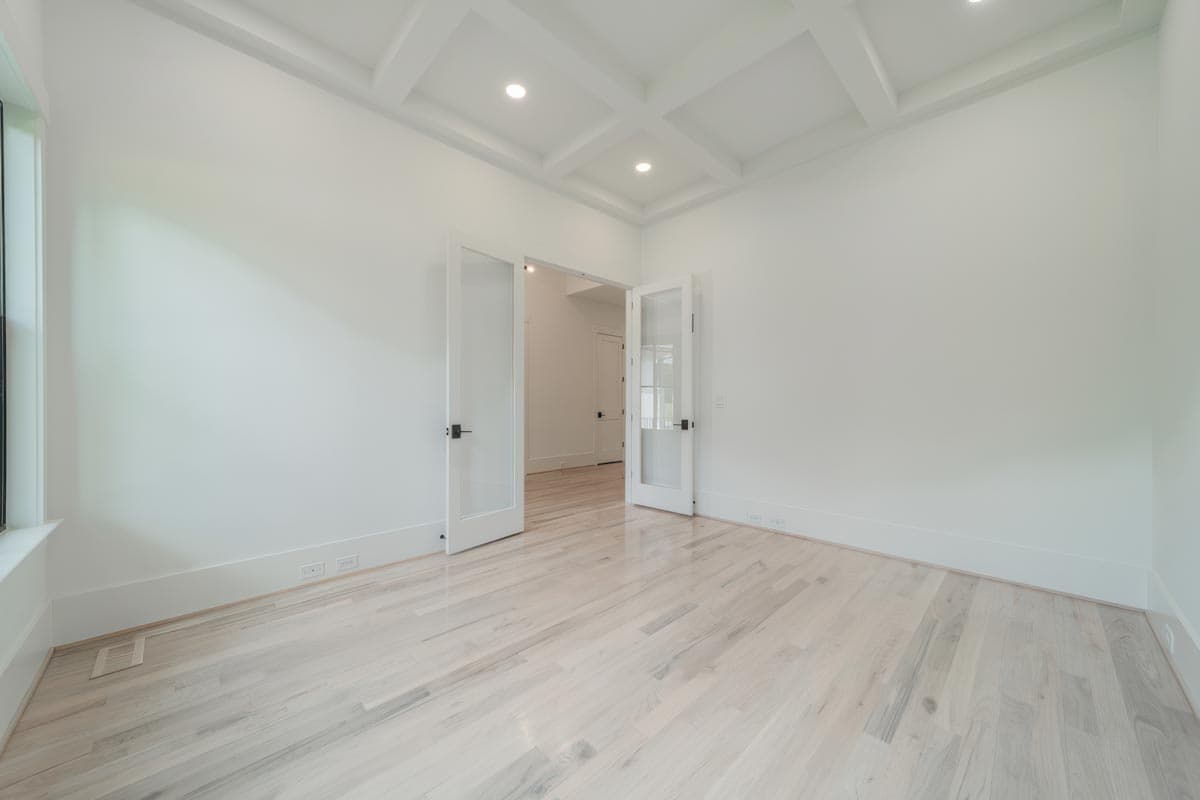

  • A butler's pantry provides a shortcut into the formal dining room, and coffered ceilings crown the study that resides across the foyer.

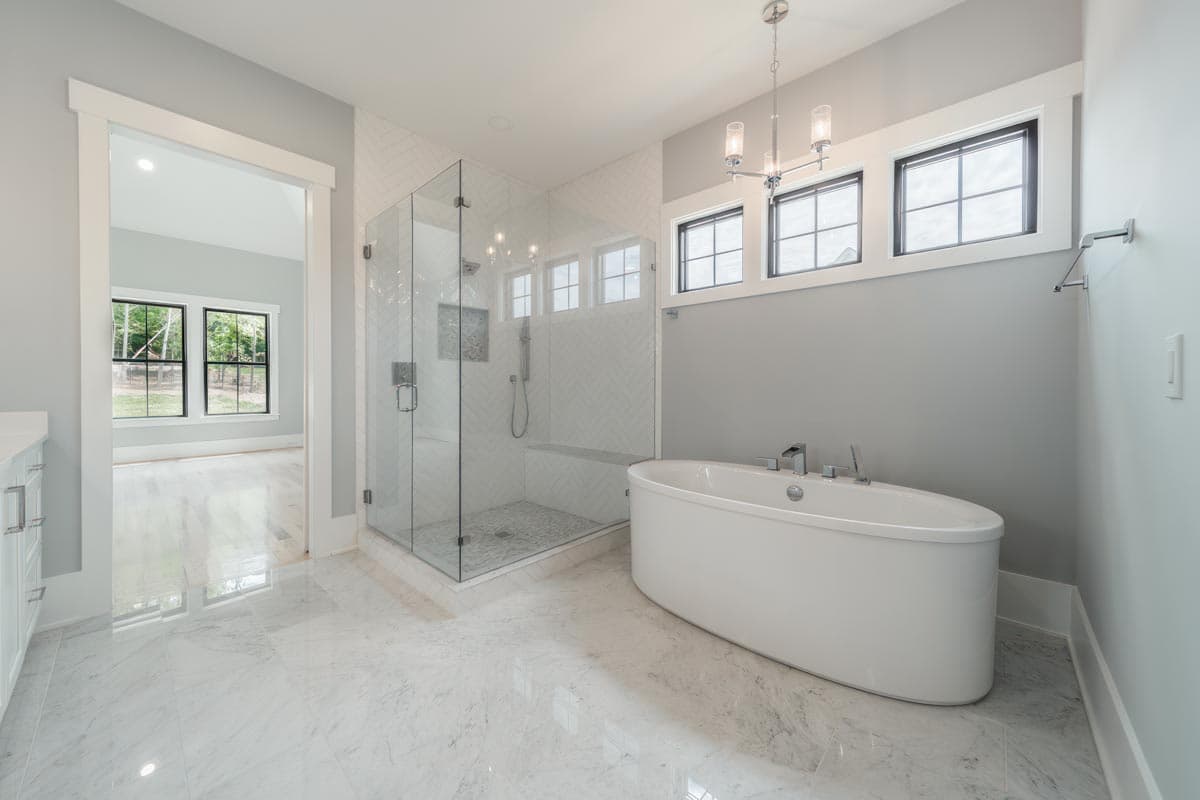

  • Retreat to the serene master suite to find ample natural light, a tray ceiling, and 5-fixture bath with a walk-in closet.
  • Two bedrooms are tucked behind the 3-car garage, while bedroom 4 shares the upstairs with a loft. The mudroom, laundry room, and walk-in pantry greet you when entering from the garage and complete the design.
  • DELIVERY NOTE: Please allow 5 to 7 business days for delivery.

Each plan set includes the following:

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Framing Plan
  • Front & Rear Elevation
  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

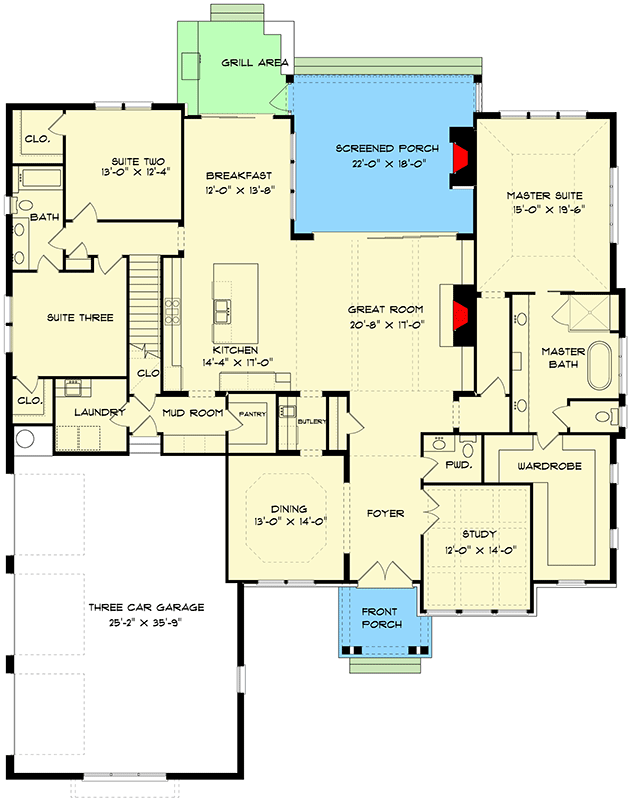

New American Craftsman Plan with Study and Screened Porch - 93177EL floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

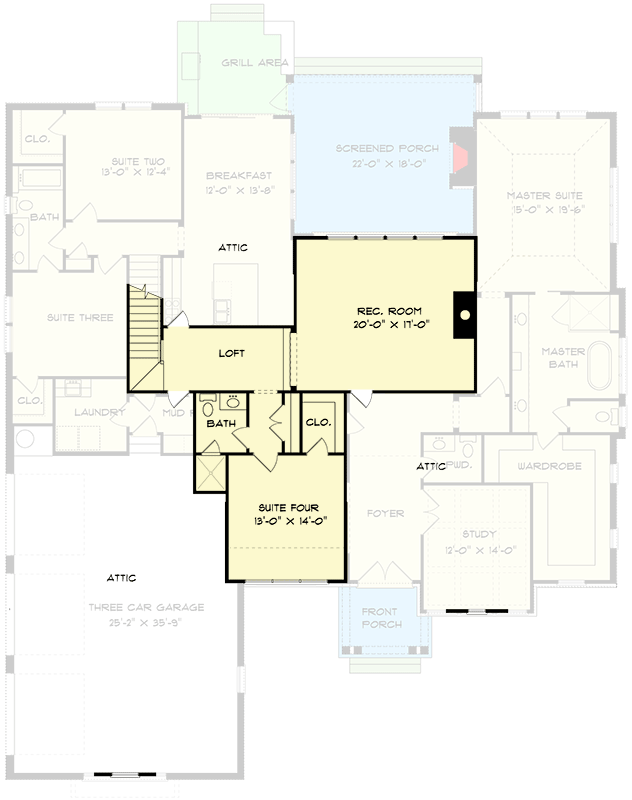

New American Craftsman Plan with Study and Screened Porch - 93177EL floor plan - 2nd Floor
