Plan 46499LA
EXCLUSIVE
New American Duplex House Plan with 1549 Square Foot 2-Bed Units
Heated S.F.
3,098
Units
2
Width
68'
Depth
46'
Cars
2
What's Included
Plan Details
  • This duplex house plan gives you side-by-side units, each giving you 2 beds, 2.5 baths and 1,549 square feet of heated living (789 sq. ft. on the main floor and 760 sq. ft. on the second floor). Each unit gets a 1-car garage (307 sq. ft.) on the left side of each unit, effectively giving each unit privacy as the left units garage provides separation from the right unit's living area.
  • With bedrooms and laundry upstairs, the main floor is dedicated to shared family and entertaining space.
  • In back an 8'-deep covered porch gives you a great shaded fresh air space to enjoy.
  • NOTE: Please allow up to 25 business days for plan delivery.
Unit A
1,549 Sq. Ft.
789 Sq. Ft. 1st Floor
760 Sq. Ft. 2nd Floor
2 Beds
2 Full Baths
1 Half Bath
1 Vehicle
Attached
307 Sq. Ft.
34' w 46' d 32' 6" h
Unit B
1,549 Sq. Ft.
1578 Sq. Ft. 1st Floor
1520 Sq. Ft. 2nd Floor
2 Beds
2 Full Baths
1 Half Bath
1 Vehicle
Attached
307 Sq. Ft.
34' w 46' d 32' 6" h
What's Included
  • Floor plans with window and door schedules
  • Roof plan
  • Elevations
  • Front and rear perspectives on some (but not all) plans
  • Building section, eave detail and typical stair detail
  • Interior perspectives and elevations
  • Electrical plans
  • Foundation plan
  • Floor framing plans
  • Ceiling framing plans
  • Roof framing plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

New American Duplex House Plan with 1549 Square Foot 2-Bed Units

  • 3,098

    Heated s.f.

  • 2

    Units

  • 68'

    Width

  • 46'

    Depth

Floor Plan

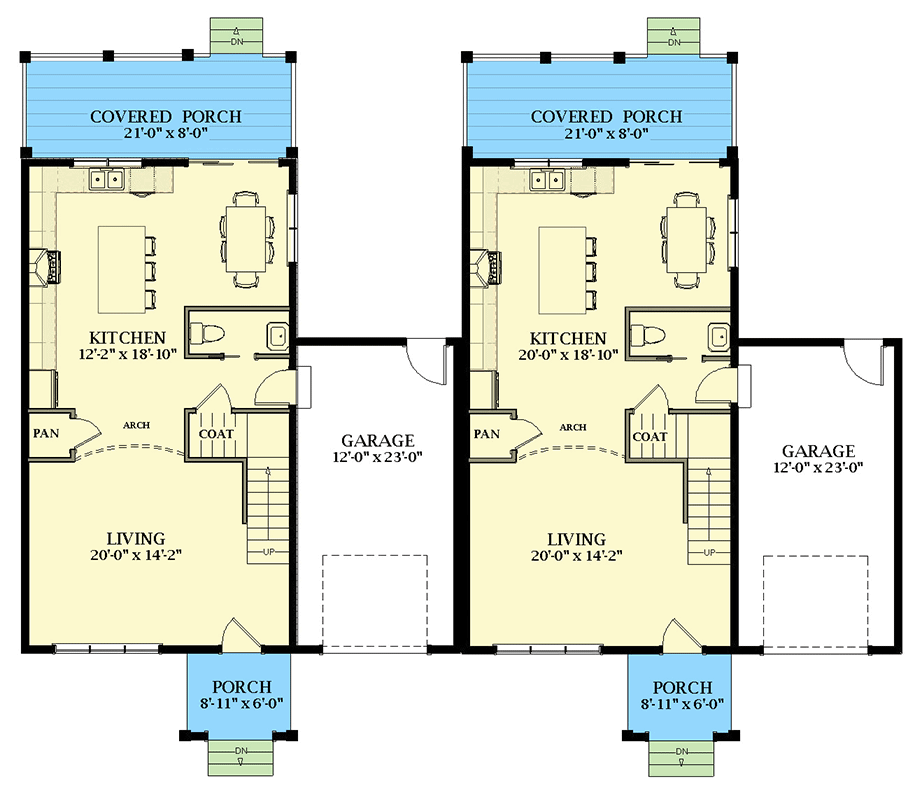

  • Main Level

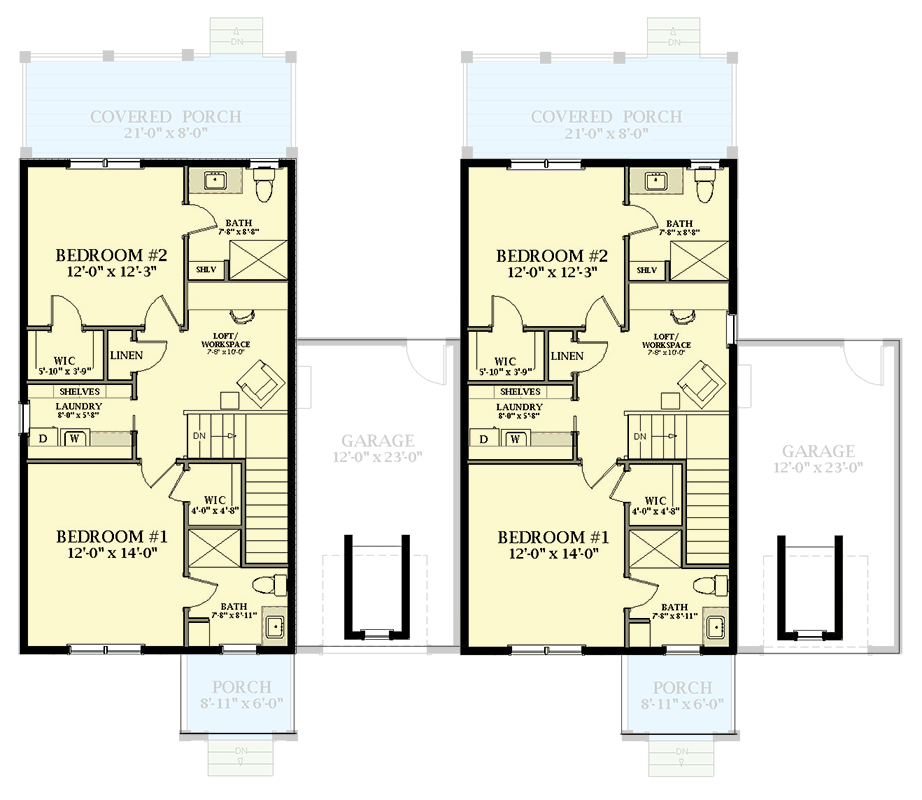

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,098 sq. ft.
  • 1st Floor: 1,578 sq. ft.
  • 2nd Floor: 1,520 sq. ft.

Dimensions

  • Width: 68' 0"
  • Depth: 46' 0"
  • Max ridge height: 32' 6"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 614 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Daylight, Crawl, Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site
