Plan 421519CHD

New American Duplex House Plan with Match 3 Bed 1622 Square Foot Units

Heated S.F.
3,470
Units
2
Width
Depth

Floor Plan

Plan 421519CHD

Main Level
Main Level
2nd Floor
2nd Floor

Plan 421519CHD

M-F 9am-5pm EST |

1-203-761-8500

Main Level

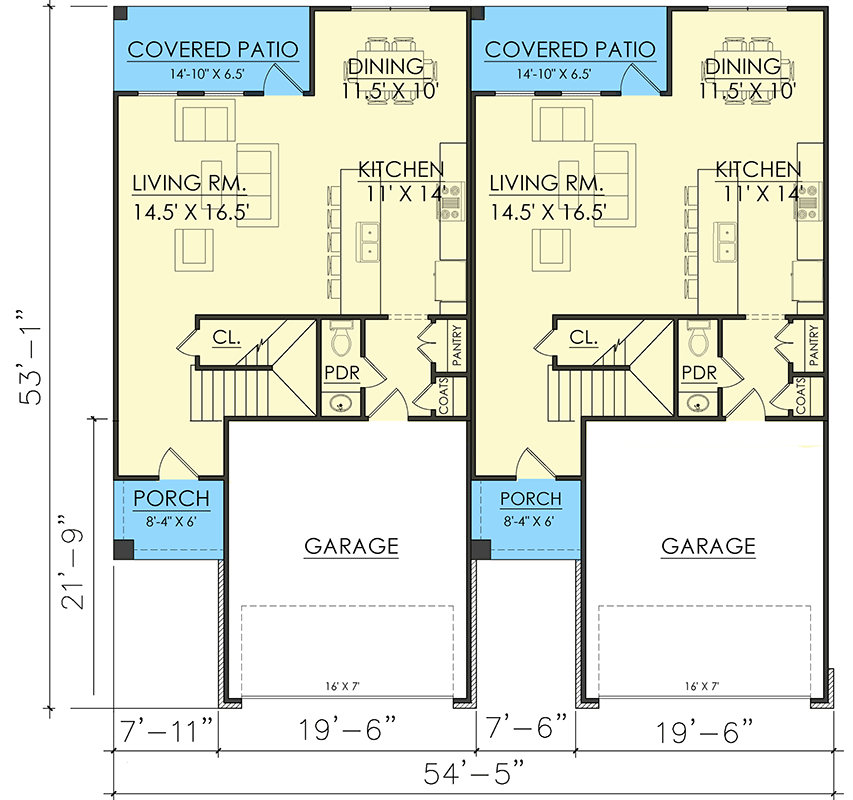

Plan 421519CHD: New American Duplex House Plan with Match 3 Bed 1622 Square Foot Units - Floor Plan - Main Level - Craftsman, Modern Farmhouse, New American

2nd Floor

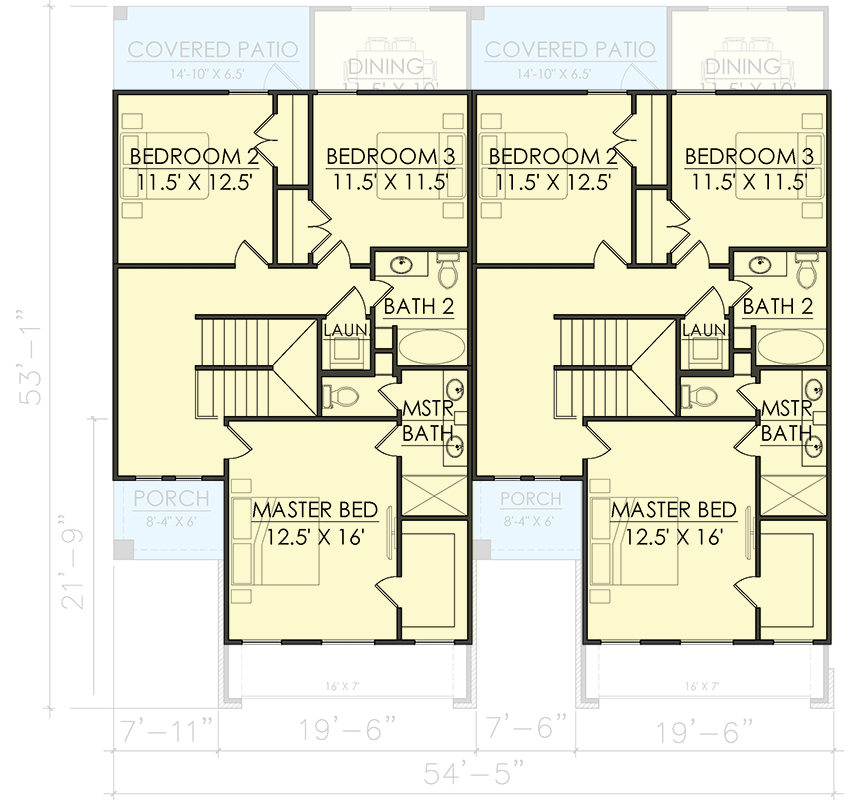

Plan 421519CHD: New American Duplex House Plan with Match 3 Bed 1622 Square Foot Units - Floor Plan - 2nd Floor - Craftsman, Modern Farmhouse, New American

Plan Details

  • This New American duplex house plan gives you side-by-side units, each with 3 beds, 2.5 baths and a 414 square foot 2-car garage.
  • Each unit you 1,735 square feet of heated living (790 sq. ft. on the main floor and 945 sq. ft. on the second floor).
  • All bedrooms are located on the second floor, as is laundry for your convenience.

Unit A & B
Heated Area
1,735Sq. Ft.
790 Sq. Ft. 1st
945 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
420 Sq. Ft.
Dimensions
27' 2"width
53' 1"depth
Unfinished Areas
420 Sq. Ft. Garage

What's Included

  • Cover Page
  • Foundation Plan with Notes and Footing Details
  • Dimensioned Floor Plans with Notes
  • Exterior Elevations and Roof Plan with Notes
  • Electrical Layout Plans with Legend

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,470 sq. ft.

1st Floor

1,580 sq. ft.

2nd Floor

1,890 sq. ft.

Porch, Front

70 sq. ft.

Porch, Rear

166 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

54' 5"

Depth

53' 1"

Garage

Type

Attached

Area

414 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Craftsman

Modern Farmhouse

New American

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Upstairs

Master Suite - Upstairs

Mudroom

Two Master Suites
