Plan 12976KN

New American Duplex House Plan with Matching 1371 Square Foot 2-Bed Units

Heated S.F.
2,742
Units
2
Width
Depth

Floor Plan

Plan 12976KN

Main Level
Main Level
Landscaping Plan
Landscaping Plan

Plan 12976KN

M-F 9am-5pm EST |

1-203-761-8500

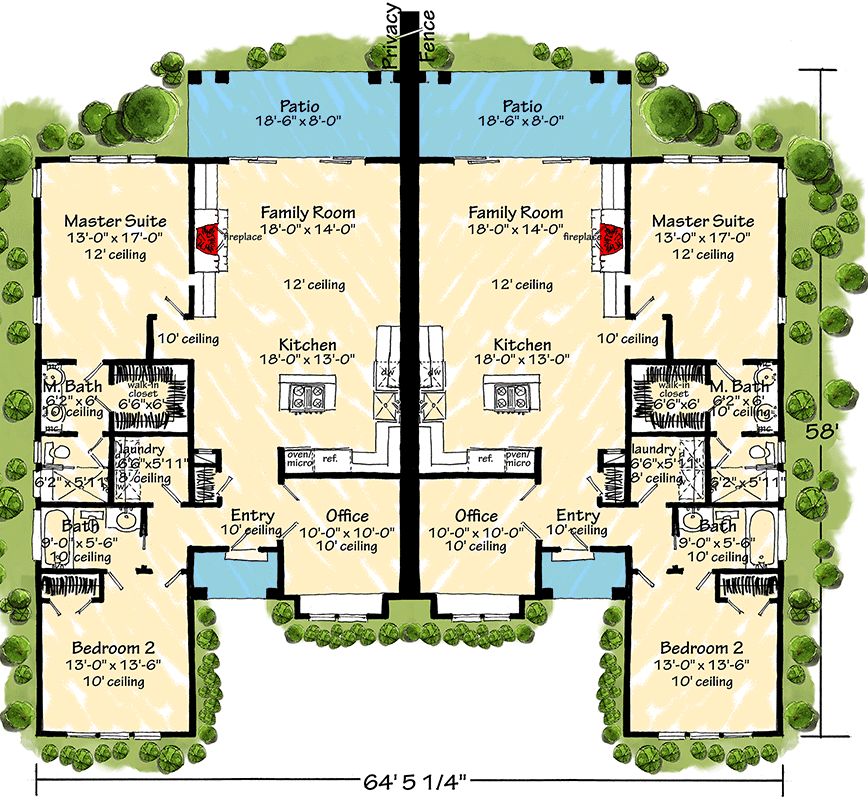

Main Level

Plan 12976KN: New American Duplex House Plan with Matching 1371 Square Foot 2-Bed Units - Floor Plan - Main Level - Country, Craftsman, New American, Ranch

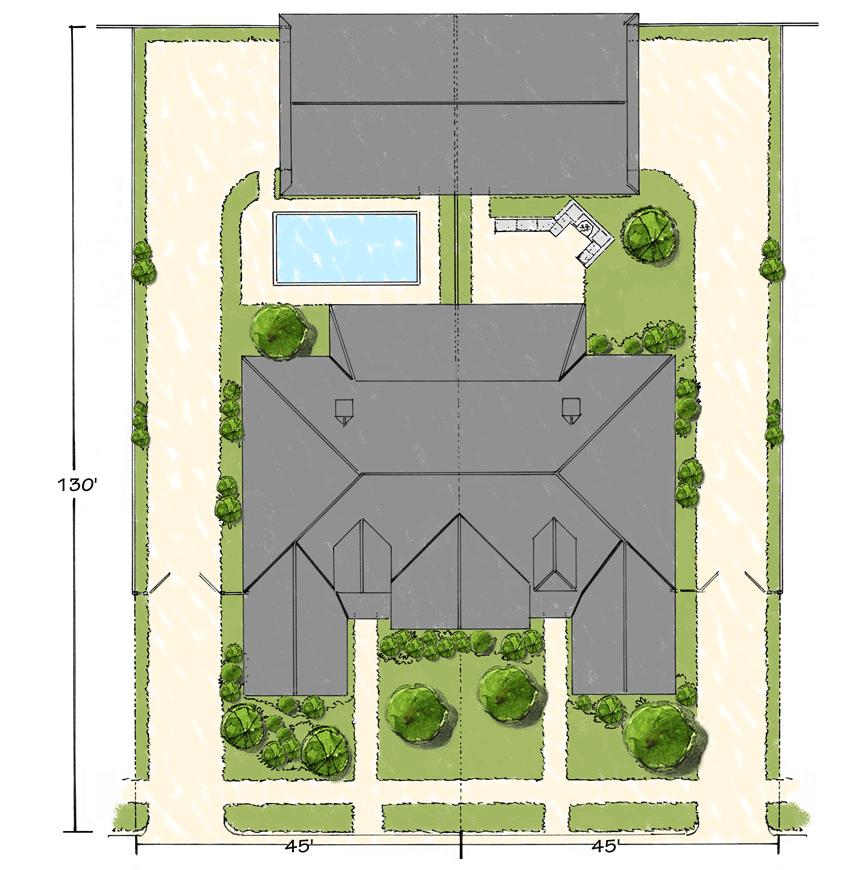

Landscaping Plan

Plan 12976KN: New American Duplex House Plan with Matching 1371 Square Foot 2-Bed Units - Floor Plan - Landscaping Plan - Country, Craftsman, New American, Ranch

Plan Details

  • This attractive New American Duplex House Plan gives you matching 2 bed, 2 bath units with 1,371 square feet of heated living in each unit.
  • Work from home in the office behind French doors located just inside the foyer.
  • The L-shaped kitchen looks out across the family room with 12' ceilings and fireplace with sliding doors that open to the back porch.
  • Bedrooms line the outside walls and each has its own bath.
Unit A
Heated Area
1,371Sq. Ft.
1371 Sq. Ft. 1st
Beds
2Beds
Baths
2Full Baths
Dimensions
32'width
58'depth
27'height
Unit B
Heated Area
1,371Sq. Ft.
2742 Sq. Ft. 1st
Beds
2Beds
Baths
2Full Baths
Dimensions
32'width
58'depth
27'height

What's Included

  • Floor plans at ¼" scale
  • All exterior elevations at ¼" scale
  • Roof plan at ¼" scale
  • Building sections at ¼" scale
  • Completed foundation plan at ¼" scale
  • Completed floor/roof framing plan at ¼" scale
  • Building height profiles at ¼" scale
  • Door and window schedules
  • General construction notes and building schedules
  • Exterior finish schedule
  • Architectural details
  • Construction details for cabinets, interior built-ins and stairs
  • Designations for all floor, wall and ceiling surfaces
  • Details and specifications for all ceiling treatments
  • All square footage calculations

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,742 sq. ft.

1st Floor

2,742 sq. ft.

Porch, Combined

354 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

64' 6"

Depth

58' 0"

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

Stick And Truss

Architectural Style

Country

Craftsman

New American

Ranch

Special Features

Bedrooms - Clustered

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

2,742 sq. ft.

1st Floor

2,742 sq. ft.

Porch, Combined

354 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

64' 6"

Depth

58' 0"

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

Stick And Truss

Architectural Style

Country

Craftsman

New American

Ranch

Special Features

Bedrooms - Clustered

Home Office

Laundry - Main Level

Master Suite - 1st Floor
