New American Farmhouse Plan with High-Peaked Gable

Name: Plan 250103LRY: New American Farmhouse Plan with High-Peaked Gable
Brand: Architectural Designs
SKU: 250103LRY
Price: 1730.39 USD
Availability: InStock

Heated S.F.

4,999

Beds

Baths

4.5

Stories

Cars

Floor Plan

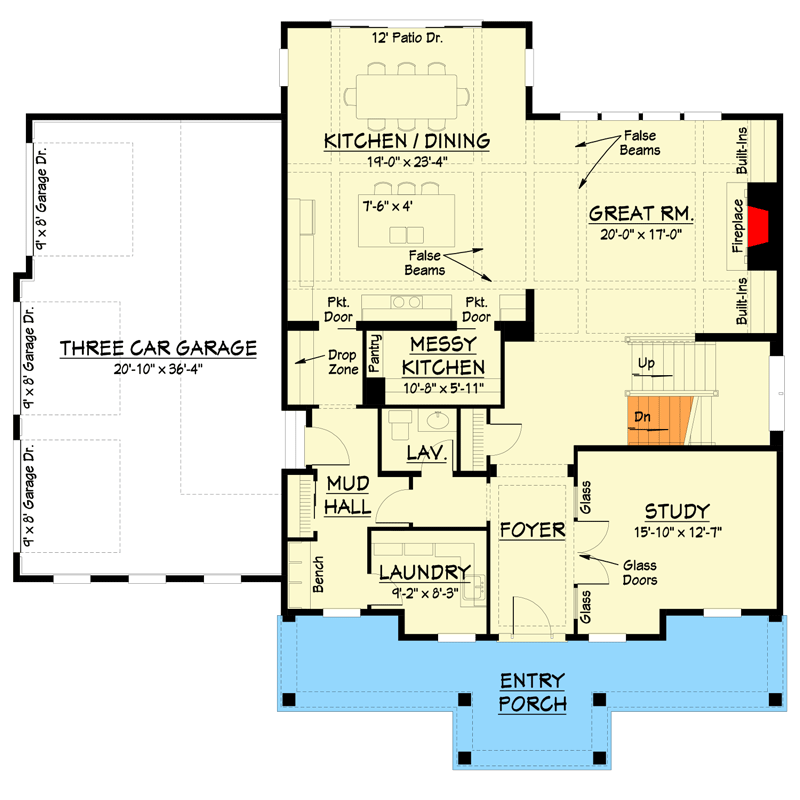

Main Level

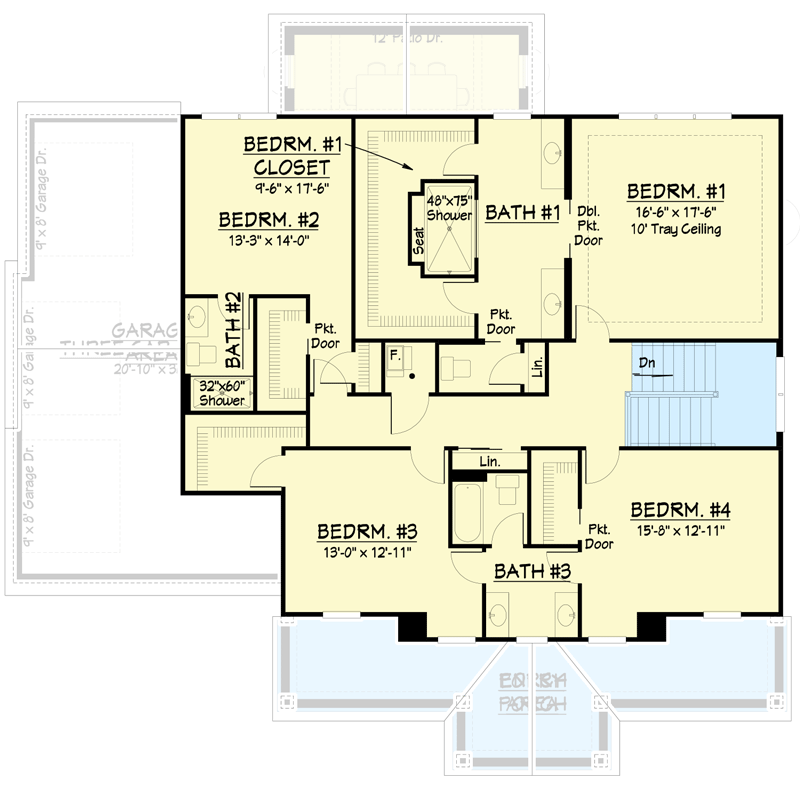

2nd Floor

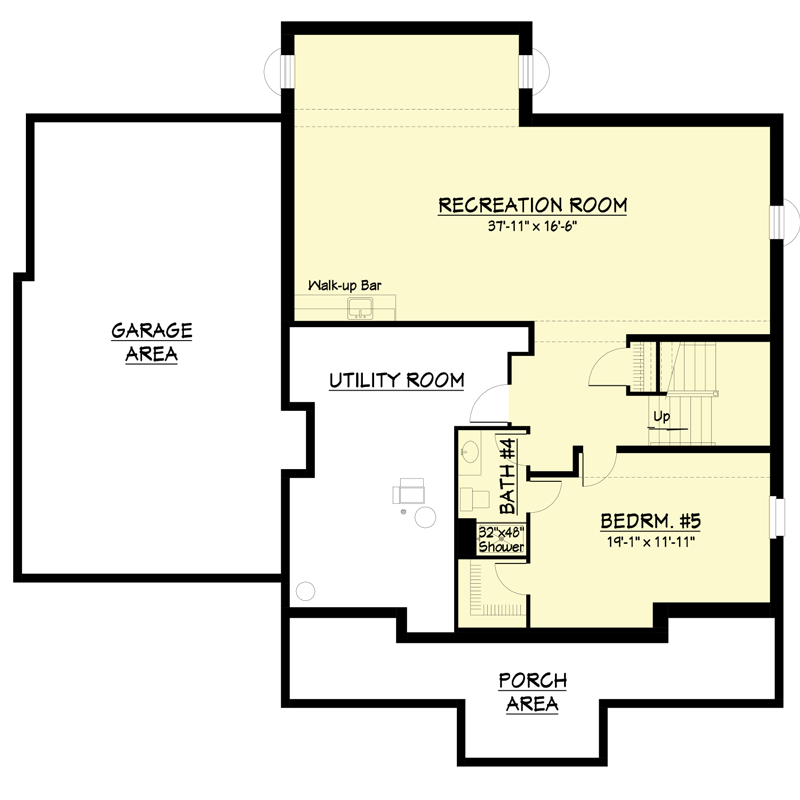

Lower Level

Plan Details

A high-peaked gable above the front porch on this 5 bed New American farmhouse with 4,999 square feet of heating living space. The garage on the left side (793 square feet) has three 9' by 8' overhead garage doors.
A study off the entry is closed off by a pair of French doors and gives you a great work-from-home space.
In back, the great room with fireplace is open to the kitchen with 7'6" by 4' island. A 12' patio door opens in the sunny dining area to the outdoors.
The second floor has four bedrooms with the two in front sharing a Jack and Jill bath. The fifth bedroom is in the lower level as is a large rec room.
