Plan 55222BR New American Farmhouse with Pergola-covered Side Patio and Large Rear Porch

1,976 3 2 1-2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

New American Farmhouse with Pergola-covered Side Patio and Large Rear Porch

Plan 55222BR

  • 1,976

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1-2

    Stories

  • 2

    Cars

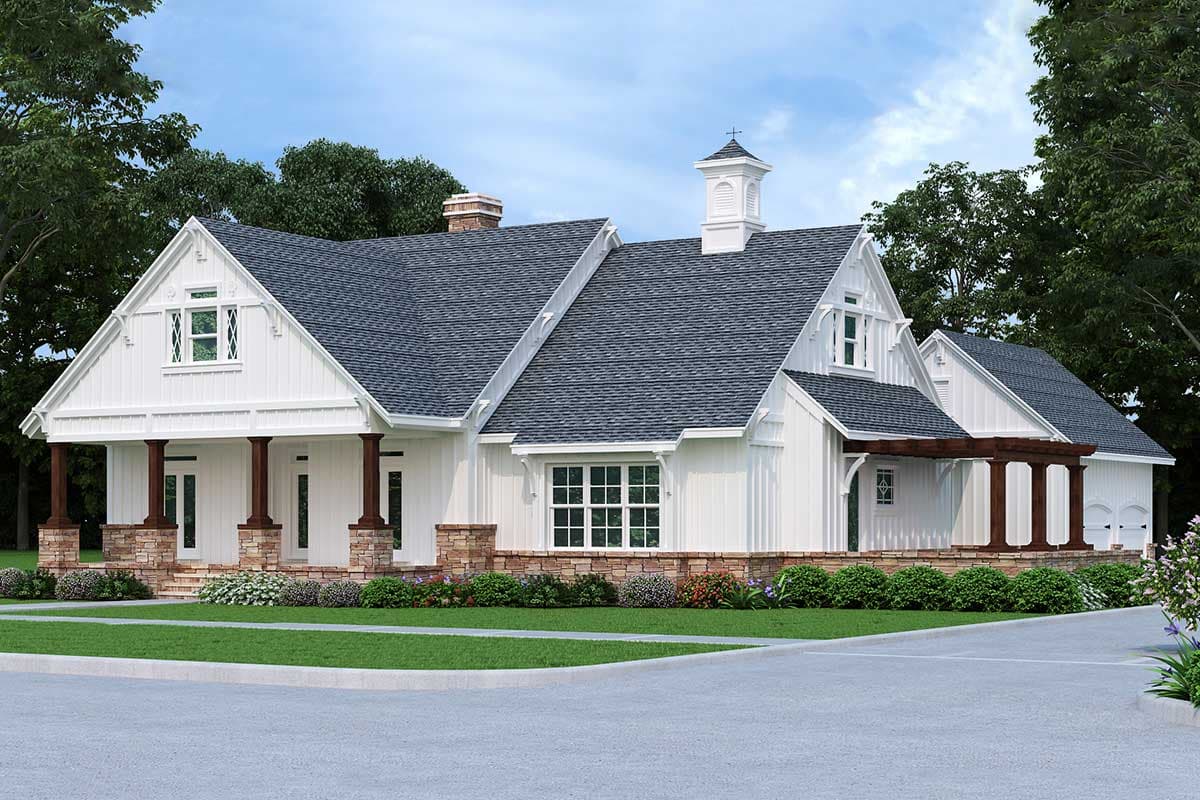

  • This 3-bed period farmhouse-style home plan has an attractive board-and-batten exterior with a front porch supported by four timbered columns set on stone bases. This timber and support aesthetic are mirrored on the right side where a pergola-covered patio are found.

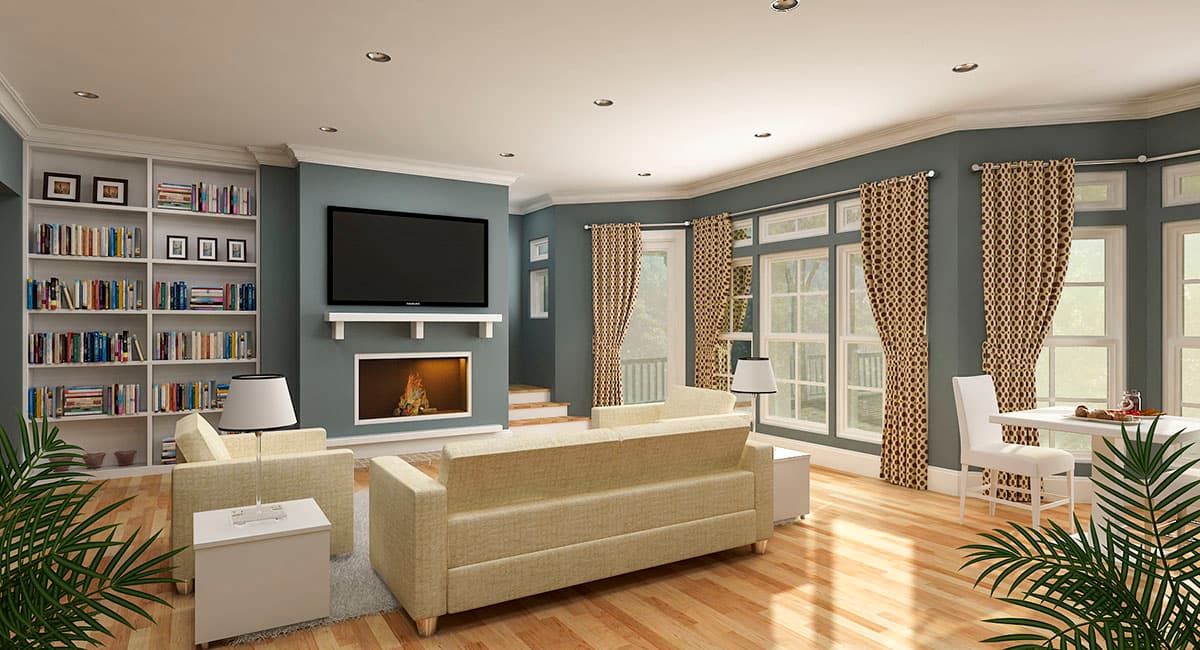

  • Enter the foyer through double doors and ahead you see the open and bright living room with a built-in library, a wood burning fireplace and a sweeping stairwell entrance to the upstairs bonus room.
  • The large kitchen is has a large island and an adjoining butler's pantry. Steps away, the utility room can be accessed from the master bath for added convenience. The master bath has a tray ceiling.

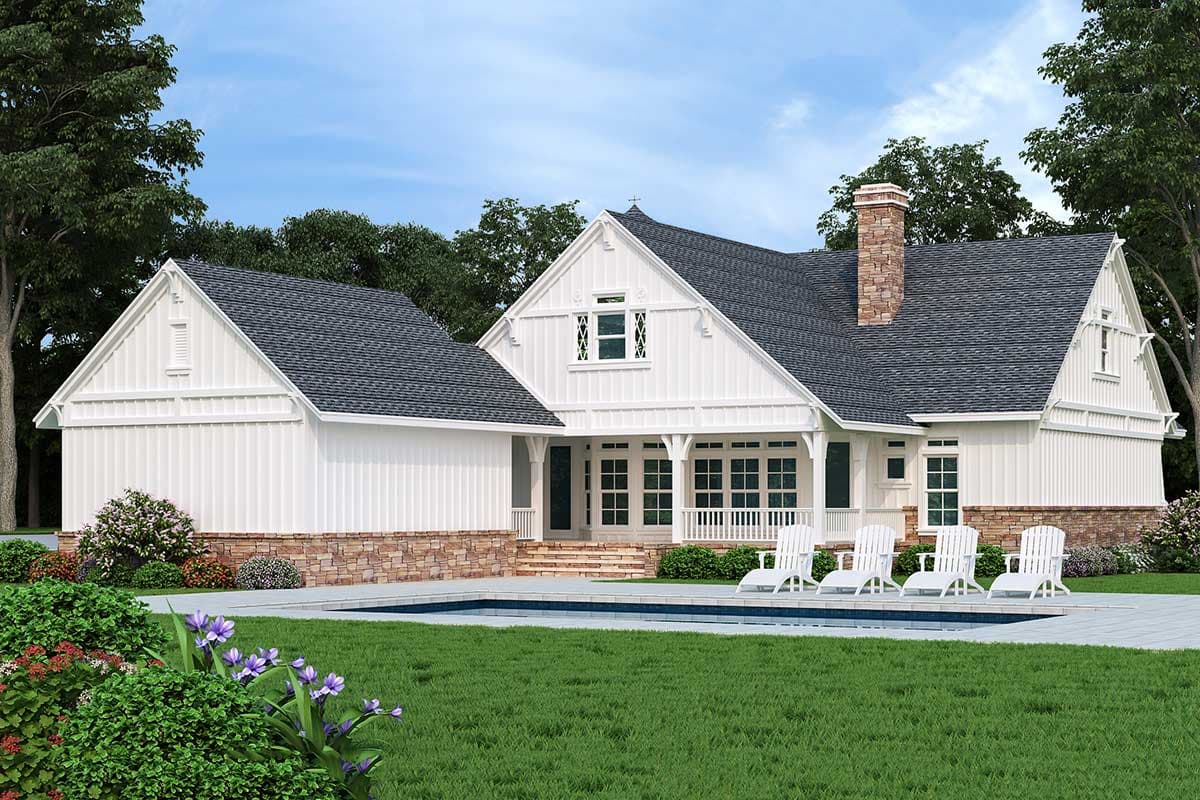

  • In back a large porch provides abundant space for outdoor entertaining and a breezeway to the 2-car garage.
  • The bonus room has been pre-planned with an adjoining bath making it the perfect space for a game room or home theatre.
  • This plan is also suitable for handicap accessibility with many features built in to the design such as extra wide hallways and 3’ passage doors.  If building to handicap accessible standards, the optional slab foundation is recommended.
  • Related Plan: Get a subtly different version with house plan 55174BR.

Plans include the following:

  • Cover sheet with general information
  • Foundation plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
  • Foundation footing details
  • Fully dimensioned floor plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.
  • Front, rear and side elevations which call out exterior finish materials
  • Building sections, enlarged drawings of the cornice and wall construction at various area of the exterior
  • Interior elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
  • Roof plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
  • Construction details - schedules for the interior finish, exterior finish, electrical schedule

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Energy calculations



Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

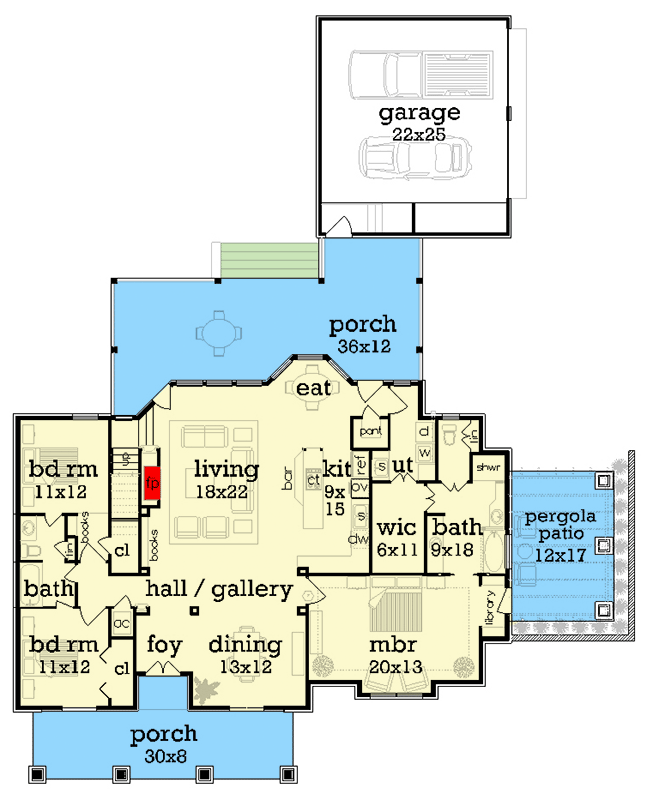

New American Farmhouse with Pergola-covered Side Patio and Large Rear Porch - 55222BR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

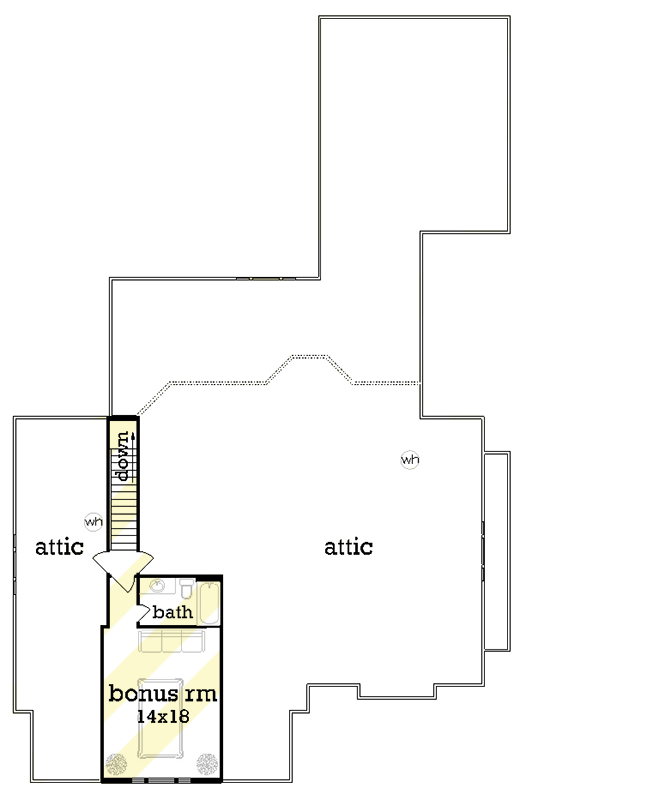

New American Farmhouse with Pergola-covered Side Patio and Large Rear Porch - 55222BR floor plan - 2nd Floor

Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

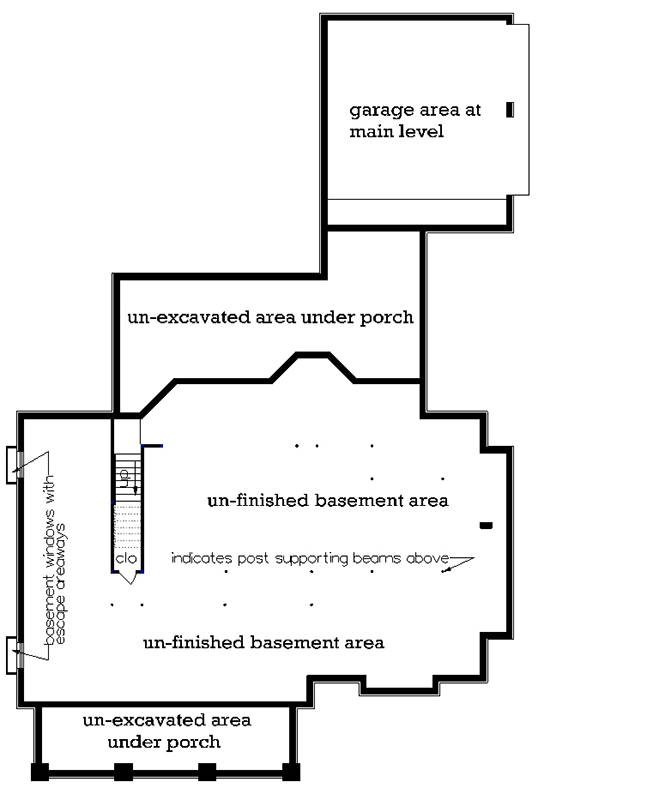

New American Farmhouse with Pergola-covered Side Patio and Large Rear Porch - 55222BR floor plan - Basement

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,976 sq. ft.
  • 1st Floor: 1,976 sq. ft.
  • Porch, Rear: 491 sq. ft.
  • Porch, Front: 264 sq. ft.
  • Bonus: 333 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 57' 0"
  • Depth: 88' 6"
  • Max ridge height: 26' 0"

Garage

  • Area: 550 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Framing Type: Stick

Architectural Style

Special features

New American Farmhouse with Pergola-covered Side Patio and Large Rear Porch

  • 1,976

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,000
  • 4 Sets $1,085
  • 5 Sets $1,130
  • 8 Sets $1,240
  • 5 Sets + PDF $1,255
  • CAD + PDF - Single-Build $1,900
  • View all purchase option online

About This Plan

  • This 3-bed period farmhouse-style home plan has an attractive board-and-batten exterior with a front porch supported by four timbered columns set on stone bases. This timber and support aesthetic are mirrored on the right side where a pergola-covered patio are found.
  • Enter the foyer through double doors and ahead you see the open and bright living room with a built-in library, a wood burning fireplace and a sweeping stairwell entrance to the upstairs bonus room.
  • The large kitchen is has a large island and an adjoining butler's pantry. Steps away, the utility room can be accessed from the master bath for added convenience. The master bath has a tray ceiling.
  • In back a large porch provides abundant space for outdoor entertaining and a breezeway to the 2-car garage.
  • The bonus room has been pre-planned with an adjoining bath making it the perfect space for a game room or home theatre.
  • This plan is also suitable for handicap accessibility with many features built in to the design such as extra wide hallways and 3’ passage doors.  If building to handicap accessible standards, the optional slab foundation is recommended.
  • Related Plan: Get a subtly different version with house plan 55174BR.

Floor Plans

  • Main Level

  • 2nd Floor

  • Basement

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,976 sq. ft.
  • 1st Floor: 1,976 sq. ft.
  • Porch, Rear: 491 sq. ft.
  • Porch, Front: 264 sq. ft.
  • Bonus: 333 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 57' 0"
  • Depth: 88' 6"
  • Max ridge height: 26' 0"

Garage

  • Area: 550 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Framing Type: Stick
