New American Farmhouse with Private Owner's Suite - 1825 Sq Ft
Heated S.F.
1,825
Beds
4
Baths
2
Stories
1
Cars
2
What's Included
Plan Details

  • This New American farmhouse plan gives you 4 beds, 2.5 baths and 1825 square feet of heated living space. Its casement windows and shed roofs, give it a contemporary feel.
  • The sheltering front porch leads to a foyer overlooking the open space of the great room, dining and kitchen areas. Sliding glass doors and large windows reveal the backyard views and bring in loads of sunlight.
  • The great room reveals double glass sliders that open to the covered rear porch. Easy accessibility to the kitchen makes serving meals a breeze. There’s plenty of room at the breakfast bar for those “on the go,” and a direct exit to the garage. A pantry closet is just around the corner from the kitchen and makes easy access for grocery delivery.
  • The formal dining room takes in views from the rear of the home and has its own access to the covered porch.
  • A secluded owner’s suite with decorative tray ceiling has a private entrance and two walk-in closets. The bath is accessed through a pocket door and offers a dual sink vanity, with walk-in shower and private privy.
  • Guest bedrooms are on the opposite side of the home. A private hall accesses all three bedrooms that share a single three-piece bath that is conveniently accessed from the great room. The guest bedroom #1 is a great flex space and could be used as a home office or playroom for kids.
  • The laundry room is positioned near the garage door and offers a necessary sink for wash ups.
  • Related Plans: Get alternate versions with house plans 33233ZR (1,763 sq. ft.) and 33012ZR (1,564 sq. ft.).

What's Included
  • COVER SHEET – / INDEX / SITE PLAN - The Cover sheet contains an index of the sheets that will follow in the ESHP design development set of plans. It will also include a gray scale elevation or rendering depicting the look of the front of the home, and overall roof plan.
  • WALL SECTIONS -The Wall Section sheet depicts one or more sections of the home’s exterior walls from the foundation to the roof, calling out all materials and construction specifics.
  • FOUNDATION PLAN - The Foundation Plan sheet shows the home’s foundation layout depicting plumbing, footing, support walls, columns, etc., calling out the necessary notes, dimensions and details.
  • SECOND FLOOR FRAMING (where appropriate) - The Second Floor Framing sheet shows important locations of beams and load-bearing conditions, as well as the floor truss spacing and direction. The Second Floor Framing Plan is meant as general information for the truss manufacturer.
  • FLOOR PLANS - The Floor Plan sheet(s), show a detailed layout of the floor plans with dimensions, notes, call outs and keys relating to sheets with sections and details needed by your builder for construction. These plans will include window and door sizes and locations, and will also show the location of bathroom fixtures.
  • ROOF PLAN & SOFFIT (CHASE LAYOUT) PLAN - The Roof Plan sheet is a general layout of the home’s roof. It is meant as general information for the truss manufacturer and framing contractor. This sheet also contains the location and size of the dropped soffits housing the forced-air chases. (Ducts in Conditioned Space – DICS) Energy Smart Home Plans is the only design company that offers this information for those seeking truly High-Performance Homes.
  • REFLECTED CEILING PLAN - The reflected ceiling plan shows all ceiling heights, treatments, and details including necessary notes.
  • EXTERIOR ELEVATIONS - The Exterior Elevation sheet(s) depict elevations for all sides of the home, showing dimensions and material notes and exterior detailing where needed.
  • CROSS SECTION & INTERIOR ELEVATIONS - The Cross Section sheet depicts a section through the home revealing floor, ceiling and roof heights at a strategic location. The Interior Elevation sheet shows conceptual interior wall elevations for the Kitchen, Bathrooms, Utility Room as well as built-ins, fireplaces and other unique interior features as per design. (Interior elevations may not be available for all stock plans.)
  • ELECTRICAL PLAN - The Electrical Plan sheet shows suggested wiring and location of fixtures (lighting, ceiling fans, etc.), switches and outlets. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. Your electrician should work out these details.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

New American Farmhouse with Private Owner's Suite - 1825 Sq Ft

  • 1,825

    Heated s.f.

  • 4

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

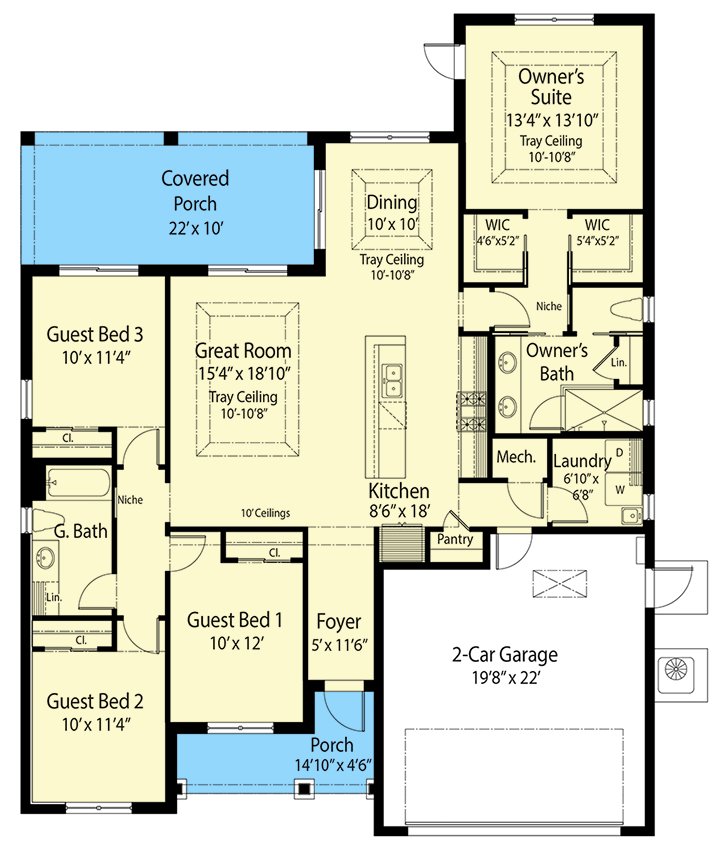

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,825 sq. ft.
  • 1st Floor: 1,825 sq. ft.

Dimensions

  • Width: 47' 6"
  • Depth: 61' 8"
  • Max ridge height: 22' 7"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 449 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
