Plan 149010AND New American Home Plan with Angled 3-Car Garage

2,879 3-4 2.5 - 4.5 2 3
1 Client
Album Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

New American Home Plan with Angled 3-Car Garage

Plan 149010AND

  • 2,879

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

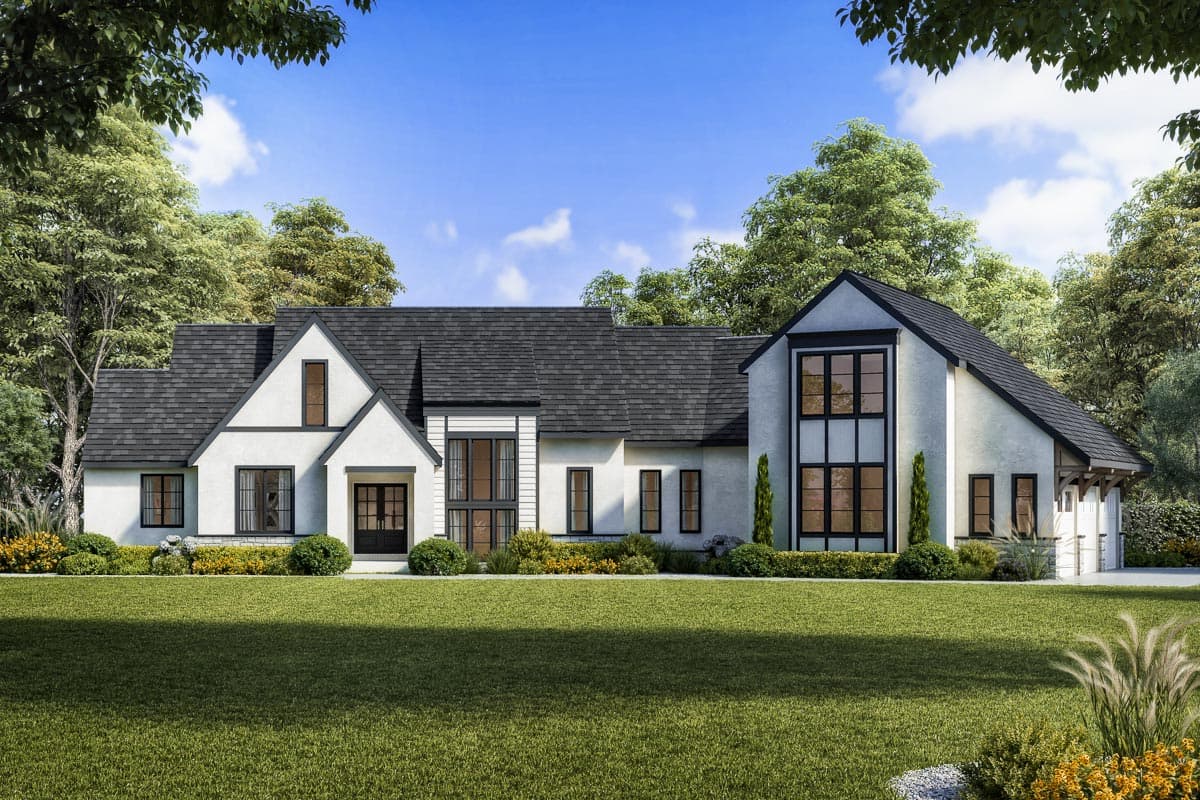

  • This New American home plan presents a stucco exterior with steep gabled rooflines. Inside, the main level is centered around an open and airy living space that combines the kitchen, dining, and living areas.
  • The gourmet kitchen makes entertaining a breeze with its massive island and walk-in pantry with a utility sink, or retreat to the back porch to grill and dine outdoors.
  • Enter from the 3-car garage to find a sizable mudroom framed by a powder bath, coat closet, and laundry room. The nearby staircase leads you up to find two bedrooms separated by a compartmentalized bath.
  • The left wing of the home is occupied by a home office and the master bedroom, which includes two closets and a freestanding tub in the 5-fixture ensuite.
  • A second family room is located downstairs, along with a game room, kitchenette, exercise space, and bedroom. Plenty of storage is also available on the lower level.
  • Related Plan: Get an alternate version with house plan 149014AND.
  • BUILDING RESTRICTION:  This plan may not be built in the state of Michigan.

This house plan has 20 pages as follows:

Page 1  Cover Sheet Project Overview
Page 2  General Specifications
Page 3  Exterior Elevations
Page 4  Exterior Elevations
Page 5  Exterior Elevations
Page 6  Roof Layout Plan
Page 7  Foundation Plan Details
Page 8  Foundation Plan Details
Page 9  Architectural Plan, Foundation
Page 10 Architectural Plan, Main Floor
Page 11 Architectural Plan, Second Floor
Page 12 Framing Cross Section Details
Page 13 Framing Cross Section Details
Page 14 Floor Framing, Main Floor
Page 15 Floor Framing, Second Floo
Page 16 Electrical Plan
Page 17 Electrical Plan
Page 18 Electrical Plan
Page 19 Foundation and Upper Level Cabinet Elevations
Page 20 Main Level Cabinet Elevations


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

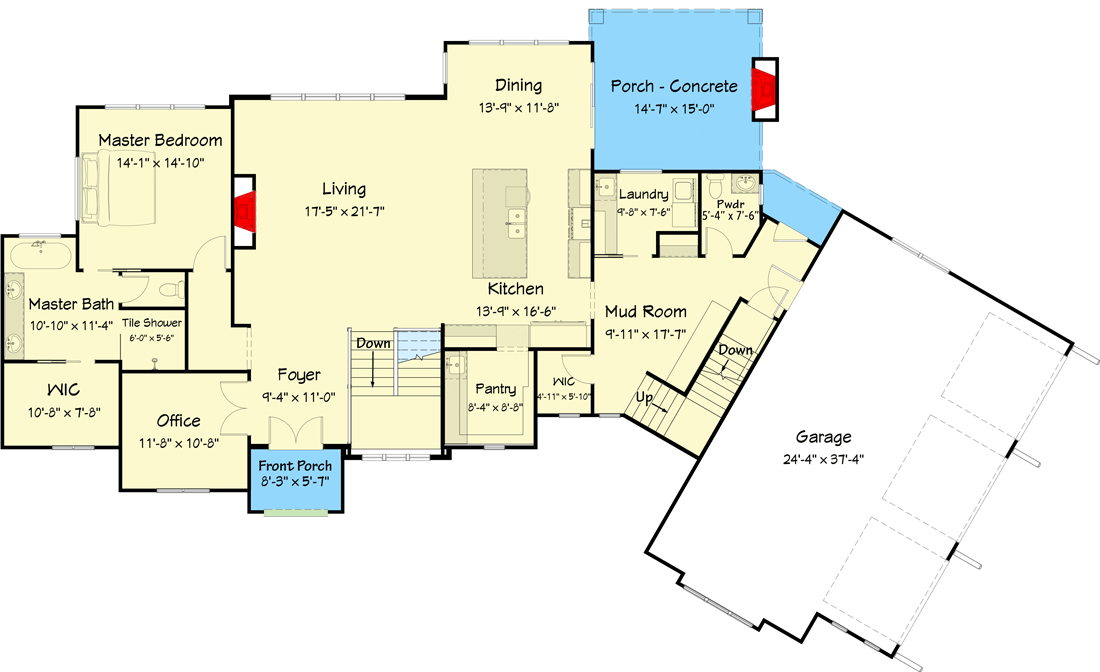

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
New American Home Plan with Angled 3-Car Garage - 149010AND floor plan - Main Level

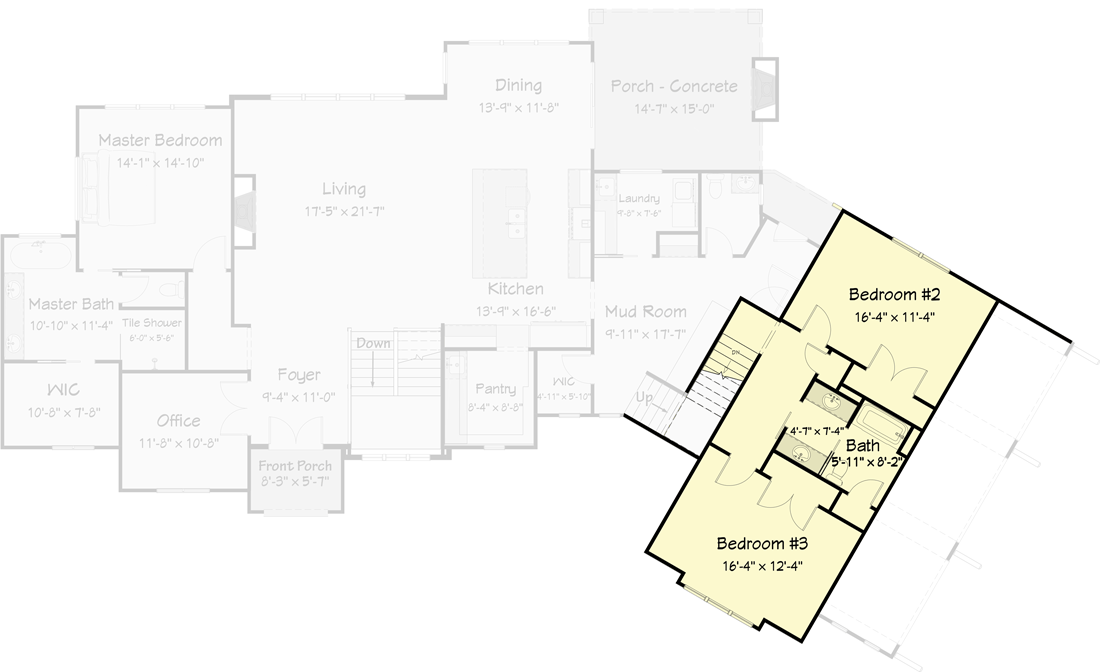

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
New American Home Plan with Angled 3-Car Garage - 149010AND floor plan - 2nd Floor

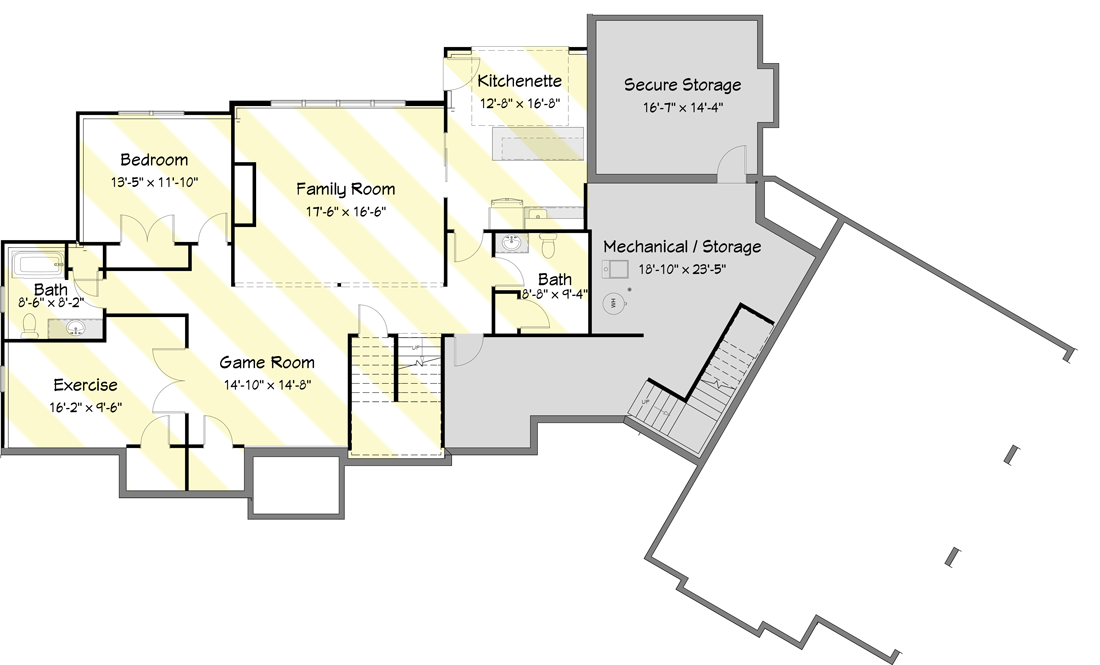

Optionally Finished Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
New American Home Plan with Angled 3-Car Garage - 149010AND floor plan - Optionally Finished Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,879 sq. ft.
  • 1st Floor: 2,241 sq. ft.
  • 2nd Floor: 638 sq. ft.
  • Porch, Combined: 275 sq. ft.
  • Optional Lower Level: 1,586 sq. ft.
  • Basement Unfinished: 731 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2, 3, or 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 100' 0"
  • Depth: 57' 7"
  • Max ridge height: 29' 2"

Garage

  • Type: Attached
  • Area: 868 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 14 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

New American Home Plan with Angled 3-Car Garage

  • 2,879

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,695
  • PDF - Unlimited Build $2,195
  • CAD + PDF - Unlimited Build $2,695
  • View all purchase option online

About This Plan

  • This New American home plan presents a stucco exterior with steep gabled rooflines. Inside, the main level is centered around an open and airy living space that combines the kitchen, dining, and living areas.
  • The gourmet kitchen makes entertaining a breeze with its massive island and walk-in pantry with a utility sink, or retreat to the back porch to grill and dine outdoors.
  • Enter from the 3-car garage to find a sizable mudroom framed by a powder bath, coat closet, and laundry room. The nearby staircase leads you up to find two bedrooms separated by a compartmentalized bath.
  • The left wing of the home is occupied by a home office and the master bedroom, which includes two closets and a freestanding tub in the 5-fixture ensuite.
  • A second family room is located downstairs, along with a game room, kitchenette, exercise space, and bedroom. Plenty of storage is also available on the lower level.
  • Related Plan: Get an alternate version with house plan 149014AND.
  • BUILDING RESTRICTION:  This plan may not be built in the state of Michigan.

Floor Plans

  • Main Level

  • 2nd Floor

  • Optionally Finished Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,879 sq. ft.
  • 1st Floor: 2,241 sq. ft.
  • 2nd Floor: 638 sq. ft.
  • Porch, Combined: 275 sq. ft.
  • Optional Lower Level: 1,586 sq. ft.
  • Basement Unfinished: 731 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2, 3, or 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 100' 0"
  • Depth: 57' 7"
  • Max ridge height: 29' 2"

Garage

  • Type: Attached
  • Area: 868 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 14 on 12
  • Framing Type: Truss
Plan 149010AND
View this and more for this plan by visiting www.architechtecturaldesigns.com/149010AND
|
