New American Home Plan with Bonus Room above Garage

Heated S.F.
2,166
Beds
3
Baths
2.5
Stories
1
Cars
2

Floor Plan

Plan 83829JW

Main Level
Main Level
Optionally Finished Bonus Room
Optionally Finished Bonus Room

Plan 83829JW

M-F 9am-5pm EST |

1-203-761-8500

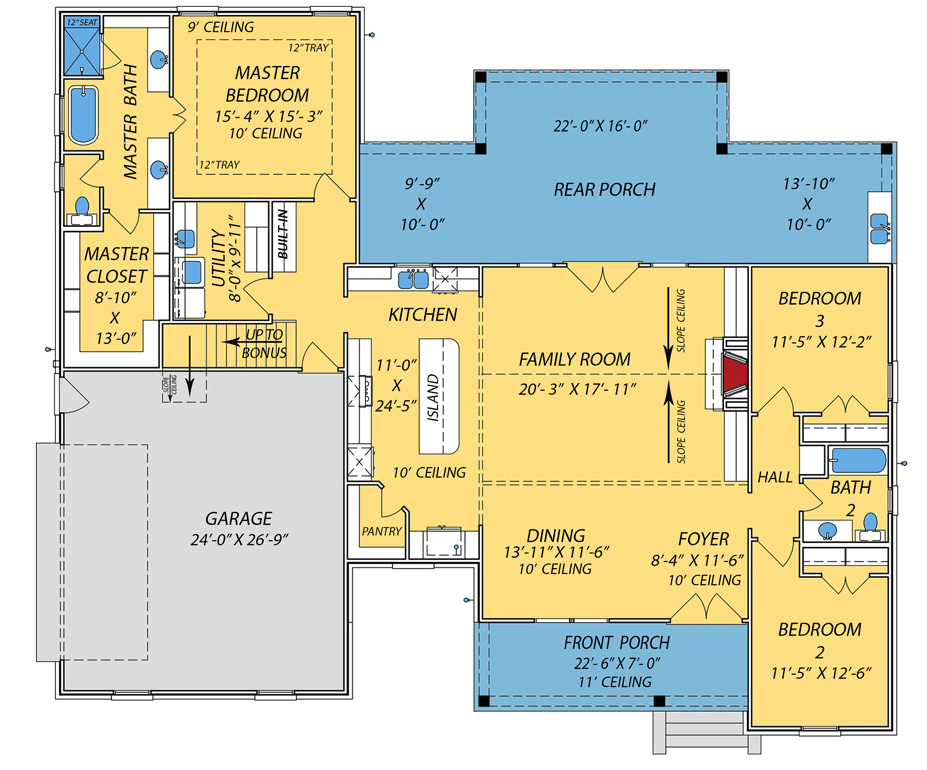

Main Level

Plan 83829JW: New American Home Plan with Bonus Room above Garage - Floor Plan - Main Level - Acadian, European, French Country, Louisiana-Style, New American, Southern, Traditional

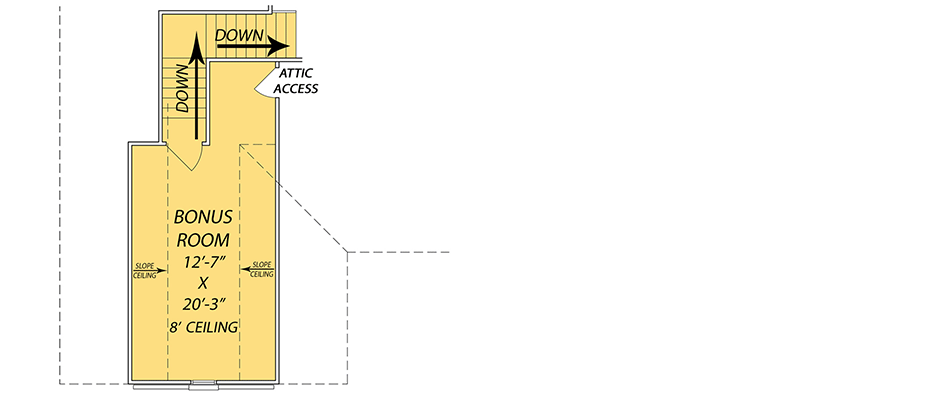

Optionally Finished Bonus Room

Plan 83829JW: New American Home Plan with Bonus Room above Garage - Floor Plan - Optionally Finished Bonus Room - Acadian, European, French Country, Louisiana-Style, New American, Southern, Traditional

Plan Details

  • This New American home plan features a central living space that is open and filled with natural lighting, flanked by front and rear porches for outdoor enjoyment.
  • A vaulted ceiling helps to define the living room, centered above the fireplace and surrounding builtins, while a sizable island anchors the kitchen.
  • The master bedroom is privately situated apart from the secondary bedrooms, and includes a tray ceiling, 5-fixture bathroom, and walk-in closet.
  • Bedrooms 2 and 3 line the right side of the design and share the hall bathroom.
  • A staircase just inside from the double garage guides you upstairs to a flexible bonus room (358 sq ft).
