New American Home Plan with Two Story Great Room and a 3-Car Garage

Plan 911017JVD

  • 3,112

    Heated s.f.

  • 4-5

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This New American home plan presents a fresh exterior with metal roof accents and a blend of brick and vertical siding.
  • Tall ceilings and a grand fireplace make the great room live up to its name, while an oversized opening to the eat-in kitchen brings the family together.
  • The homeowner will appreciate the simplicity of one-level living with the main-floor master bedroom that boasts a generous walk-in closet with natural light and access to the laundry room.
  • Three family bedrooms consume the second level, and the option to finish the walkout basement expands the possibilities for the future.
  • Other notable features include a quiet den off the foyer, mudroom, walk-in pantry, and covered deck.

Each plan set includes the following:

  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc. with electric plan notations)

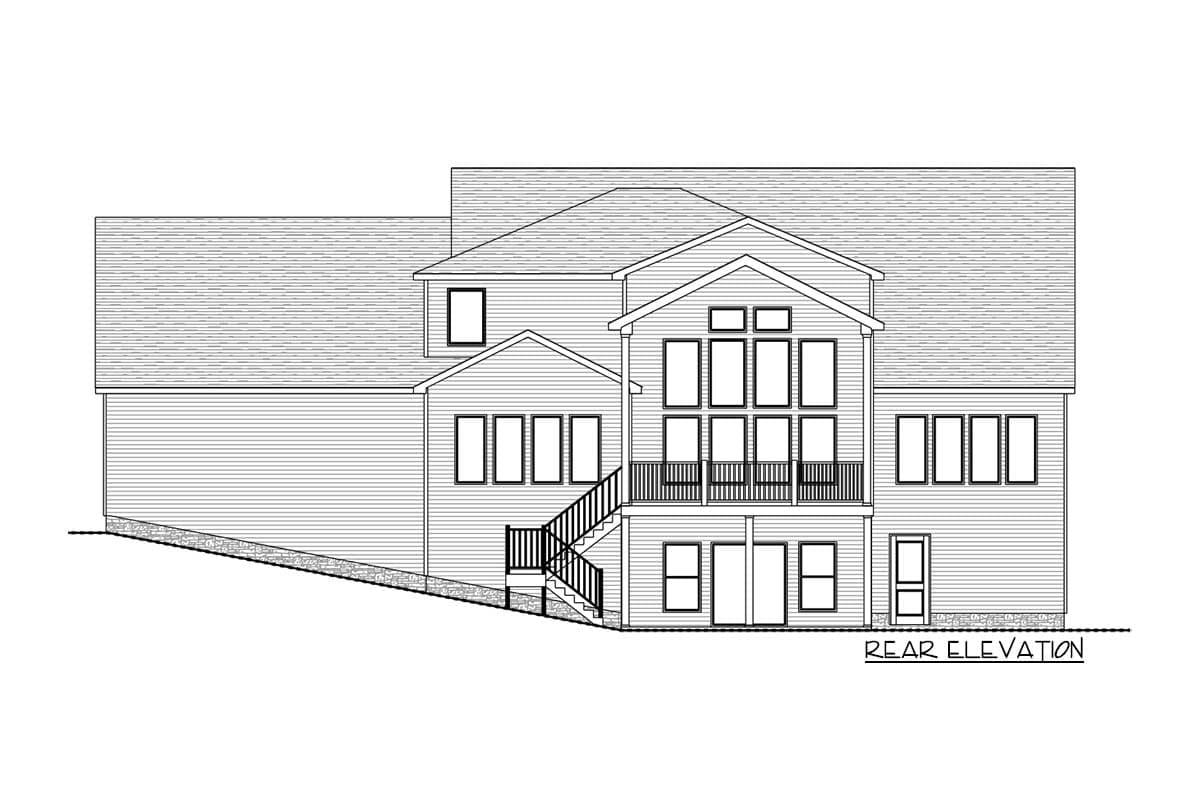

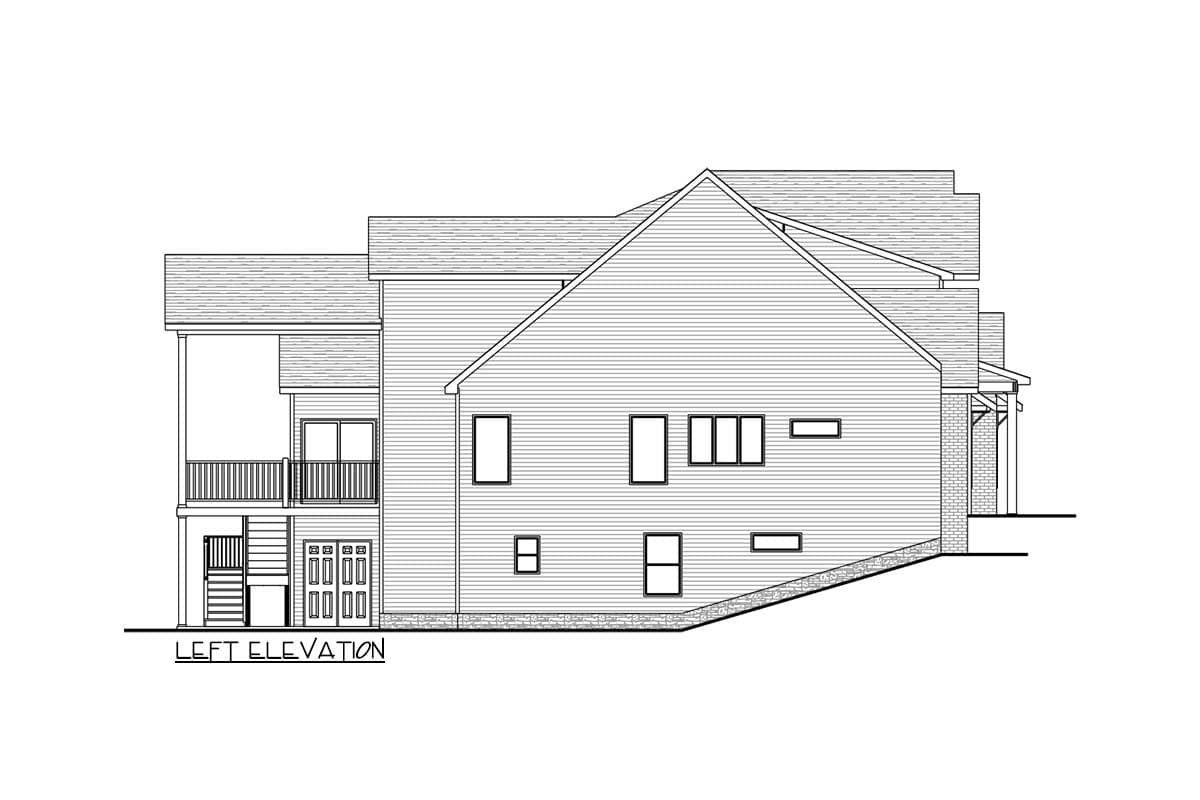

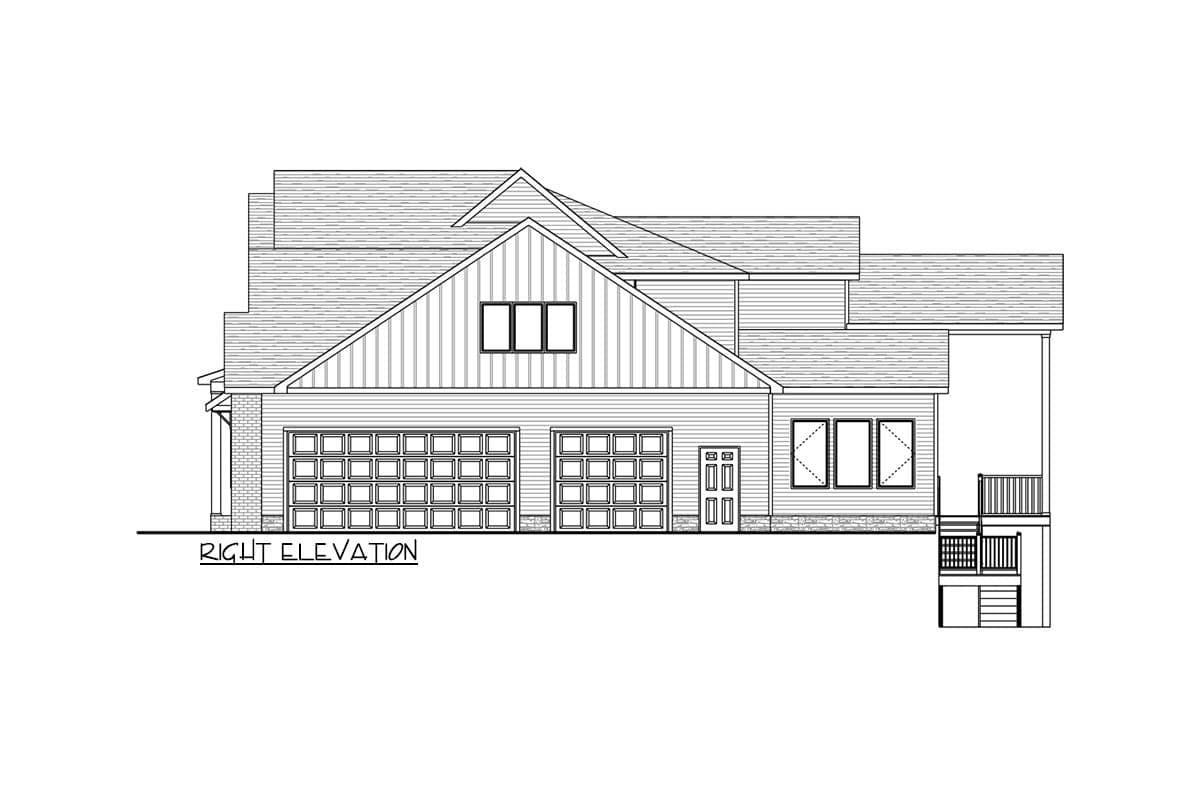

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section
  • Span charts and other misc details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

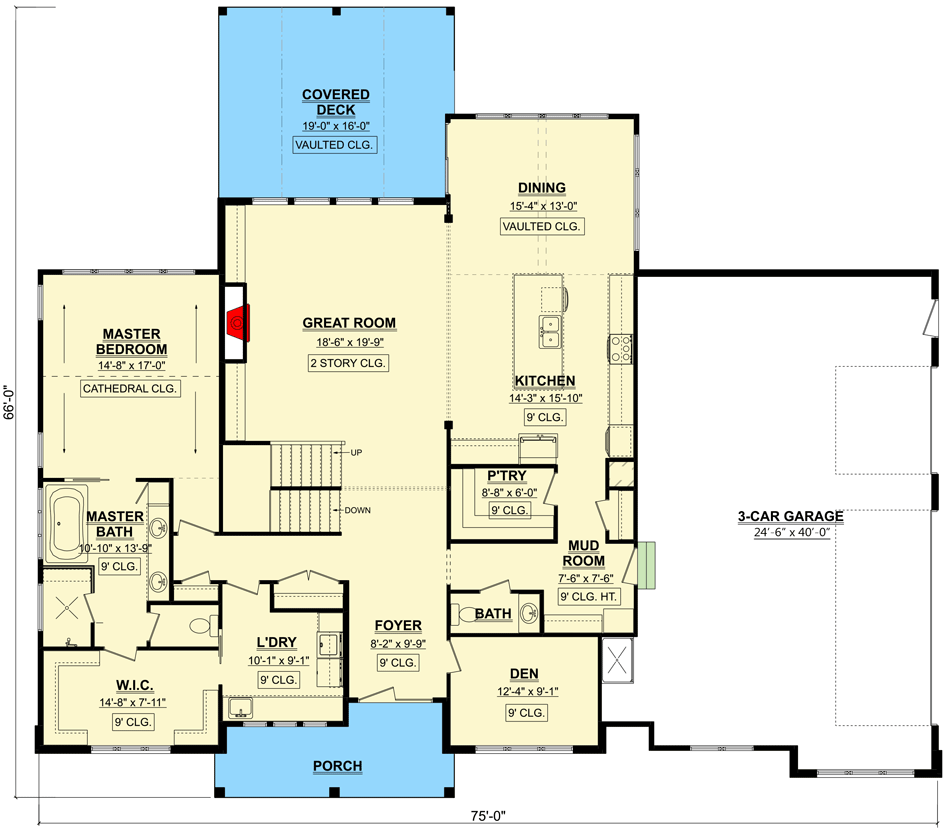

New American Home Plan with Two Story Great Room and a 3-Car Garage - 911017JVD floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

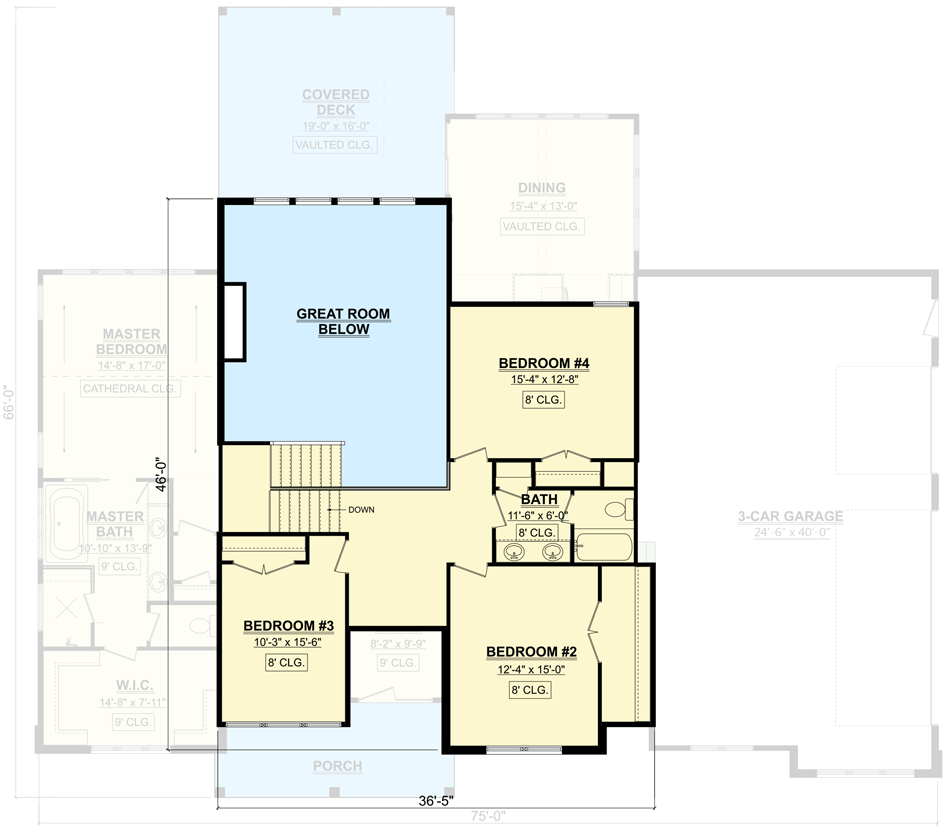

New American Home Plan with Two Story Great Room and a 3-Car Garage - 911017JVD floor plan - 2nd Floor

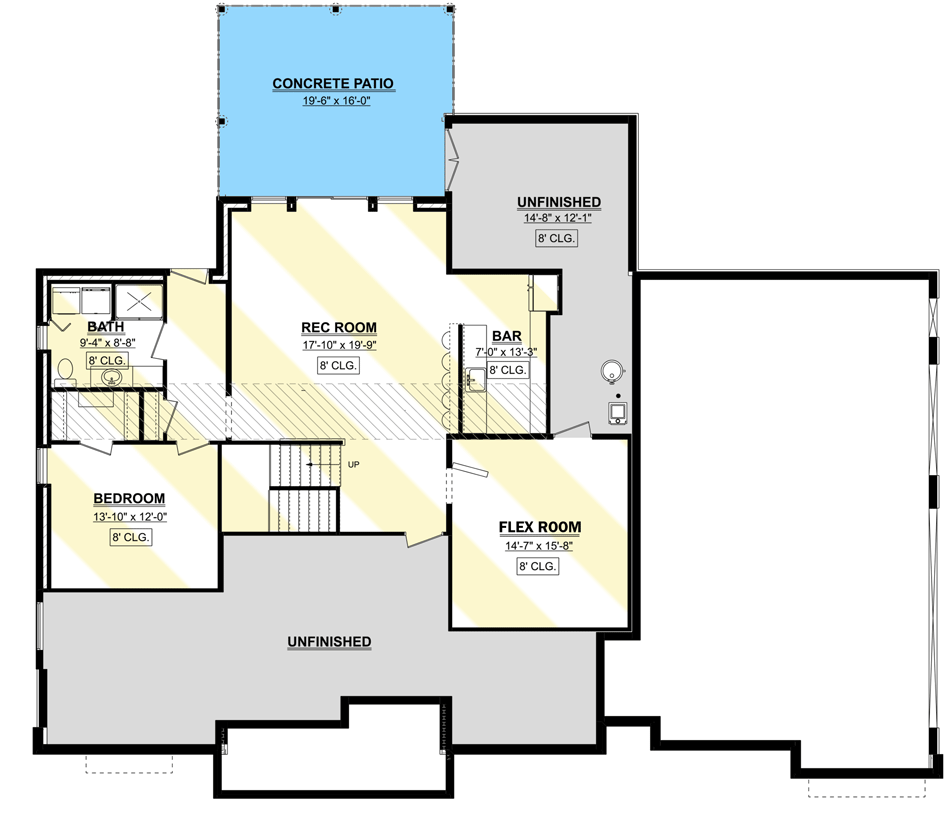

Optionally Finished Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
New American Home Plan with Two Story Great Room and a 3-Car Garage - 911017JVD floor plan - Optionally Finished Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,112 sq. ft.
  • 1st Floor: 2,237 sq. ft.
  • 2nd Floor: 874 sq. ft.
  • Deck: 310 sq. ft.
  • Porch, Front: 231 sq. ft.
  • Optional Lower Level: 2,954 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement, Daylight, Walkout
  • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 75' 0"
  • Depth: 66' 0"
  • Max ridge height: 29' 0"

Garage

  • Type: Attached
  • Area: 1053 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Stick And Truss

Architectural Style

Special features

New American Home Plan with Two Story Great Room and a 3-Car Garage

  • 3,112

    Heated s.f.

  • 4-5

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,395
  • 5 Sets + PDF $1,645
  • PDF - Unlimited Build $1,895
  • CAD - Unlimited Build $2,195
  • View all purchase option online

About This Plan

  • This New American home plan presents a fresh exterior with metal roof accents and a blend of brick and vertical siding.
  • Tall ceilings and a grand fireplace make the great room live up to its name, while an oversized opening to the eat-in kitchen brings the family together.
  • The homeowner will appreciate the simplicity of one-level living with the main-floor master bedroom that boasts a generous walk-in closet with natural light and access to the laundry room.
  • Three family bedrooms consume the second level, and the option to finish the walkout basement expands the possibilities for the future.
  • Other notable features include a quiet den off the foyer, mudroom, walk-in pantry, and covered deck.

Floor Plans

  • Main Level

  • 2nd Floor

  • Optionally Finished Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,112 sq. ft.
  • 1st Floor: 2,237 sq. ft.
  • 2nd Floor: 874 sq. ft.
  • Deck: 310 sq. ft.
  • Porch, Front: 231 sq. ft.
  • Optional Lower Level: 2,954 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement, Daylight, Walkout
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 75' 0"
  • Depth: 66' 0"
  • Max ridge height: 29' 0"

Garage

  • Type: Attached
  • Area: 1053 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick And Truss
Plan 911017JVD
View this and more for this plan by visiting www.architechtecturaldesigns.com/911017JVD
|
