Plan 52472WM

New American House Duplex House Plan with Split Bedrooms

Heated S.F.
2,560
Units
2
Width
Depth

Floor Plan

Plan 52472WM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 52472WM

M-F 9am-5pm EST |

1-203-761-8500

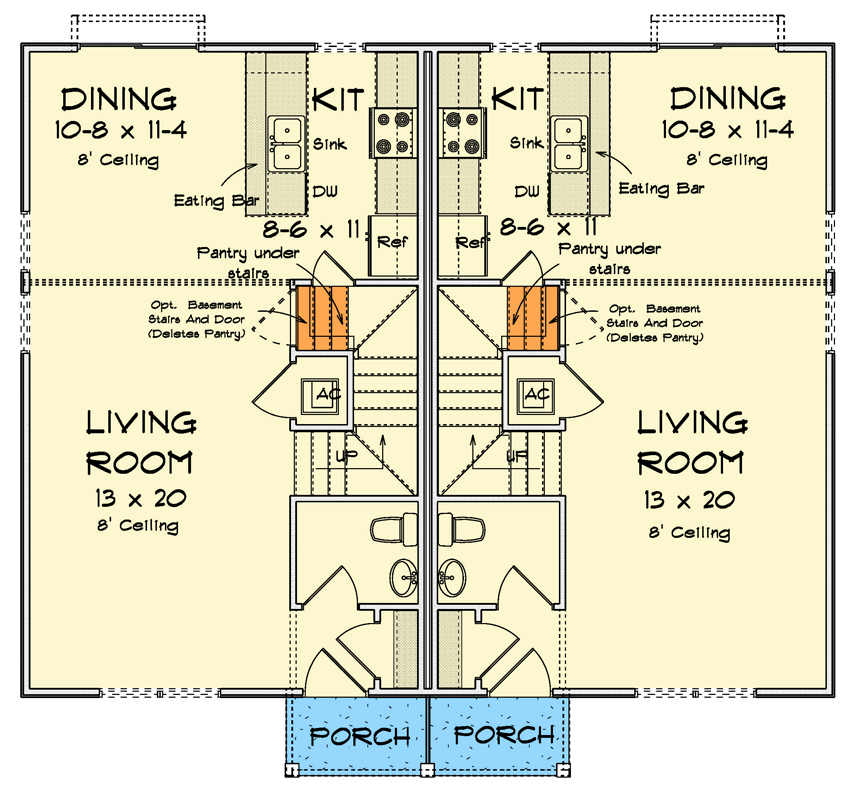

Main Level

Plan 52472WM: New American House Duplex House Plan with Split Bedrooms - Floor Plan - Main Level - New American, Traditional

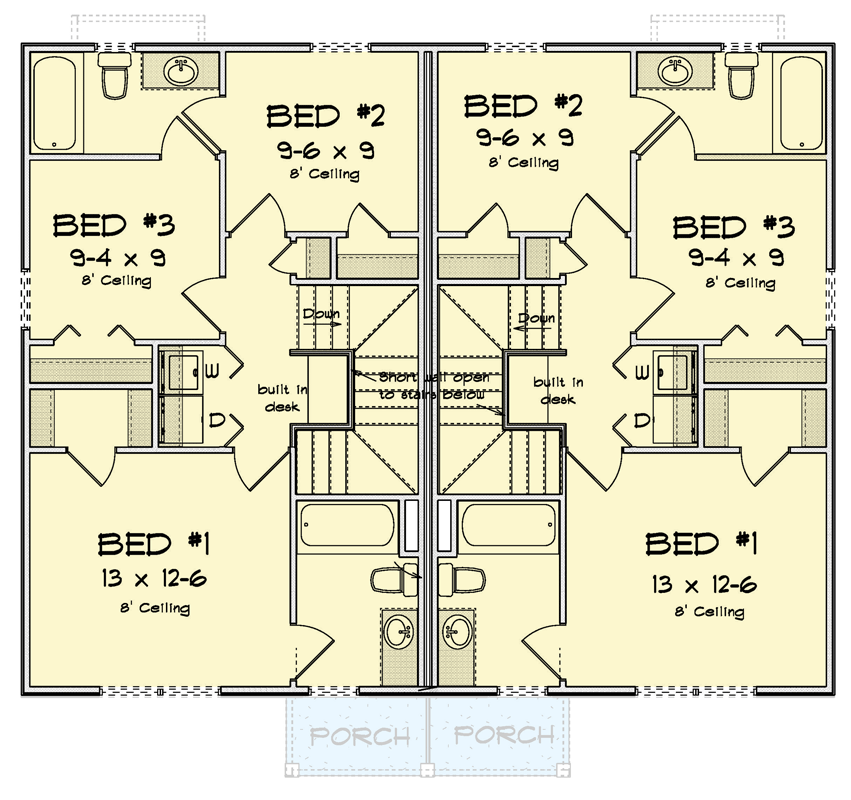

2nd Floor

Plan 52472WM: New American House Duplex House Plan with Split Bedrooms - Floor Plan - 2nd Floor - New American, Traditional

Plan Details

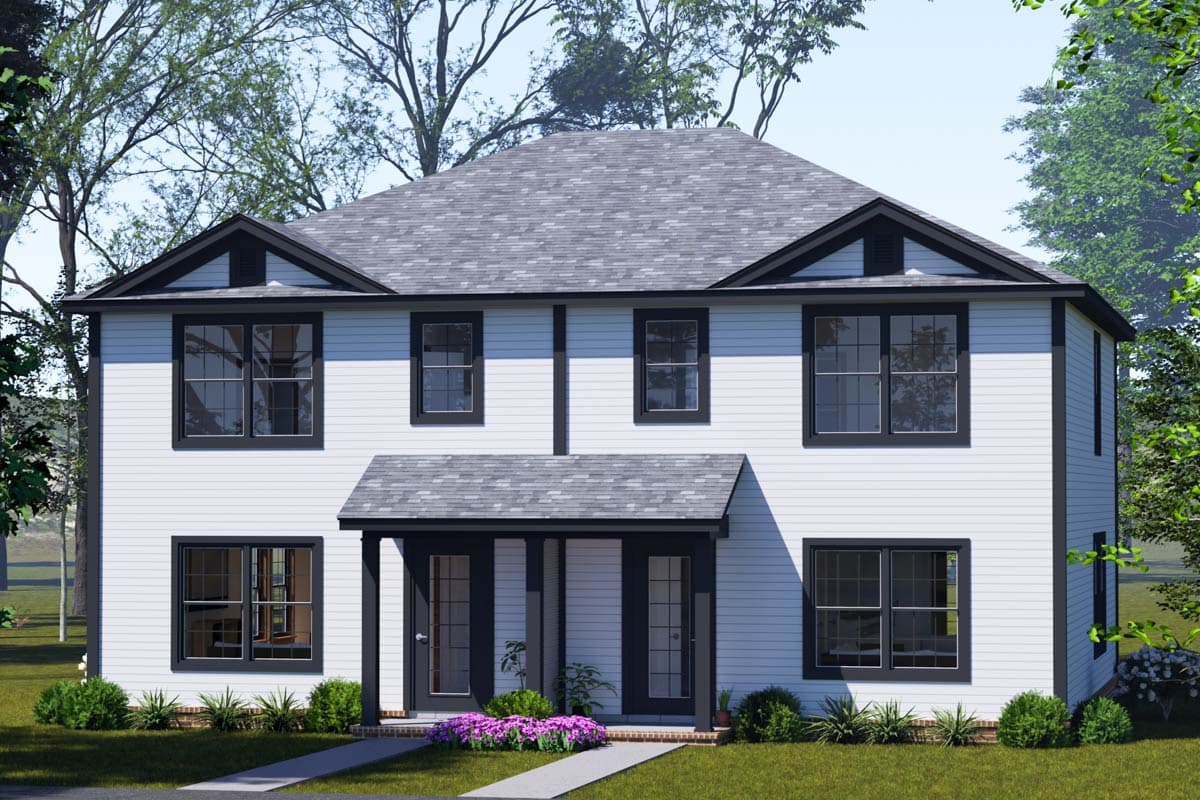

  • This charming New American duplex house plan offers a generous 2,560 sq. ft. of heated living space, featuring a total of 6 bedrooms, 4 full bathrooms, and 2 half bathrooms, all wrapped in a classic white siding with contrasting black trim.
  • Step through one of the two inviting covered front porches into your private entryway, where each unit immediately opens into a bright, open-concept living area designed for both relaxation and everyday life.

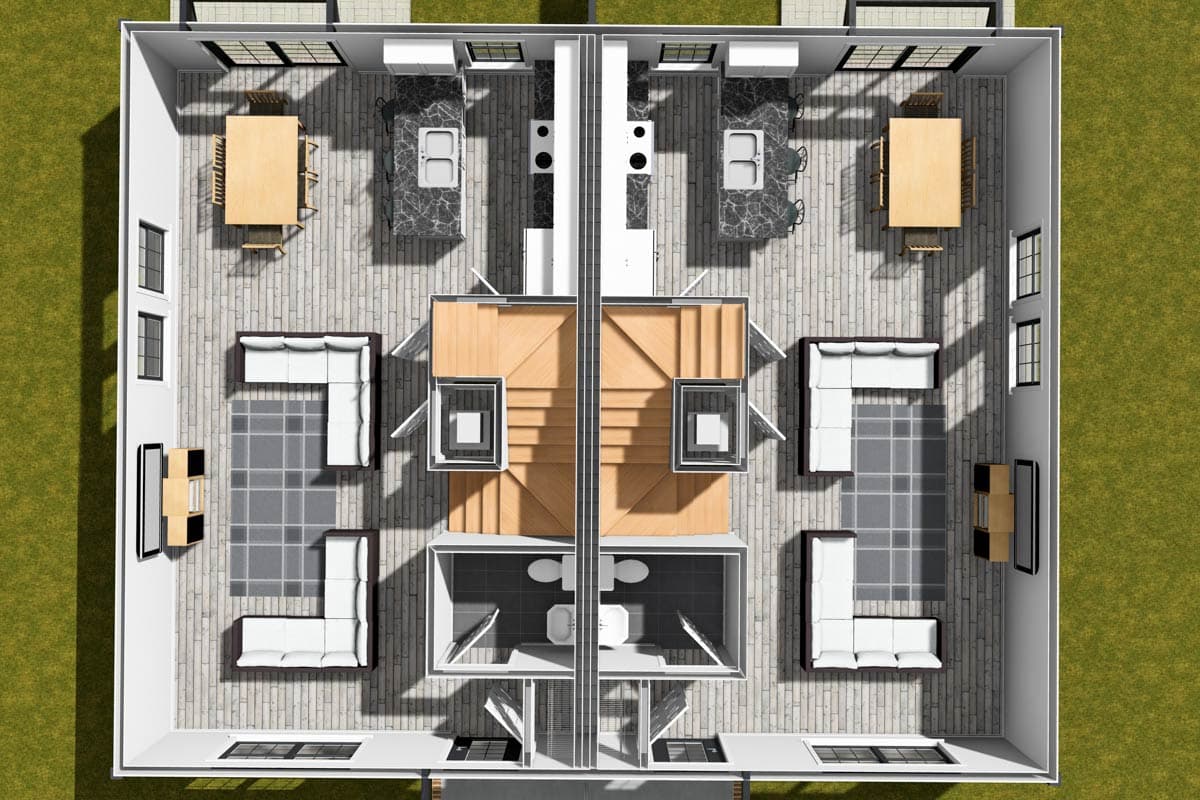

  • The main floor of each unit flows seamlessly from the spacious living room into an open dining area, complete with an efficient kitchen featuring an eating bar perfect for casual meals and a conveniently tucked-away pantry under the stairs.

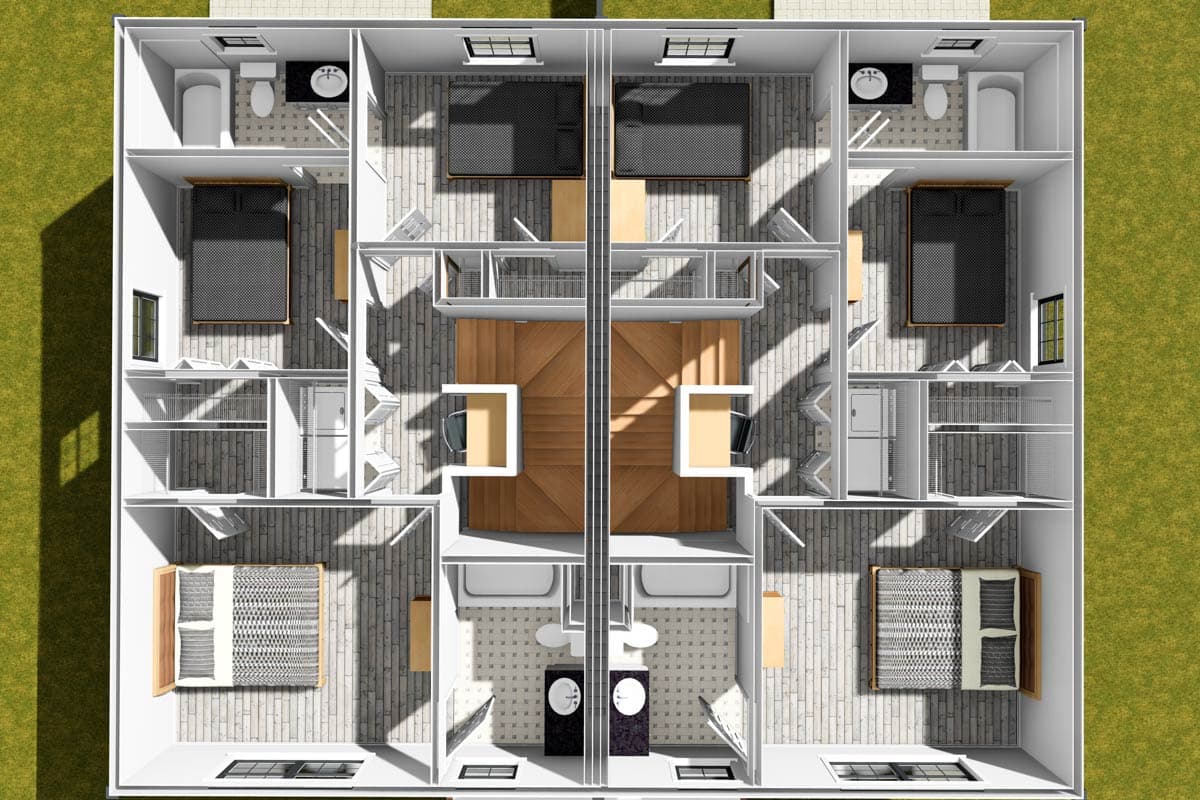

  • Upstairs, each unit hosts three private bedrooms, including a primary suite (Bed #1) offering a tranquil retreat, thoughtfully separated from the two additional bedrooms (Bed #2 and #3) which share a well-appointed hall bathroom.
  • Each unit is designed for comfortable living, providing individual spaces that can be personalized to suit various needs, from a cozy breakfast nook for morning coffee to quiet corners for reading or study.
  • Two welcoming covered porches grace the front facade, providing charming outdoor spaces perfect for greeting guests or enjoying a quiet moment outdoors.
  • This versatile plan offers the option for a full basement foundation, providing significant potential for future expansion or additional personalized living spaces.
Unit A
Heated Area
1,280Sq. Ft.
640 Sq. Ft. 1st
640 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Dimensions
20'width
36'depth
25'height
Unfinished Areas
28 Sq. Ft. Porch, Front
Unit B
Heated Area
1,280Sq. Ft.
640 Sq. Ft. 1st
640 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Dimensions
20'width
36'depth
25'height
Unfinished Areas
28 Sq. Ft. Porch, Front

What's Included

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,560 sq. ft.

1st Floor

1,280 sq. ft.

2nd Floor

1,280 sq. ft.

Porch, Combined

56 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

36' 0"

Max Ridge Height

25' 6"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

New American

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Upstairs

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

2,560 sq. ft.

1st Floor

1,280 sq. ft.

2nd Floor

1,280 sq. ft.

Porch, Combined

56 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

36' 0"

Max Ridge Height

25' 6"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

New American

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Upstairs

Master Suite - Upstairs
