New American House Plan for your Mountain or Lake View Lot - 2399 Sq Ft

Plan 267042SPK

  • 2,399

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • This 3-bed New American house plan gives you 2,399 square feet of heated living with expansion to an optionally finished walkout basement (adds 2,298 sq. ft. of heated space) making this home a great choice for your mountain or lake view lot.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

  • Exterior Elevations, Roof plan
  • Floor plan
  • Foundation plan
  • Typical details, building section
  • Notes and specifications
The following details are NOT included in the plans:
  • Electrical Plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

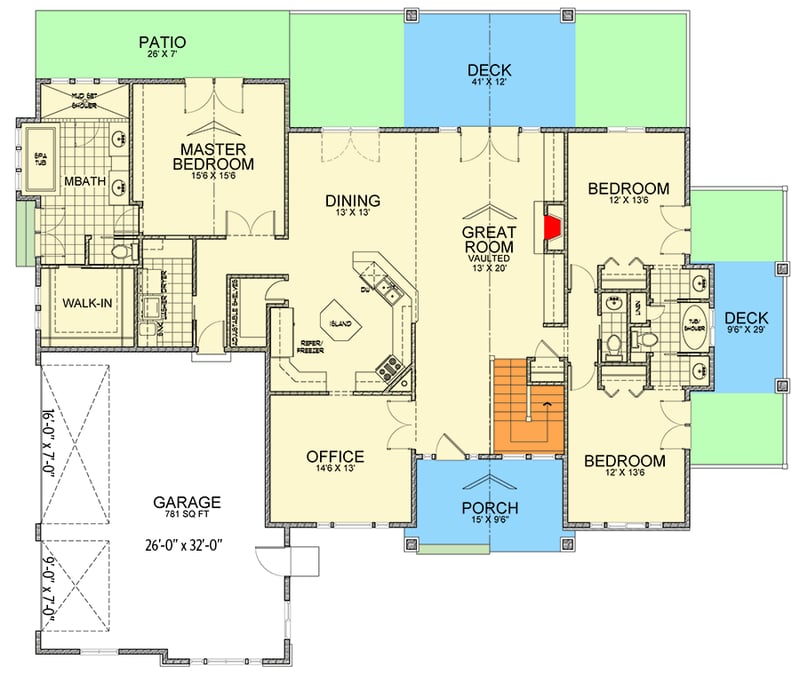

New American House Plan for your Mountain or Lake View Lot - 2399 Sq Ft - 267042SPK floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
New American House Plan for your Mountain or Lake View Lot - 2399 Sq Ft - 267042SPK floor plan - 2nd Floor

New American House Plan for your Mountain or Lake View Lot - 2399 Sq Ft

  • 2,399

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,399 sq. ft.
  • 1st Floor: 2,399 sq. ft.

Dimensions

  • Width: 79' 0"
  • Depth: 67' 0"
  • Max ridge height: 19' 3"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 781 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" GREAT ROOM 14' 9"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 9 on 12
  • Framing Type: Truss
