Plan 444118GDN New American House Plan with 2-Car Angled Garage and a Bonus Room with Full Bath

2,221 2-4 2 - 3 1-2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

New American House Plan with 2-Car Angled Garage and a Bonus Room with Full Bath

Plan 444118GDN

  • 2,221

    Heated s.f.

  • 2-4

    Beds

  • 2 - 3

    Baths

  • 1-2

    Stories

  • 2

    Cars

  • This New American house plan has an angled 2-car garage, multiple gables with decorative brackets and a rustic covered vaulted entry lending it great curb appeal.
  • A 15'10" cathedral ceiling in the foyer greets you and leads you to the open, welcoming interior. The great room has a 10' coffered ceiling and a fireplace on the right wall. IT is open to the island kitchen that shares a 13'4" cathedral ceiling with the dining room.
  • The master bedroom is a private retreat and offers access to the rear porch (20'4" wide and 10' deep) topped with skylights.
  • The garage enters the home through a drop zone and a spacious utility room, full bathroom, and a pantry are all adjoining.
  • Upstairs, an optional bonus room with full bath gives you 568 square feet of expansion space and makes an ideal guest suite or media room.

1. Cover Sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped

2. Foundation Plan
This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.

3. Detailed Floor Plans
These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.

4. Interior Elevations
The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.

5. Roof Plan
The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.

6. Exterior Elevations
Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.

7. Cross-Section / Wall Section Details
Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.

8. Structural Plan
Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

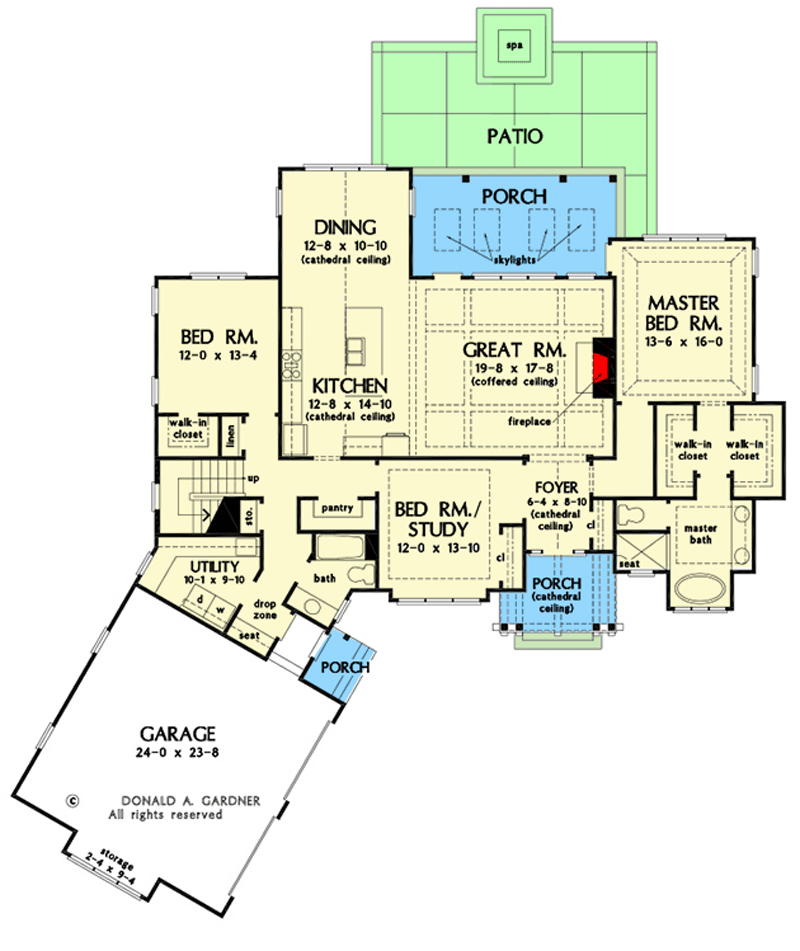

New American House Plan with 2-Car Angled Garage and a Bonus Room with Full Bath - 444118GDN floor plan - Main Level

Bonus Room

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

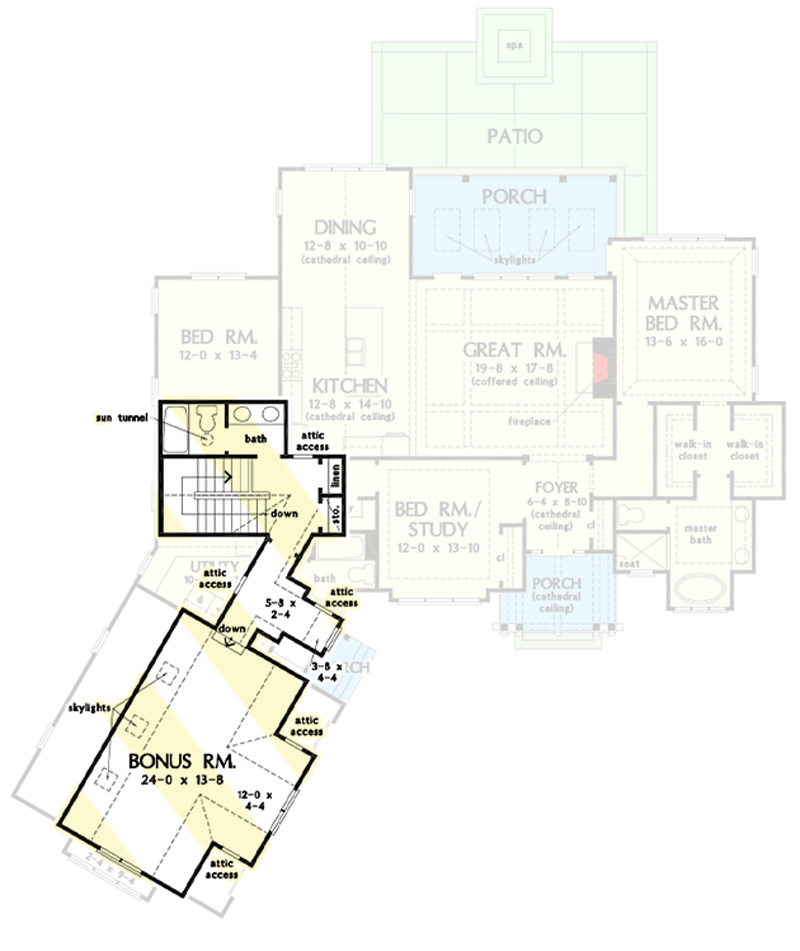

New American House Plan with 2-Car Angled Garage and a Bonus Room with Full Bath - 444118GDN floor plan - Bonus Room

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,221 sq. ft.
  • 1st Floor: 2,221 sq. ft.
  • Covered Patio: 424 sq. ft.
  • Porch, Rear: 200 sq. ft.
  • Porch, Front: 101 sq. ft.
  • Bonus: 568 sq. ft.

Beds/Baths

  • Bedrooms: 2, 3, or 4
  • Full bathrooms: 2 or 3

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 77' 2"
  • Depth: 74' 10"
  • Max ridge height: 28' 11"

Garage

  • Type: Attached
  • Area: 640 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

Special features

New American House Plan with 2-Car Angled Garage and a Bonus Room with Full Bath

  • 2,221

    Heated s.f.

  • 2-4

    Beds

  • 2 - 3

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set - Digital $1,255
  • PDF - Single-Build $1,455
  • 5 Sets + PDF $1,705
  • CAD Unlimited + PDF $2,910
  • View all purchase option online

About This Plan

  • This New American house plan has an angled 2-car garage, multiple gables with decorative brackets and a rustic covered vaulted entry lending it great curb appeal.
  • A 15'10" cathedral ceiling in the foyer greets you and leads you to the open, welcoming interior. The great room has a 10' coffered ceiling and a fireplace on the right wall. IT is open to the island kitchen that shares a 13'4" cathedral ceiling with the dining room.
  • The master bedroom is a private retreat and offers access to the rear porch (20'4" wide and 10' deep) topped with skylights.
  • The garage enters the home through a drop zone and a spacious utility room, full bathroom, and a pantry are all adjoining.
  • Upstairs, an optional bonus room with full bath gives you 568 square feet of expansion space and makes an ideal guest suite or media room.

Floor Plans

  • Main Level

  • Bonus Room

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,221 sq. ft.
  • 1st Floor: 2,221 sq. ft.
  • Covered Patio: 424 sq. ft.
  • Porch, Rear: 200 sq. ft.
  • Porch, Front: 101 sq. ft.
  • Bonus: 568 sq. ft.

Beds/Baths

  • Bedrooms: 2, 3, or 4
  • Full bathrooms: 2 or 3

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 77' 2"
  • Depth: 74' 10"
  • Max ridge height: 28' 11"

Garage

  • Type: Attached
  • Area: 640 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Stick
